Car Measuring Device PCE-CT 27FN

Order no.: PCE-CT 27FN

GTIN (EAN): 4250348714770

Accessory

Coating Thickness Gauge Spare Probe SE-CT 27FN

£ 89.00

ISO Calibration Certificate for Coating Thickness Meter

£ 154.00

Description

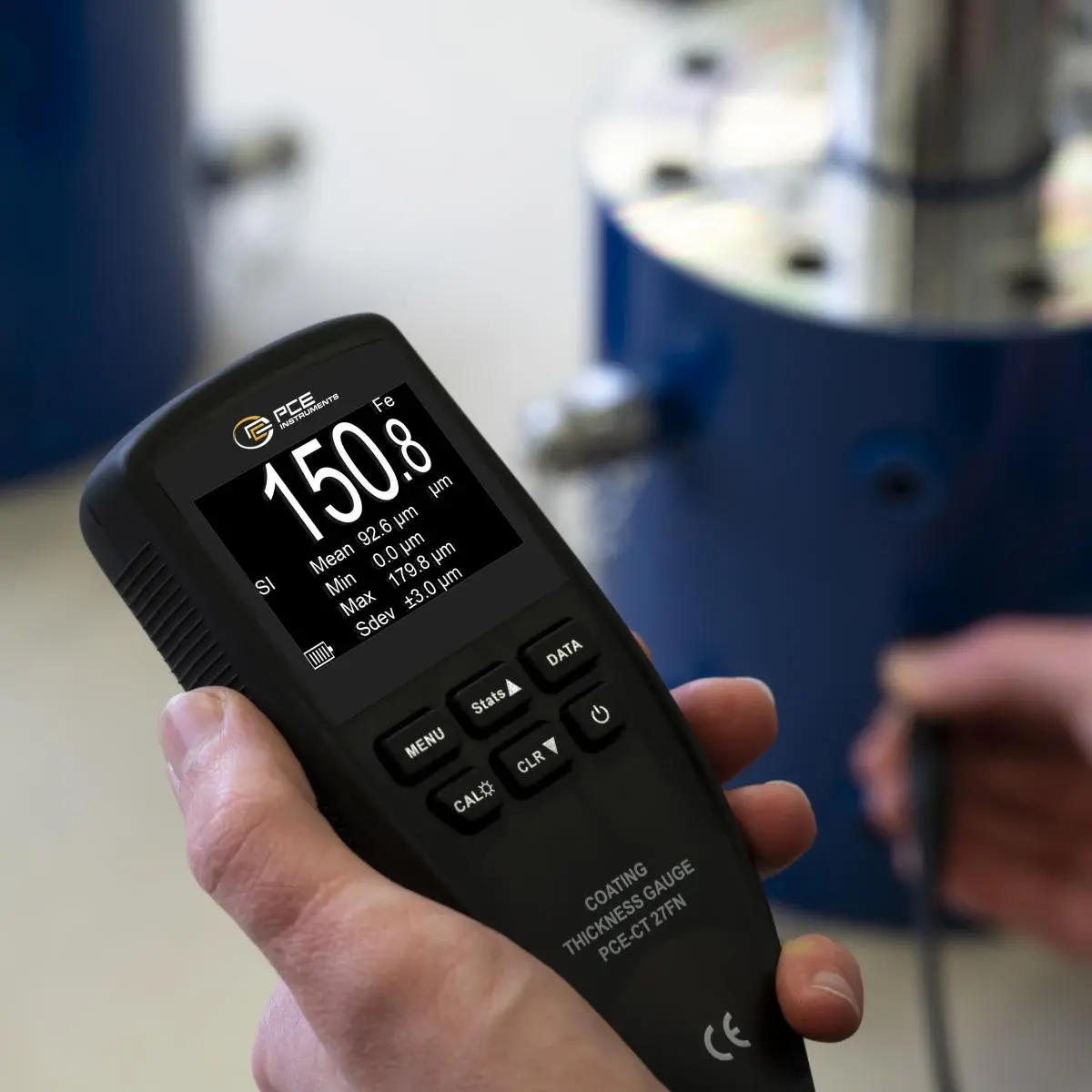

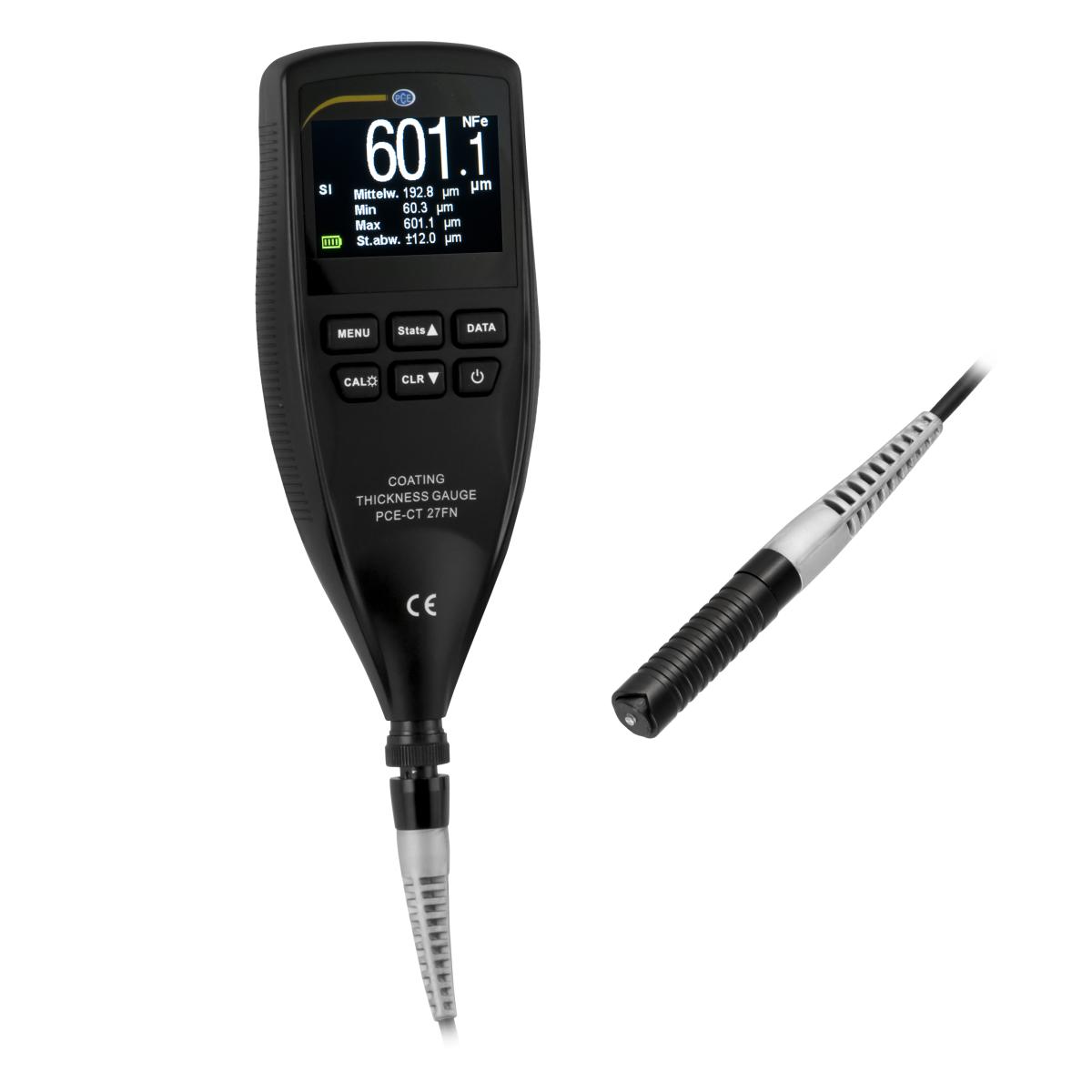

PCE-CT 27FN Car Measuring Device

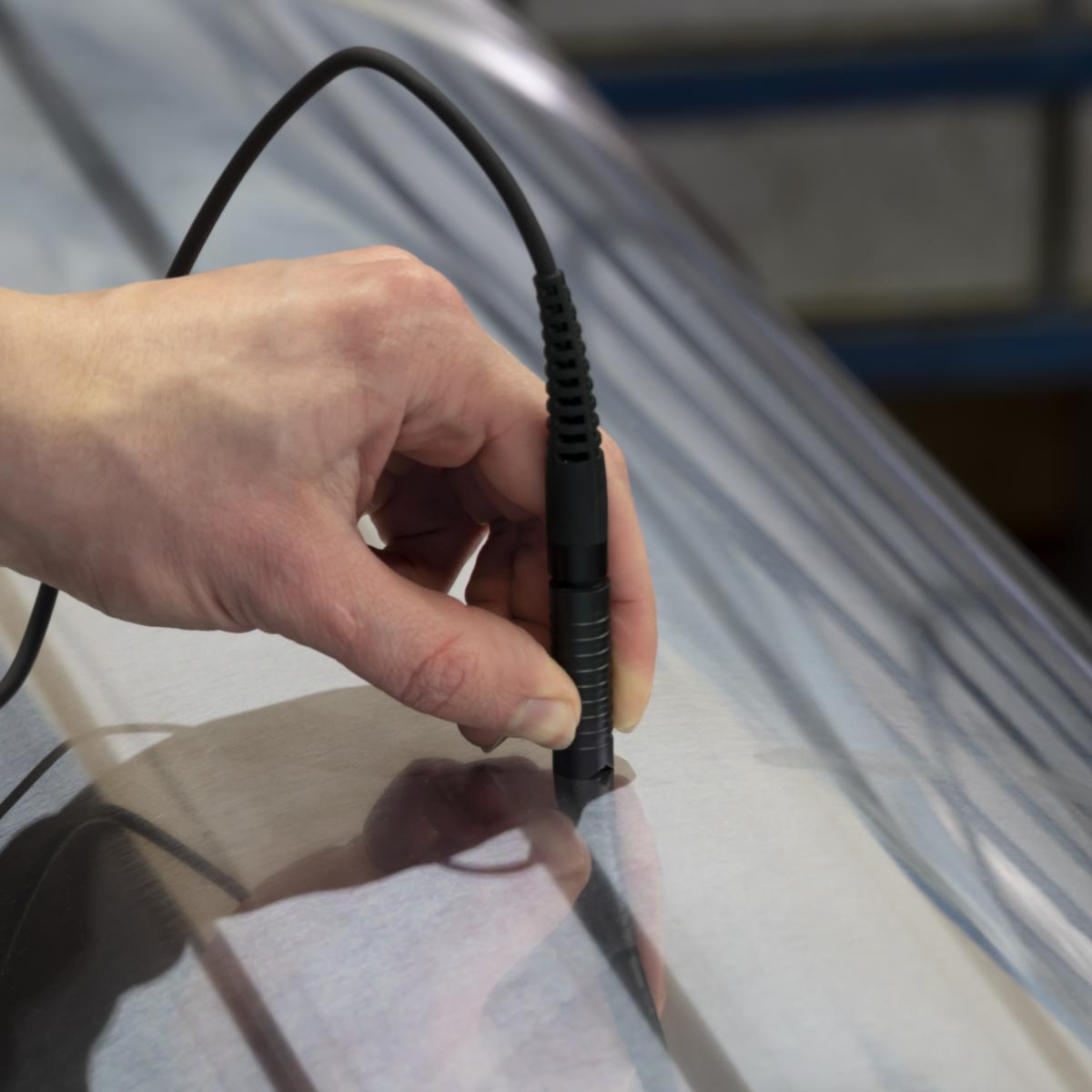

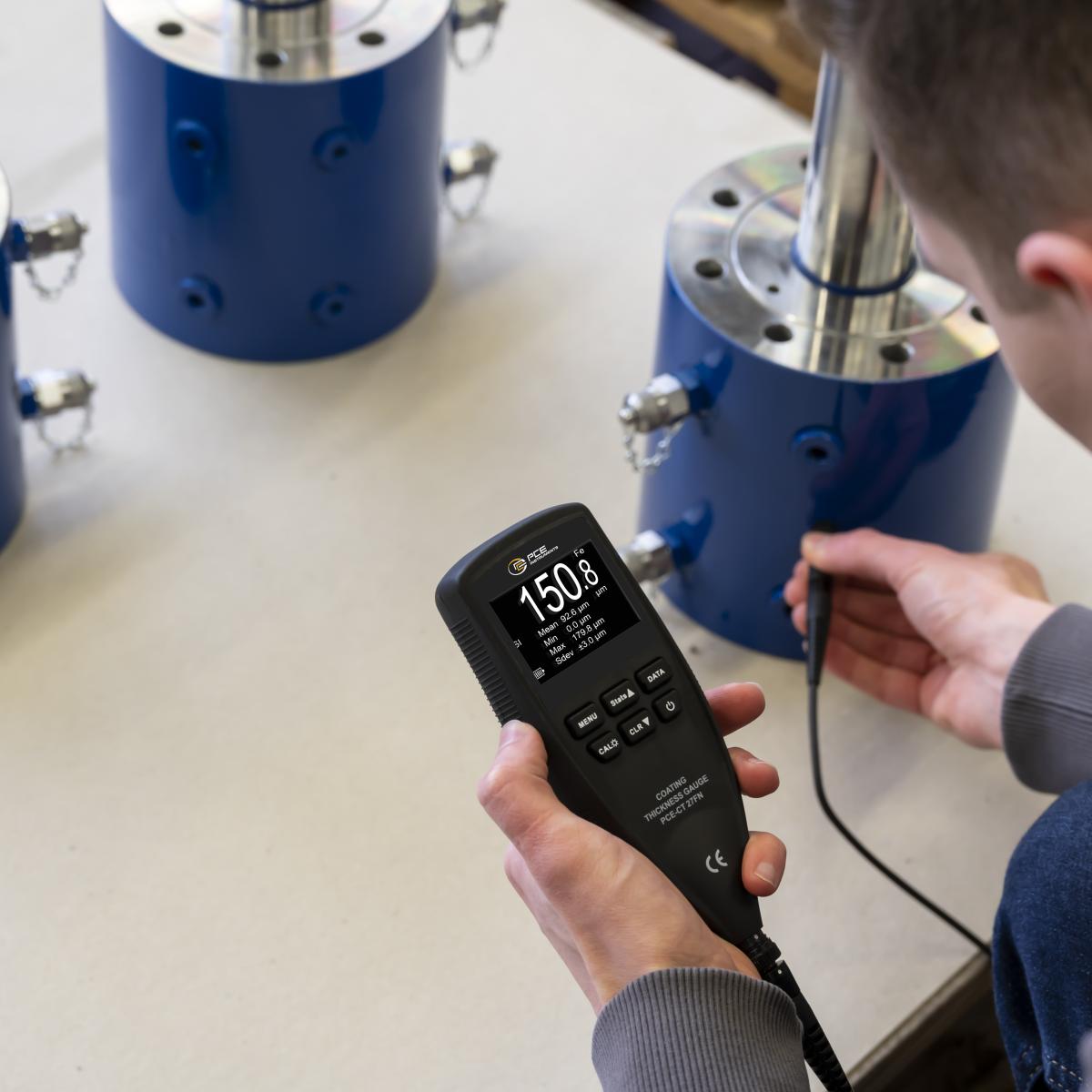

PCE-CT 27FN is a Car Measuring Device that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Car Measuring Device is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.

Highlights

- Features an external sensor with v-groove for reliable measurement on small cylindrical parts
- Includes a set of calibration standards for ferrous and non-ferrous metals
- Comes with a set of plastic shims or foils

Specification

Measuring range	0 ... 1250 µm / 0 ... 50 mils
Accuracy	± (2% + 2 µm) / ± (2% + 0.1 mils)
Resolution	0.1 µm / 0.1 mil
Operating temperatures	-10 ... 50°C / 14 ... 122°F
Power	2 x 1.5V batteries
Dimensions	166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in
Weight	0.180 kg / < 1 lb

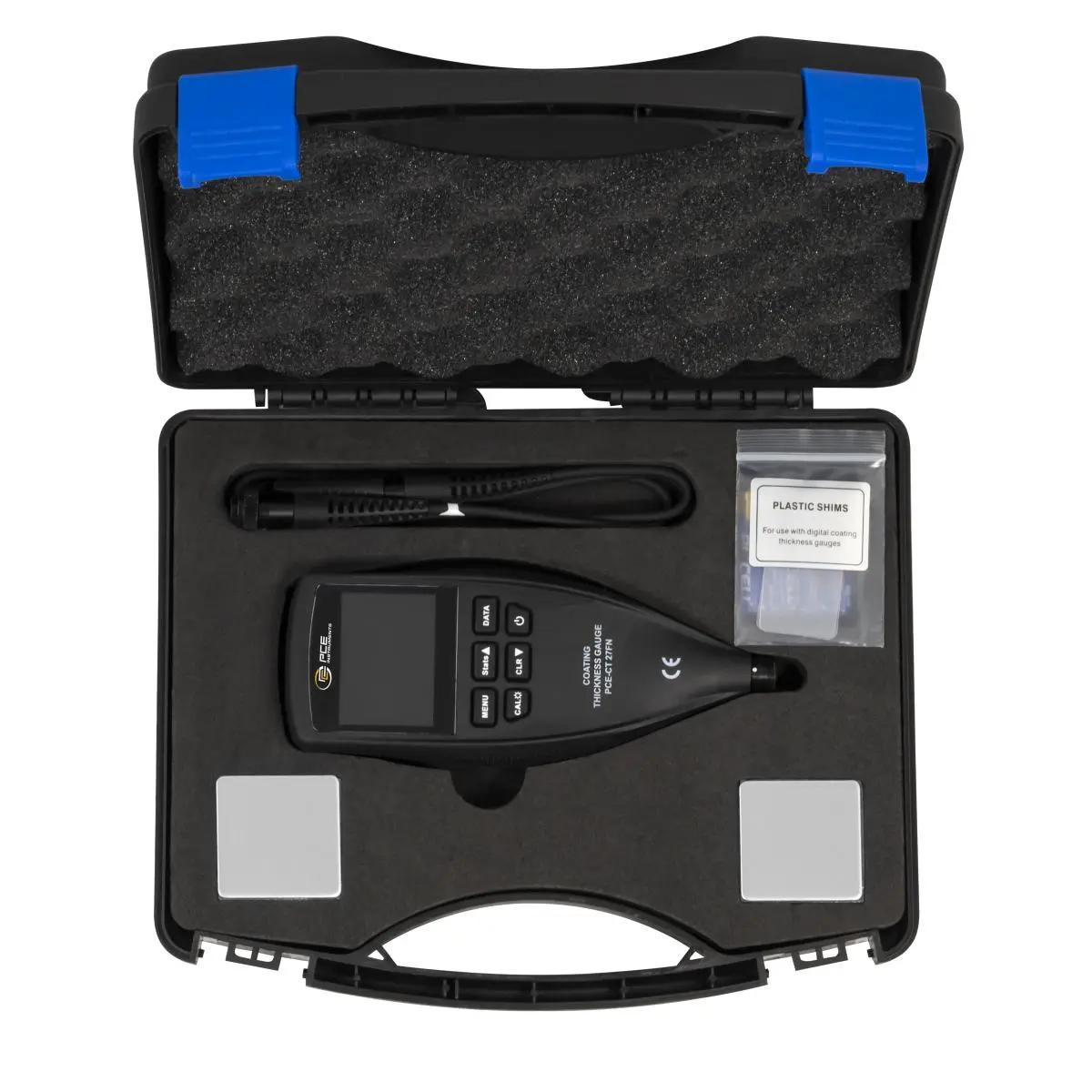

Delivery Scope

1 x PCE-CT 27FN Car Measuring Device
1 x Set of calibration standards

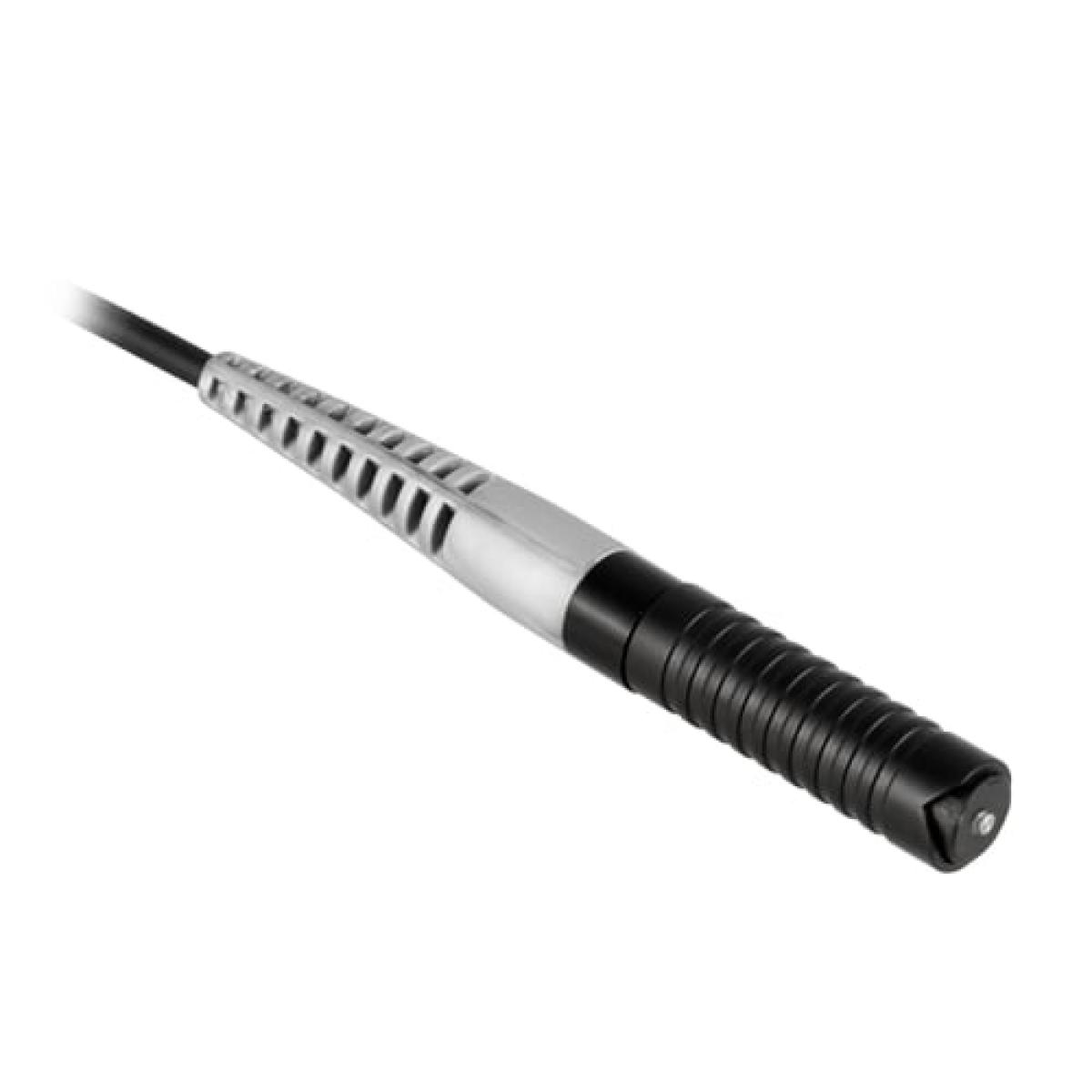

1 x Probe with 1 m / 3.28 ft long cable

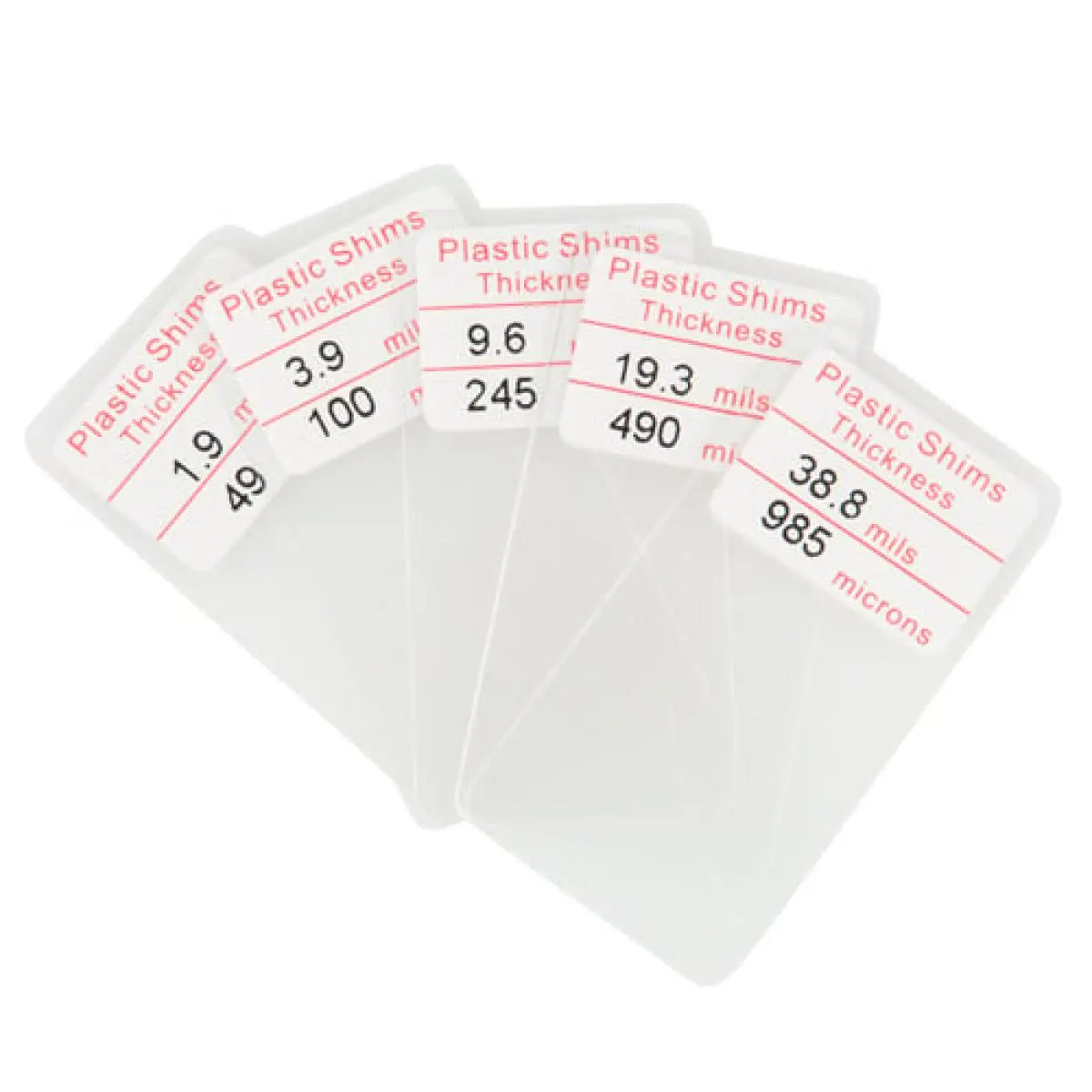

1 x Set of plastic shims
1 x Carrying case
2 x 1.5V batteries
1 x User manual

Downloads

Manual

Datasheet

Video

Video Car Measuring Device PCE-CT 27FN
