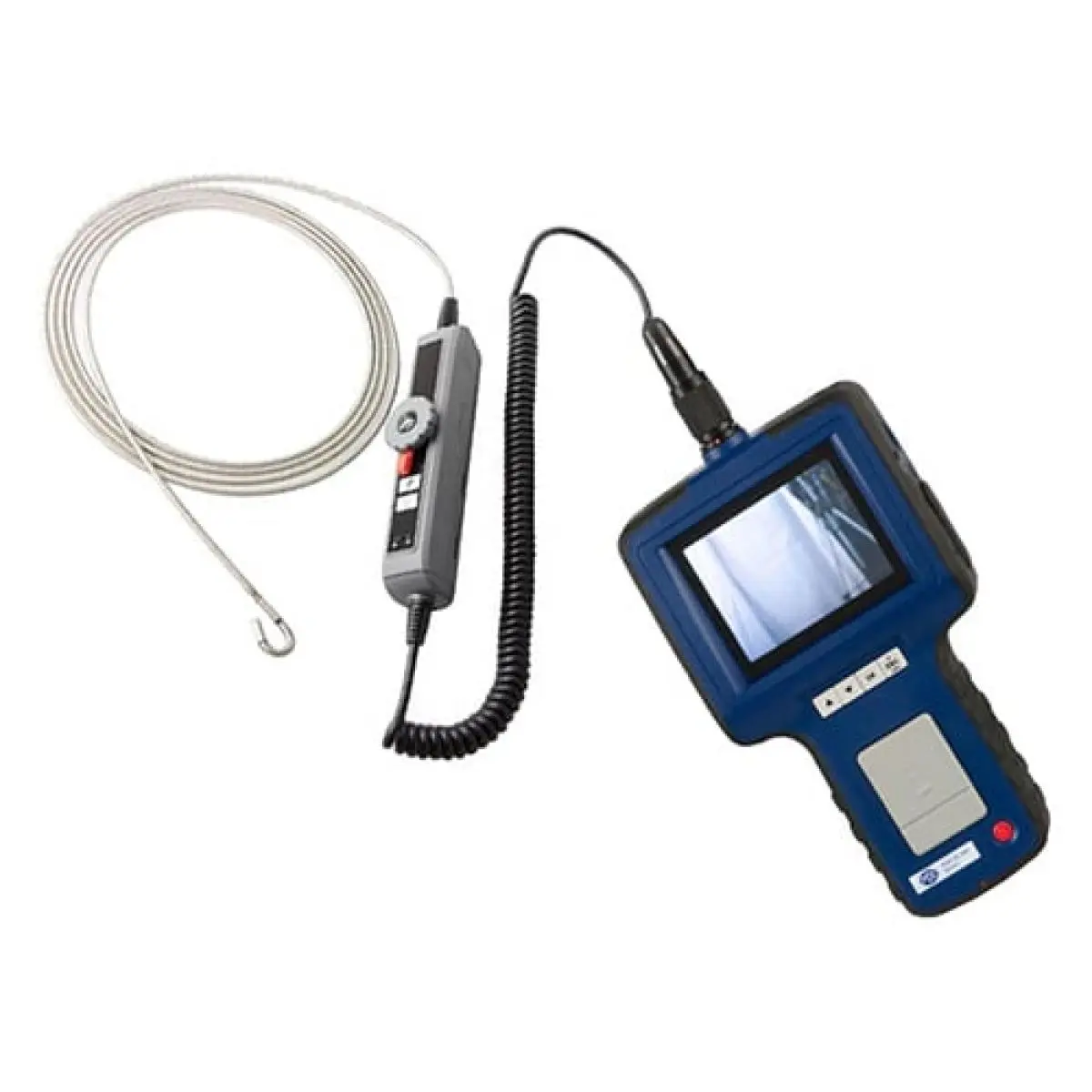

Car Measuring Device PCE-VE 355N3
Two-way articulating inspection camera, industrial endoscope or videoscope with 8 GB SD card memory and small 4.5 mm / 0.18 in diameter cable
The PCE-VE 355N3 is a two-way articulating car measuring device, inspection camera, industrial endoscope or videoscope for the non-destructive inspection (NDI) of small components and hard-to-reach places. The camera head features 5 LED lights with automatic illumination. Pictures and videos are saved to the included 8 GB SD card memory, allowing easy transfer to a PC.
- Flexible 3 m / 9ft 10" cable
- Diameter camera head 4.5mm / 0.18"
- Image capture / Photos and Videos
- 2-way optics
- 8 GB SD memory card (incl.)
- Robust carrying case included
Cable diameter |
4.5 mm / 0.18 in |
Cable length |
3 m / 9.8 ft |
Depth of field |
1.5 ... 10 cm / 0.59 ... 3.94 in |
Field of view |
67° |
| Bending radius | 90 mm / 3.54 in |
| Illumination | 5 LEDs, automatic |
| White balance Image sensor |
Fixed CMOS |
| Picture rate | 30 frames per second (fps) |
| Display |
88.9 mm / 3.5 in TFT LCD monitor |
| Interface | Mini USB 1.1 (AV out / AV in) |
| Storage options | Image or video |
| Storage | 8 GB memory card (can be increased to 32 GB) |
| Compression format | MPEG 4 |
| Picture format | JPEG (640 x 480 pixel resolution) |
| Video output format | NTSC / PAL |
| Video format | ASF (320 x 240) |
| Operation and storage temperature | -10 ... 50°C / 14 ... 122°F |
| Voltage supply | Rechargeable 3.7V lithium-ion battery |
| Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |
| Weight, incl. carrying case | 450 g / 1 lb |
1 x Car Measuring Device PCE-VE 355N3
1 x 8 GB SD card
1 x USB cable
1 x Battery charger
1 x User manual
1 x Carrying case
Please note: Not to be used for medical applications!
