Climate Meter PCE-HT 114-ICA Incl. ISO Calibration Certificate

Order no.: PCE-HT 114-ICA
GTIN (EAN):
£ 262.00
£ 314.40
ISO Calibration
price ex. (VAT / delivery)
PCE-HT 114-ICA
Delivery time: 10 - 14 days

Accessory

External Temperature / Rel. Humidity Sensor PROBE-PCE-HT 11X
External Temperature / Rel. Humidity Sensor PROBE-PCE-HT 11X
£ 35.00

Description

Refrigerator climate meter PCE-HT 114
Refrigerator data logger for temperature and humidity / LCD / 25,920 Data Storage /  Fast reading via USB / Adjustable alarm limits / External sensor

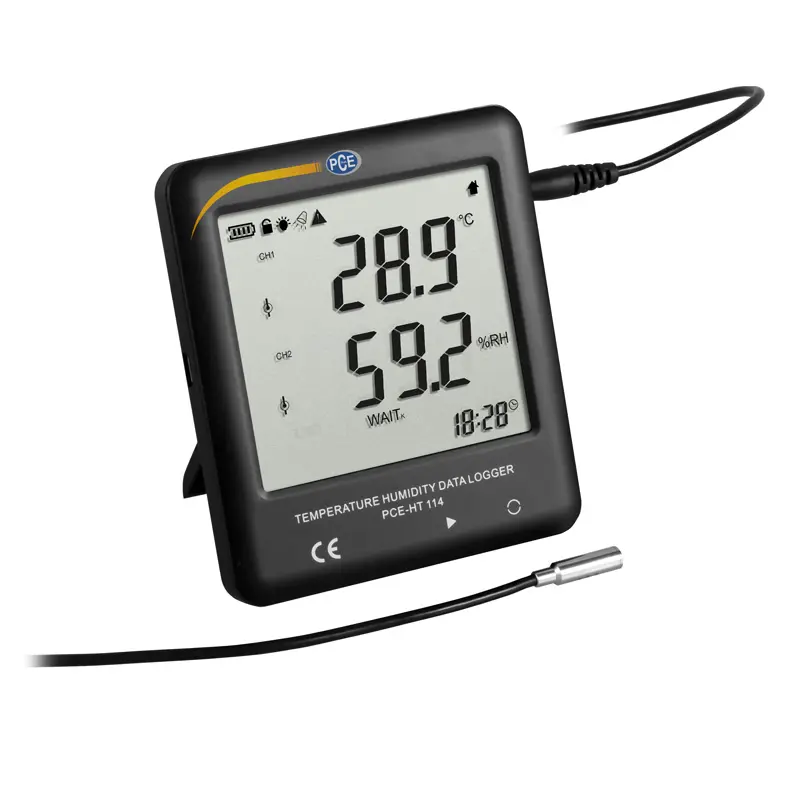

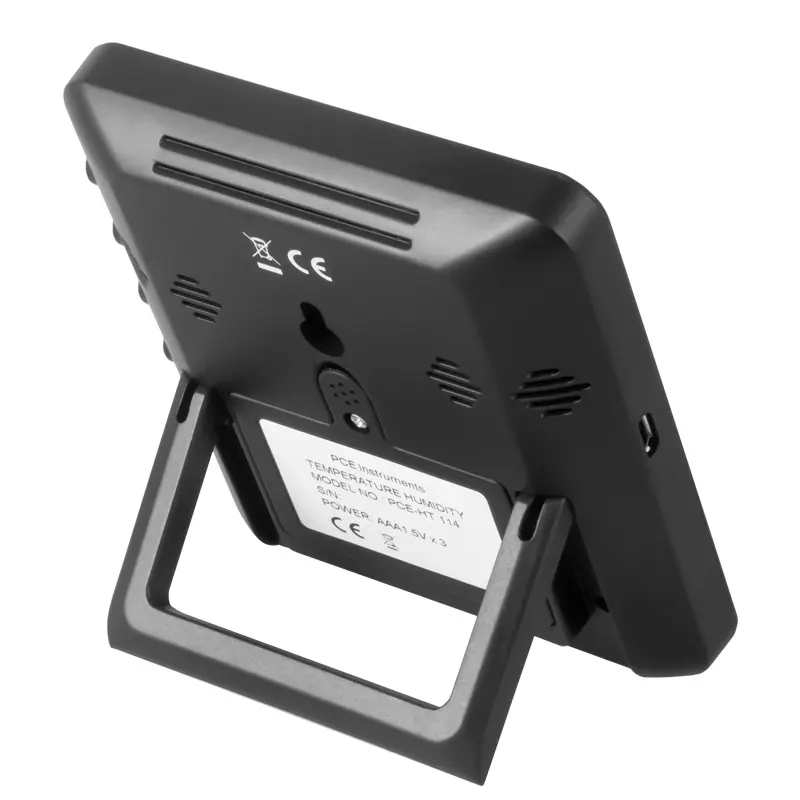

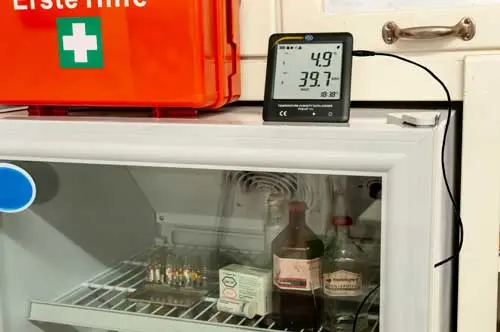

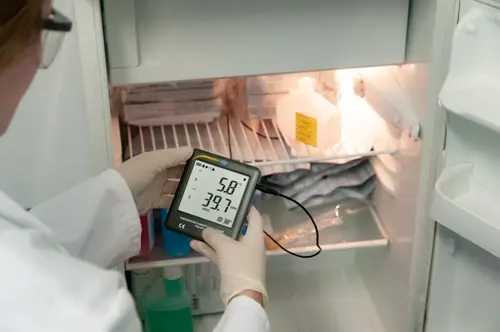

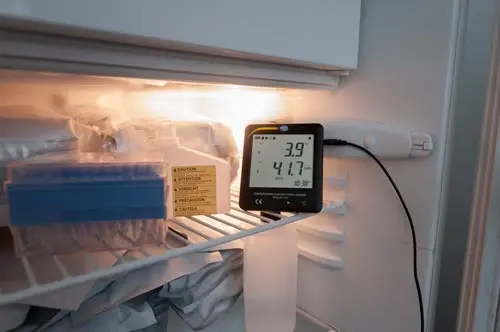

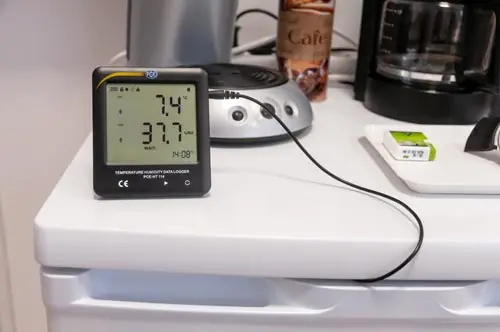

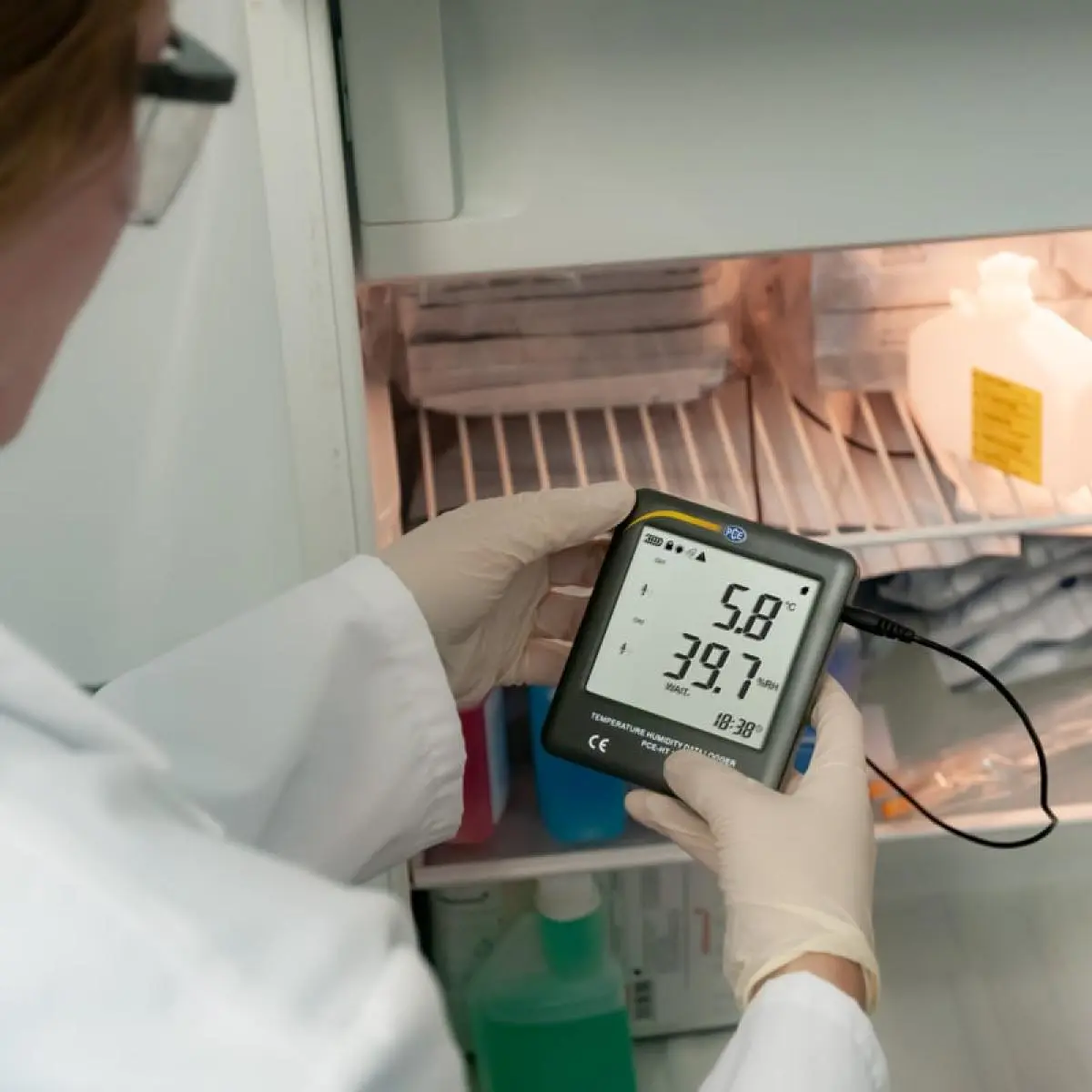

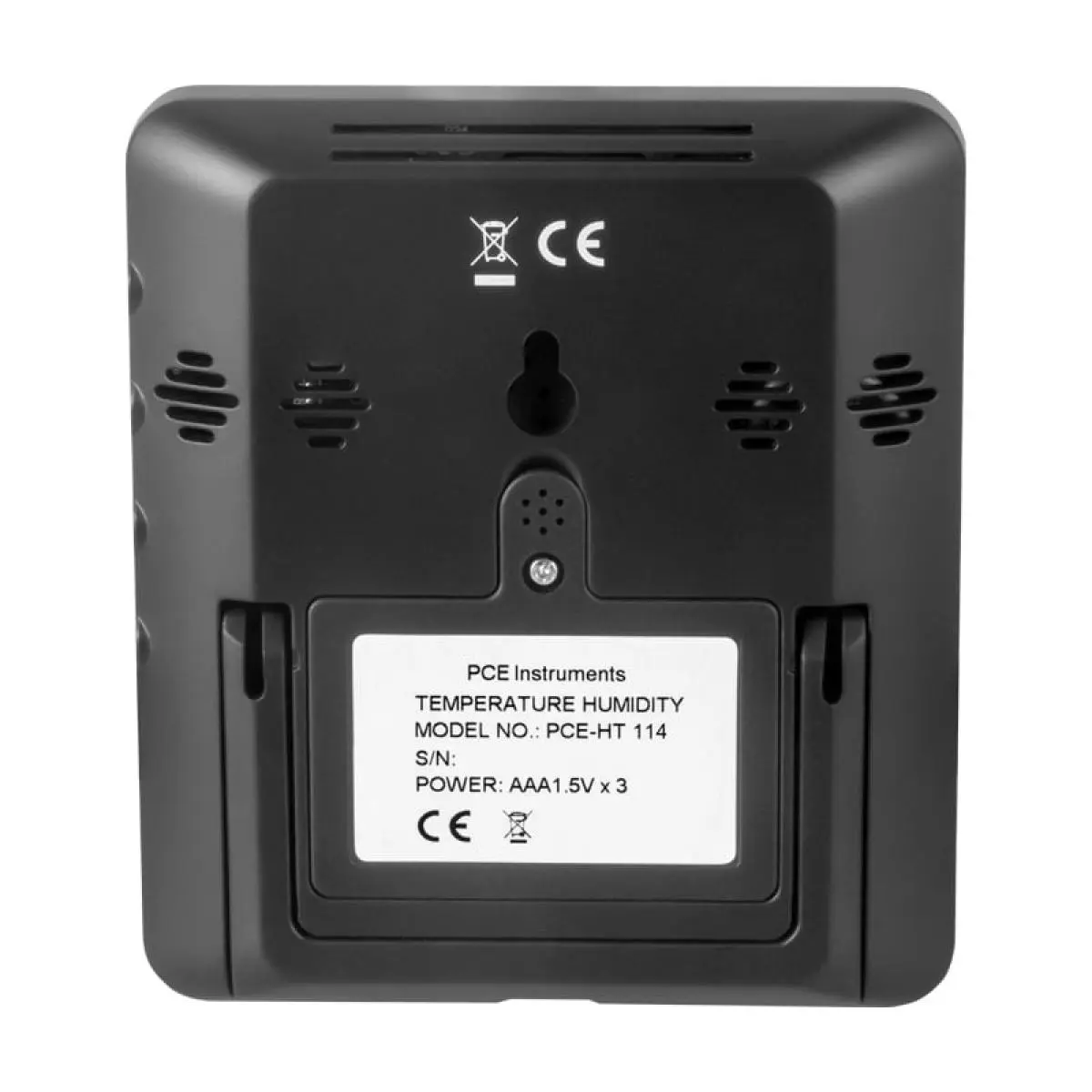

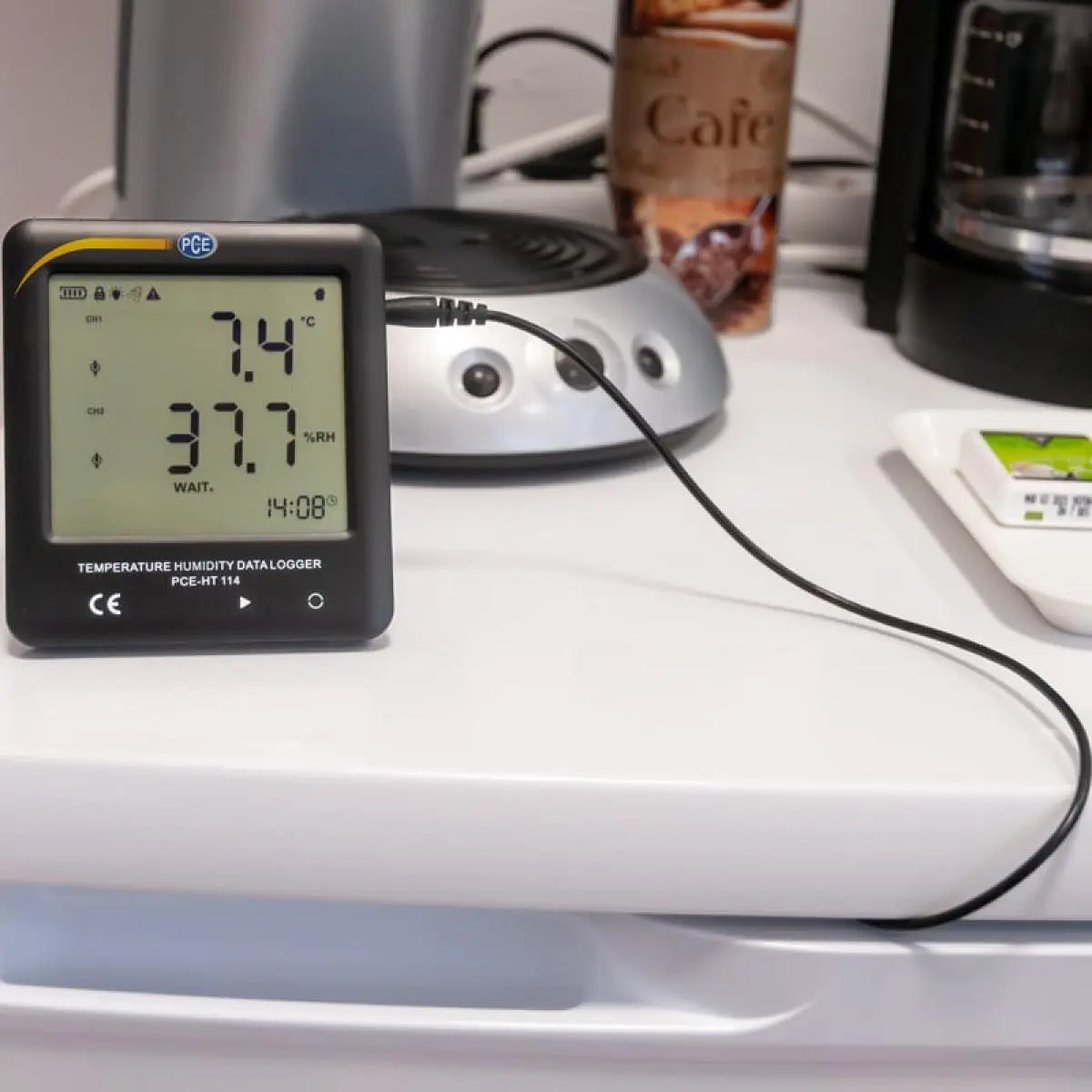

The climate meter PCE-HT 114 has a temperature and humidity sensor on 2 m / 6.6 ft cable. The PCE-HT 114 climate meter records the temperature and humidity in the interior of the refrigerator and simultaneously displays it via the LCD display. The climate meter PCE-HT 114 stores the measured values ​​in a format that is used by the software for analysis as well as in PDF format. In the PDF document that creates the climate meter, a graph showing the course of the measurement is shown. Likewise, an overview of all measured values ​​is displayed directly in the measurement report. The climate meter has a base and a mounting tab on the back. The display can be switched off for battery saver.

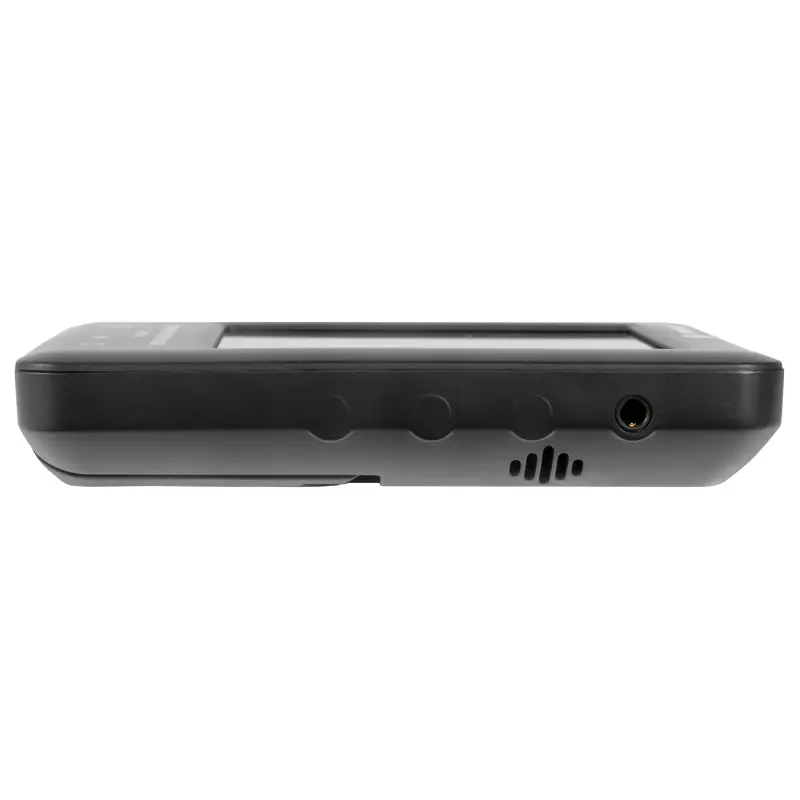

The PCE-HT 114 climate meter can store up to 25,920 readings, which can be evaluated using the software. To connect to a PC, the climate meter has a USB port. The software can also set alarms for high or low temperatures. It is also possible to switch over to the optionally available external sensor via the software.

Highlights

- Temperature and humidity data logger
- LCD display
- Memory for 25,920 readings
- Fast reading via USB
- Adjustable alarm limits
- External sensor
- Incl. ISO calibration certificate

Specification

Measuring function Temperature
Measuring range -40 ... 125°C / -40 ... 257°F (external)
Resolution 0.1°C / 0.18°F
Accuracy ± 0.3°C / 0.54°F (-10 ... 65°C / 14 ... 149°F)
± 0.5°C / 0.9°F (remaining range)

Measuring function Humidity
Measuring range 0 ... 100% rh (external)
Resolution 0.1% RH
Accuracy ± 3% (10% ... 90%)
  ± 4% (remaining area)

Response time 5 min
Storage 25,920 readings
Storage rates 30s, 60s, 2 min, 5 min, 10 min, 15 min, 20 min, 25 min, 30 min, 1 h or individually adjustable
Measuring interval /
refresh rate Display		 5 s
Alarm Adjustable audible alarm
Interface USB
Power supply      3 x 1.5V AAA batteries
5V USB
Battery life Approx. 1 year (without lighting / without alarm)
operating conditions                             -30 ... 65°C / -22 ... 149°F
Storage  conditions -30 ... 65°C / -22 ... 149°F (without battery)
Dimension 96 x 108 x 20 mm / 3.8 x 4.3 x 0.8 in
Weight 120 g / < 1 lb
Degree of protection IP20

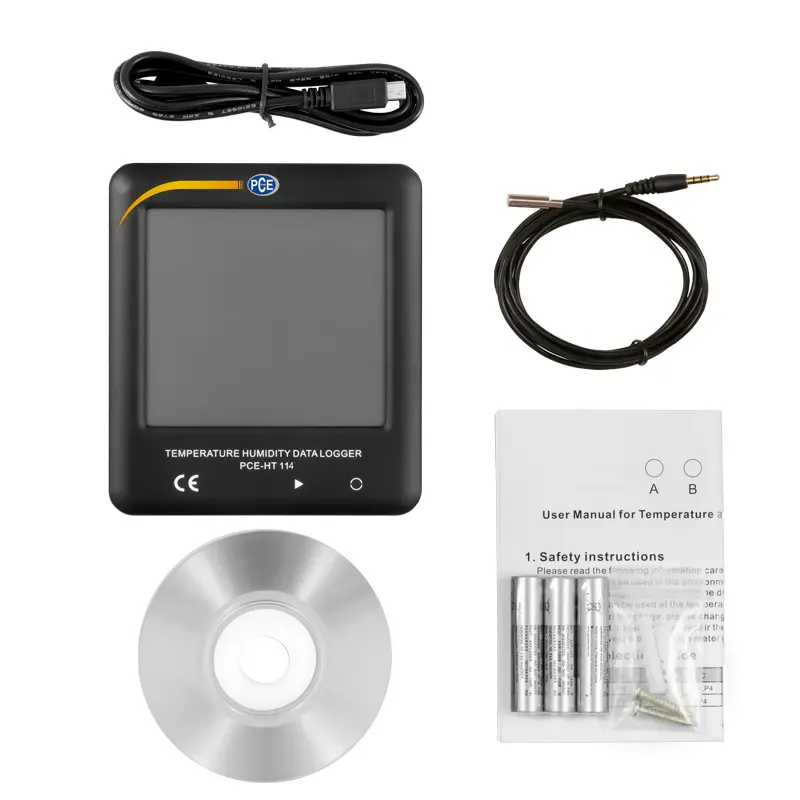

Delivery Scope

1 x Refrigerator climate meter PCE-HT 114
1 x External sensor
3 x 1.5V AAA battery
1 x Micro USB cable
1 x Software on CD
1 x User manual

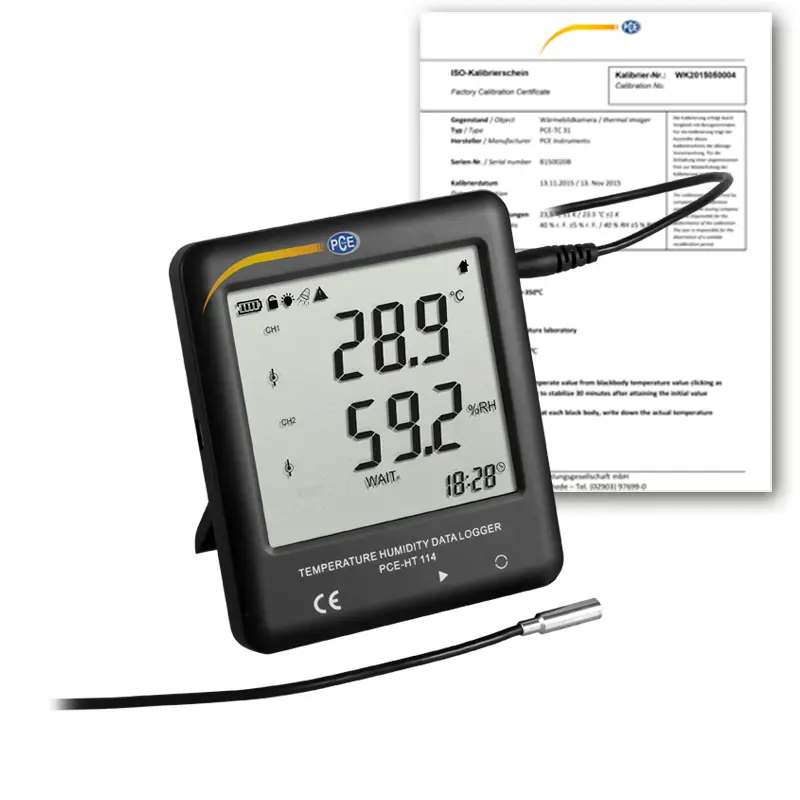

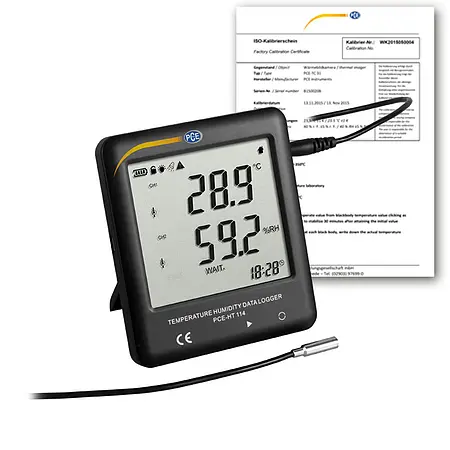

1 x ISO calibration certificate
