Closing Force Measuring Device FM205/20 for automatic window regulators

Order no.: FM205-WI-SY-10-150
GTIN (EAN): 4260650210426
£ 3,045.00
£ 3,654.00
ISO Calibration
price ex. (VAT / delivery)
:
4260650210426
FM205-WI-SY-10-150
Delivery time: min. 4 weeks

Accessory

Upgrade PC evaluation software PinchPilot (wired)
Upgrade PC evaluation software PinchPilot (wired)
£ 165.00
Spacer FM205-WI-SP-25
Spacer FM205-WI-SP-25
Spacer FM205-WI-SP-75
Spacer FM205-WI-SP-75
Spacer FM205-WI-SP-125
Spacer FM205-WI-SP-125
Spacer FM205-WI-SP-175
Spacer FM205-WI-SP-175
Closing force sensor FM205/2-Sensor for automatic window regulators
Closing force sensor FM205-WI-SE-02-050 for automatic window regulators
£ 1,668.00
ISO Calibration
Closing force sensor FM205/5-Sensor for automatic window regulators
Closing force sensor FM205/5-Sensor for automatic window regulators
£ 1,668.00
ISO Calibration
Closing force sensor FM205/20-Sensor for automatic window regulators
Closing force sensor FM205-WI-SE-02-050 for automatic window regulators
£ 1,668.00
ISO Calibration
Closing force sensor FM205/65-Sensor for automatic window regulators
Closing force sensor FM205/65-Sensor for automatic window regulators
£ 1,668.00
ISO Calibration
Extension cable SEB2.2-AC-cable 5.0m
Extension cable SEB2.2-AC-cable 5.0m
£ 92.00
Extension cable SEB2.2-AC-cable 7.5m
Extension cable SEB2.2-AC-cable 7.5m
£ 111.00
DAkkS calibration certificate for closing force measuring device (electronic)
DAkkS calibration certificate for closing force measuring device (electronic)
£ 534.00

Description

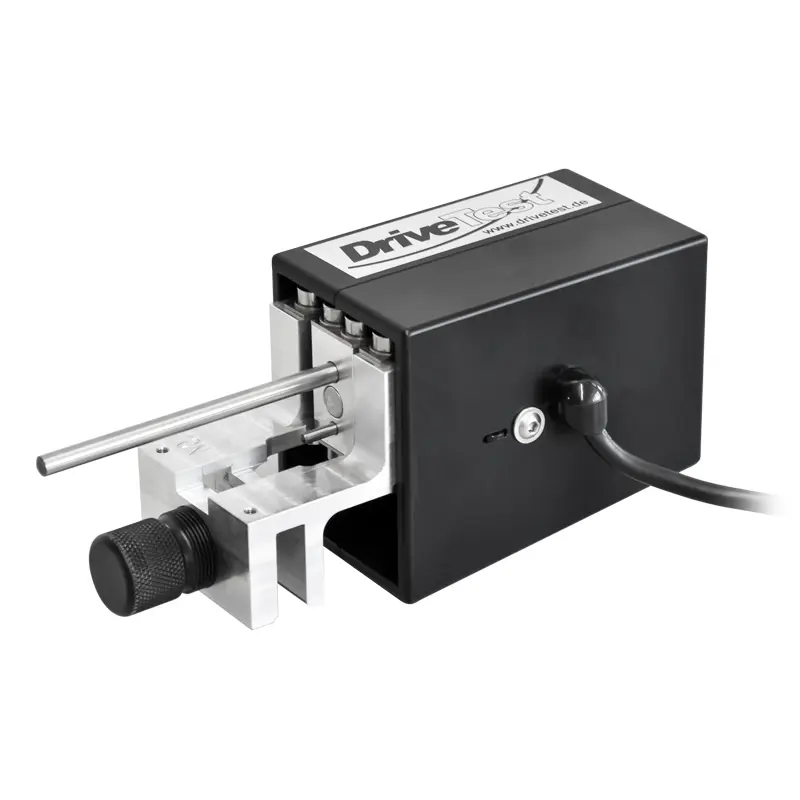

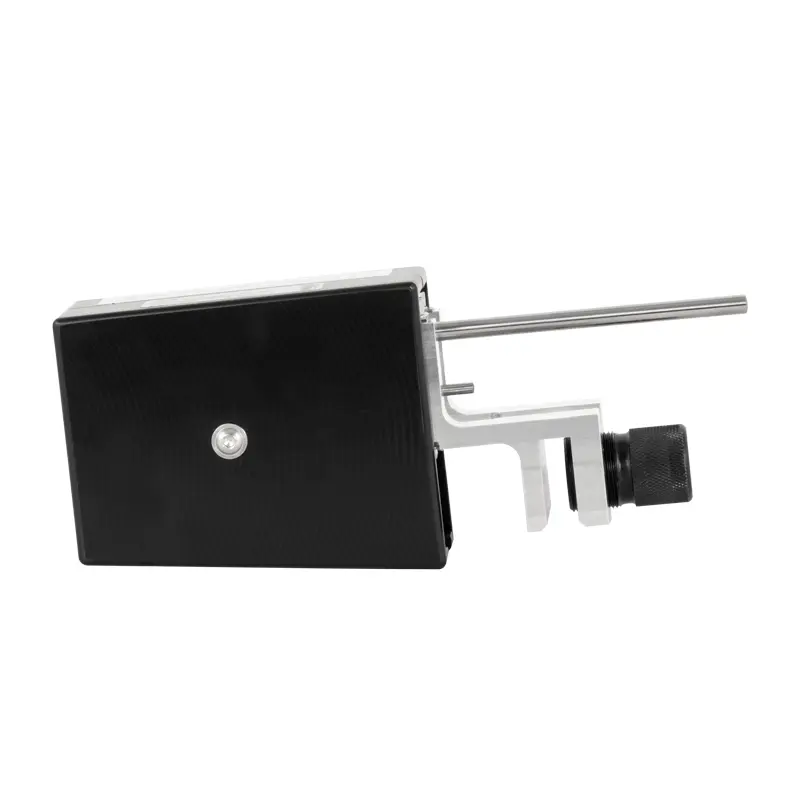

Closing Force Measuring Device

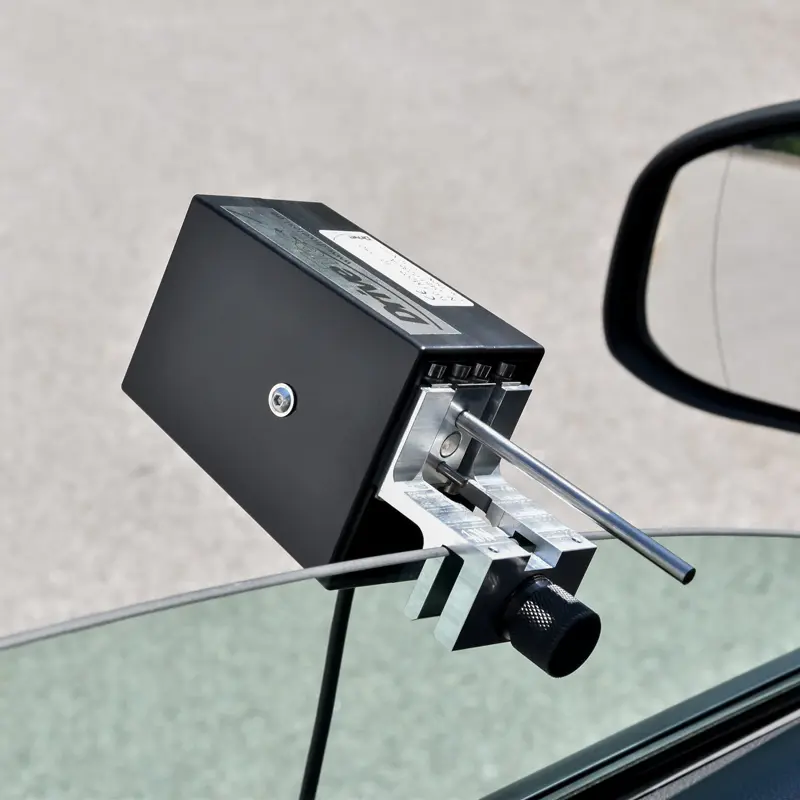

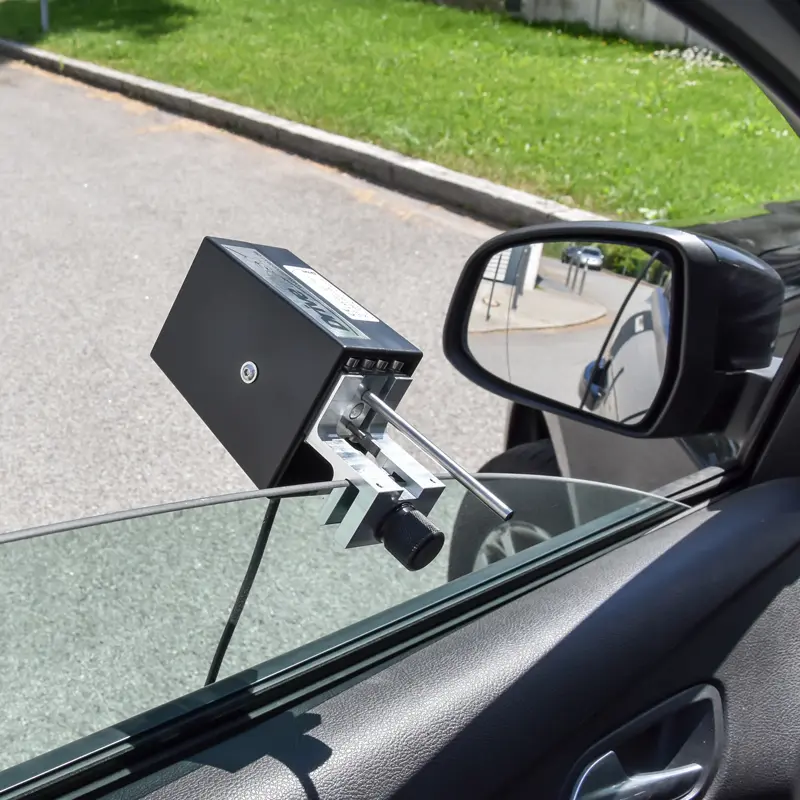

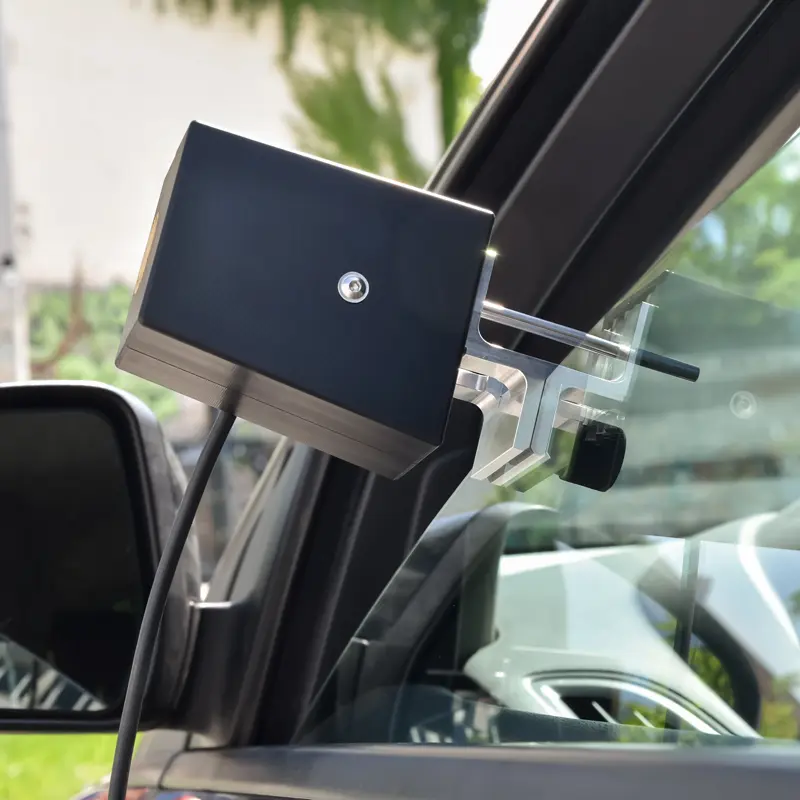

Closing force measurement for automatic window regulators

The closing force measuring device is an electronic closing force measuring device for power-operated windows in the automotive sector. Typical areas of application are testing and production in the automotive industry. For this purpose, we have developed a device that is easy to use for repetitive measurements. Due to the requirements of various common standards, we offer the device with different spring stiffnesses. It is also increasingly used by technical monitoring institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measurements even after years of use in harsh environments.

For measurement set-ups in testing and production, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.

Highlights

- Support of relevant standards – US Standard FMVSS 118

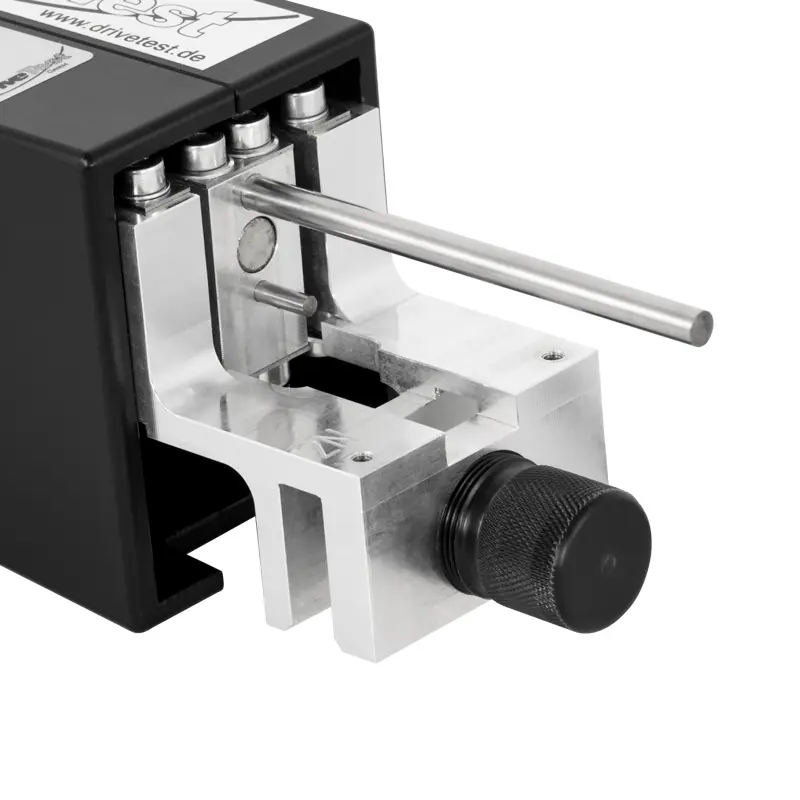

- Precise measurements - due to friction-free guidance and platform load cell
- Robust design - high-strength aluminum and POM ensure a long service life in tough applications
- Ease of use - single button operation or remote control via Microsoft® DLL -
   Interface or National Instruments® LabVIEW library
- Professional, extensive PC software - PinchPilot leaves nothing to be desired
- Available in multiple spring rates - 2, 5, 10, 20, 65 N/mm
- Complete scope of delivery - including high-quality transport case

Specification

FM205/20
Application of force on one side
Measuring range 0 ... 200 N
Accuracy +/– 3 N (0–100 N) or
  +/– 3 % (>100 N)
Spring stiffness20 N/mm
Gap width Fmax. 5 mm / 0.19"
Area 5 x 80 mm / 0.19 x 3.1"
Force sensor
Cable length		 strain gauge bridge
1.5 m / 4.9 ft
Dimensions 175 x 75 x 57 mm / 6.8 x 2.9 x 2.2"
Weight ca. 400 g / 14 oz

Display device SEB2.2
- Display device SEB2.2 data logger unit with LCD display and LED status indicators,
  Control button, USB interface
- Optional PC-controlled measurement
- Lithium polymer battery
- Real time clock
- Memory for 100 measurements
- Sensor and PC interface
- Peak value display and effective power display
- Rating display i. O./n. i. O.

Spacers
- Complete set for all opening widths according to EN 14752:2015
- Automatic detection of the spacers used
- Automatic limit value adjustment according to opening width
- Easy to use, quick assembly without tools
- Robust design, low weight, POM
- Together with BIA 600 sensor, SEB2 in a carrying case

PC evaluation software PinchPilot
- Multilingual (DE, EN, IT, FR, ES)
- Graphic representation of the force curve
- Calculation of the standard-relevant characteristic values
- Evaluation according to different guidelines possible
- Custom policy adjustable
- Log printout
- Data export (Excel, CSV, PDF)
- Optional measuring point identification

- System requirements software PinchPilot (see tab Software/App)

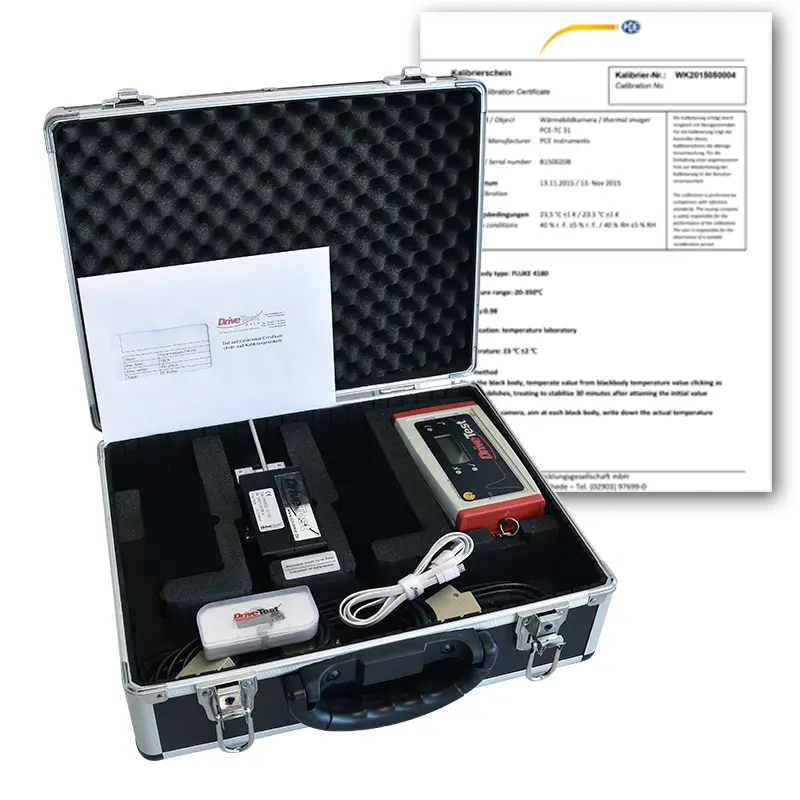

Delivery Scope

1 x Closing force measuring device FM205/20
1 x Sensor 20N/mm
1 x SEB2.2 indicator
1 x PinchPilot software
1 x ISO calibration certificate

Software / App

Description of software / technical requirements
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

- PC/Laptop Windows 7 or higher
- USB serial port or Bluetooth interface
- Measuring device
- for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202,
    FM 205, FM 206, FM 207, FM 208, FM 300

PC software PinchPilot
Our "PinchPilot" software is used to evaluate the data obtained during closing force measurements. No additional software is required for daily work.

Data export
PinchPilot provides all the functions required for routine measurements. Should the data nevertheless be processed further in another room, there are various types of export to choose from:

Text export: measured values as a series of numbers; can be imported e.g. into Microsoft Excel
Image export: log or single diagram in EMF format; can be imported, e.g. into Microsoft Word Measurement data can be exported as ppdx (XML format) and imported with our other software tools for further processing
SQL database: A customer-specific SQL interface can be implemented on request
National Instruments DataPlugin (for import into Diadem or LabView)

Evaluation according to PinchPilot guidelines
The software evaluates the measurement results according to PinchPilot guidelines. These are created on the basis of applicable regulations (laws, standards, guidelines). They consist of a set of parameters that contain the permissible limit values. The measurement results obtained are evaluated accordingly. The permissible range is highlighted in color in the measurement diagram and allows a quick assessment of the measurement. We keep the PinchPilot guidelines up to date. Calibrations by us include an update of the software and thus also of the PinchPilot guidelines. With regular calibration, the user has the security of always checking according to the latest status. In addition to the assessment according to PinchPilot guidelines, the user has the option of creating their own guidelines.

Result documentation
There are two options for documenting measurements in paper form: The measurement log is detailed graphic documentation for a measurement point. While the measurement report is documentation for several measurement points in tabular form. This allows all measurements on an object (door, wagon, etc.) to be documented.
You can set the user language yourself: German, English, French, Italian and Spanish. Software upgrade costs will apply if no license is available for the downloaded version.


The following standards and guidelines can currently be evaluated:
EN 81-1 2000-4-EG
FMVSS118
APTA PR-M-S-18-10
ASME A17.1 2000
EN 14752:2005
EN 14752:2015
2001-85-EG / ECE R. 107 §35 e Abs.5 StVZO
EN14120 DIN 18650-1
EN 12453
EN 16005
EN 60335-2-103
ASR A1.7
ECE R-21
prEN 12650-1


For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during clamping force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
