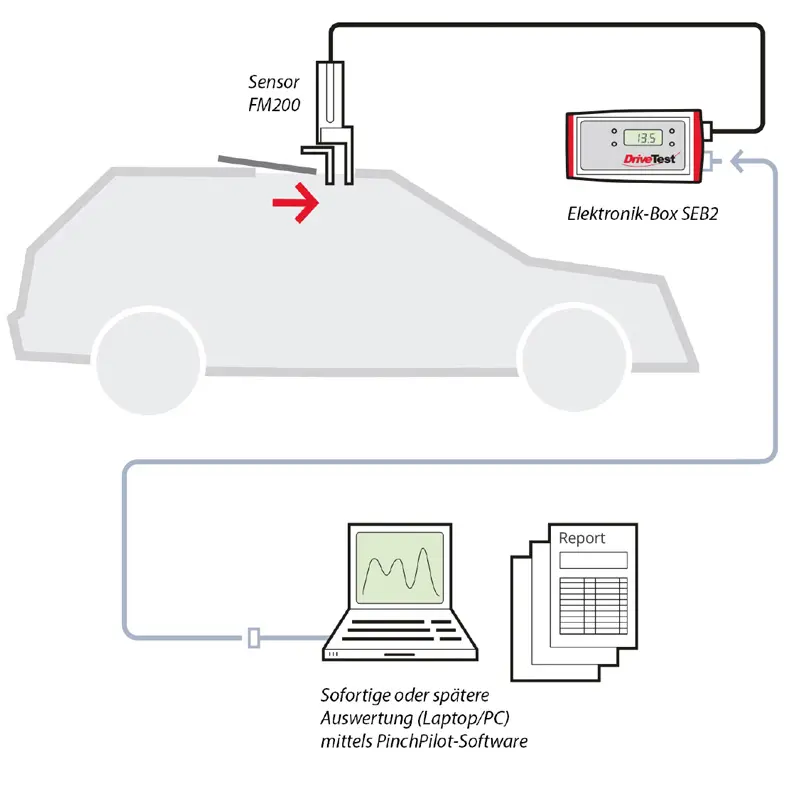

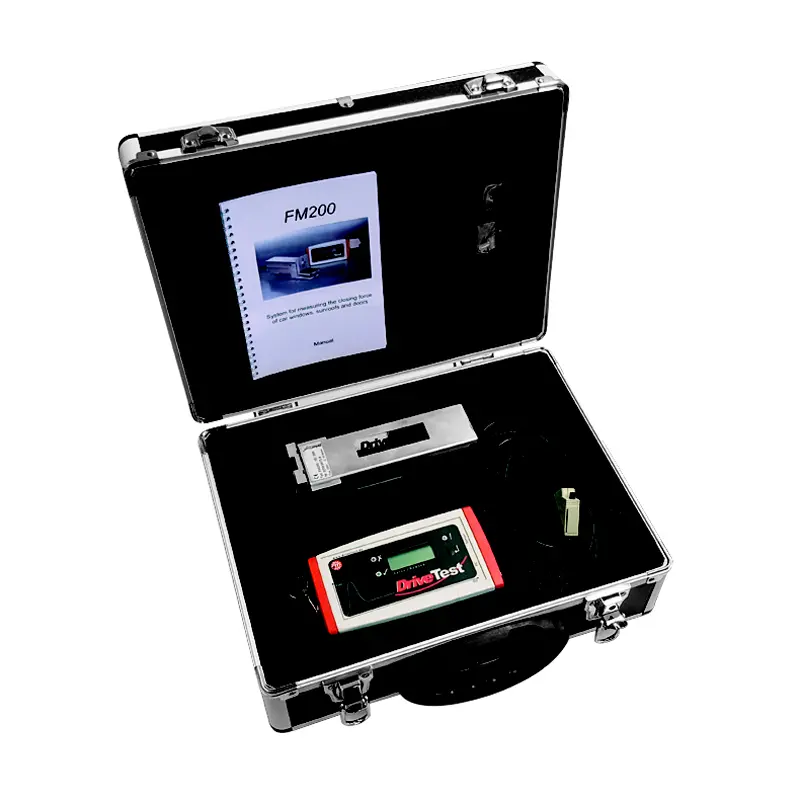

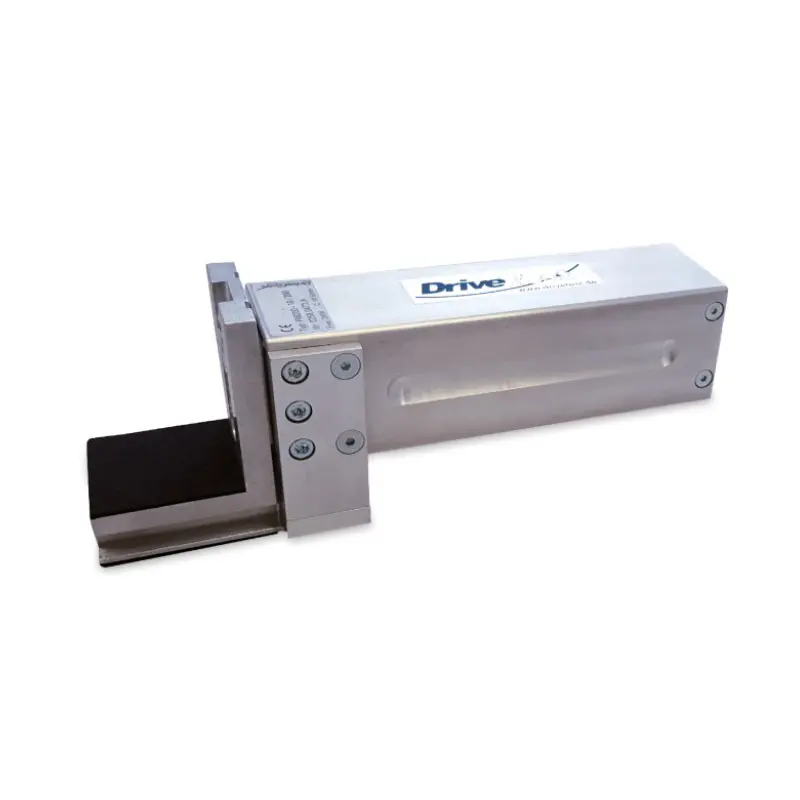

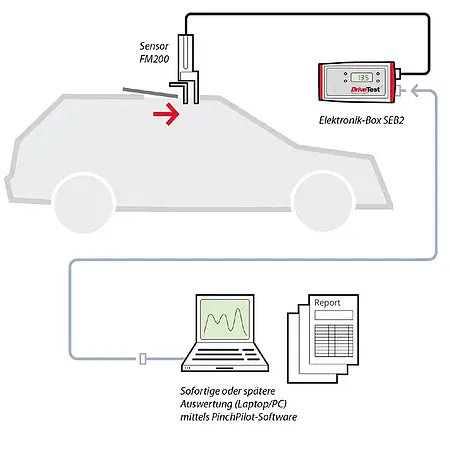

Sensor FM200-SU-SE-20-300 for sliding roofs, window lifters, tailgatesSensor 20 N/mm, 300 N max.
FM 200/65 | |
Measuring range | up to 300 N |
Accuracy | +/– 3 N or 3% of reading |
Stiffness | 65 N/mm |
Gap width | minimum 4 mm / 0.15" |
Area | 50 x 50 mm / 1.9 x 1.9" |
Measuring principle | DMS transducer |
Dimensions | 240 x 85 x 60 mm / 9.4 x 3.3 x 2.3" |
Weight | 1.3 kg / 2.8 lb |
|
|
Display device SEB2 | |
- Data logger unit with LCD display and LED status indicators, control button, serial interface |
|
- Optional PC-controlled measurement | |
- 9 V battery supply | |
- Real time clock | |
- Memory for 100 measurements | |
- Sensor and PC interface | |
- Peak value display and effective power display | |
- Rating display i. O./n. i. O. | |
PC evaluation software PinchPilot (detailed description in the accessories) | |
- Multilingual (DE, EN, IT, FR, ES) | |
- Graphic representation of the force curve | |
- Calculation of important parameters | |
- Evaluation according to different guidelines (standards) | |
- Possibility of entering self-defined guidelines | |
- Log printout | |
- Data export (Excel, CSV, PDF) - System requirements software PinchPilot (see tab Software/App) |
The following standards and guidelines can currently be evaluated:
EN 81-1 2000-4-EG
FMVSS118
APTA PR-M-S-18-10
ASME A17.1 2000
EN 14752:2005
EN 14752:2015
2001-85-EG / ECE R. 107 §35 e Abs.5 StVZO
EN14120 DIN 18650-1
EN 12453
EN 16005
EN 60335-2-103
ASR A1.7
ECE R-21
prEN 12650-1
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during clamping force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
Price excl. VAT &. delivery
2 year Warranty
The fastening set for sliding roofs serves as an aid for stable fastening of the FM200 sensor to the car sliding roof. It facilitates testing of the clamping forces during sliding (slide position) and tilting (tilt position) closing processes.
Price excl. VAT &. delivery
2 year Warranty
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
Price excl. VAT &. delivery
2 year Warranty

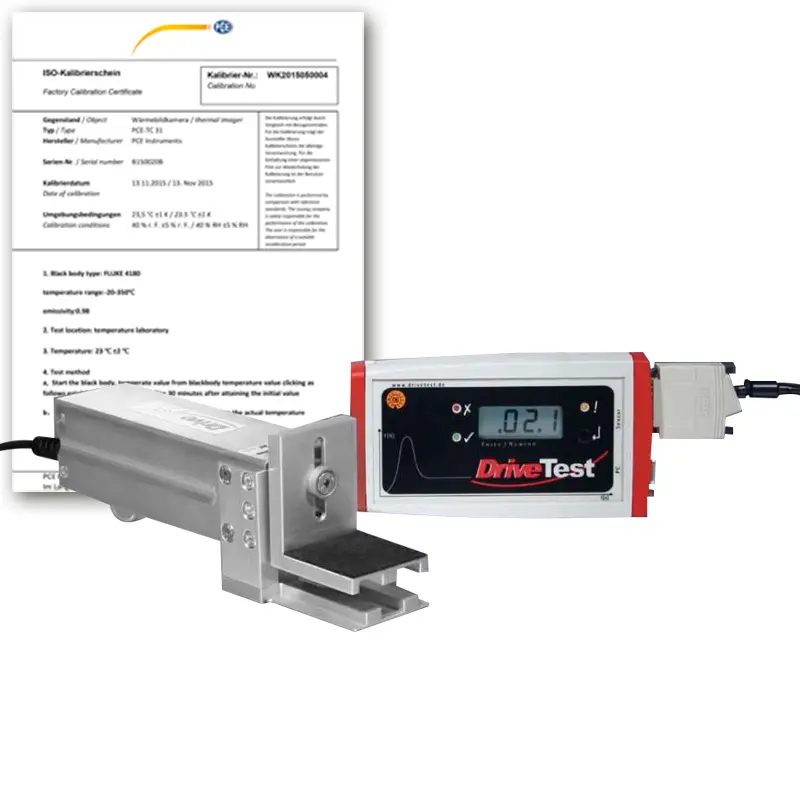

ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this we give the measuring device to our in-house calibration laboratory. You as the client, the measured values and the serial number are recorded in this ISO calibration certificate.
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
