Replacement closing force sensor FM202-UN-SE-10-600

Order no.: FM202-UN-SE-10-600

GTIN (EAN):

Description

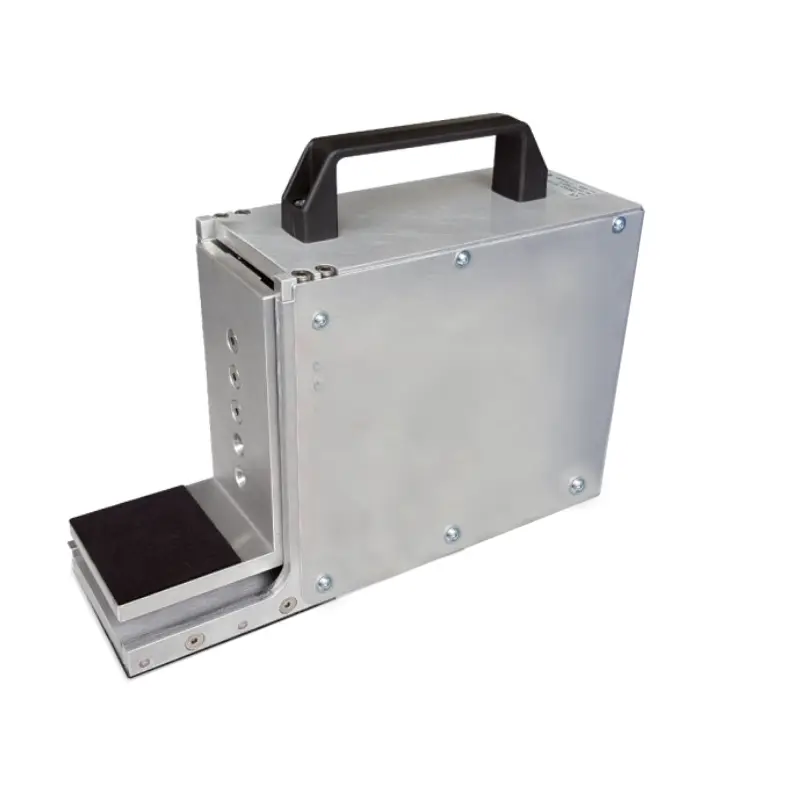

Closing force sensor
Closing force measuring system for sunroofs, window regulators, doors and sliding step measurement

The closing force sensor is an electronic measuring device for externally powered windows, sunroofs and doors in motor vehicles and for sliding steps in rail vehicles. It allows measurements up to 600 N with a spring stiffness of 10 N/mm. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

- Applicable standards – 2000/4/EC or user defined
- Precise measurement results - guaranteed by friction-free guidance and platform load cell
- Robust design - housing made of high-strength aluminum and stainless steel for a long service life in hard use

Specification

FM202
Application of force	on one side
Measuring range	0 ... 600 N
Accuracy	+/– 3 N (0–100 N) +/– 3 % (>100 N)
Spring rate	10 N/mm
Gap width	40 mm / 1.5" minimum
Area	80 x 80 mm / 3.1 x 3.1"
Measuring principle	DMS bridge
Dimensions	100 x 300 x 190 mm / 3.9 x 11.8 x 7.4"
Weight	4.2kg / 9.2 lb

Delivery Scope

1 x Closing force sensor FM202-UN-SE-10-600
1 x Carrying case
1 x Manual
1 x ISO calibration certificate
