CO2 Analyser / CO2 Monitor PCE-AQD 50A

Order no.: PCE-AQD 50A

GTIN (EAN): 4250348736642

Description

CO2 Analyser / CO2 Monitor with a battery life of up to 10 months / E-paper display / Easy operation / Data memory for 1 trillion measuring points / Measuring range up to 40,000 ppm CO2 /Temperature, humidity, atmospheric pressure, CO2

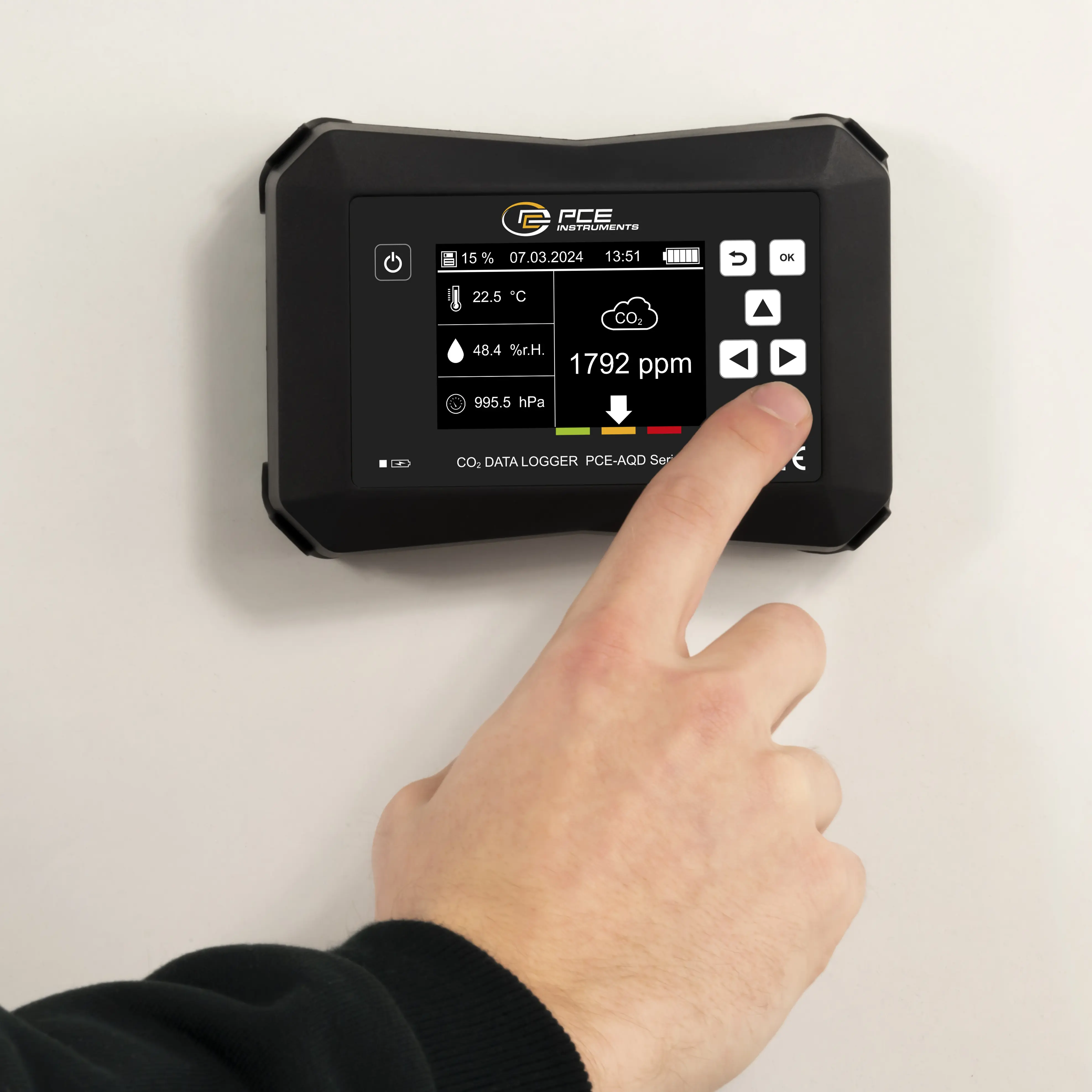

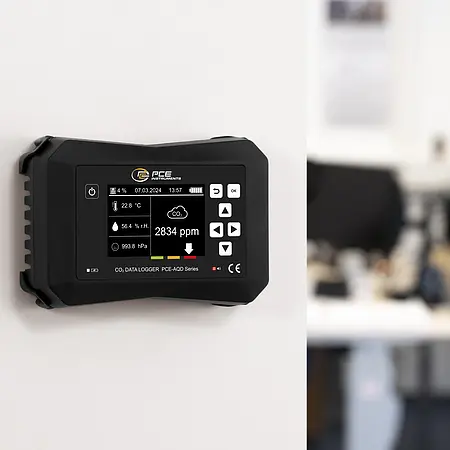

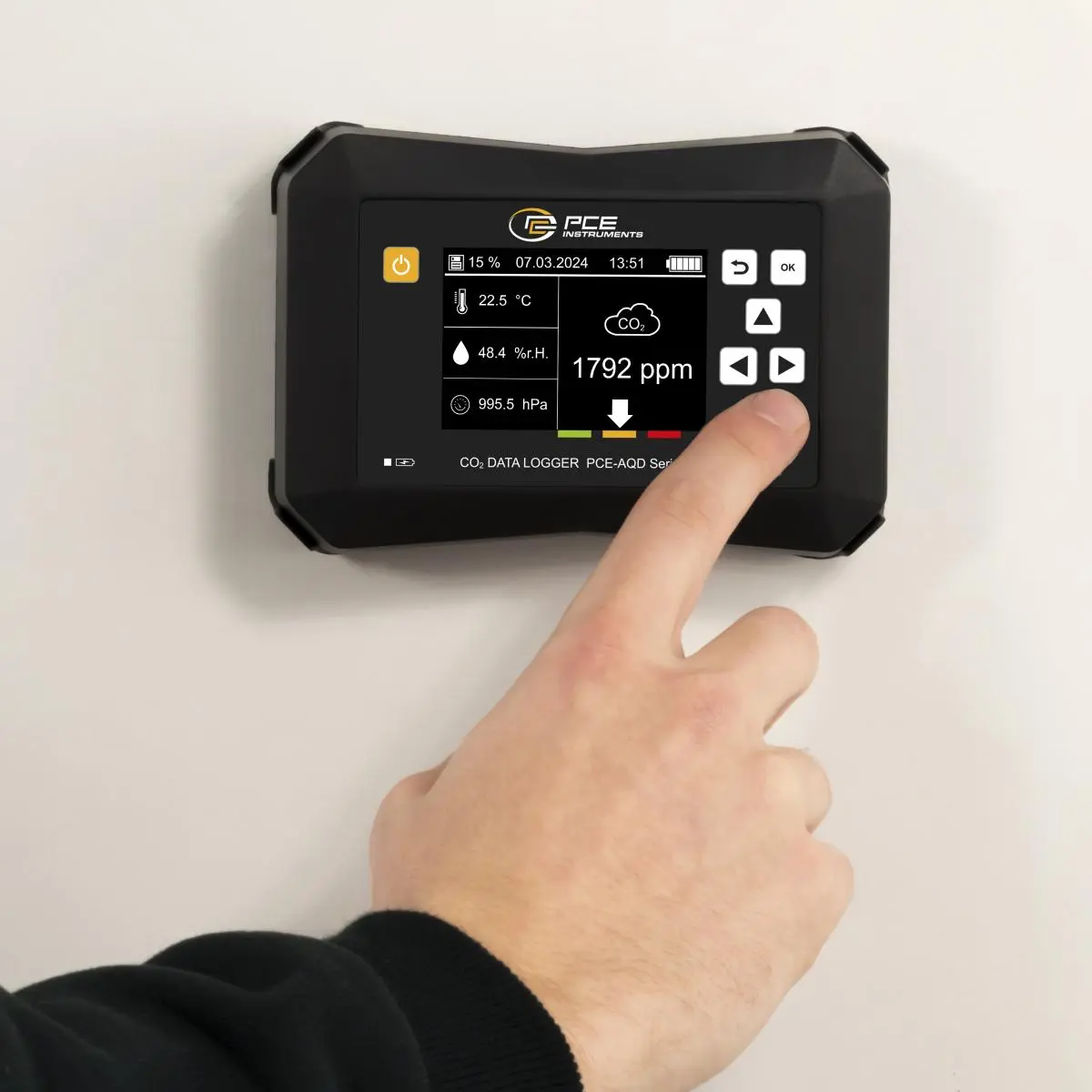

The CO2 Analyser / CO2 Monitor is specially designed for long-term monitoring of climatic conditions in, for example, offices, classrooms or lecture halls. The CO2 Analyser / CO2 Monitor has various sensors. Among other things, the CO2 Analyser / CO2 Monitor has a carbon dioxide sensor up to 40,000 ppm, a temperature sensor with a measuring range between 0 ... 50 °C, an ambient humidity sensor with a measuring range between 0 ... 100% RH and a barometer with a measuring range between 300 ... 2000 hPa. The CO2 Analyser / CO2 Monitor can therefore be used in many applications due to its large number of sensors. The measured values are shown directly on the e-paper display of the air quality measuring device. A good / medium / bad rating of the carbon dioxide content in the ambient air is also displayed.

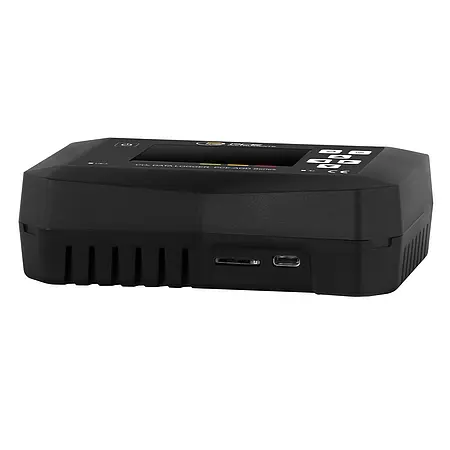

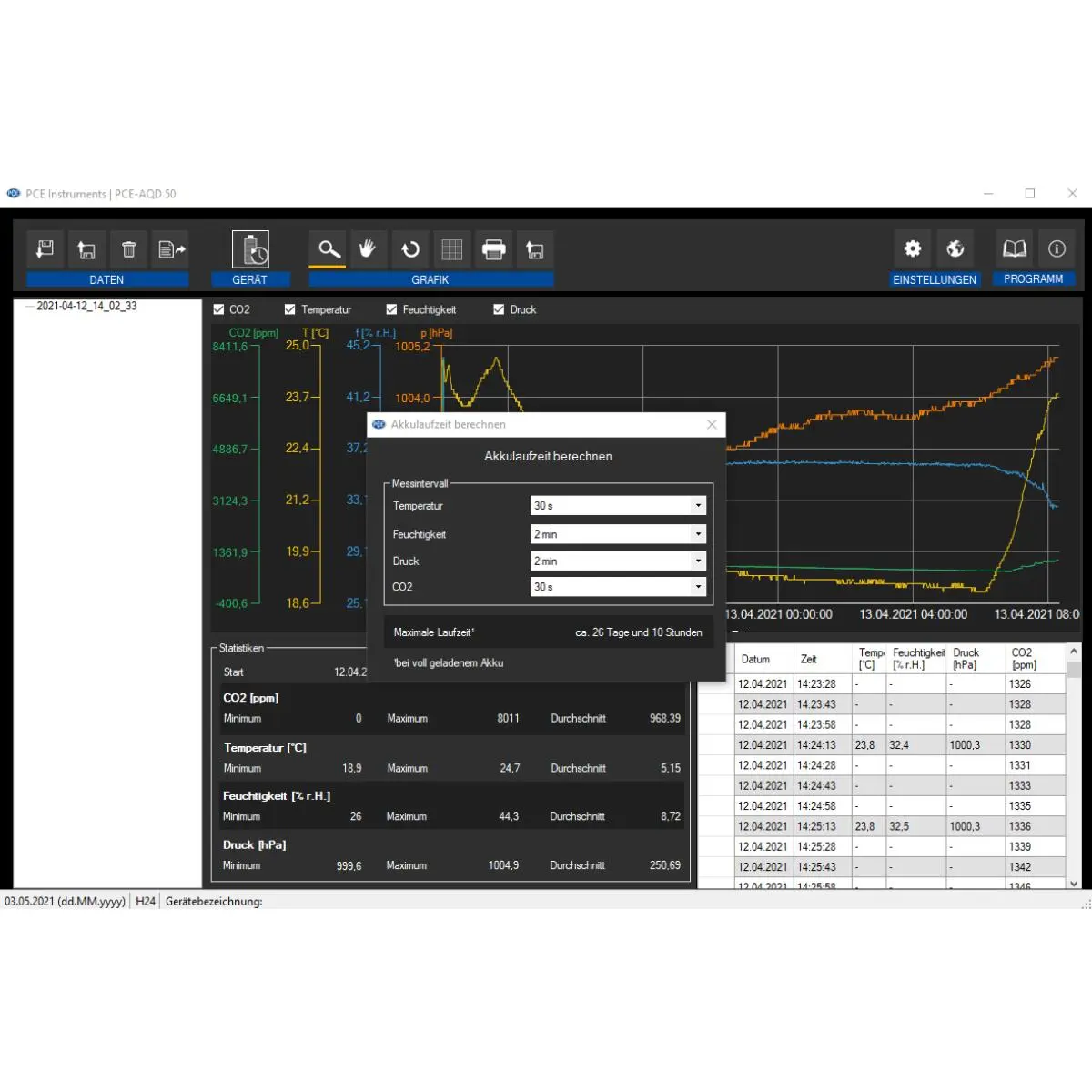

During the measurement, the CO2 Analyser / CO2 Monitor can automatically record the measured values. The measured values are saved as .csv on the micro SD card. This means that the measurement data recorded by the CO2 Analyser / CO2 Monitor can be imported directly into the company's own database. The measurement data from the air quality measuring device can be displayed in graphical and tabular form via the software.

The CO2 Analyser / CO2 Monitor has an alarm function. This alarm mode can be used to set limit values for the individual sensors. As soon as the set threshold value is reached in the CO2 Analyser / CO2 Monitor, this is indicated acoustically and visually via the alarm LED. After the CO2 Analyser / CO2 Monitor falls below the threshold value again, the alarm switches off again automatically.

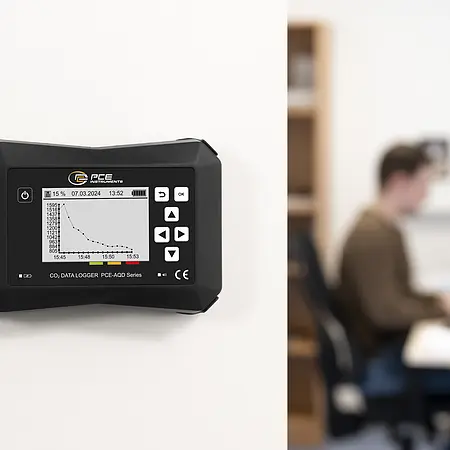

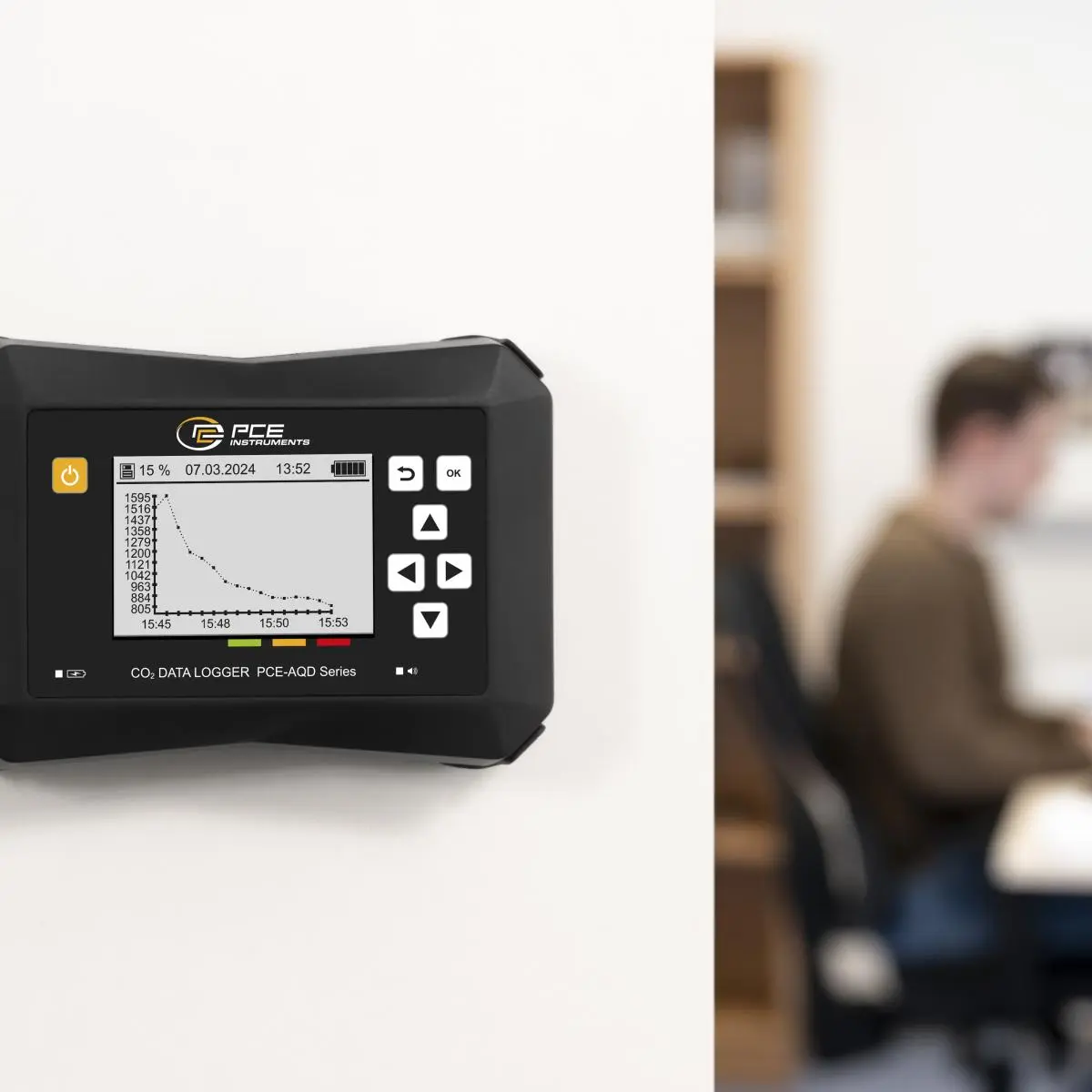

The measured values are displayed numerically on the 2.7" display of the CO2 Analyser / CO2 Monitor. For a better analysis of the last measured values, the display can be switched to a histogram display. The energy-saving e-paper display enables a long battery life for the CO2 Analyser / CO2 Monitor. Depending on the setting the battery can operate the CO2 Analyser / CO2 Monitor for about 10 months before it has to be recharged. In addition to the possible power supply via the built-in battery, the air quality measuring device can also be operated continuously via the micro USB charging cable.

Highlights

- Battery life of up to 10 months

- Measuring range up to 40,000 ppm CO2

- 32 GB data storage

- Temperature and humidity sensor

- .csv file format

- E-paper display with histogram display

- Display of atmospheric pressure

- Good / medium / bad rating

- Alarm limits

- Carbon dioxide and absolute pressure sensor

Specification

CO²
Measurement range up to	0 ... 40000 ppm
Resolution	1 ppm
Accuracy	±(40 ppm +5 % of Rd) @ 400 ... 5000 ppm @ 25 ºC / 77 ºF

Relative humidity
Measurement range up to	0 ... 80 % RH
Resolution	0,1 % RH
Accuracy	±1.5 % RH

Relative humidity
Measurement range up to	80 ... 100 % RH
Resolution	0,1 % RH
Accuracy	±2 % RH

Air pressure
Measurement range up to	300 ... 1250 hPa
Resolution	0,1 hPa
Accuracy	±50 hPa @ -20 ... 75 ºC / 700 ... 1100 hPa

Temperature
Measurement range up to	0 ... 50 °C
Resolution	0,1 °C
Accuracy	±0.8 ºC

Temperature
Measurement range up to	0 ... 20 °C
Resolution	0,1 °C
Accuracy	±0.8 ºC

Temperature
Measurement range up to	20 ... 50 °C
Resolution	0,1 °C
Accuracy	±0.8 ºC

Temperature
Measurement range up to	32 ... 60 °F
Resolution	0,1 °F
Accuracy	±0.8 ºF

Temperature
Measurement range up to	68 ... 122 °F
Resolution	0,1 °F
Accuracy	±0.8 °F

General technical data
Display type	E-paper
Display size	2,7 Inch
Storage medium	Micro SD card
Storage capacity	32 GB
Interface	USB-C
Operating time	10 Month(s)
Operating time additional information	10 months when measuring intervals are: -temperature: 24 hours -ambient humidity: 24 hours -atmospheric pressure: 24 hours -CO2: 24 hours
Alarm	optical, Acoustic
Menu language	English, Dutch, French, German, Italian, Polish, Spanish, Turkish
Protection class (device)	IP30
Power supply	5 V/1.5 A
Weight	280 g
Operating conditions	0 ... 50 °C , 0 ... 100 % RH
Storage conditions	-20 ... 60 °C , 0 ... 100 % RH
(Rechargeable) battery	1 x 7,4 V 18650 , Lithium-ion battery
Capacity	3400 mAh
Dimensions ( L x W x H )	130 x 90 x 40 mm
