£ 80.00
Measuring range | Fe: 0 ... 1500 µm, NFe: 0 ... 1500 µm |

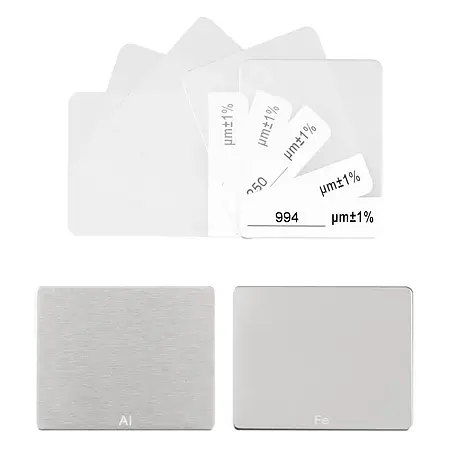

Accuracy after foil calibration | ±(1.0 % of measured value + 1 µm) |
Accuracy after zeroing | ±(1.5 % of measured value + 1 µm) |
Probe diameter | Ø17 mm / 0.67" |
Resolution | 0.1 µm (<100 µm), 1 µm (>100 µm) |
Measurable materials | |
Fe substrates such as: | Fe substrates such as: steel and iron |
NFe substrates such as: | NFe substrates such as: aluminum and copper |
Min. radius of curvature convex | 5 mm / 0.19" |
Min. radius of curvature concave | 25 mm / 0.98" |
Min. measuring surface | Ø17 mm / 0.67" |
Min. layer thickness | 0.2 mm / 0.007" (on magnetic materials) |
|
0.05 mm / 0.002" (on non-magnetic materials) |
Probe mode | Auto material detection mode (Fe + NFe) |
Magnet mode (Fe) | |
Eddy current mode (NFe) | |
Calibration | Multi-point calibration |
(1 ... 4 points for each group) | |
Zero calibration | |
Units | µm, mm, mils |
Data transfer | USB 2.0 |
Memory | A volatile measurement group (DIR mode) |
Four measurement groups with autom. | |
storage and max. 2000 readings (GEN mode) | |
Statistics functions | Number of measured values, mean, |
minimum, maximum, standard deviation | |
Alarm | Display when the adjustable value is exceeded |
upper and lower alarm limit | |
Automatic shutdown | auto. shutdown mode (3 min.) |
Power supply | 3 x 1.5 V AAA batteries |
Display | 128 x 128 px LCD display |
Additional displays | battery status, error detection |
Operating conditions | 0 ... +50 °C / 32 ... 122 °F |
20 ... 90 % RH non-condensing | |
Storage conditions | -10 ... +60 °C / 14 ... 140 °F |
20 ... 90 % RH non-condensing | |
Dimensions | 143 x 71 x 37 mm / 5.6 x 2.8 x 1.4" (L x W x H) |
Weight | with sensor and batteries: 271 g / 9.5 oz |
