Condition Monitoring Rotation Meter PCE-AT 5

Condition Monitoring Rotation Meter PCE-AT 5

Order no.: PCE-AT 5
GTIN (EAN): 4250348706782
£ 44.00
£ 52.80
No-Shopping
price ex. (VAT / delivery)
:
4250348706782
PCE-AT 5
Delivery time: 1-2 Days

Description

Condition Monitoring Rotation Meter
Measures revolutions in one-cylinder two-stroke and eight-cylinder four-stroke combustion engines with electric ignition starters

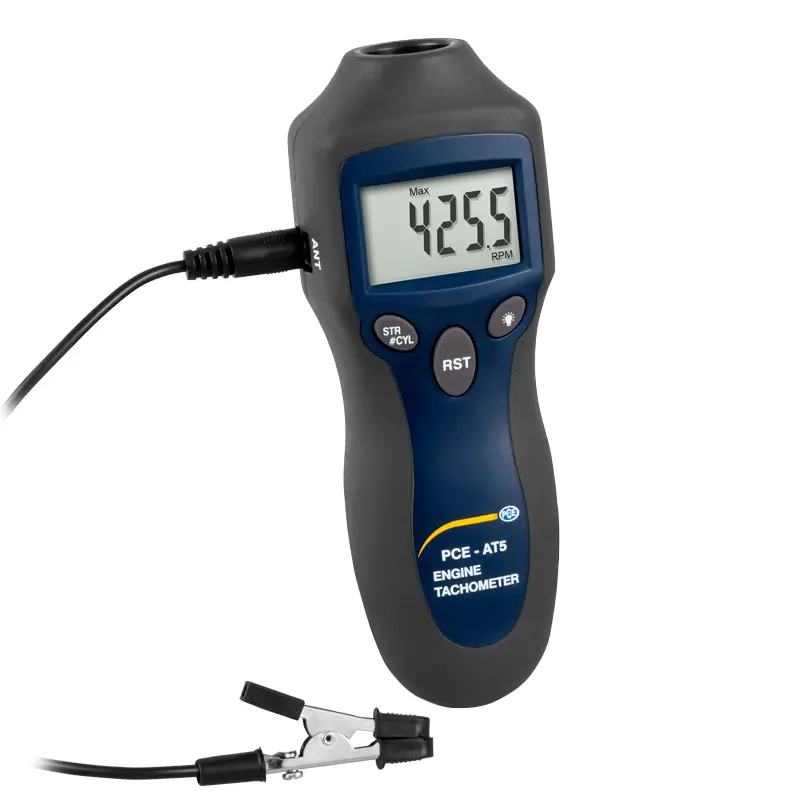

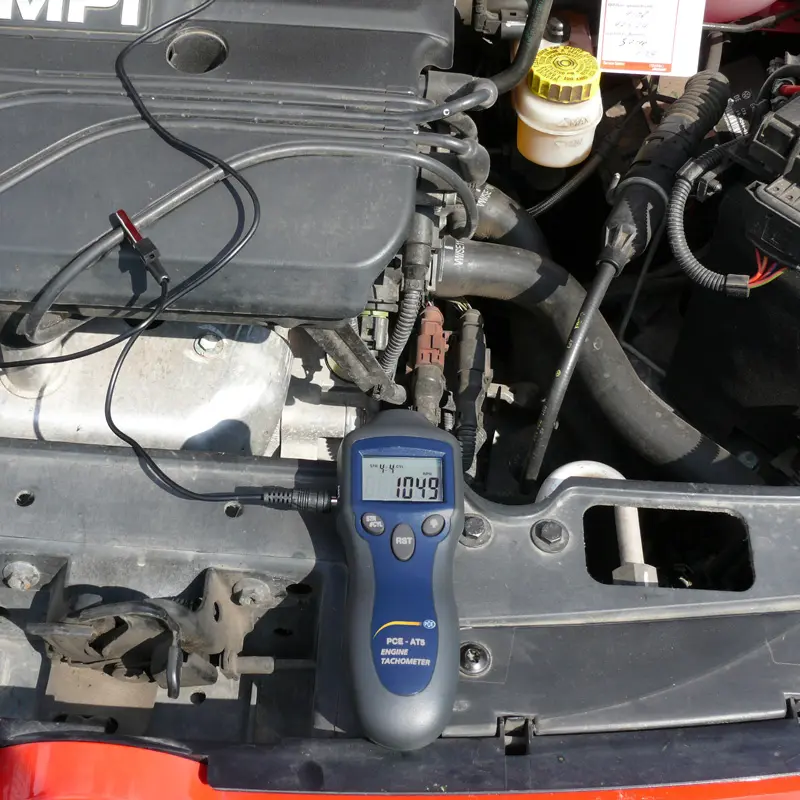

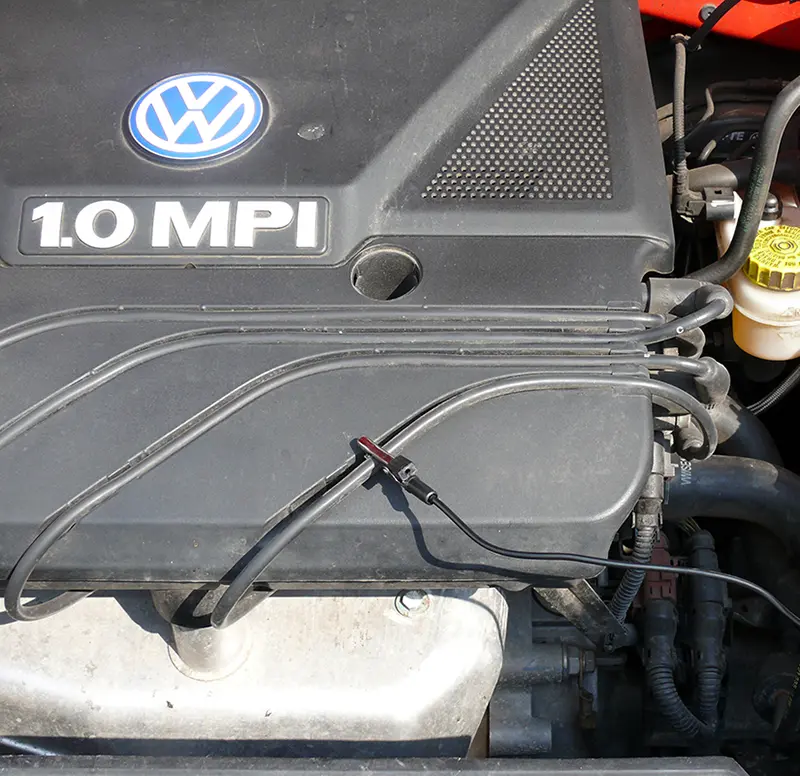

The Condition Monitoring Rotation Meter is a portable compact device used to measure revolutions per minute (rpm) in one-cylinder two-stroke and eight-cylinder four-stroke combustion engines with electric ignition starters. The handheld automotive Condition Monitoring Rotation Meter features an easy-to-read, backlit digital LCD display and flashlight functionality for low-light applications. When the inductive clip is placed on the ignition cable, revolutions are measured quickly and easily. Compatible with motorcycles, cars, trucks and more, the Condition Monitoring Rotation Meter is a versatile tool for use in garages, repair shops, factories and research and development (R&D) laboratories alike.


Highlights

- Measures revolutions in all common combustion engines with electric ignition starters
- Compatible with one-cylinder two-stroke engines as well as eight-cylinder four-stroke engines

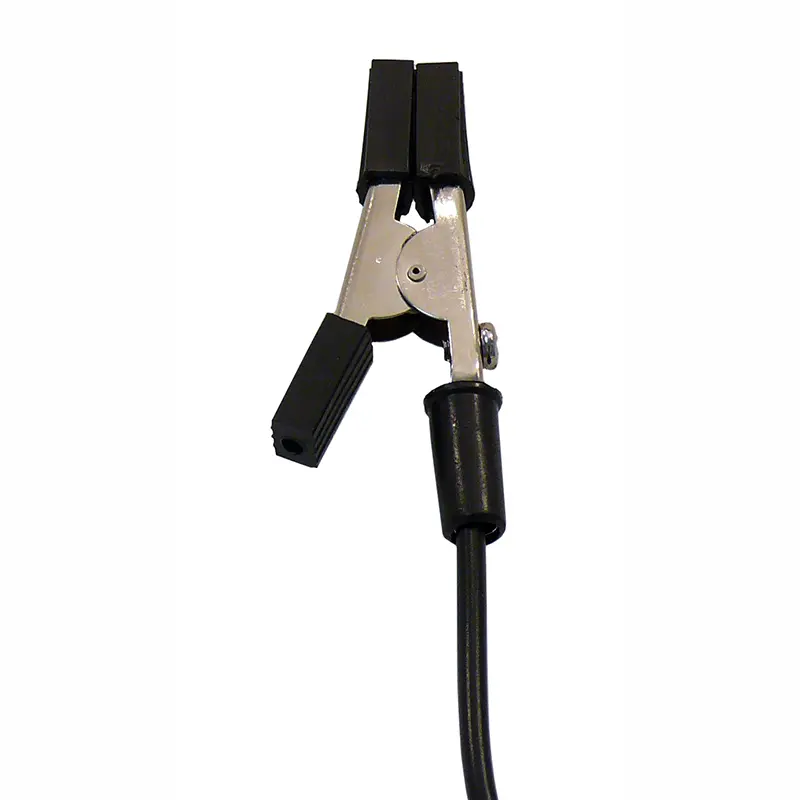

- 1.1 m / .04 in cable with inductive clip to be placed on ignition cable

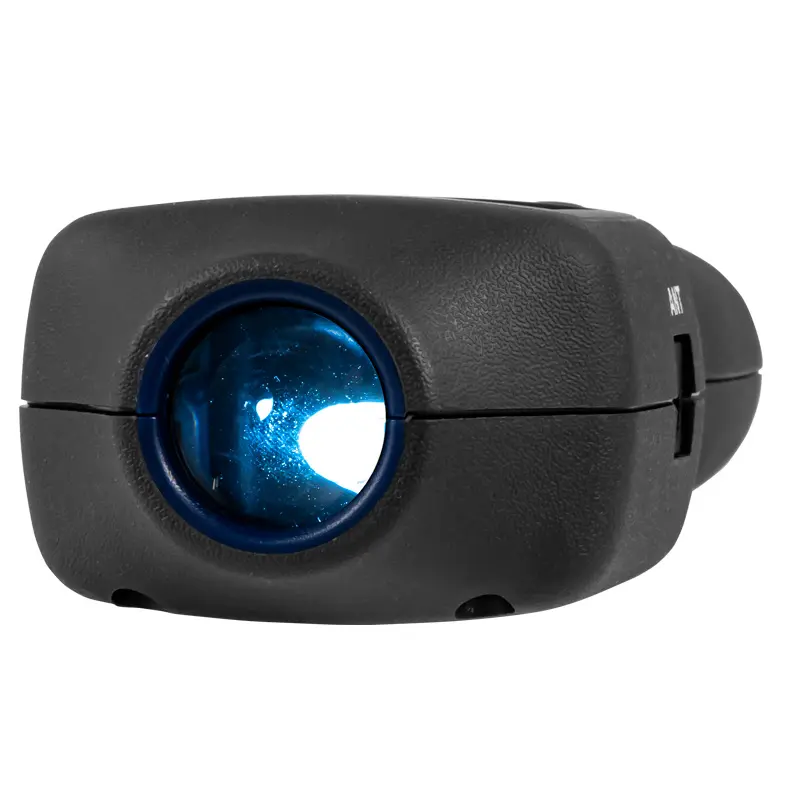

- 6-digit backlit LCD display and flashlight functionality for low-light applications
- Durable ABS plastic housing ensures longevity

Specification

Measurement range100 ... 20000 rpm
Resolution1 rpm
Accuracy± 10 rpm
Measurement interval0.5 seconds
Power supply1 x 9V battery
Operating temperature 0 ... 50ºC / 32 ... 122ºF
HousingABS plastic
Display6-digit 22 mm / .9 in LCD
Dimensions160 x 58 x 39 mm / 6.3 x 2.3 x 1.5 in
Weight177 g / < 1 lb

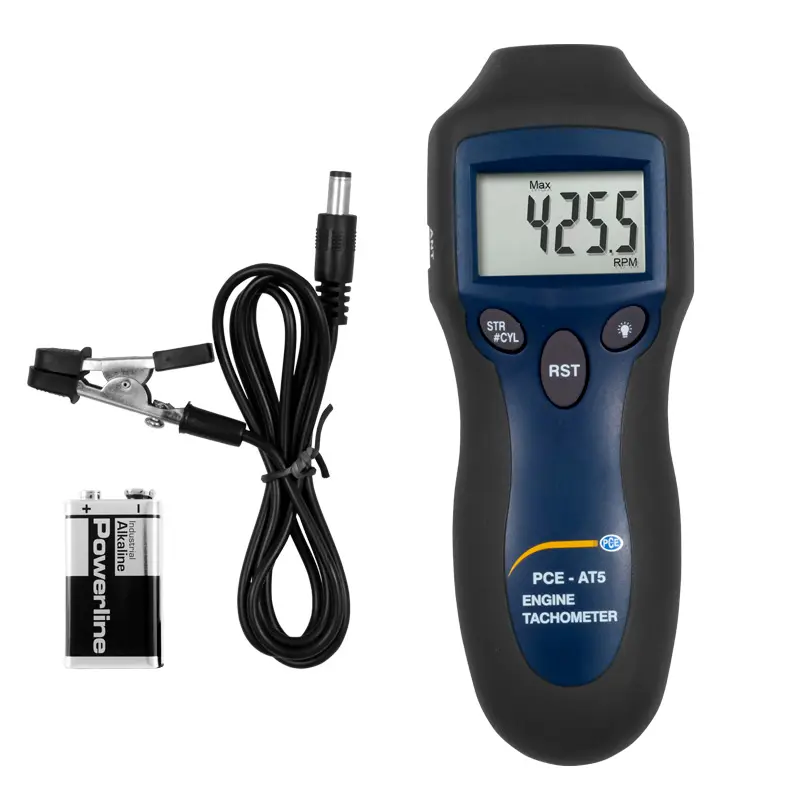

Delivery Scope

1 x Condition Monitoring Rotation Meter PCE-AT 5
1 x Battery

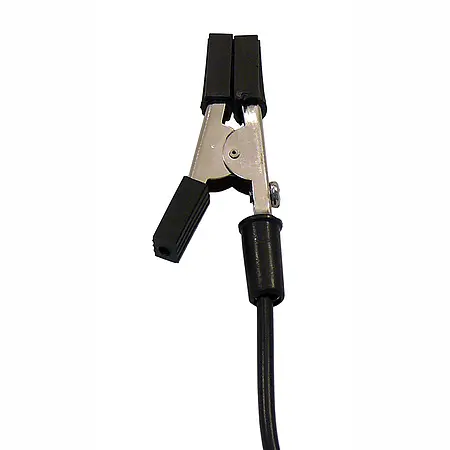

1 x Cable with inductive clip
1 x User manual
