Condition Monitoring Vibration Sensor Switch PCE-VS12

Order no.: PCE-VS12

GTIN (EAN):

Description

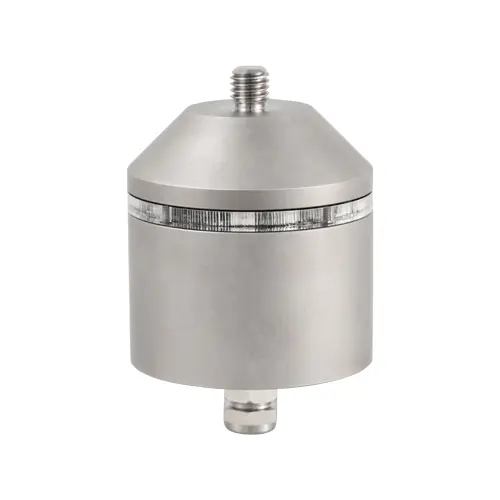

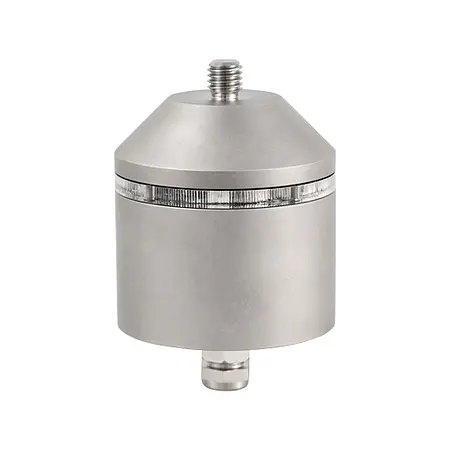

Condition Monitoring Vibration Sensor Switch
Setup via USB and PC / Includes software for detailed vibration analysis

The condition monitoring sensor switch is used to monitor vibration acceleration and velocity. The condition monitoring sensor switch measures and monitors vibrations in the time domain as well as in the frequency domain, that means it can selectively monitor individual frequency band components. On the condition monitoring sensor switch, the USB connection is located on the 8-pin socket. The areas of application of the condition monitoring sensor switch include, for example, the condition monitoring of motors, fan blowers, pumps and compressors. The condition monitoring sensor switch can also be used to carry out quality control in production.

The various measurement projects that can be carried out with the condition monitoring sensor switch show the distinctiveness of such a measuring device. In addition, the condition monitoring sensor switch can be used to trigger an emergency shutdown of production systems where strong vibrations could cause damage to personnel or equipment. The condition monitoring sensor switch can also be used to monitor vibrations on various railway vehicles and can also be used as a safety switch on doors and gates.

Highlights

- Ideal for machine condition monitoring and quality control applications

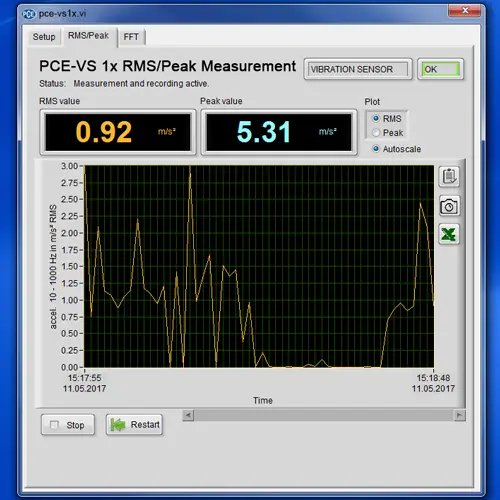

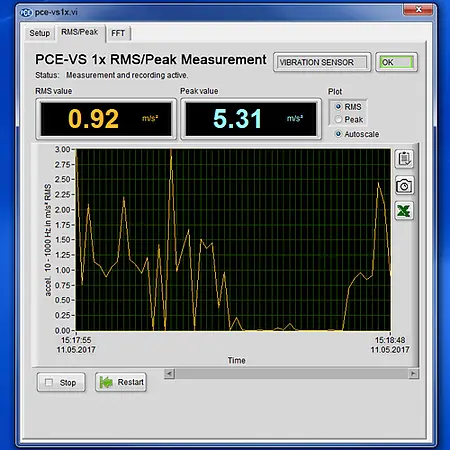

- Measures RMS and peak value of vibration velocity or acceleration

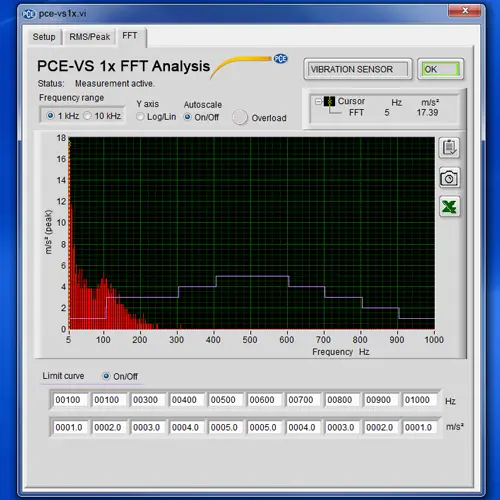

- Monitoring of frequency domain (FFT)
- Piezoelectric accelerometer
- IP67 ingress protection rating against water and dust
- Features an external USB port and 8-pin female connector 711
- Programmable high pass and low pass filters
- Emergency shut-off

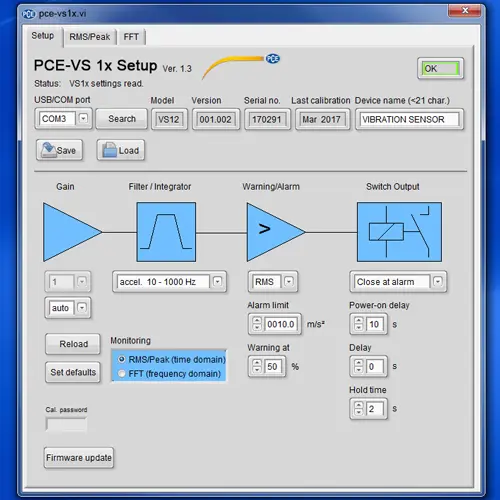

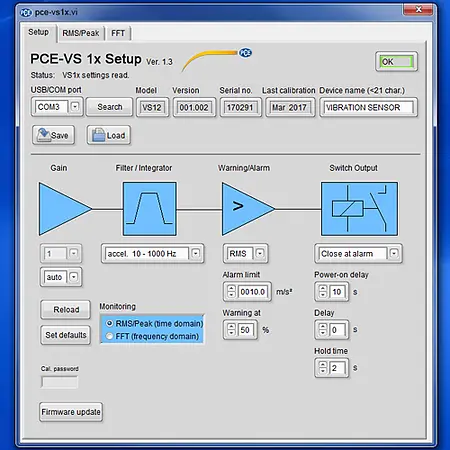

- Setup via USB and PC
- Includes software for detailed vibration analysis

Specification

Measuring range	0.1 ... 1000 m/s² acceleration Frequency dependent velocity 2 ... 1000 or 20 ... 10,000 Hz / 360 lines frequency domain
Monitoring values	Peak value of vibration acceleration or vibration velocity RMS value of vibration acceleration or vibration velocity Frequency domain (FFT)
High pass filter	0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration 2 / 5 / 10 / 20 / 50 Hz velocity
Low pass filter	0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration 1 kHz velocity
FFT limits Relay output	10 freely selectable frequency intervals with limit amplitudes PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via 8-pin female connector 711
Teach-in function Warning / alarm	Button for measuring the switching threshold No
Interfaces	USB 2.0 full speed for parameterization and measurement CDC mode / virtual COM port 8-pin female connector 711
External USB port Power supply voltage	Yes 5 ... 30 V DC 5 V DC USB < 100 mA screw terminals
Ingress protection	IP67 rating
Operating temp. range	-40 ... +80 °C / -40 ... +176 °F
Approx. weight	125 g / 0.28 lb
Approx. dimensions	50 mm / 1.97" Ø 36 mm / 1.42" height
Mounting	M8 thread pin 8 mm / ≈ 0.32" length 25 mm / ≈ 0.99" Ø coupling surface
