Data Logger PCE-MPC 30

Order no.: PCE-MPC 30

GTIN (EAN): 4250348719287

Description

Data Logger / HCHO measurement / battery for mobile use /

2.8 "TFT display / measurement of mass concentration / data storage on SD card

This Data Logger has many functions. With the Data Logger it is possible to determine the number of particles in the size of 0.3, 2.5 and 10 µm. In addition to measuring the particles, the Data Logger can also measure the PM 2.5 and PM 10 mass concentration. The mass concentration of the Data Logger determines the weight of the particles on one cubic meter.

In addition to particle measurement, the Data Logger can also determine the formaldehyde content in ppm. During this HCHO measurement, the temperature, the ambient humidity and the dew point are determined and displayed by the Data Logger. As a further important property, the Data Logger can also store data. It is therefore possible with the Data Logger to evaluate all measured values after a measurement.

Highlights

- Particle counter, HCHO, temperature measurement

- Measured value recording for later analyzes

- Large 2.8 "LC display, 320 x 240 pixels

- Mass concentration PM 2.5 and PM 10

- Battery for mobile use

- Dew point and wet bulb temperature

Specification

Measurable particle sizes	PM 2.5 and PM 10
Measuring range	0 ... 2000 µg / m³
Resolution	1 µg / m³

Particle counter
Measurable particle sizes	0.3, 2.5, 10 µm
Flow rate	2.83L / min (0.1 ft³)
Counting efficiency	50% at 0.3 µm;
	100% with particle size> 0.45 µm
Coincidence error	<5% at 2,000,000 particles per ft³
Data storage	5000 data records (micro SD card)
Counting modes	cumulative, differential, concentration

HCHO
Measuring range	0.01 ... 5.00 ppm
Accuracy	± 5%
Resolution	0.01 ppm

Air temperature and relative humidity
Measuring range air temperature	0 ... 50 ° C, 32 ... 122 ° F
Measuring range dew point	0 ... 50 ° C, 32 ... 122 ° F
Relative humidity measuring range	0 ... 100% RH
Air temperature measurement accuracy	10 ... 40 ° C: ± 1 ° C, ± 1.8 ° F
	Others: ± 2 ° C, ± 3.6 ° F
Measuring accuracy dew point temperature	10 ... 40 ° C: ± 1 ° C, ± 1.8 ° F
	Others: ± 2 ° C, ± 3.6 ° F
Relative humidity accuracy	0 ... 20% rel. Humidity: ± 5%
	20 ... 80% rel. Humidity: ± 3.5%
	80 ... 100% rel. Fencing: ± 5%

More specifications
Operating conditions	0 ... +50 ° C, 10 ... 90% rel. humidity,
	not condensing
Storage conditions	-10 ... +60 ° C, 10 ... 90% rel. humidity,
	not condensing
Display	2.8 ", 320 x 240 pixels, backlit color LCD
Power supply mains adapter	Primary: 100 ... 240 V AC, 50/60 Hz, 0.6 A.
	Secondary: 9 V DC, 1500 mA
Power supply battery	7.4 V, 1200 mAh, 8.88 Wh
Battery Life	approx. 4 hours in continuous operation
Battery recharge time	approx. 2 hours with AC adapter
Dimensions	240 x 75 x 57 mm
Weight	570 g

Delivery Scope

1 x Data Logger PCE-MPC 30

1 x zero filter

1 x battery

1 x charger

1 x mini USB cable

1 x mini tripod

1 x hard case

1 x instruction manual

Downloads

man-particle-counter-pce-mpc-20-pce-mpc-30-en.pdf

Manual

Datasheet

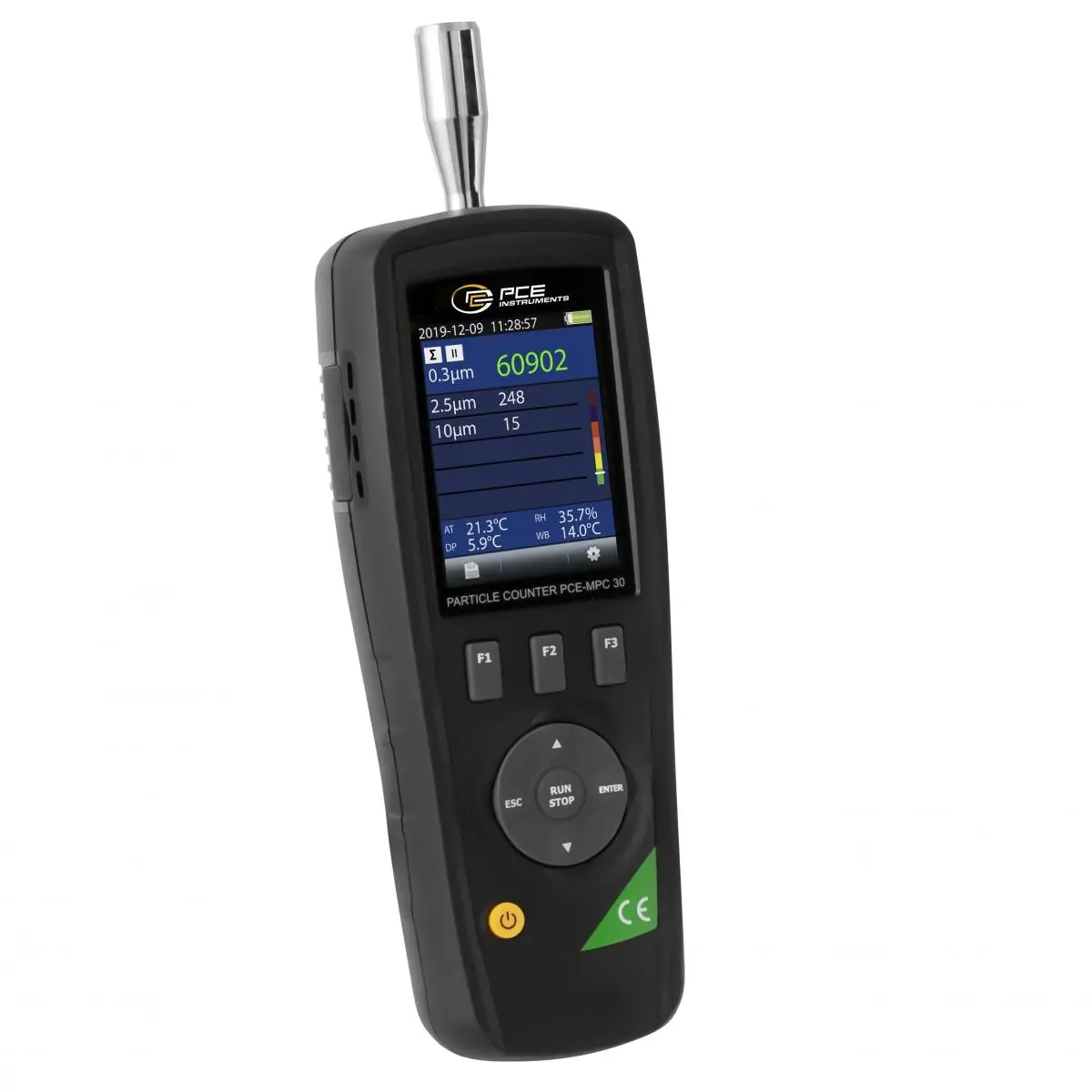

Data Logger PCE-MPC 30

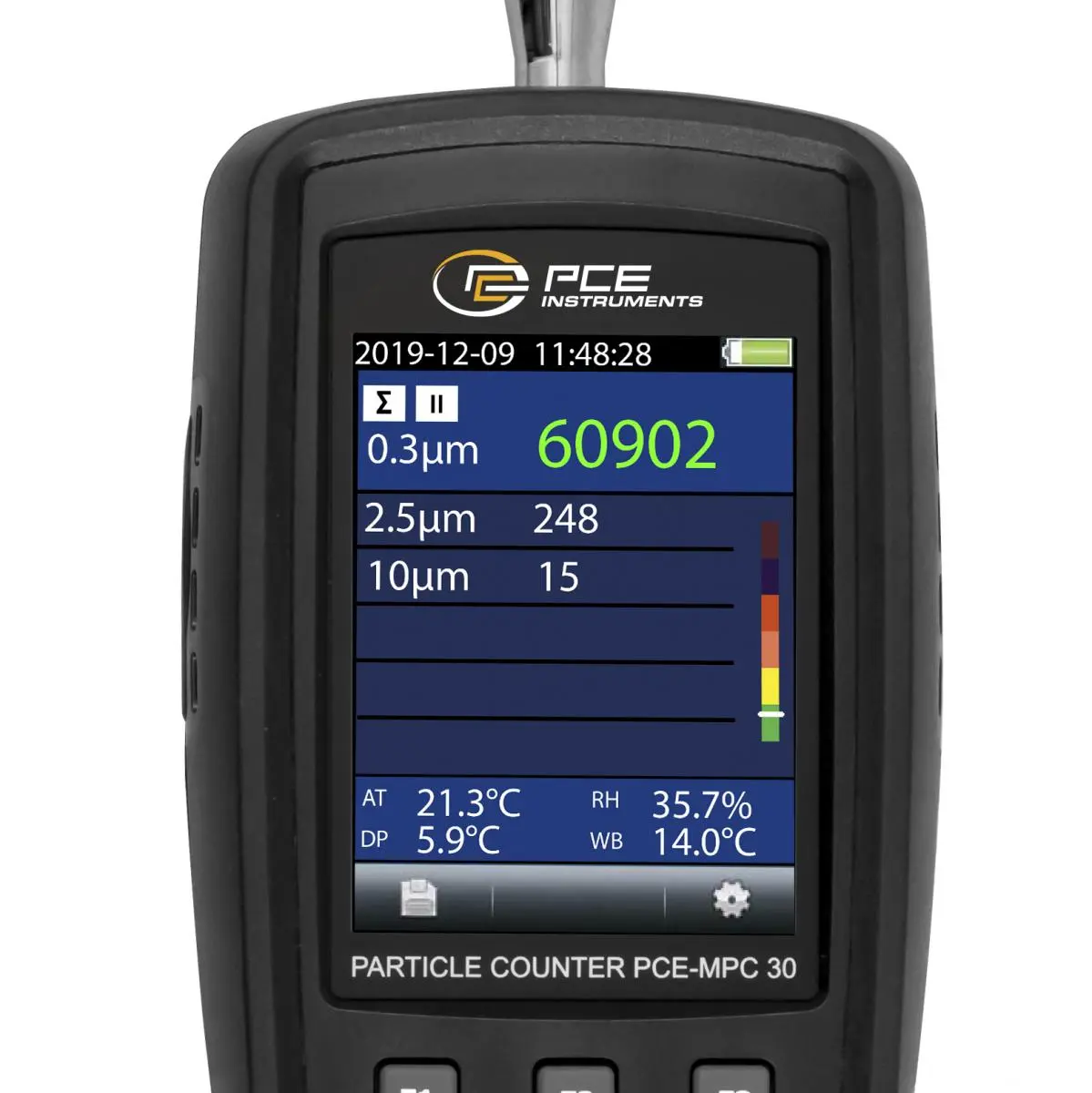

Data Logger display

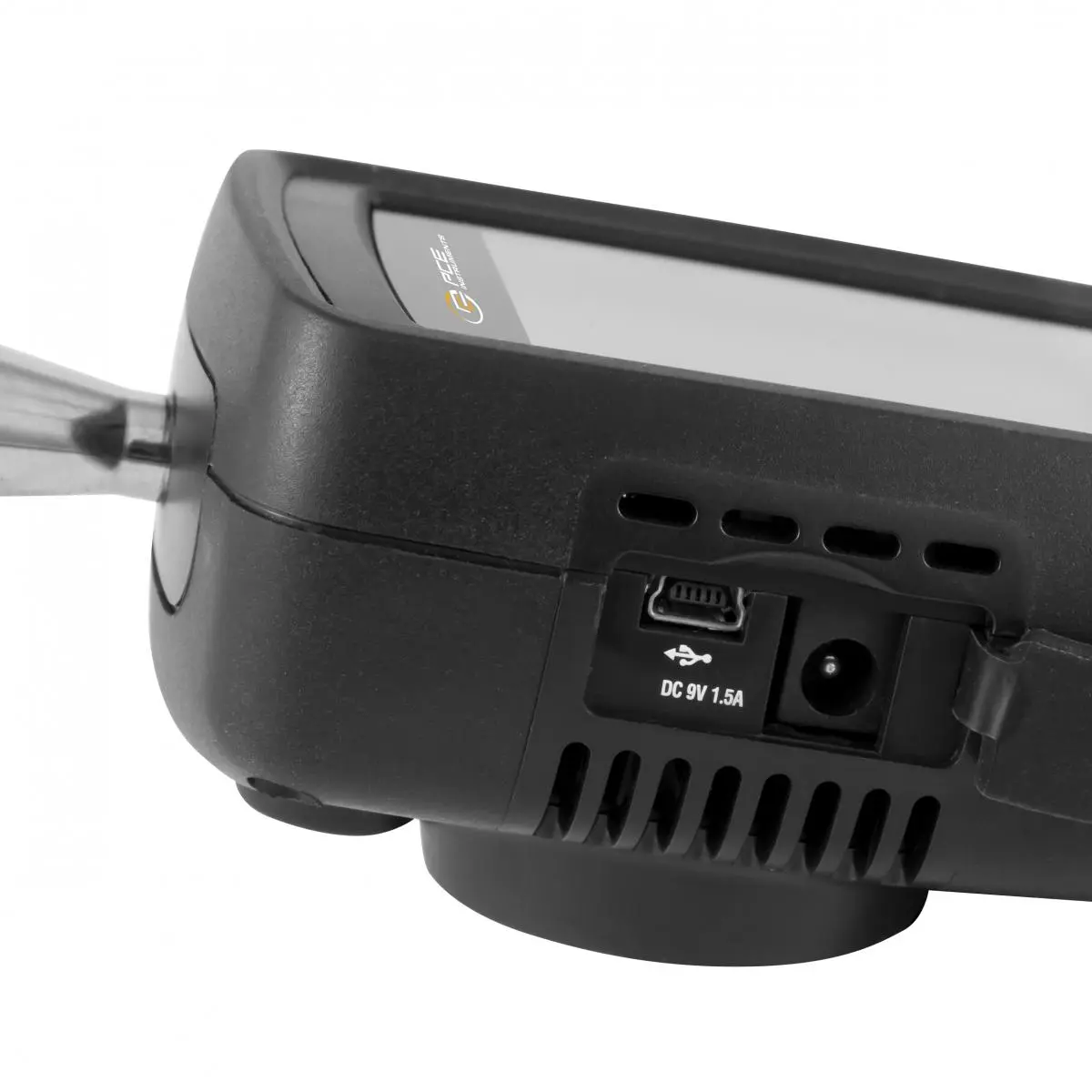

Data Logger connections

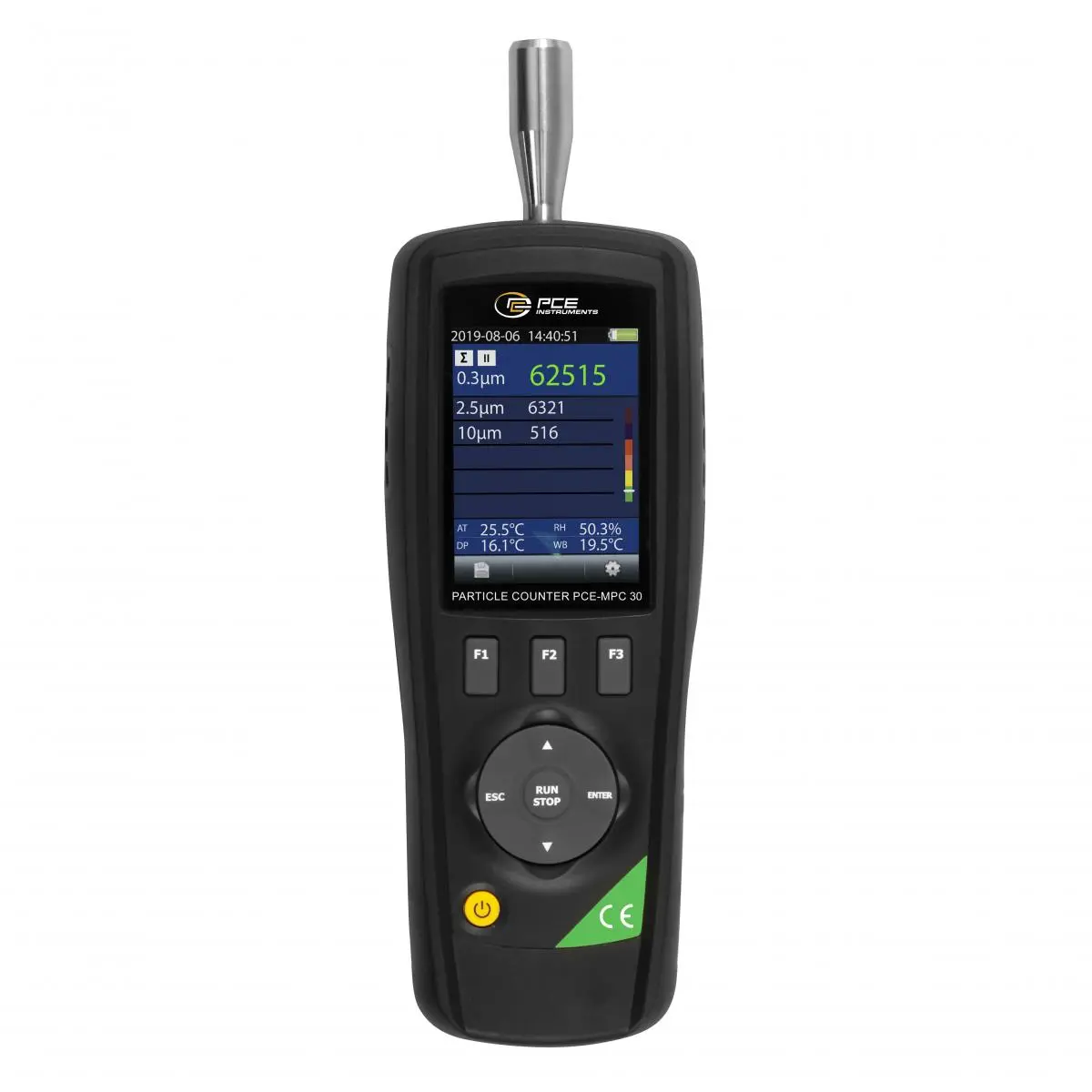

Data Logger front

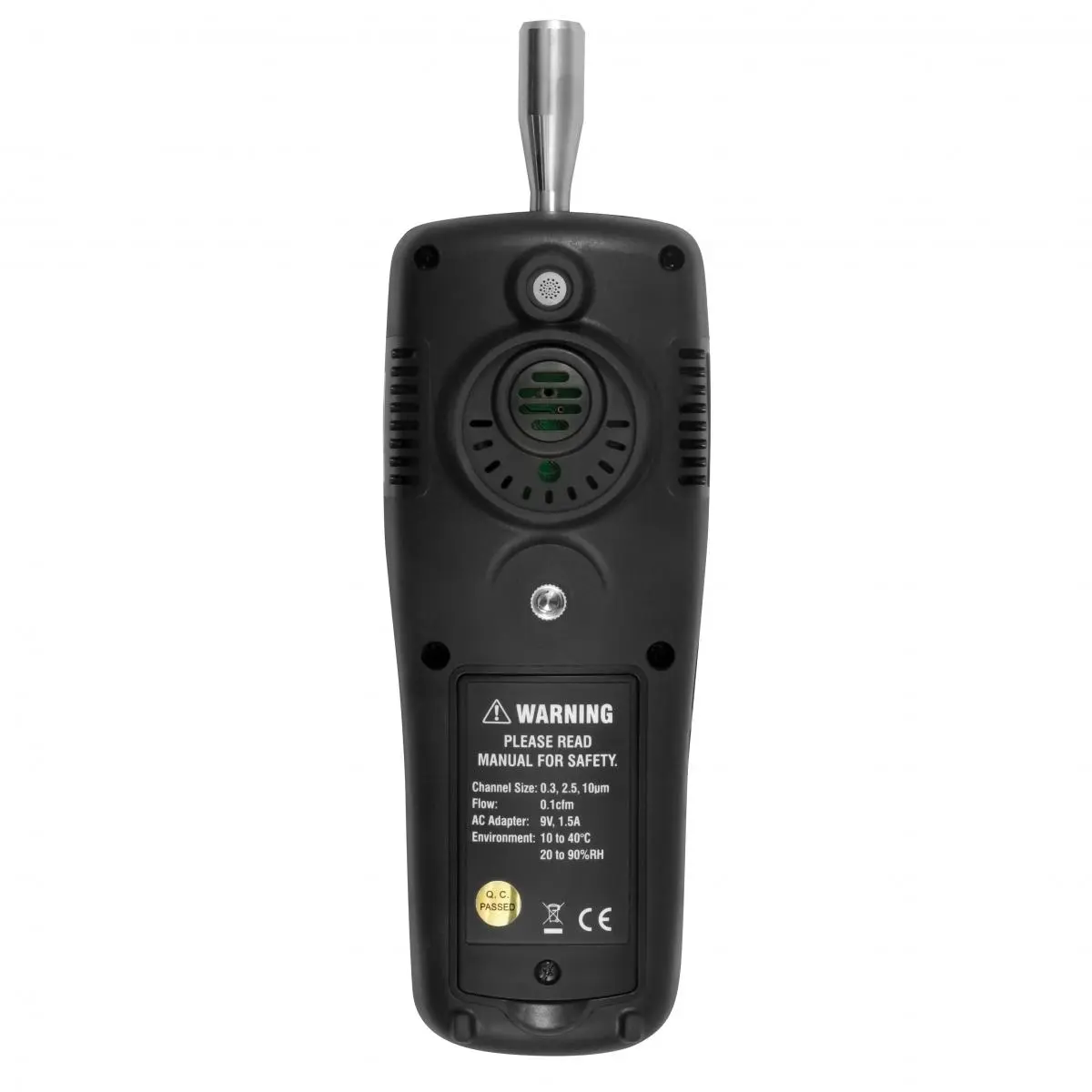

Data Logger backside

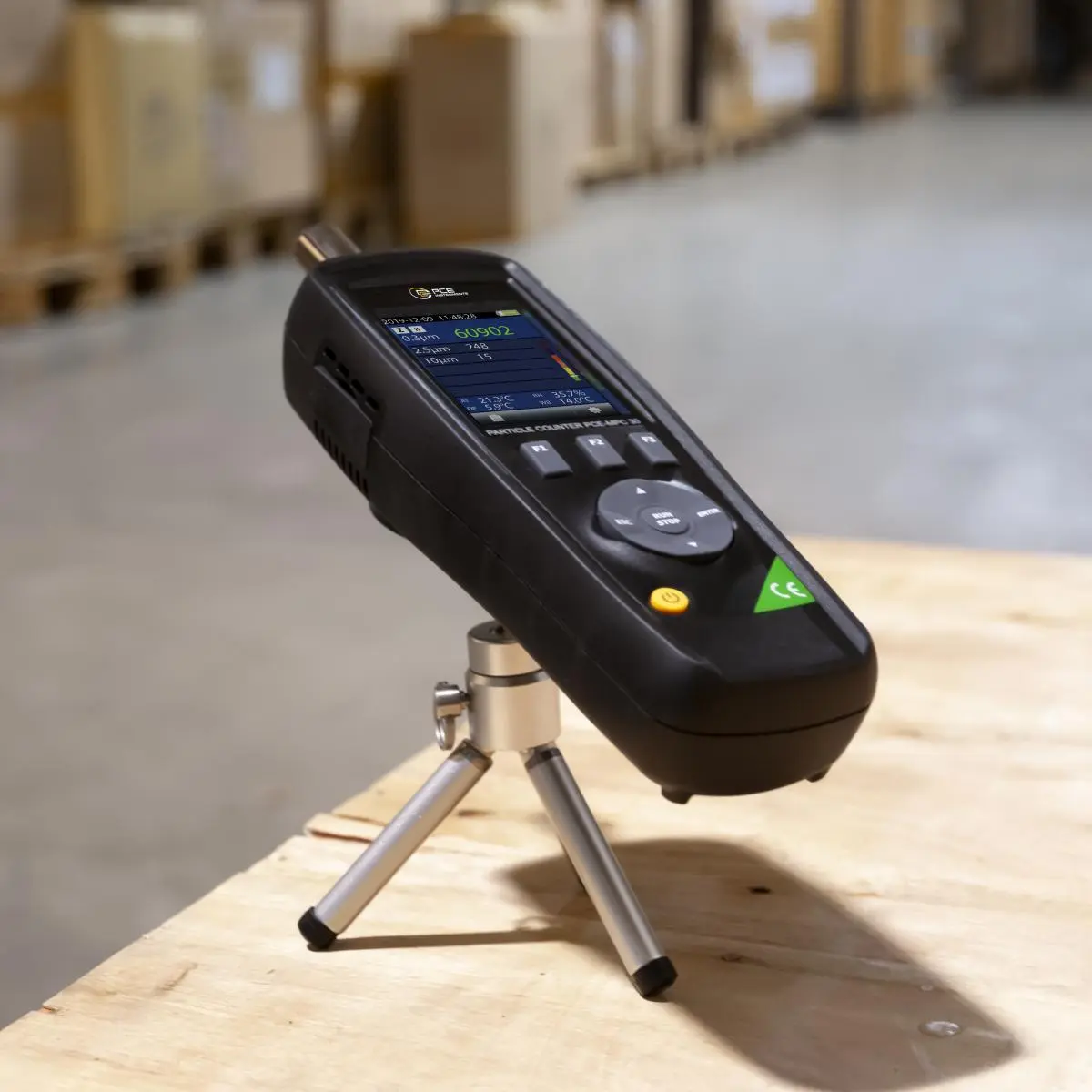

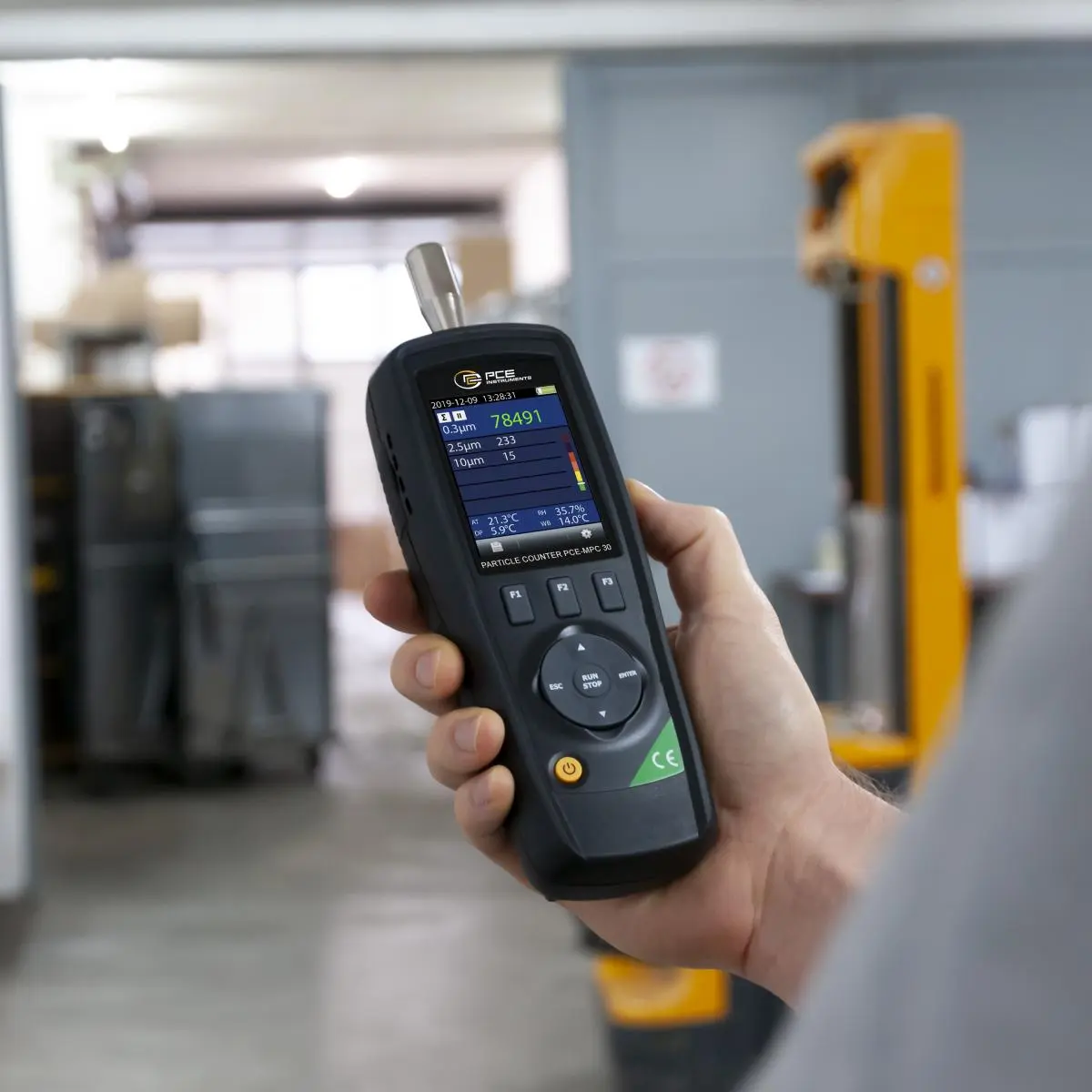

Data Logger in use

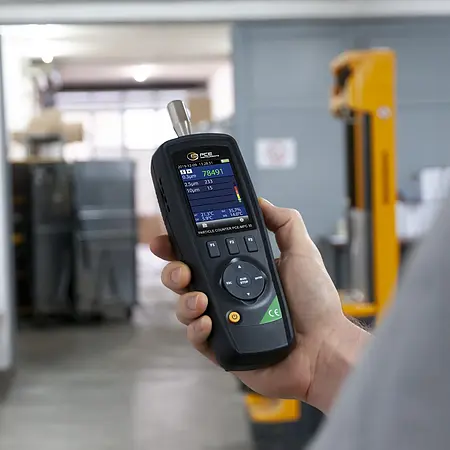

Data Logger in use
