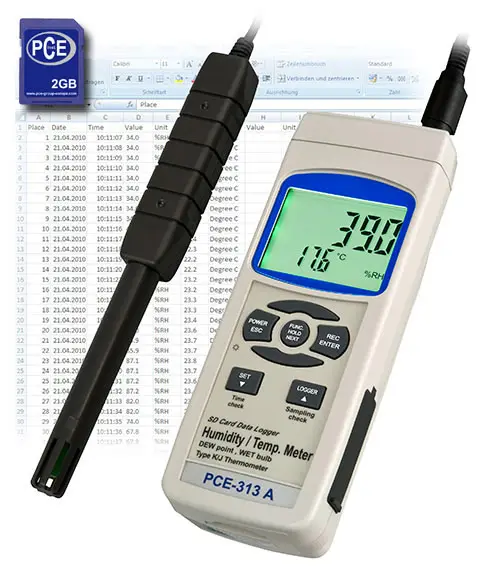

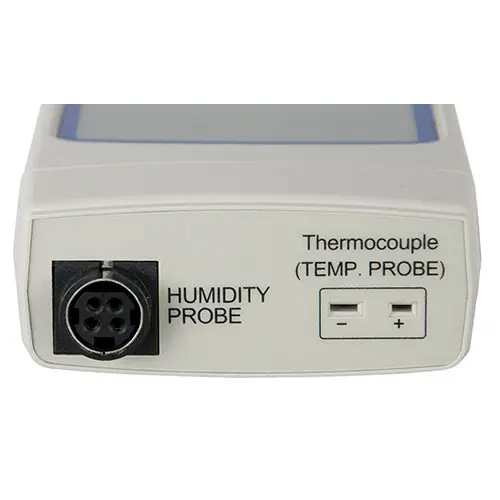

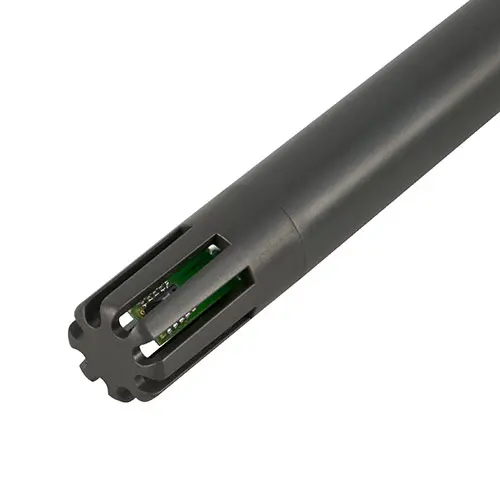

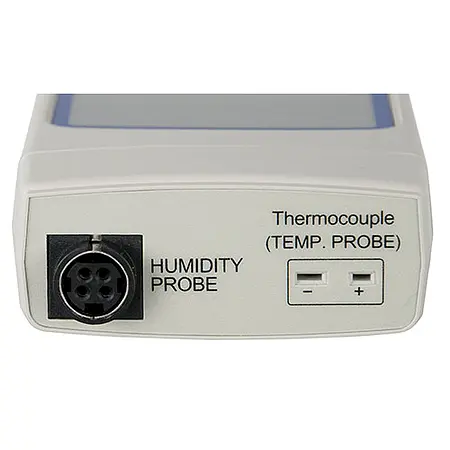

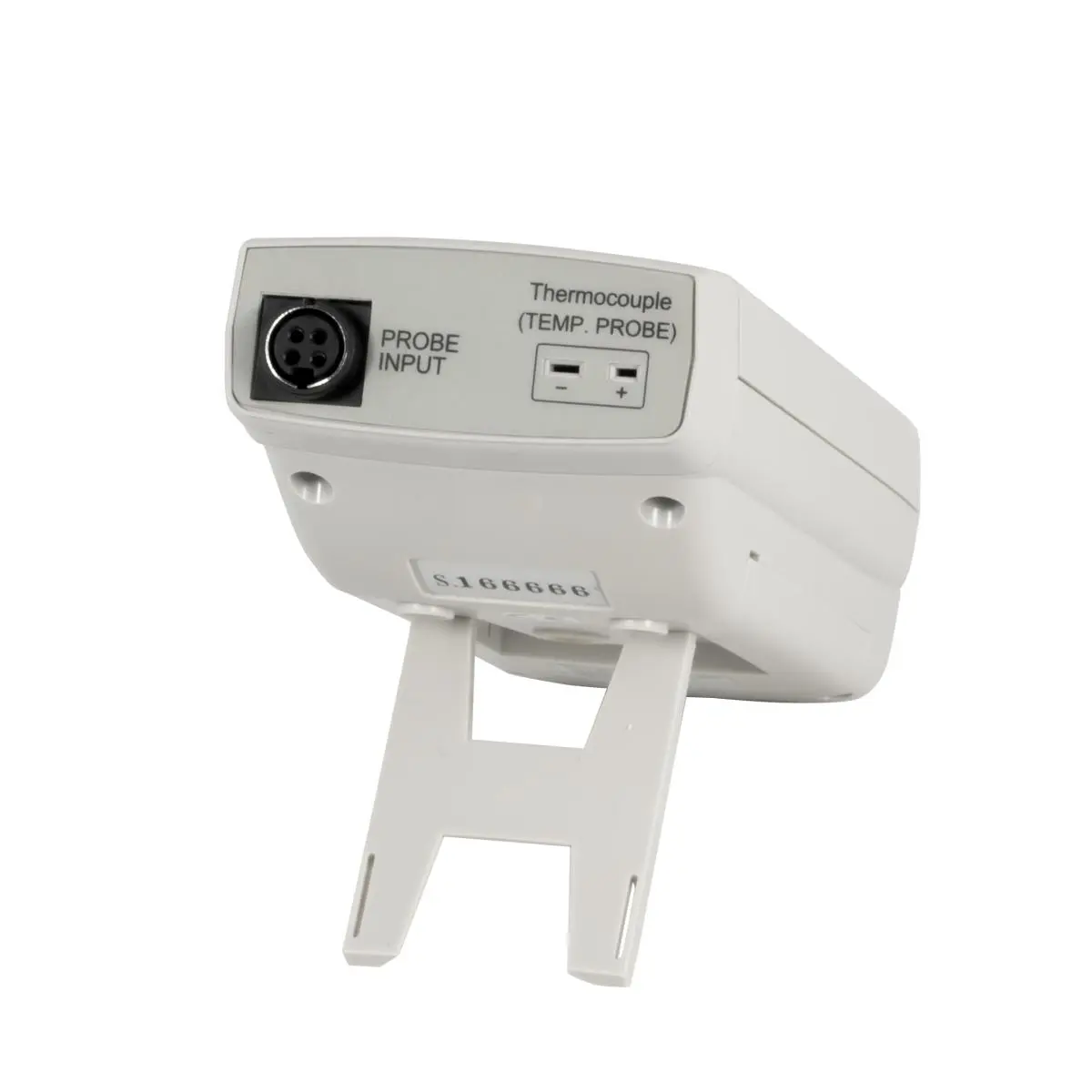

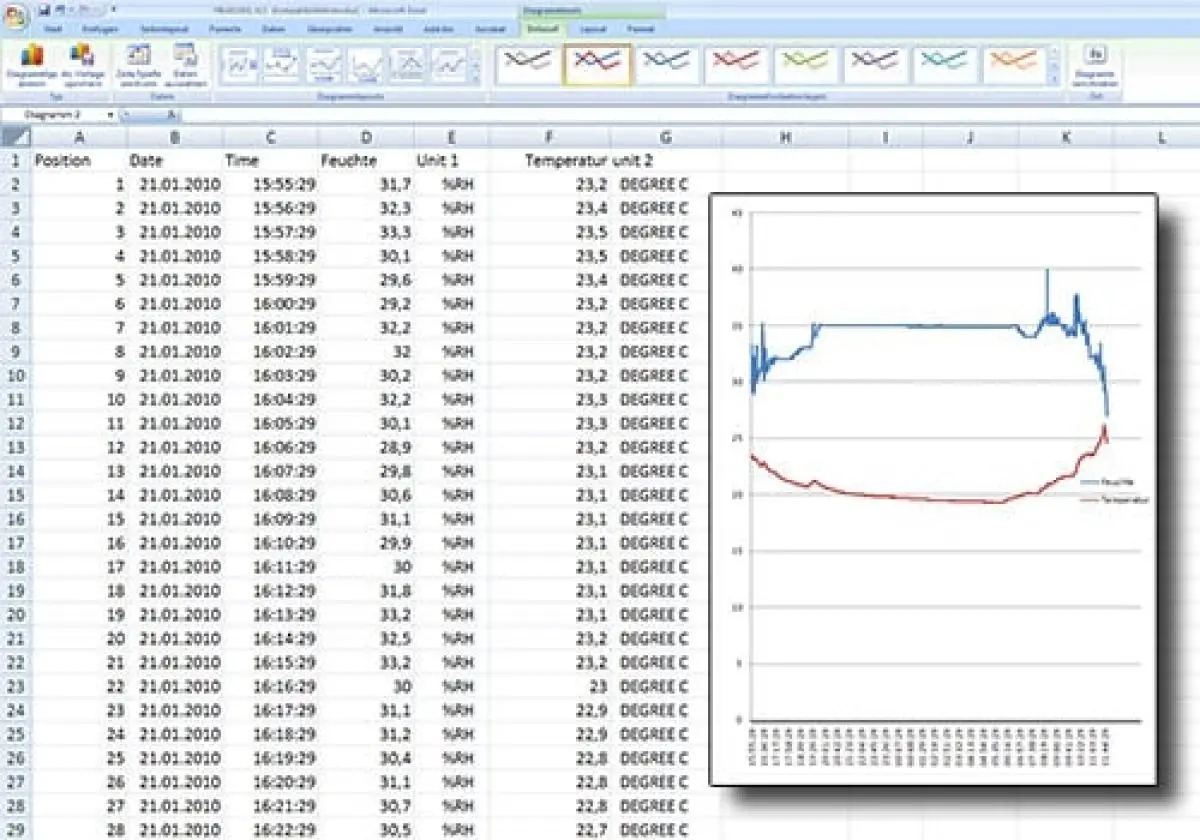

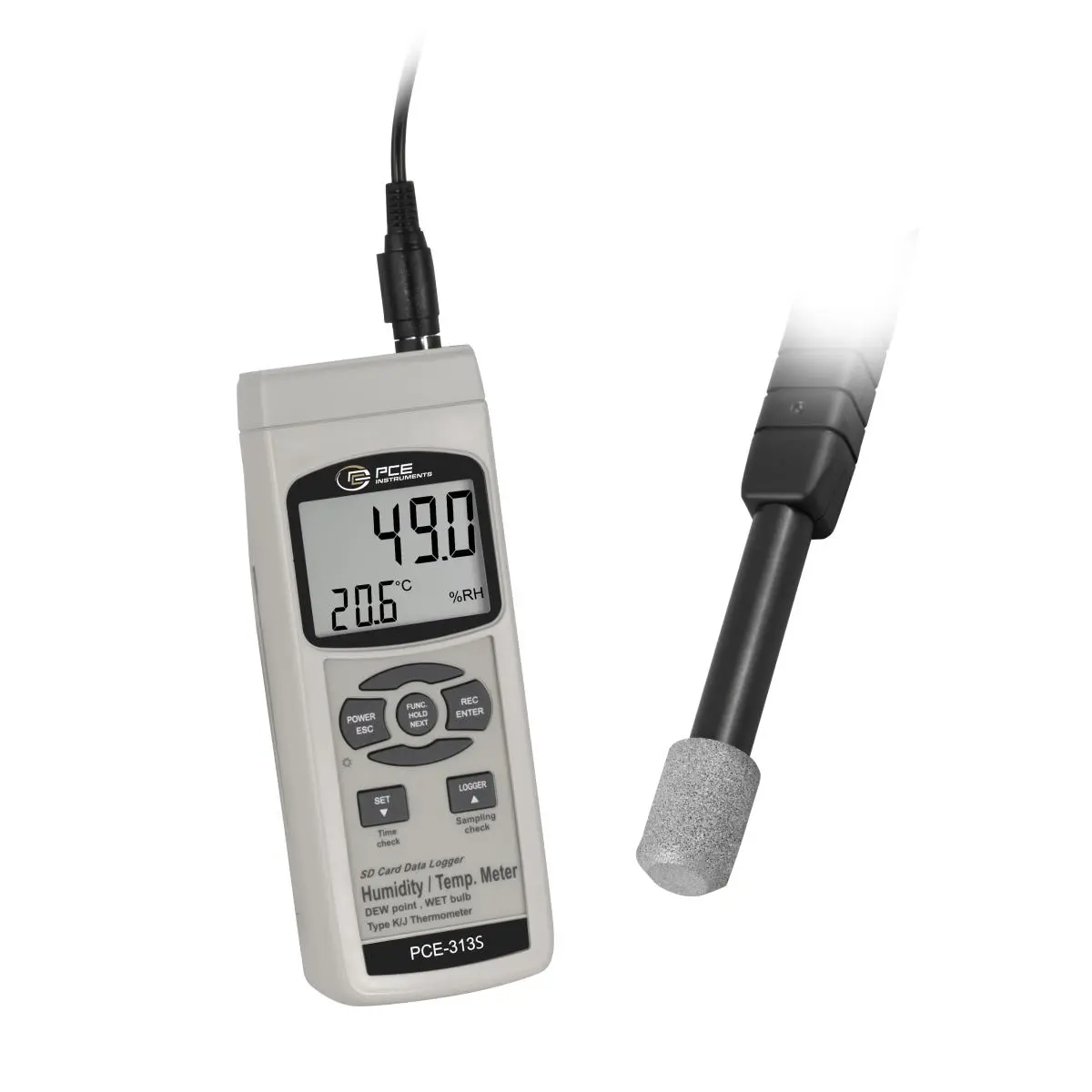

The PCE-313 S Data Logger has been designed for professional use in fields such as the air-conditioning sector. The PCE-313 S Data Logger determines both relative humidity and ambient temperature. The PCE-313 S Data Logger can be connected to type K thermo-elements to detect, for instance, the temperature of a wall by means of a surface probe. The internal memory of the PCE-313 S Data Logger allows you to record humidity and temperature values, with a free adjustment of the measurement rate for real time measurements or data storage thanks to its SD memory card (1 to 16 GB). The PCE-313 S Data Logger can be previously programmed via the keypad so the device can record values without the need of being present during the process. For long term records, we recommend you to power the PCE-313 S Data Logger by means of a power adapter (optional). Recorded values can be transferred to a PC for further analysis (.xls file in the SD card). This property allows you to check measured values or design a graphic by means of the Excel calculation program.
Ranges | |
- Relative humidity | 5 ... 95% RH |
- Temperature | 0 ... 50°C / 32 ... 122°F |
- Type K | -50 ... 1300ºC / -58 ... 2372°F |
- Calculated dew point | -25.3 ... 48.9ºC / -13.5 ... 120°F |
- Wet bulb temperature | -21.6 ... 50ºC / -6.9 ... 122°F |
Resolution | |
- Relative humidity | 0.1% RH |
- Temperature | 0.1°C / 0.18°F |
- Type K | 0.1°C / 0.18°F |
- Calculated dew point | 0.1°C / 0.18°F |
- Wet bulb temperature | 0.1°C / 0.18°F |
Accuracy | |
- Temperature | ±0.8ºC / 0.44ºF |
- Relative humidity | ≥70% RH±3% of the measurement value ±1% RH |
<70% RH±3% RH | |
- Type K | ± (0.4% + 0.5ºC / 0.9ºF) |

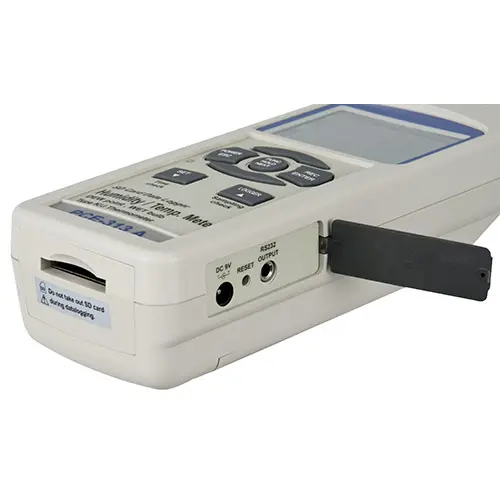

Memory | SD card (1 ... 16 GB) |
Measurement rate | Adjustable, 1 ... 3600 seconds |
Display | LCD 52 x 38 mm / 2 x 1.5 in, with backlight |

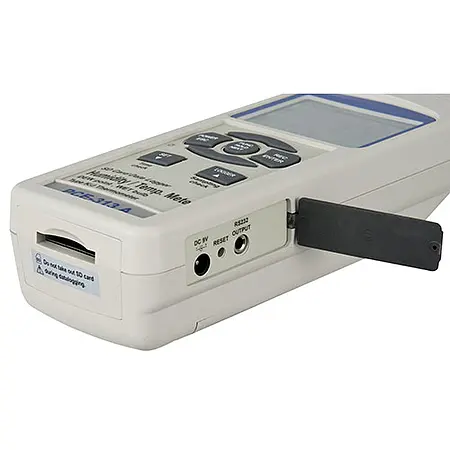

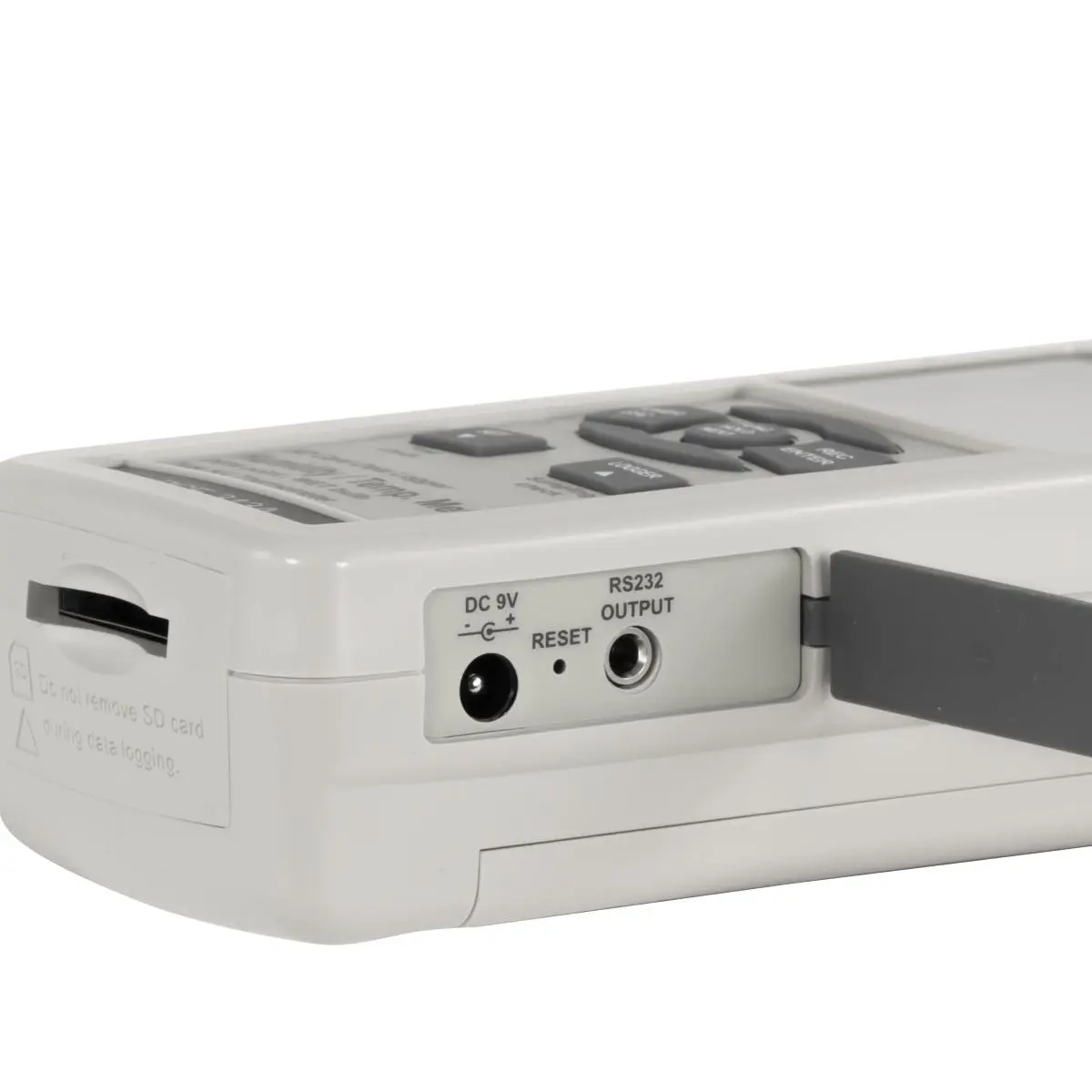

Interface | RS-232 |
Operating conditions | 0 ... 50°C / 32 ... 122ºF < 85% RH |

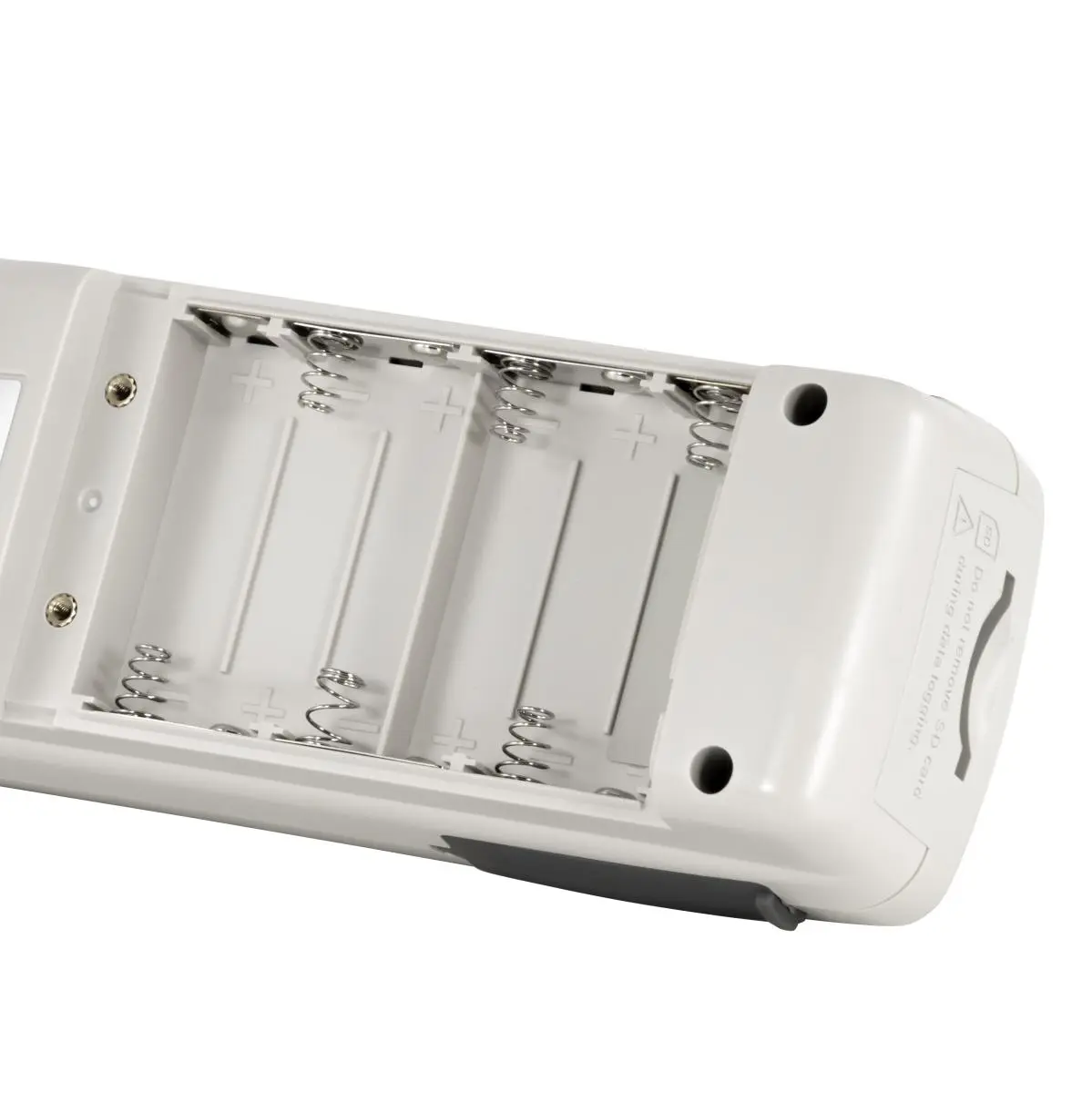

Power supply | 6 x 1.5V batteries / 9V mains adapter (optional) |
Dimensions | 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in |
Weight | Approx. 490 g / 1.1 lbs |
