Data Logger with USB Interface PCE-HT 114-ICA Incl. ISO Calibration Certificate

Order no.: PCE-HT 114-ICA
GTIN (EAN):
£ 262.00
£ 314.40
ISO Calibration
price ex. (VAT / delivery)
PCE-HT 114-ICA
Delivery time: 10 - 14 days

Description

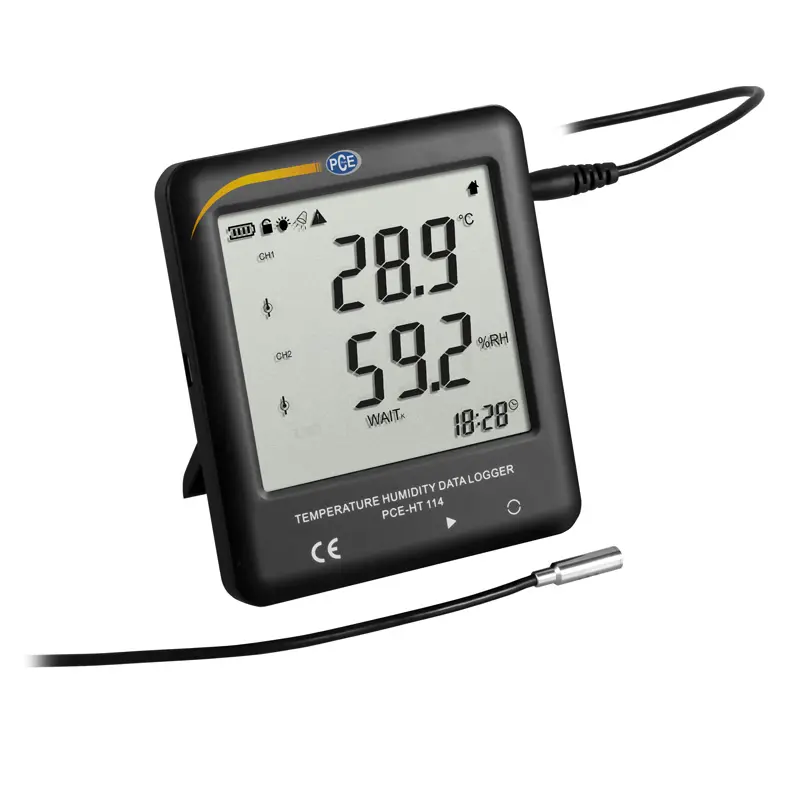

Data Logger with USB Interface PCE-HT 114
Refrigerator data logger for temperature and humidity / LCD / 25,920 Data Storage /  Fast reading via USB / Adjustable alarm limits / External sensor

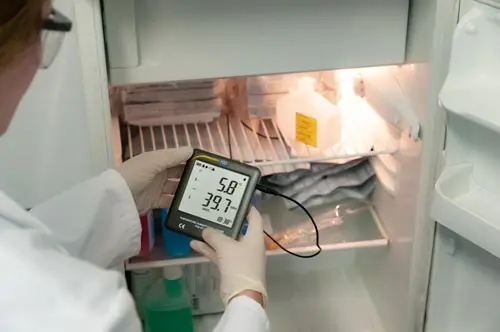

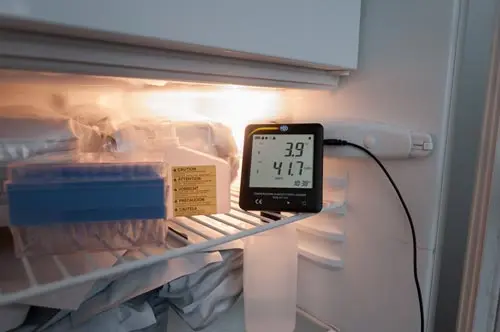

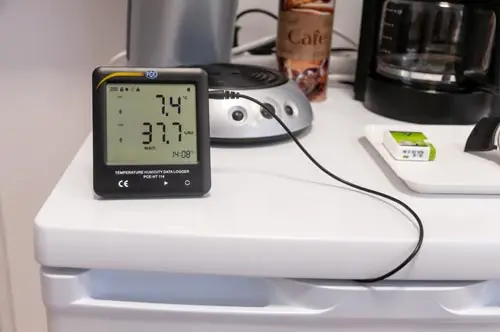

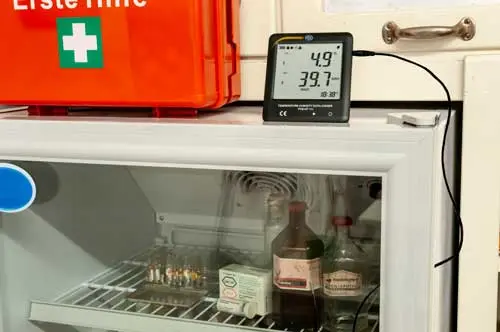

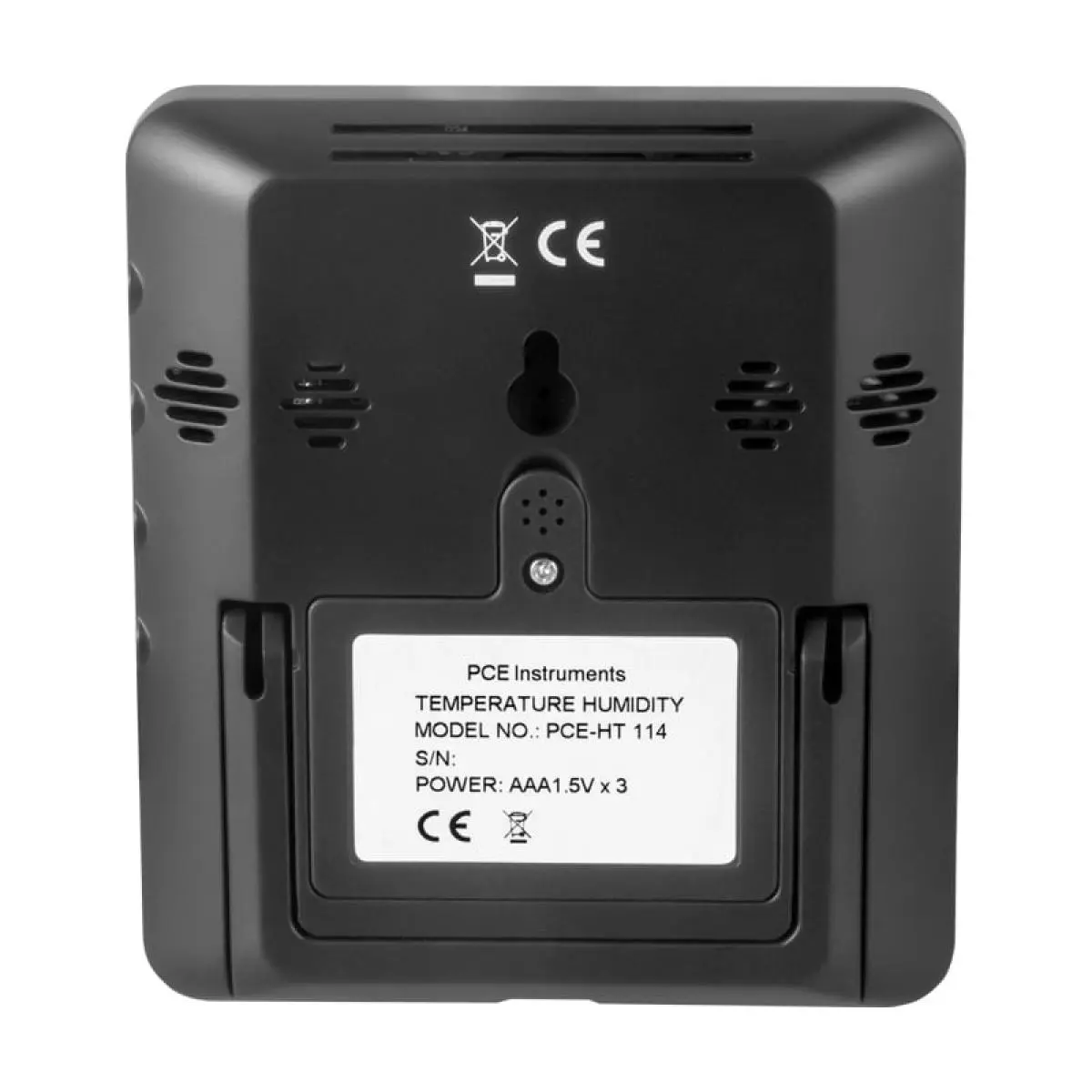

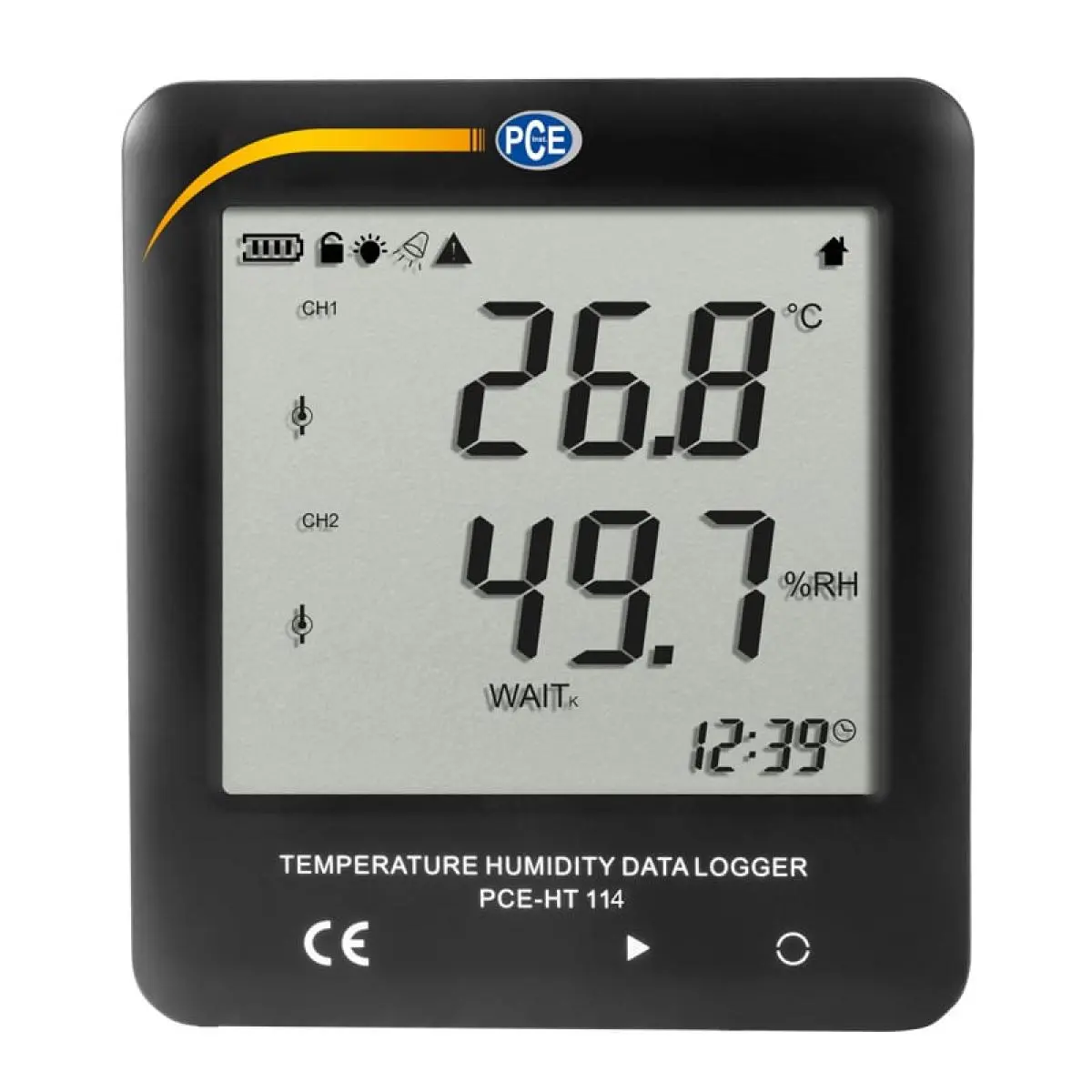

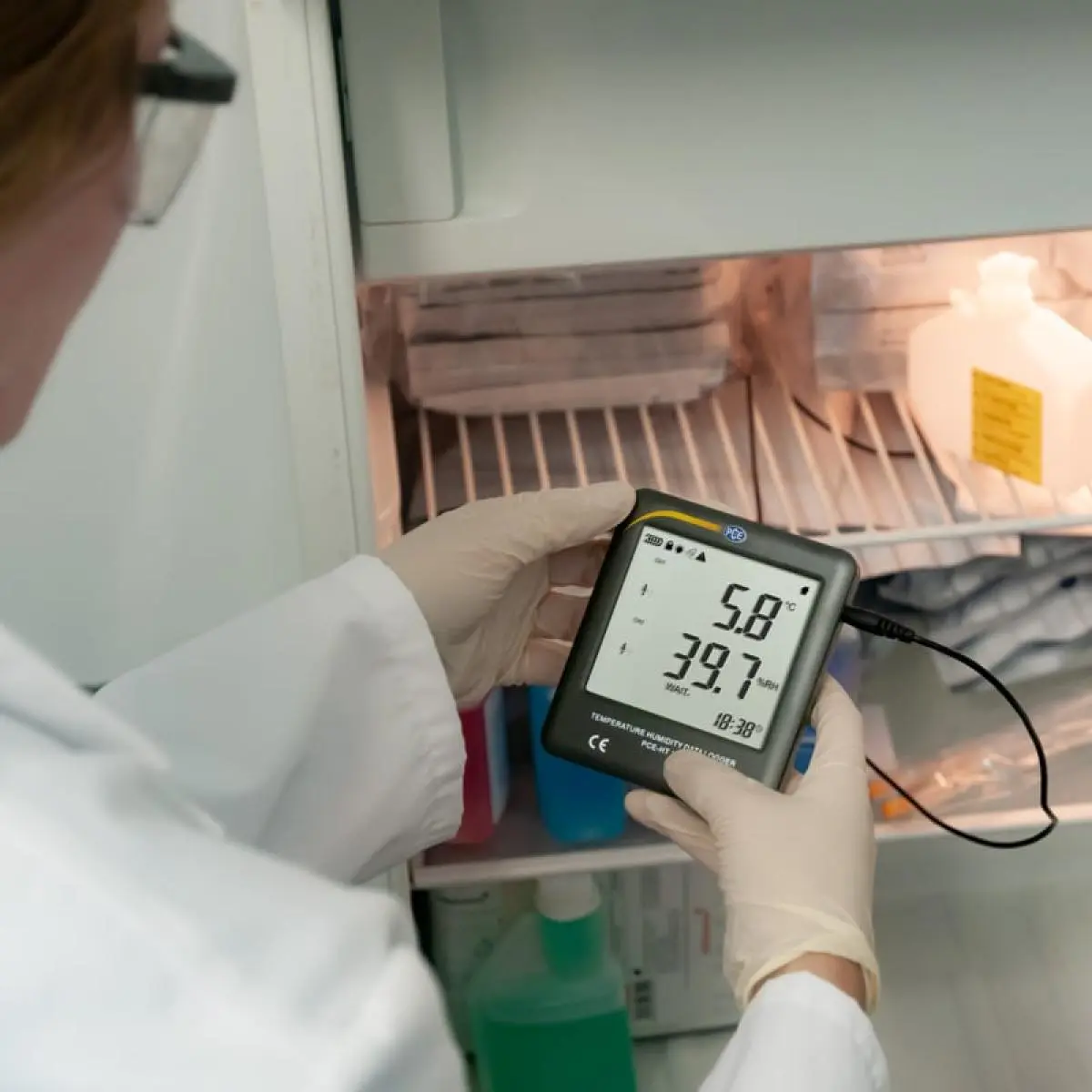

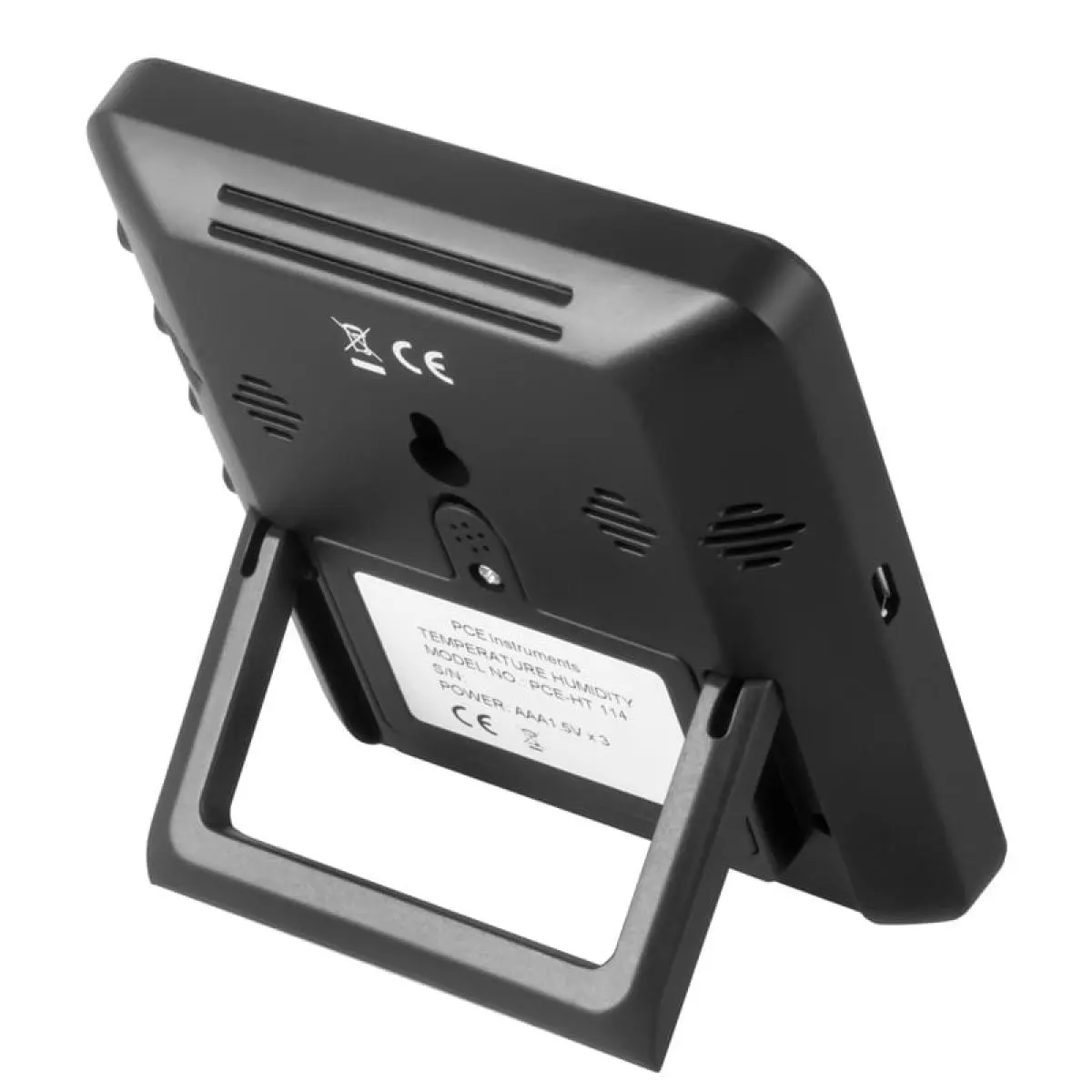

The data logger with USB interface has a temperature and humidity sensor on 2 m / 6.6 ft cable. The data logger with USB interface records the temperature and humidity in the interior of the refrigerator and simultaneously displays it via the LCD display. The data logger stores the measured values ​​in a format that is used by the software for analysis as well as in PDF format. In the PDF document that the data logger creates, a graph showing the course of the measurement is shown. Likewise, an overview of all measured values ​​is displayed directly in the measurement report. The data logger has a base and a mounting tab on the back. The display can be switched off for battery saver.

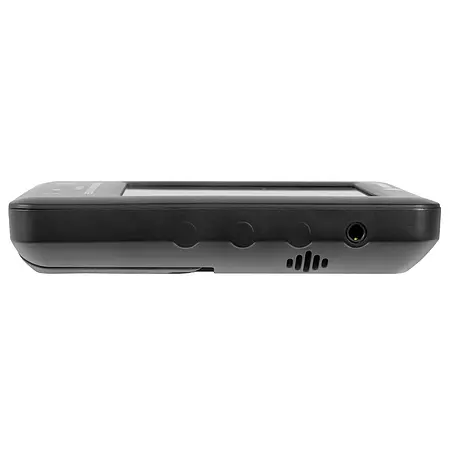

The data logger with USB interface can store up to 25,920 readings, which can be evaluated using the software. To connect to a PC, the data logger has a USB port. The software can also set alarms for high or low temperatures. It is also possible to switch over to the optionally available external sensor via the software.

Highlights

- Temperature and humidity data logger
- LCD display
- Memory for 25,920 readings
- Fast reading via USB
- Adjustable alarm limits
- External sensor

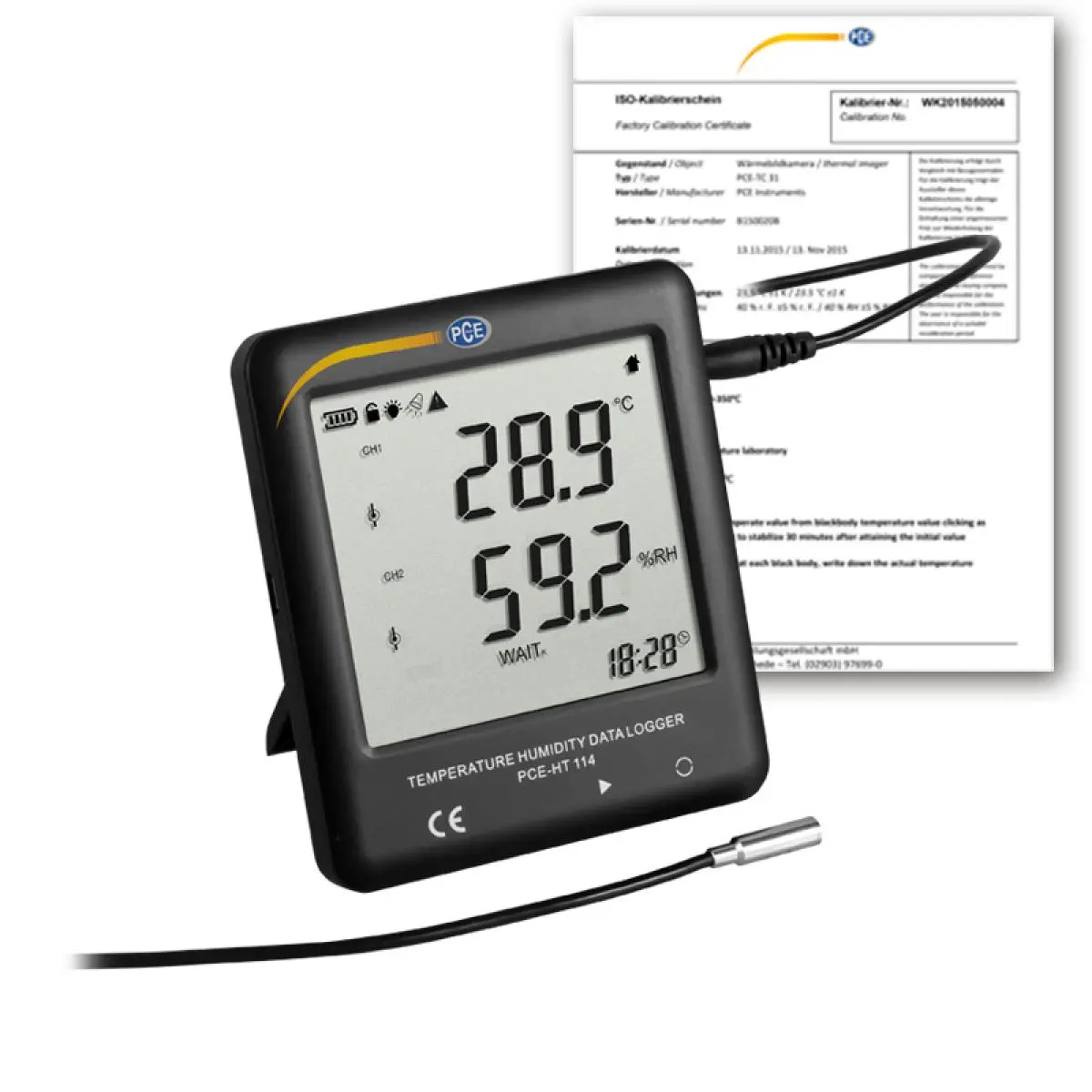

- Incl. ISO calibration certificate

Specification

Measuring function Temperature
Measuring range -40 ... 125°C / -40 ... 257°F (external)
Resolution 0.1°C / 0.18°F
Accuracy ± 0.3°C / 0.54°F (-10 ... 65°C / 14 ... 149°F)
± 0.5°C / 0.9°F (remaining range)

Measuring function Humidity
Measuring range 0 ... 100% rh (external)
Resolution 0.1% RH
Accuracy ± 3% (10% ... 90%)
  ± 4% (remaining area)

Response time 5 min
Storage 25,920 readings
Storage rates 30s, 60s, 2 min, 5 min, 10 min, 15 min, 20 min, 25 min, 30 min, 1 h or individually adjustable
Measuring interval /
refresh rate Display
5 s
Alarm Adjustable audible alarm
Interface USB
Power supply      3 x 1.5V AAA batteries
5V USB
Battery life Approx. 1 year (without lighting / without alarm)
operating conditions                             -30 ... 65°C / -22 ... 149°F
Storage  conditions -30 ... 65°C / -22 ... 149°F (without battery)
Dimension 96 x 108 x 20 mm / 3.8 x 4.3 x 0.8 in
Weight 120 g / < 1 lb
Degree of protection IP20

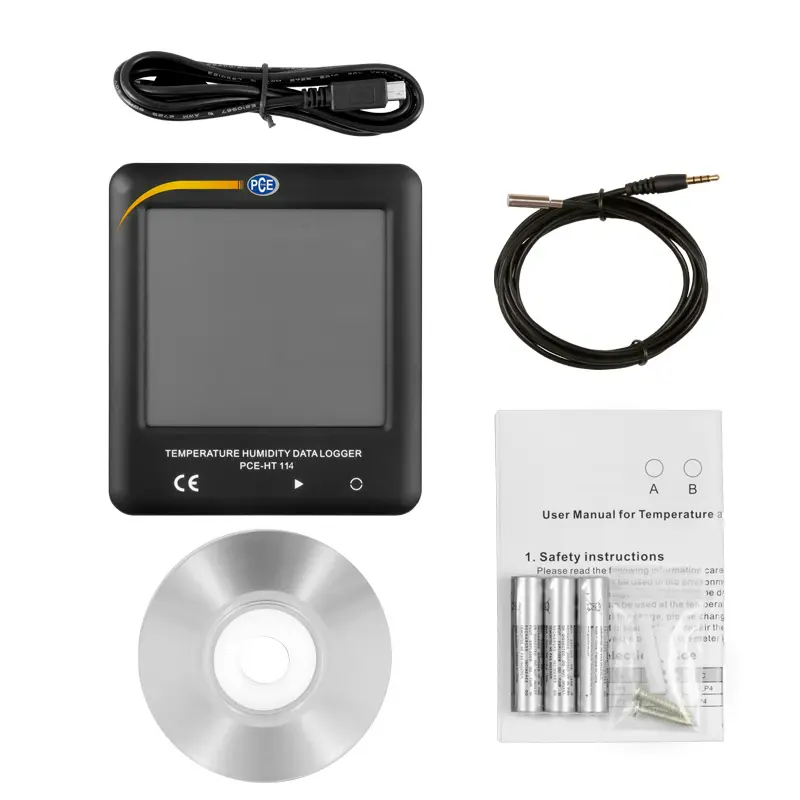

Delivery Scope

1 x Data Logger with USB Interface PCE-HT 114
1 x External sensor
3 x 1.5V AAA battery
1 x Micro USB cable
1 x Software on CD
1 x User manual

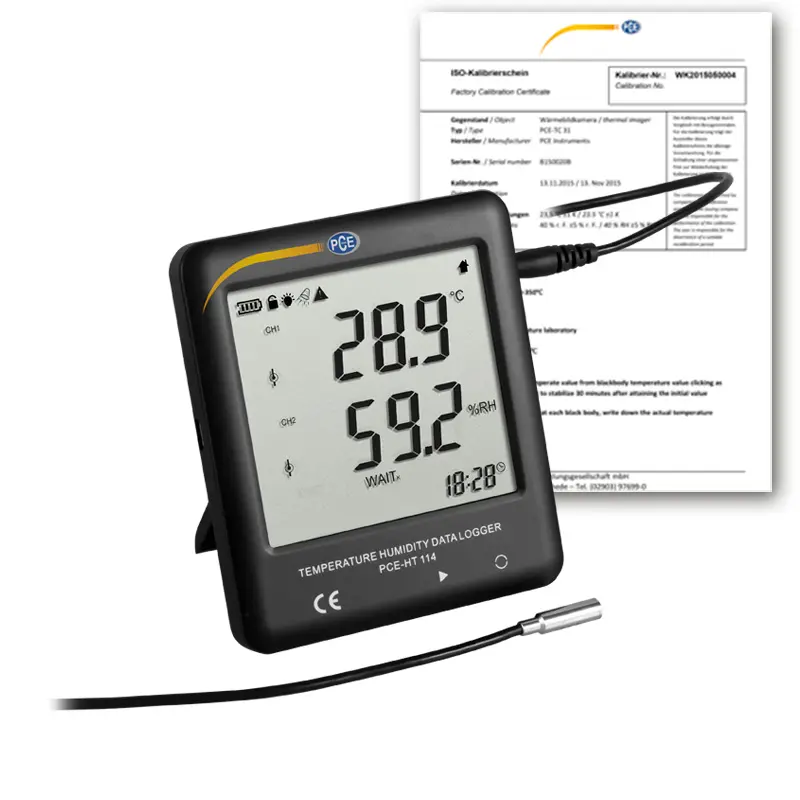

1 x ISO calibration certificate
