Barcol Hardness Testing Durometer PCE-1000N

Order no.: PCE-1000N
GTIN (EAN): 4250348716088
£ 967.00
£ 1,160.40
price ex. (VAT / delivery)
:
4250348716088
PCE-1000N
Delivery time: 1-2 working days

Accessory

ISO Calibration Certificate CAL-HBa
ISO Calibration Certificate CAL-HBa
£ 125.00

Description

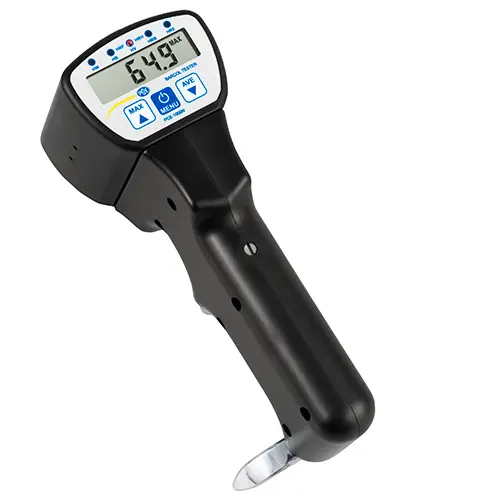

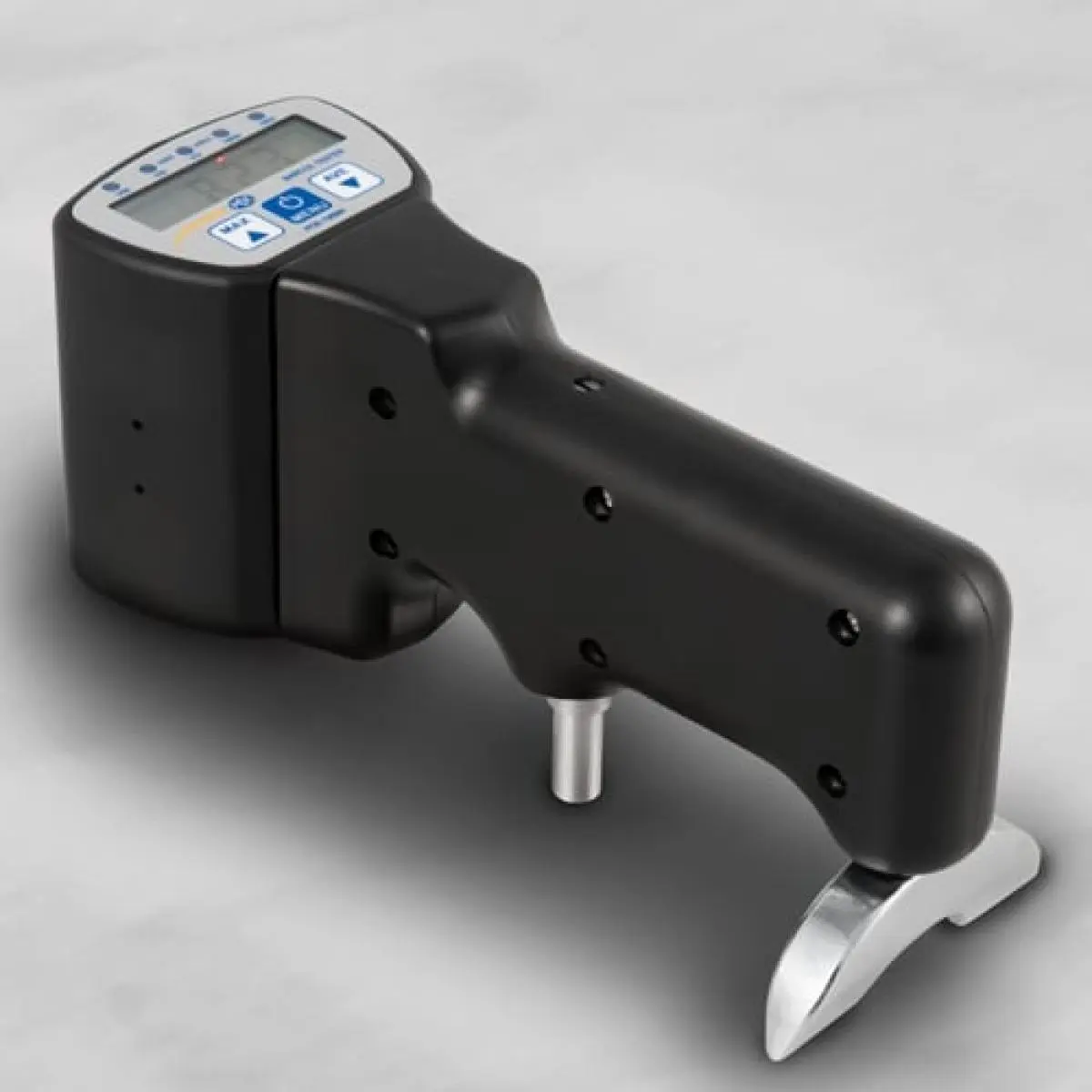

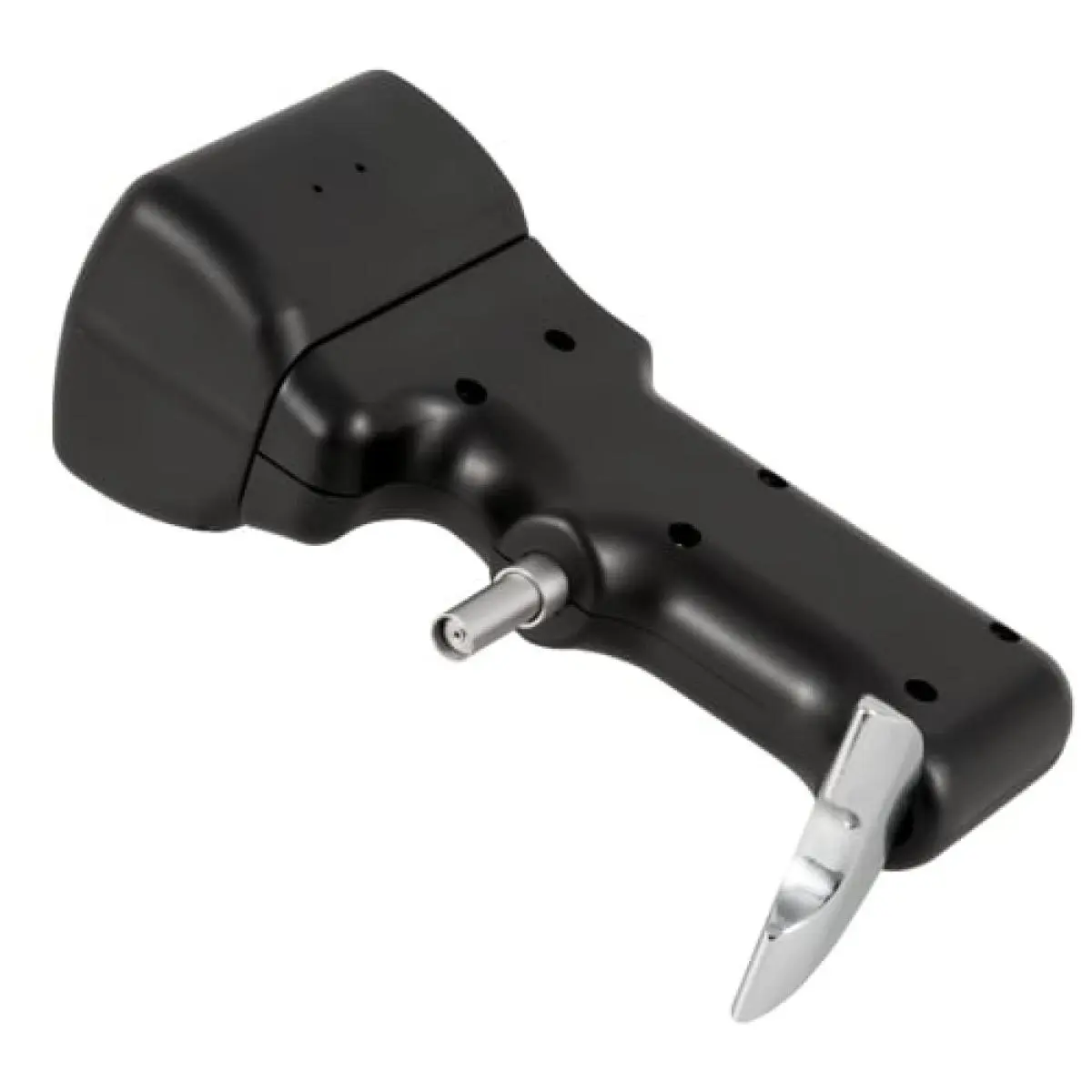

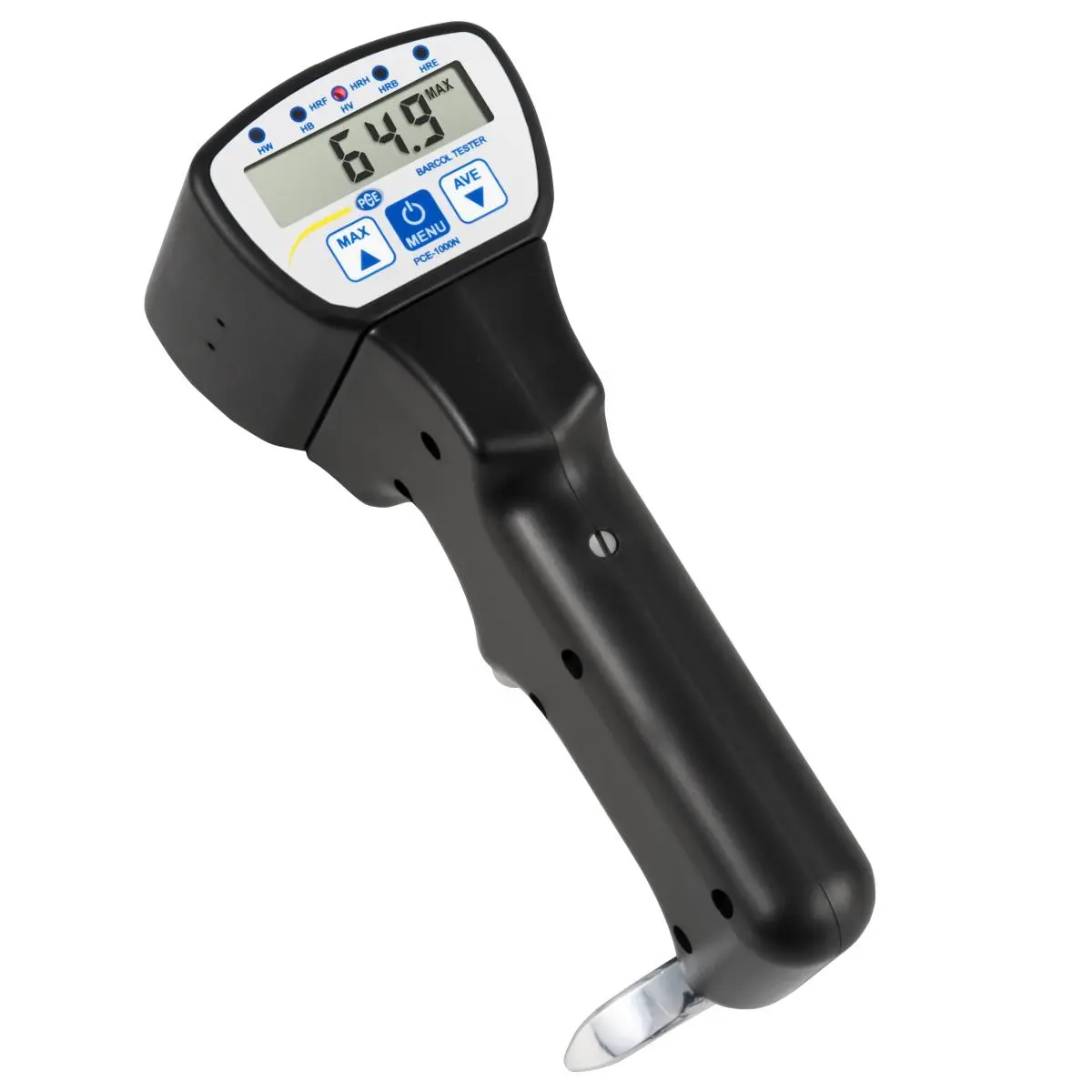

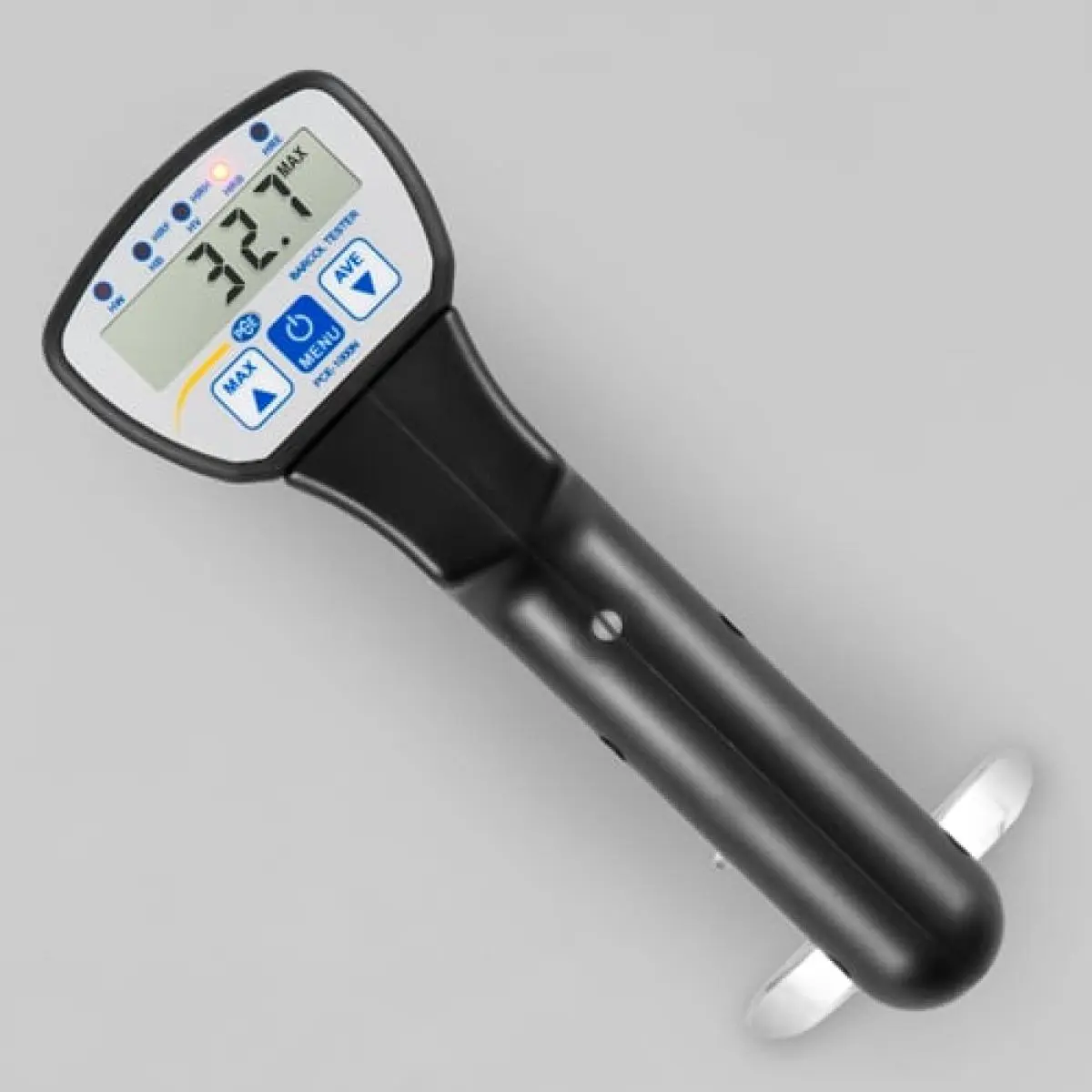

PCE-1000N Barcol Hardness Testing Durometer

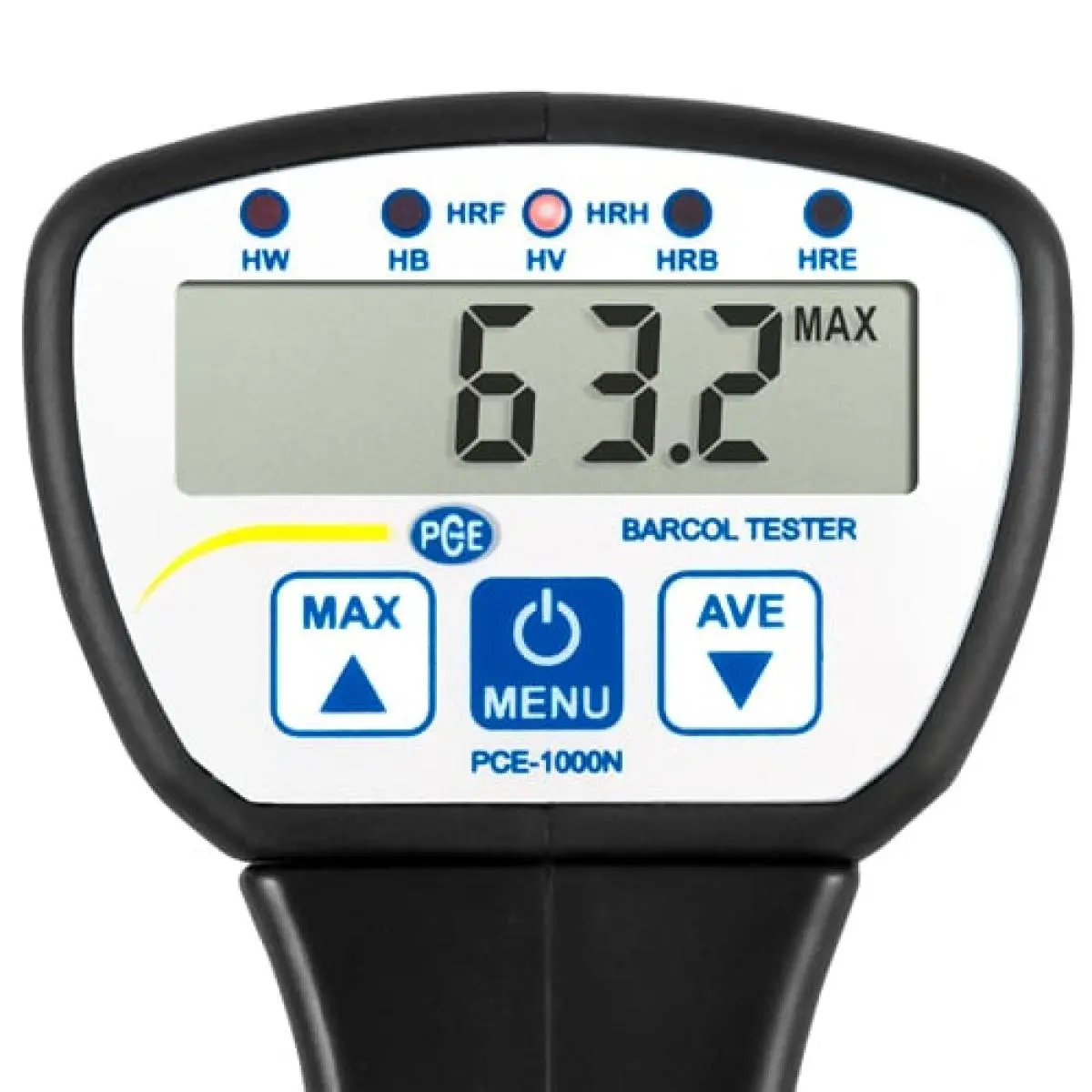

Barcol impressor hardness meter with backlit LCD, power-saving automatic shutdown, maximum and average functions

PCE-1000N is a portable handheld Barcol hardness testing durometer used to measure the hardness of pure aluminum, soft aluminum, thick aluminum alloy and aluminum sheets, strips, rods, castings and forgings. The hardness of fiber-reinforced (FRP) plastics, glass-reinforced (GRP) plastics, hard plastics and soft metals (such as copper or lead) also can be tested using this battery-powered digital Barcol impressor hardness meter. The digital meter offers a wide measuring range, high accuracy and direct display of the measured values ​​on the built-in backlit LCD. In addition to Barcol (HBA) hardness units, the meter displays hardness measurements in Brinell (HB), Vickers (HV), Webster (HW) and Rockwell (HRB / HRE / HRF / HRH) hardness units. Adding to the meter's versatility is its sleek design, allowing for quick and easy one-handed operation.

The Barcol Hardness Tester meets the following ASTM (American Society for Testing and Materials) standards: E140-97; D2583-75; B648-78: E140-97 Standard Hardness Conversion Tables for Metals; D2583-75 Standard Method of Testing for Indentation Hardness of Plastics by means of a Barcol Impressor; B648-78 Standard Method of Testing for Indentation Harness of Aluminum Alloys by means of a Barcol Hardness Tester.

Highlights

- Direct display of measured value
- High accuracy
- Maximum and average value functions
- Easy-to-read backlit LCD screen
- Power-saving automatic shutdown
- Wide measuring range
- One-handed operation

Specification

Measurement parameters Barcol (HBA)
Brinell (HB)
Vickers (HV)
Webster (HW)
Rockwell (HRB / HRE / HRF / HRH)
Measuring range 0 ... 100 HBA / 25 ... 150 HB
Resolution 0.1 HBA
Accuracy 81 .. 88 HBA: ± 1 HBA
42 ... 48 HBA: ± 2 HBA
Repeatability 81 .. 88 HBA: ± 1.5 HBA
42 ... 48 HBA: ± 2.5 HBA
Operating conditions 0 ... 50°C / 32 ... 122°F
< 80 % relative humidity (RH)
Power supply 2 x 1.5V AAA batteries
Dimensions 170 x 63 x 82 mm / 6.6 x 2.4 x 3.2 in
Weight 390 g / < 1 lb  (without batteries)

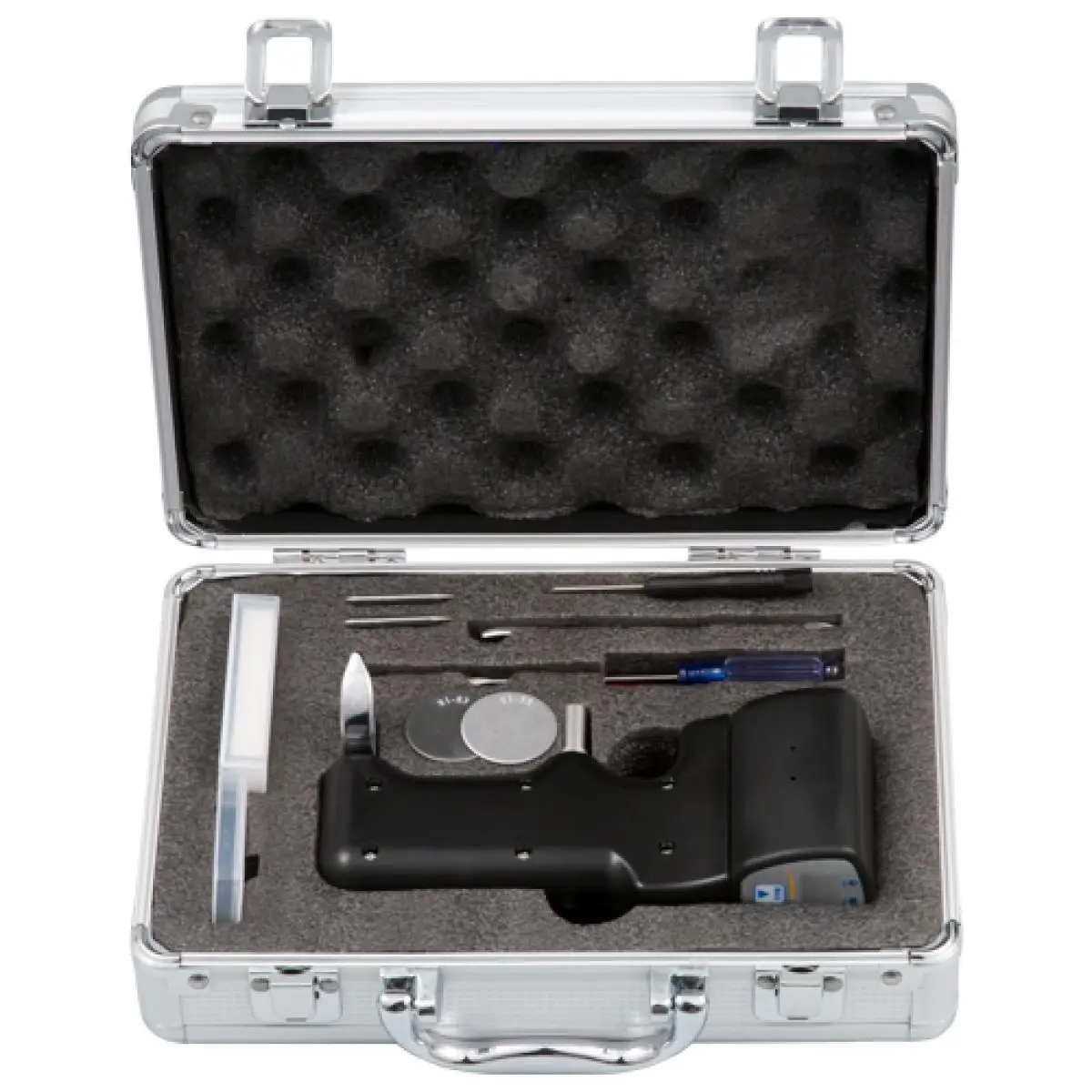

Delivery Scope

1 x PCE-1000N Barcol hardness tester
3 x Screwdrivers
1 x Wrench
1 x User manual
1 x Carrying case
