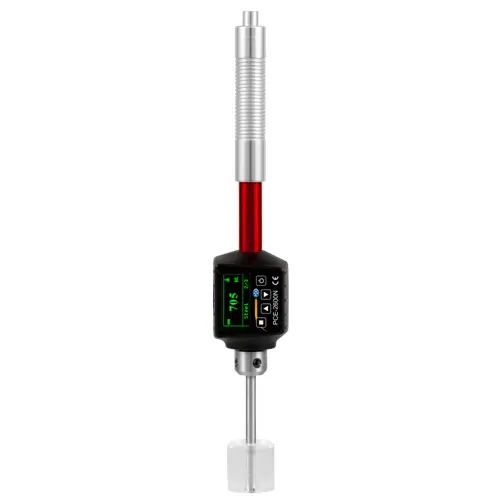

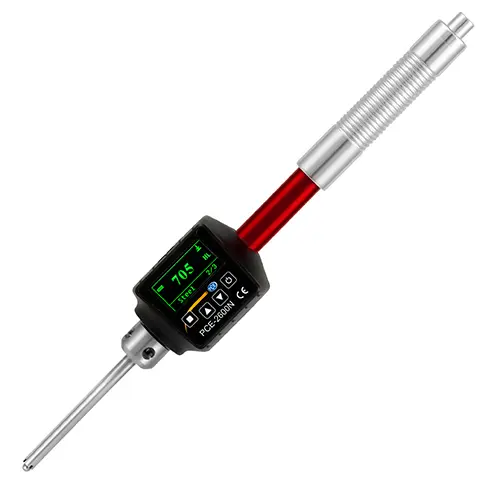

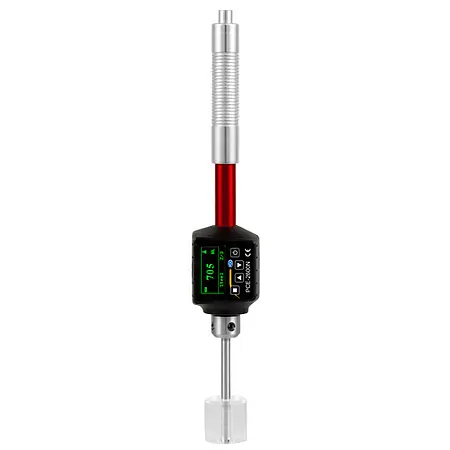

Metal Hardness Testing Durometer with ISO Certificate PCE-2600N-ICA

Order no.: PCE-2600N-ICA
GTIN (EAN): 4250348716071
£ 1,512.00
£ 1,814.40
ISO Calibration
price ex. (VAT / delivery)
:
4250348716071
PCE-2600N-ICA
Delivery time: 10 - 14 days

Description

Durometer with ISO Calibration Certificate PCE-2600N-ICA for measuring surface hardness of metals / OLED / Compact design / Handheld measuring instrument /
Limit alarm / Measuring direction 360°

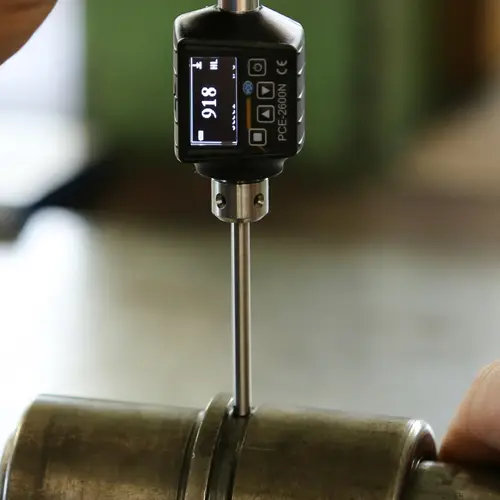

The durometer is used wherever a fast hardness test has to be carried out. It is possible with the durometer to determine the surface hardness of many metals. The durometer is particularly suitable for quality or material inspection. The measured values can be stored in the internal memory and recalled later. Please note that the measured values can only be read from the durometer on the display and it does not offer any readout.

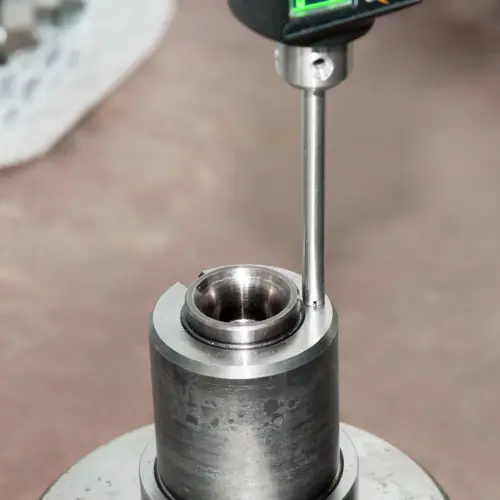

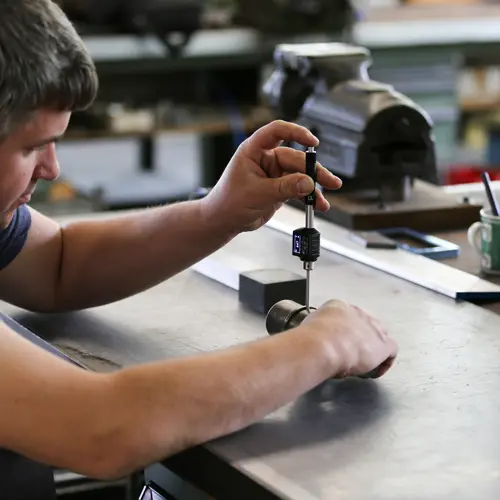

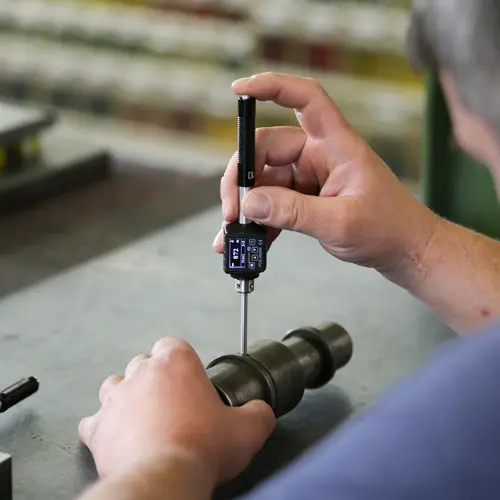

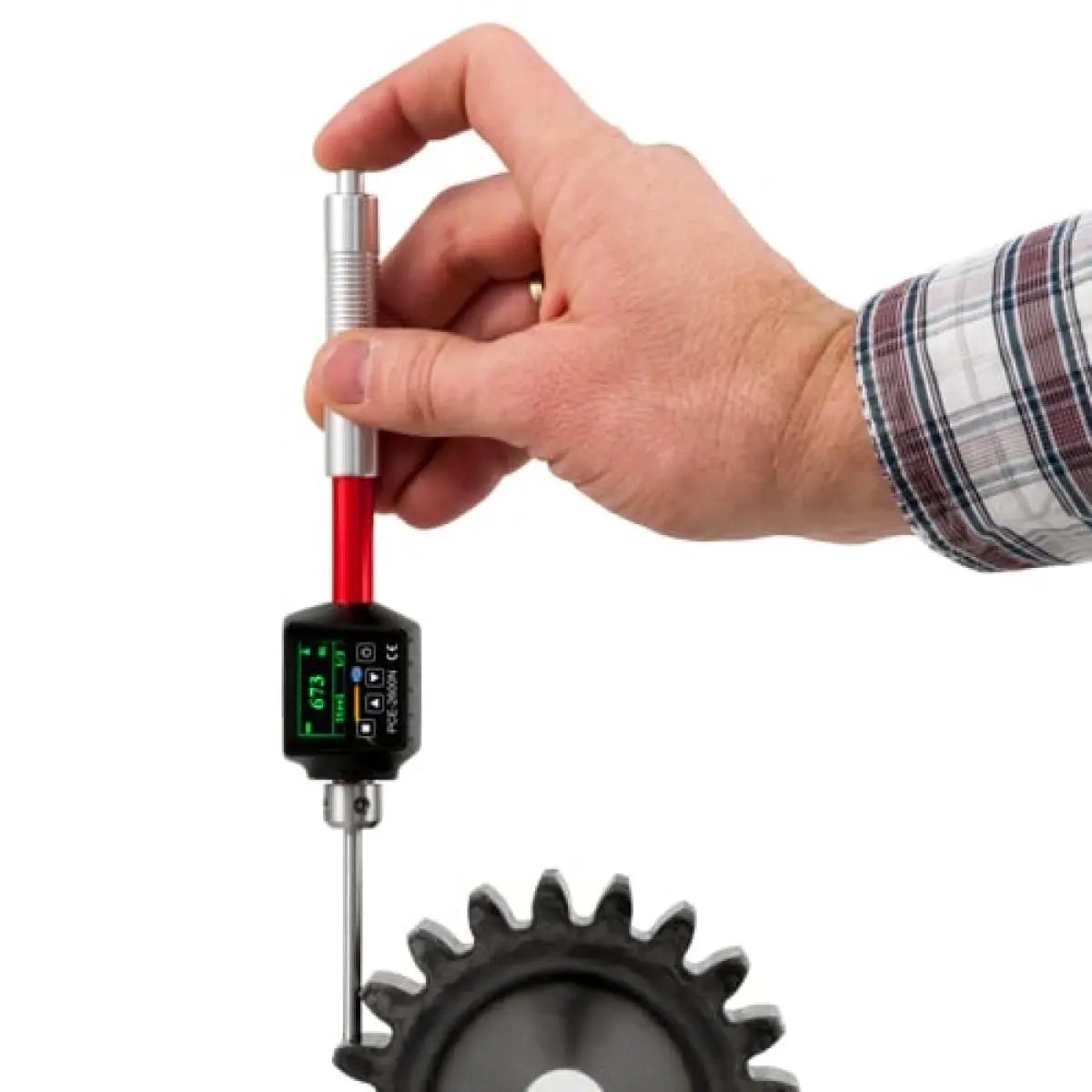

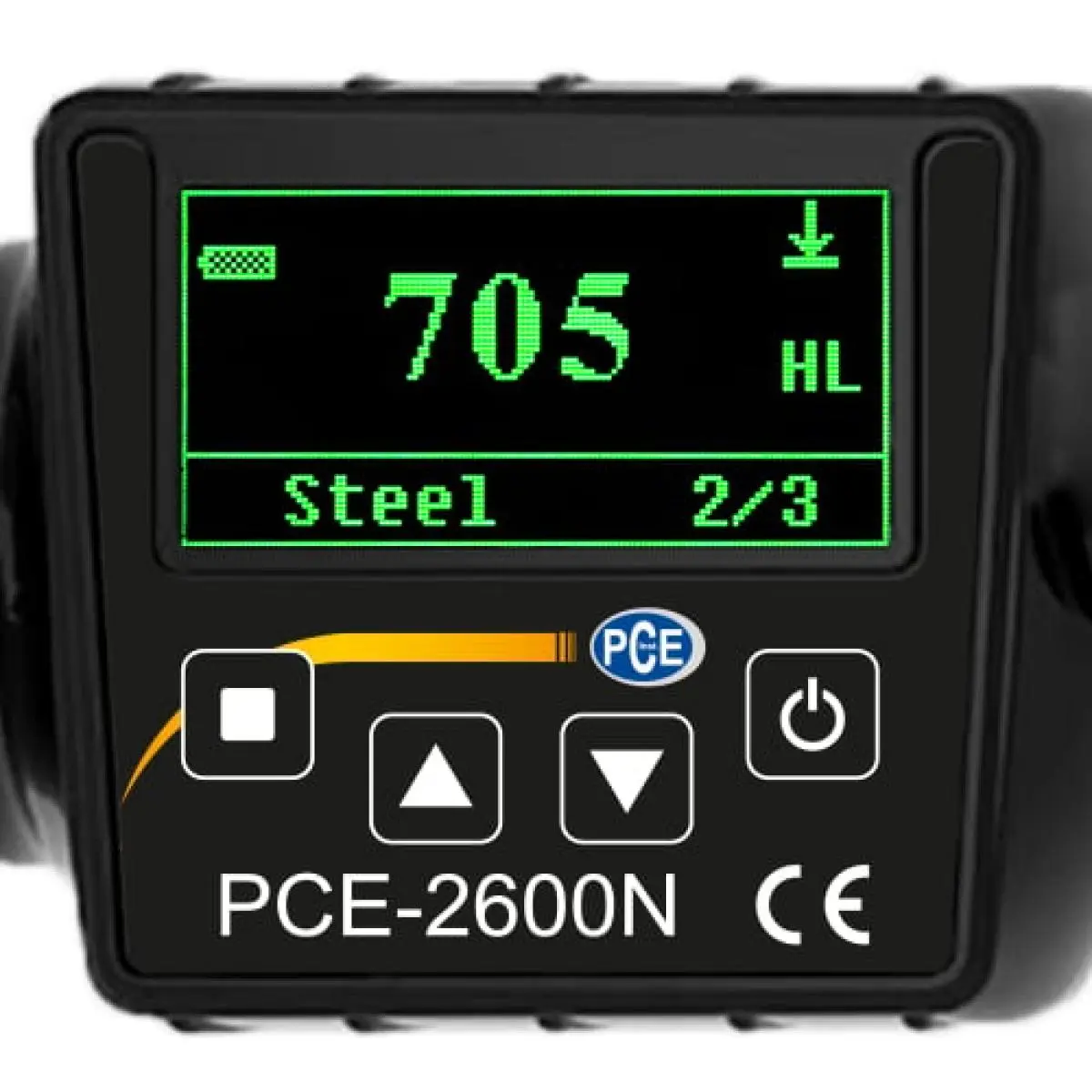

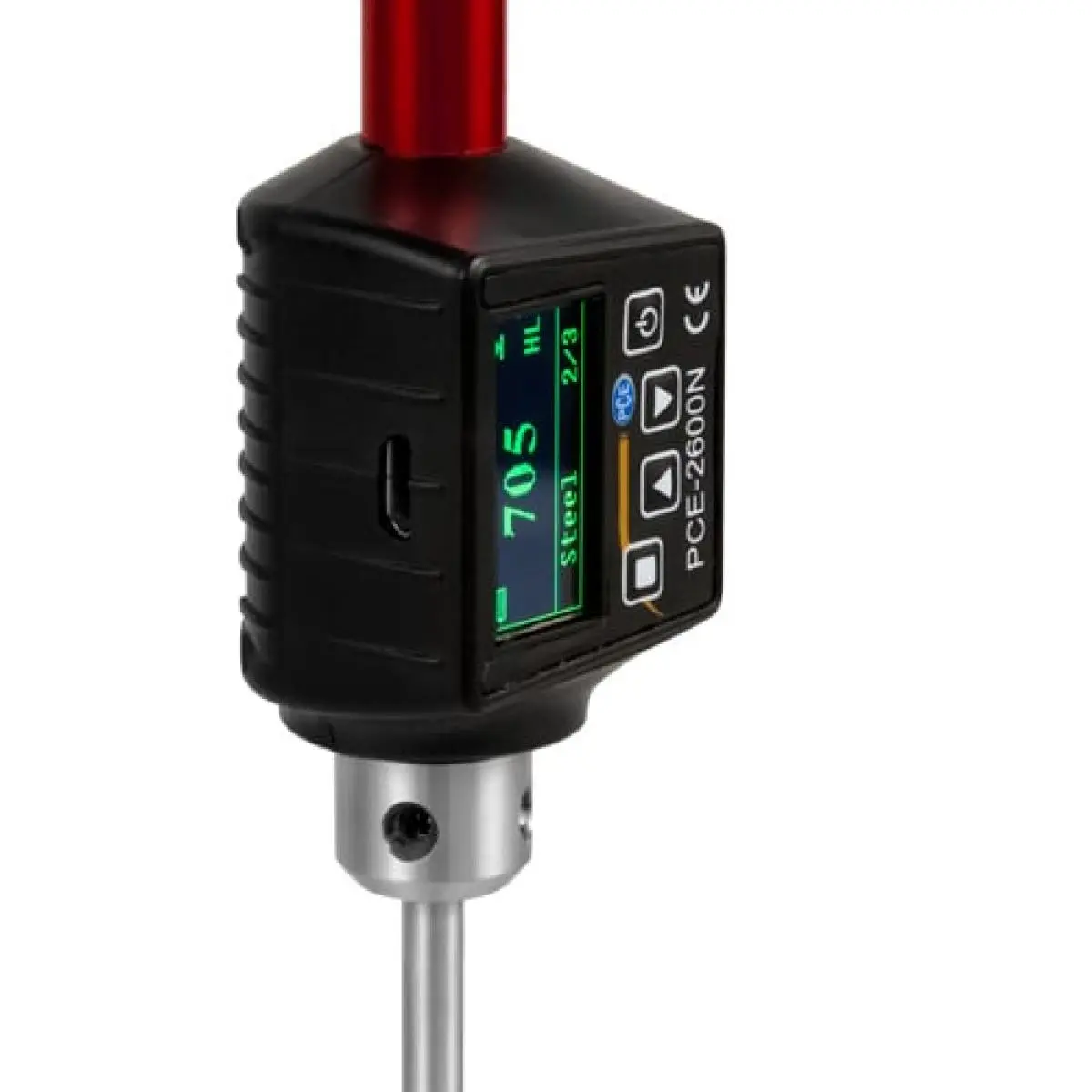

One-hand operation of the durometer allows for convenient use in different locations. Due to its construction, the durometer also offers the possibility to determine the surface hardness in bores or other depressions. The small design of the durometer contributes to the functionality as does the light OLED. The OLED from the durometer shows many functions so that the user directly recognizes which parameters are measured, which measuring direction is selected, and which hardness has been measured.


Highlights

- Limit alarm

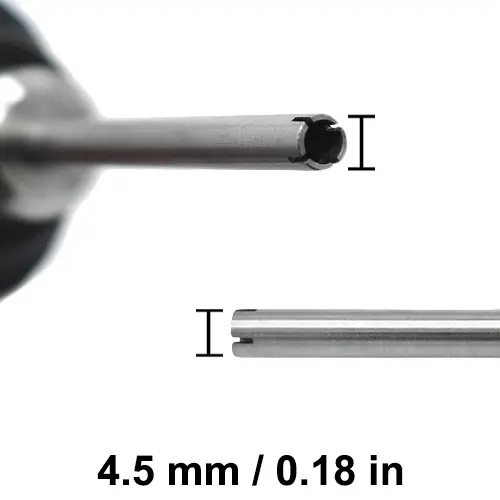

- Suitable for measurement in bores
- Surface measurement on many metals
- Internal memory for measurements
- Bright OLED
- Handheld measuring instrument
- Includes ISO calibration certificate

Specification

Measurement method According to Leeb
Impactor DL

Measuring range HLD: 170 ... 960
HRC: 17.9 ... 69.5
HB: 19 ... 683
HV: 80 ... 1042
HS: 30.6 ... 102.6
HRA: 59.1 ... 88
HRB: 3.5 ... 101.7
Measurement accuracy     HLD: ± 0.5%
Maximum hardness 1042 HV
Striker Type D
Display 128 x 64 mm /  5 x 2.5 in OLED
Repeatability HLD: ± 0.8%
Hardness max. 1042 HV
Measurement units HLD, HRC, HB, HV, HS, HRA, HRB
Display 15 mm / 0.59 in

Material Steel
  Cast steel
  Alloy tool steel

Stainless steel

Cast iron
  Nodular cast iron parts
  Cast aluminum alloy

Brass
  Bronze
  Tin bronze

Measuring ranges on different material surfaces

Material
Steel HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32.2 ... 99.5

Tool steel HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32.2 ... 99.5


Stainless steel HRB: 46.5 ... 101.7
HB: 85 ... 655
HV: 85 ... 802

Cast iron HB: 93 ... 334

Brass HRB: 13.5 ... 95.3
HB: 40 ... 173

Bronze HB: 60 ... 209

Copper HB: 45 ... 315

Battery life ca. 10 h
Power supply Polymer Li-ion battery, 3.7V
Interface USB 2.0
Dimensions 205 x 32 x 25 mm / 8 x 1.3 x 1 in
Weight 650 g / 1.4 lbs
Display 128 x 64 mm / 5 x 2.5 in OLED
Opearting conditions -10 ... 50°C / 14 ... 122°F , <90% r.H.
Storage conditions -30 ... 60°C / -22 ... 140°F, <90% r.H.

Delivery Scope

1 x Durometer PCE-2600N-ICA
1 x Impactor
1 x Calibration block
1 x Cleaning brush

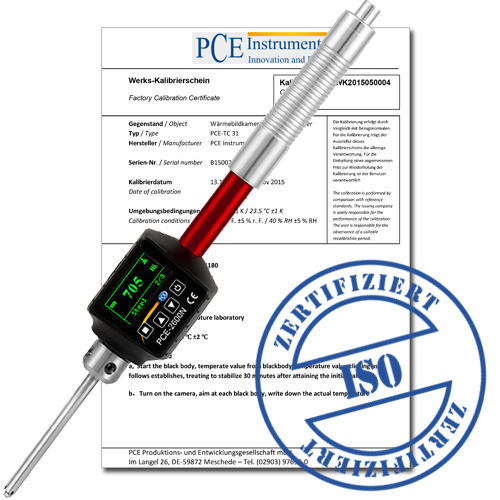

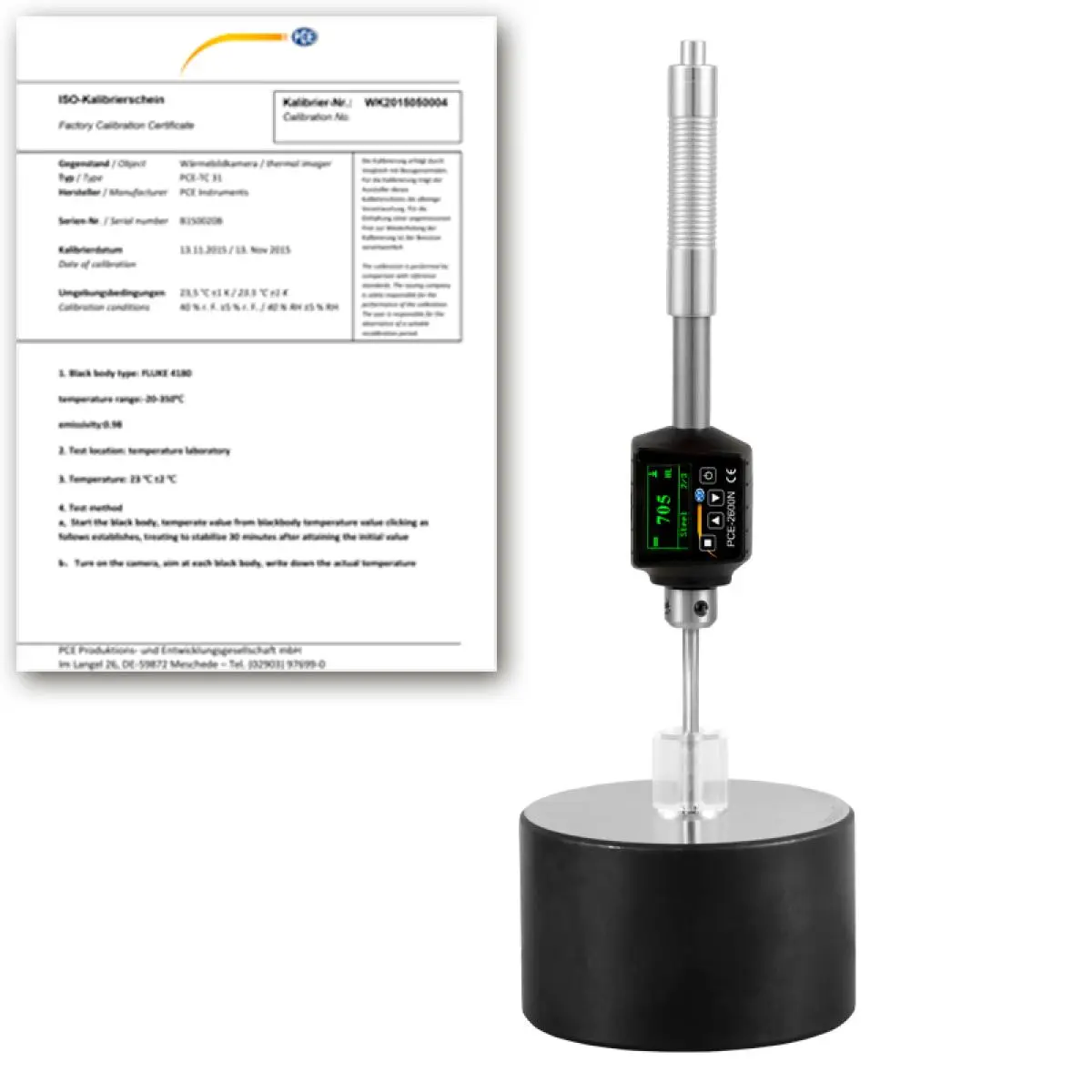

1 x ISO calibration certificate
1 x Carrying case
1 x Operation manual

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
