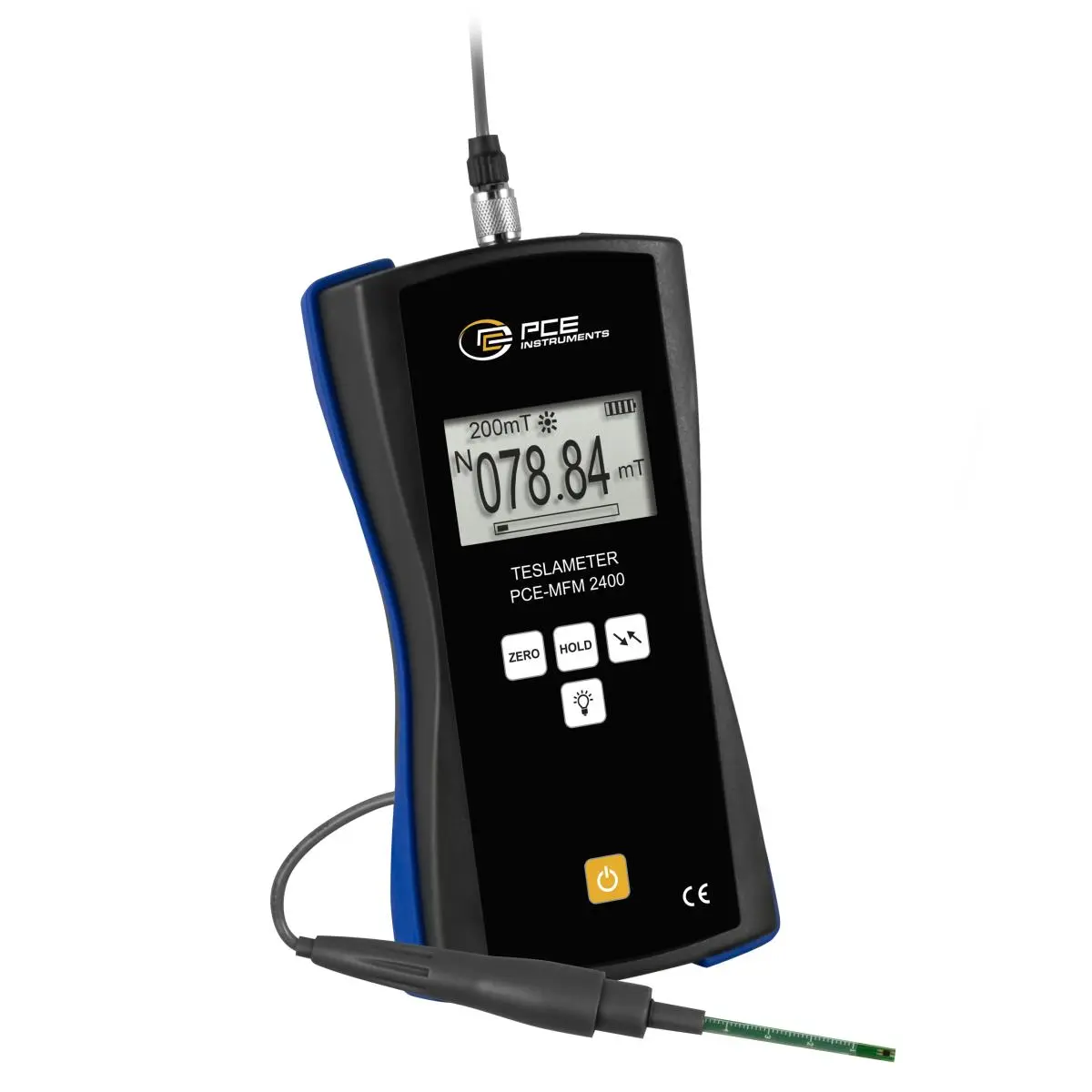

EMF measuring device PCE-MFM 2400

Order no.: PCE-MFM 2400
GTIN (EAN): 4250348722096
£ 700.00
£ 840.00
price ex. (VAT / delivery)
:
4250348722096
PCE-MFM 2400
Delivery time: 1-2 working days

Accessory

ISO Calibration Certificate for Electromagnetic Meter CAL-PCE-MFM
ISO Calibration Certificate for Electromagnetic Meter CAL-PCE-MFM
£ 198.00
Plastic case for magnetic field tester PCE-MFM 2400
Plastic case for magnetic field tester PCE-MFM 2400

Description

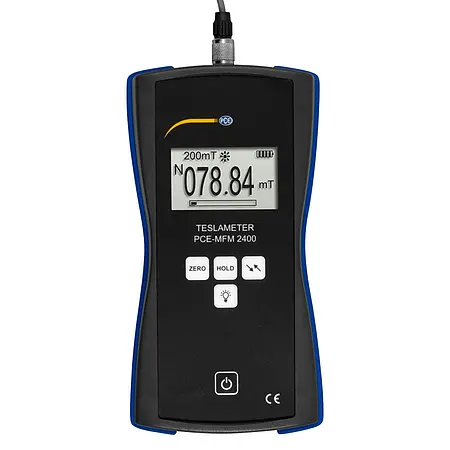

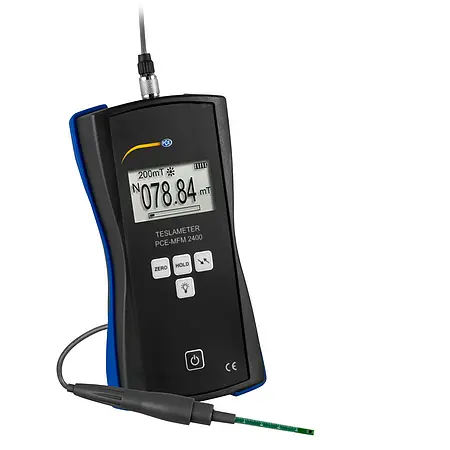

EMF measuring device PCE-MFM 2400
EMF measuring device with an accuracy of 1% / Tesla and Gauss measurement / For static magnetic fields

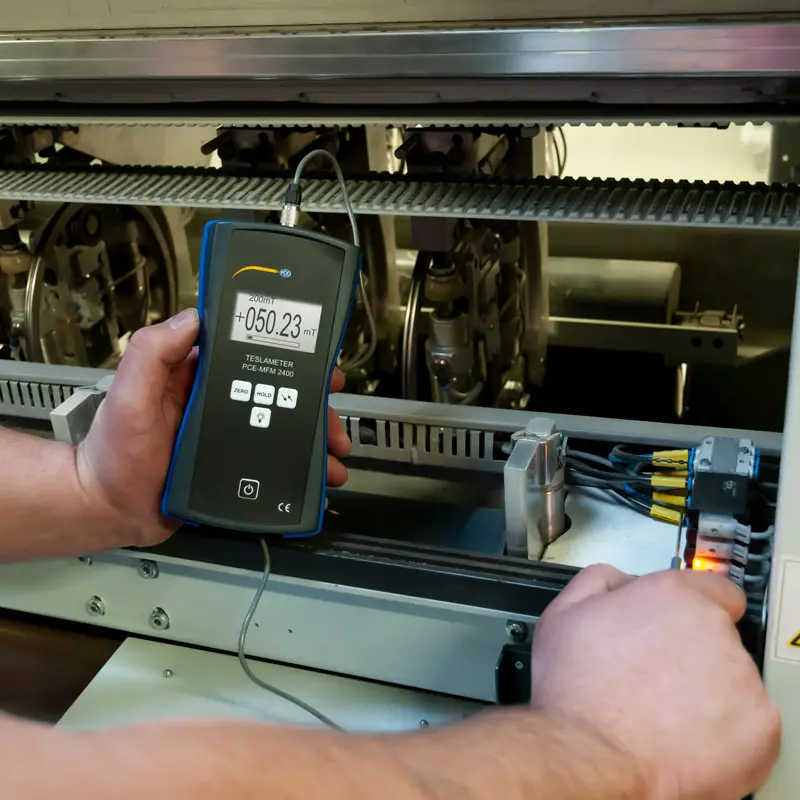

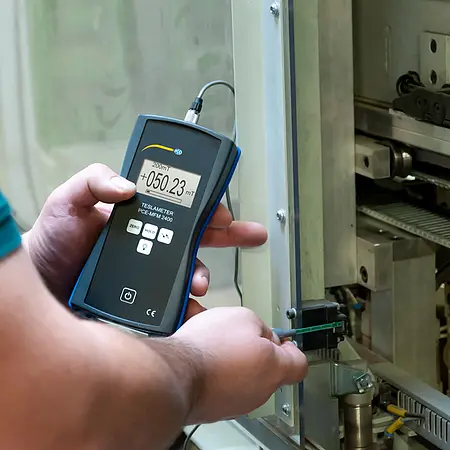

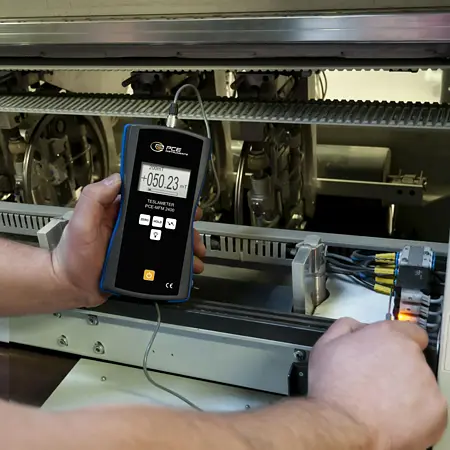

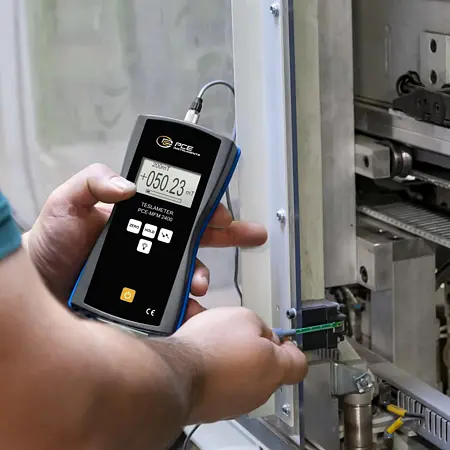

With a measuring range of 2,400 mT, the EMF measuring device covers a wide range of measuring tasks. The field strength meter has an accuracy of 1%. This makes the EMF measuring device a very precise measuring device. For example, the EMF measuring device can be used to test relays and permanent magnets for the existing magnetic field. The EMF measuring device is therefore used in production processes or in quality control.

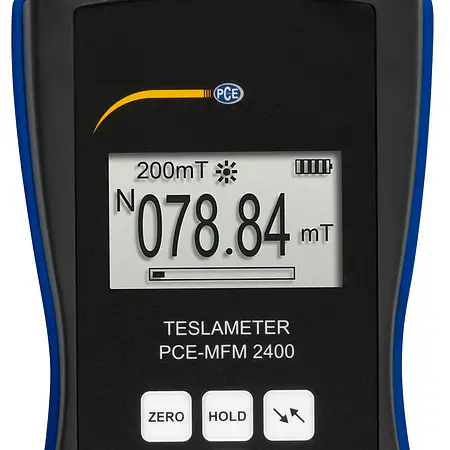

With the backlight on the EMF measuring device, the measured values ​​are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the EMF measuring device automatically switches itself off after 5 minutes. This ensures that the battery of the EMF measuring device does not discharge completely.


Highlights

- Very precise measurement technology
- Measuring range up to 24,000 G and 2,400 mT

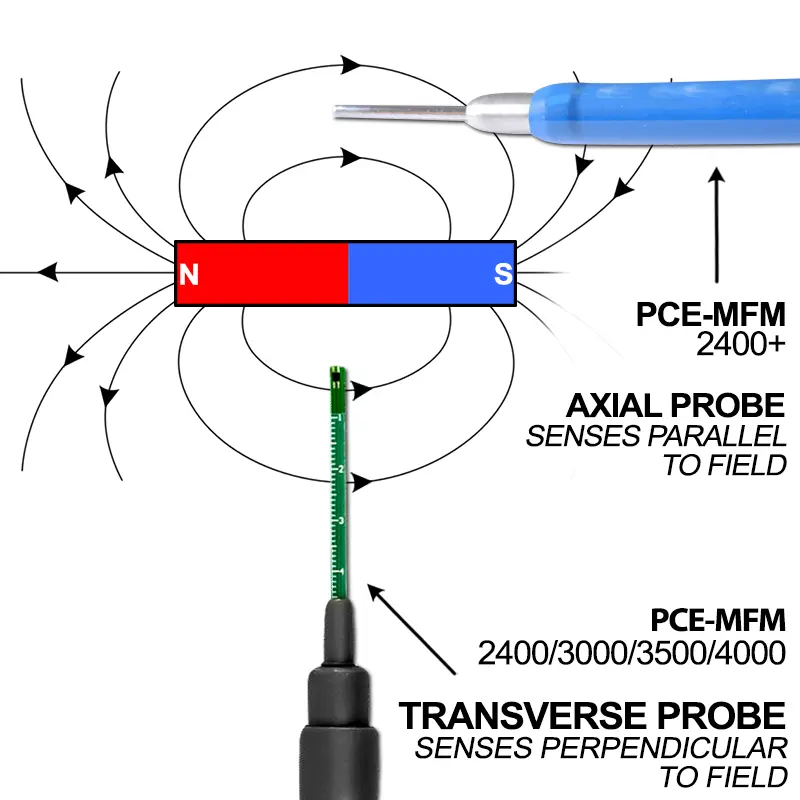

- Transverse sensor
- For measuring static magnetic fields
- Automatic shutdown

Specification

Measuring range 0… 200 mT
  200… 2,400 mT
  0 ... 2,000 G
  2,000 ... 24,000 G

Accuracy ± 1% of reading

Resolution 0.01 mT
  0.1 g

Measuring direction Transversal
Magnetic field Static (DC)
Unit mT, G
Power supply 1 x 9V block battery
Automatic shutdown    Automatic shutdown after 5 minutes in idle status
Modes Hold mode, measurement mode

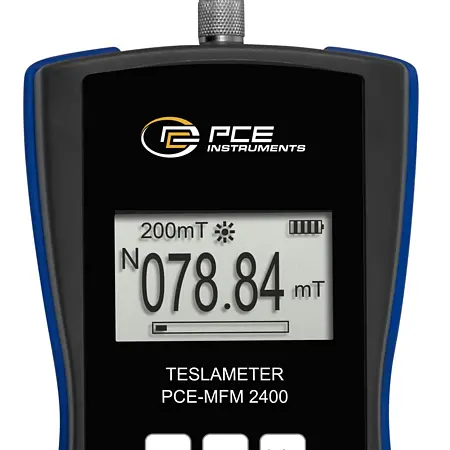

Display
 Backlight digital 4-digit value display
Operating temperature 32 ... 122° F, / 0… 50°C
Storage temperature -4 ... 122°F / 20… 50°C
Dimensions 185 x 97 x 40 mm / 7.28 x 3.82 x 1.57 in
Weight 0.68 lb, 310 g

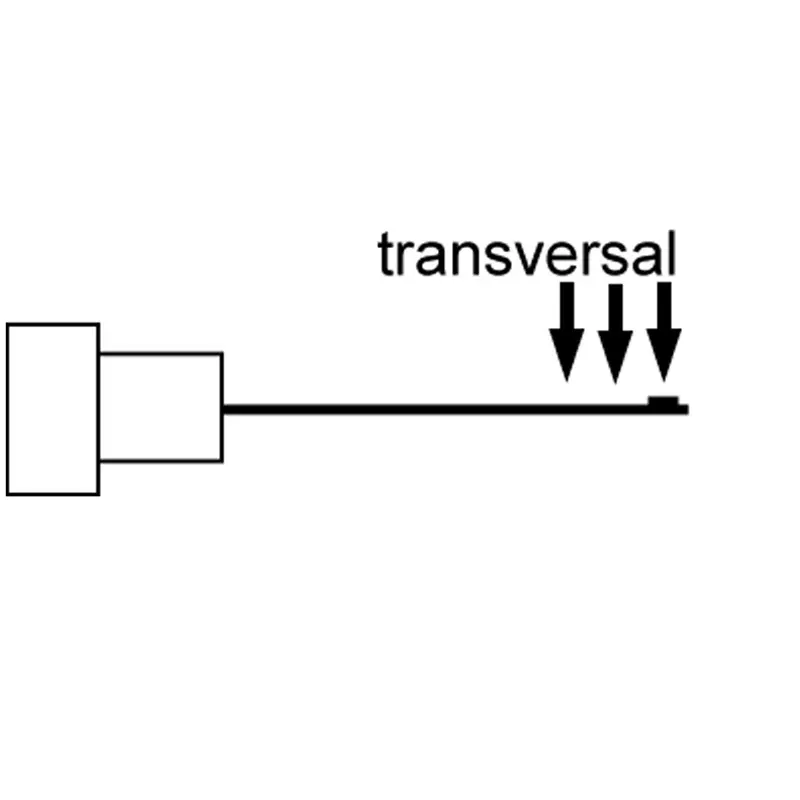

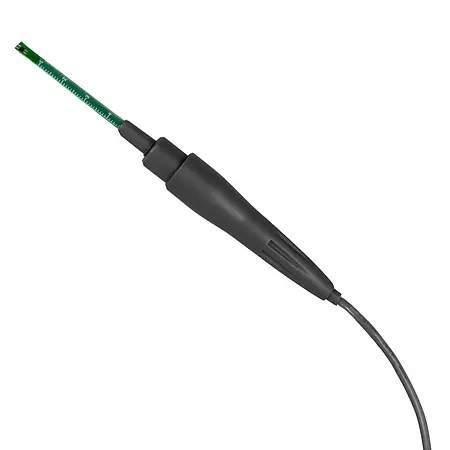

Sensor Hall sensor transversal, cable length approx. 3.28 ft., 1 m

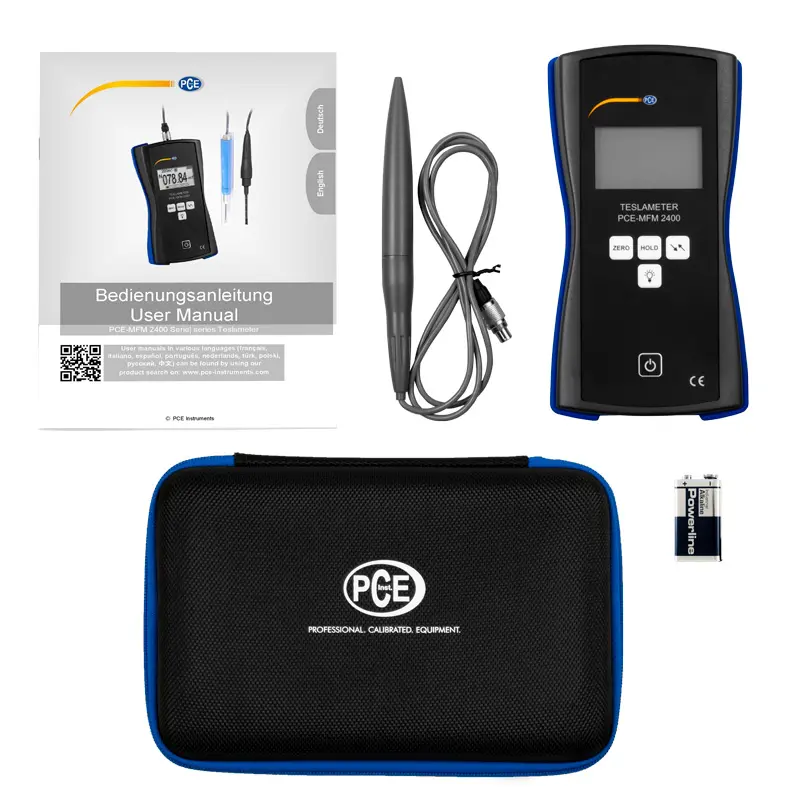

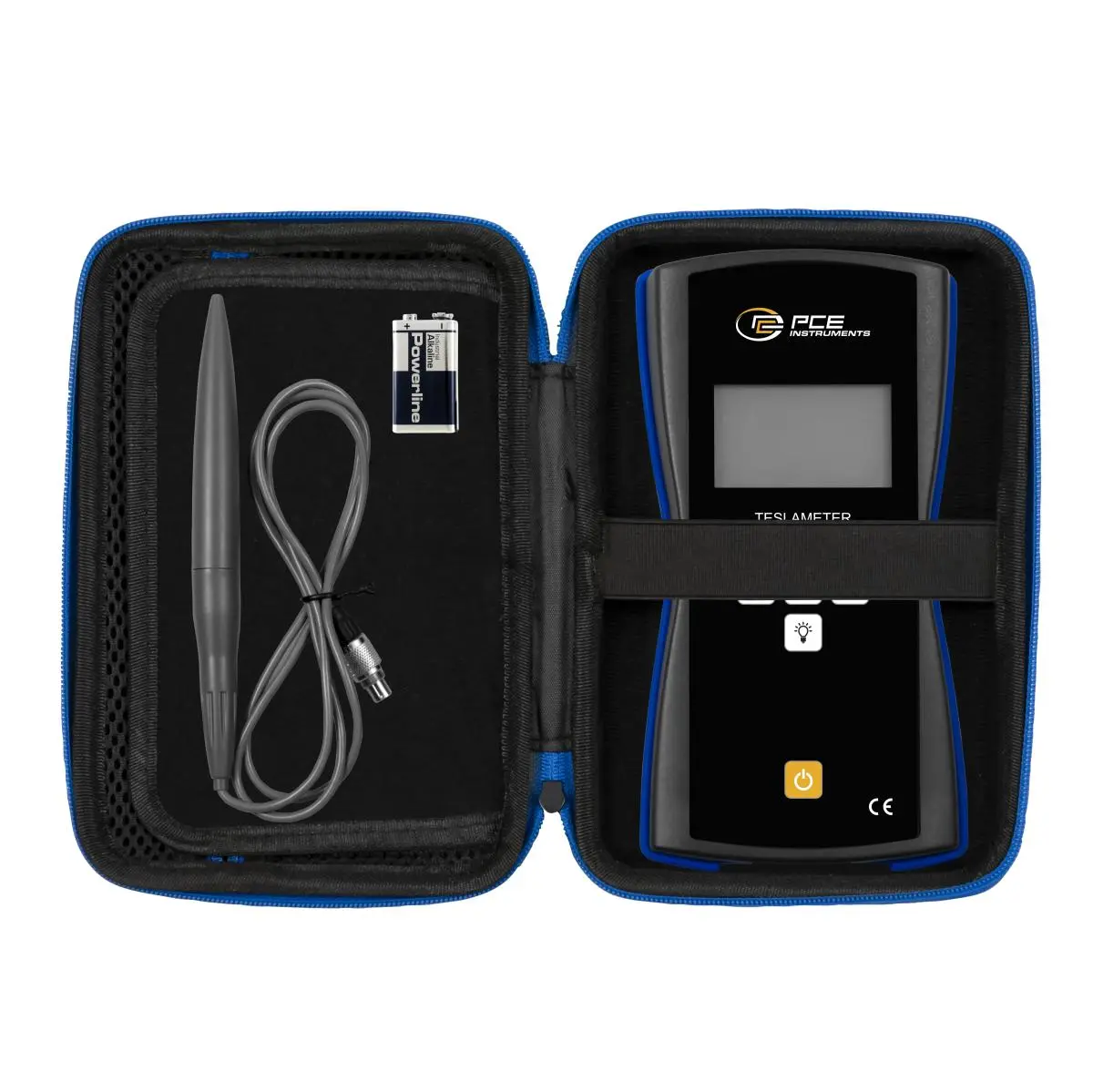

Delivery Scope

1 x EMF measuring device PCE-MFM 2400
1 x Hall sensor (transverse)
1 x Service bag
1 x 9V block battery
1 x Instruction manual
