Environmental Tester PCE-VA 20-ICA incl. ISO Calibration Certificate

Order no.: PCE-VA 20-ICA
GTIN (EAN):
£ 424.00
£ 508.80
ISO Calibration
price ex. (VAT / delivery)
PCE-VA 20-ICA
Delivery time: 10 - 14 days
Speed, Temperature, Volume/flow, Humidity, Dew point, Wet bulb
Impeller
No
No

Accessory

Telescoping Pole for PCE-VA 20
Telescoping Pole for PCE-VA 20
£ 112.00
Equipment for impeller PCE-VA 20
Set of 2 x Capture Flow Hoods for PCE-VA 20
£ 159.00

Description

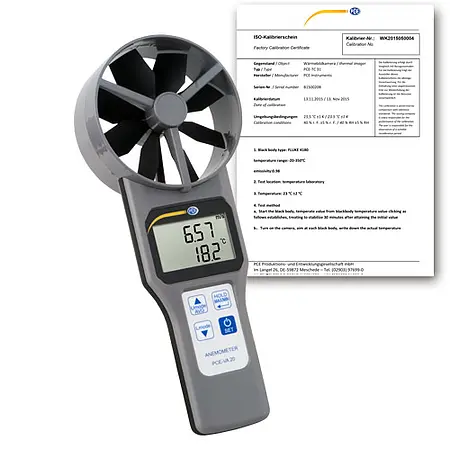

Environmental Tester PCE-VA 20-ICA incl. ISO Calibration Certificate
Combination anemometer-hygrometer-thermometer for assessing wind, weather, indoor / Outdoor environmental climate conditions

PCE-VA 20 is an environmental tester for assessing wind, weather, indoor / outdoor environmental climate conditions as well as for testing heating, ventilation and air conditioning or cooling (HVAC) systems. In addition to measuring air flow velocity (i.e., wind speed), this environmental tester measures volume flow, relative humidity (RH), air temperature, dew point temperature and wet-bulb temperature. This environmental tester features a 10 cm / 3.9" Ø fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.


Highlights

- Measures air flow velocity, volume flow, relative humidity, air temperature, dew point temperature and wet
  bulb temperature
- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of measured value + 0.3
  m/s) when more than 20 m/s
- Resolution: 0.1
- 10 cm / 3.9" Ø fan impeller
- Easy-to-read backlit LCD
- Display hold, average value, maximum value, minimum value, battery-saving automatic power off, low
  battery indicator, and metric or imperial unit selection functions
- Incl. ISO Calibration Certificate


Specification

Technical Specification
Air flow velocity measuring range
0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
Air flow velocity accuracy <20 m/s: ±(1.5% of rdg. + 0.3 m/s)
>20 m/s: ±(3% of rdg. + 0.3 m/s)
Air temperature measuring range -20 ... 60 °C / -4 ... 140 °F
Air temperature accuracy ±0.6 °C
Air temperature resolution 0.1 °C / °F
Humidity measuring range 0.1 ... 99.9 % r.H.
Humidity accuracy ±3 % r.H. (at 25 °C / 77 °F and 10...90 % r.H.)
else: ±5 % r.H.
Humidity resolution 0.1 % r.H.
Temperature response time 60 seconds
Humidity response time 60 seconds
LCD update 1 x per second
Wet bulb temperature display -20 ... +59.9 °C / -4 ... 139.8°F
Dew point temperature display -5 ... +59.9 °C / 23 ... 139.8°F
Volume flow display 0 ... 99999 m³/min
Volume flow resolution 0.1 m³/min (0...9999,9 m³/min)
1 m³/min (10000...99999 m³/min)
Automatic shutdown after 20 minutes of inactivity
LCD size 32.5 x 54 mm / 1.28 x 2.13" (H x W)
Power supply 4 x 1.5 V AAA batteries
Operating conditions 0 ... +50 °C / 32 ... 89.6°F, <80 % r.H.
Storage conditions -10 ... +50 °C / 14 ... 89.6°F, <90 % r.H.
Dimensions 269 x 106 x 51 mm / 10.6 x 4.1 x 2.0"
Weight ca. 200 g / 7 oz

Delivery Scope

1 x Environmental Tester (PCE-VA 20)
4 x AAA batteries
1 x User manual
1 x Carrying case
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
