Environmental Tester PCE-WS RS485

Order no.: PCE-WS RS485
GTIN (EAN): 4250348722461
£ 450.00
£ 540.00
price ex. (VAT / delivery)
:
4250348722461
PCE-WS RS485
Delivery time: 1-2 working days

Accessory

Panel Indicator PCE-N50B
Panel Indicator PCE-N50B
£ 88.00
Optional Mounting Kit PCE-WS/MOUNT
Optional Mounting Kit PCE-WS/MOUNT
£ 67.00

Description

Robust Environmental Tester for fixed installation / various output signals /
for wind warning systems, building services and building automation

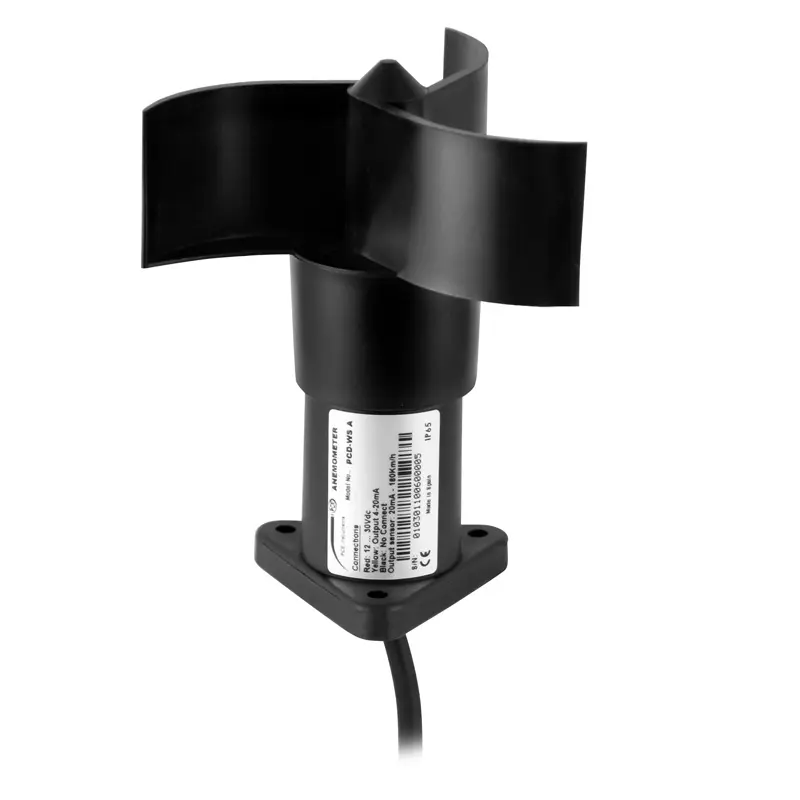

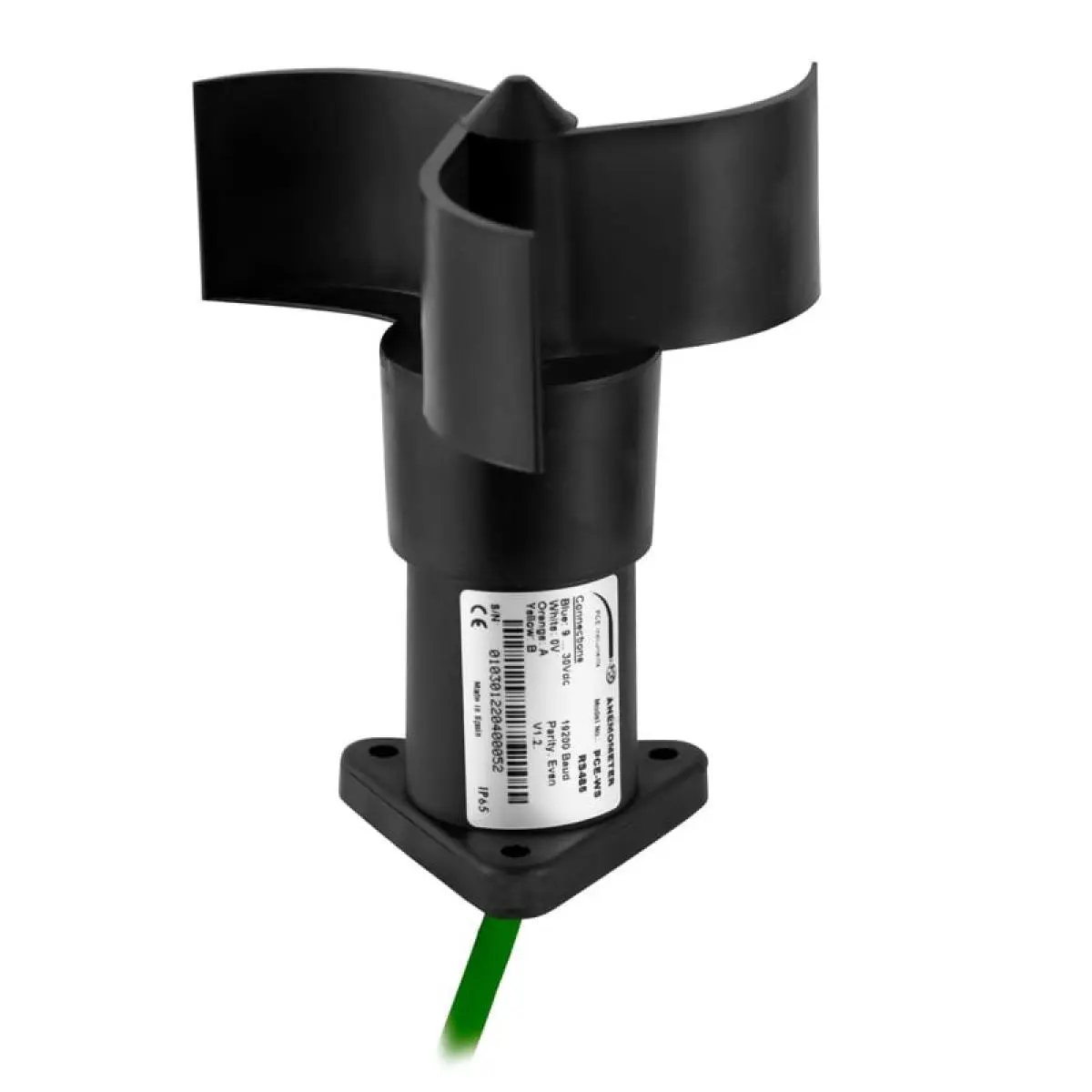

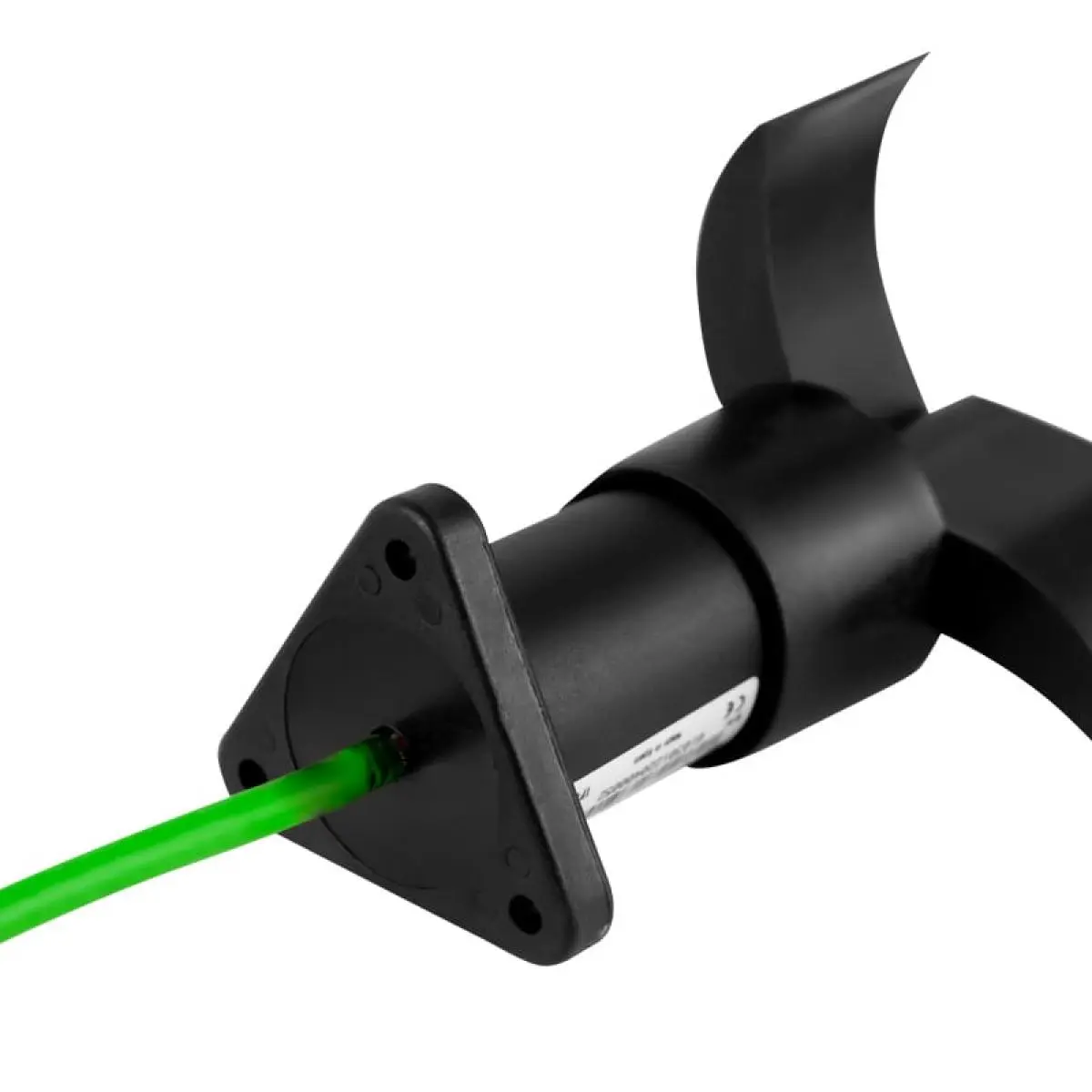

The Environmental Tester impresses with its compact design and various output signals. The Environmental Tester can be used for applications in warning technology, building automation and home technology. Depending on the Environmental Tester, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Environmental Tester is designed as a star, so that operation independent of the wind direction is guaranteed.

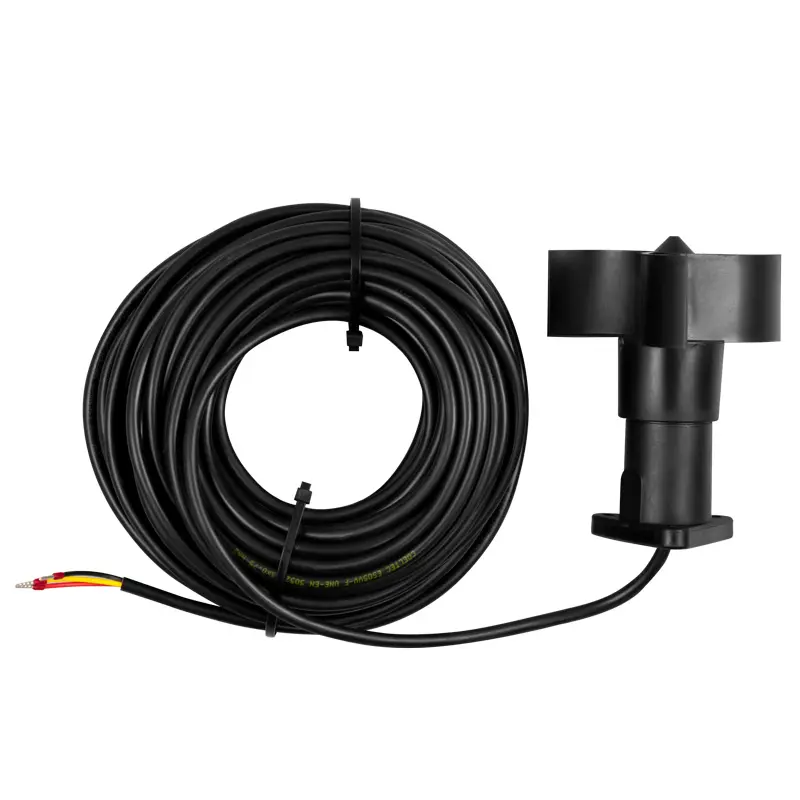

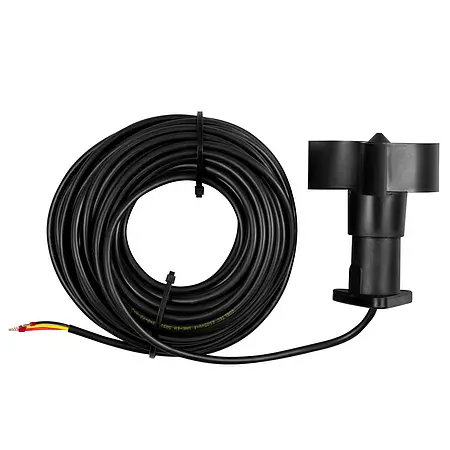

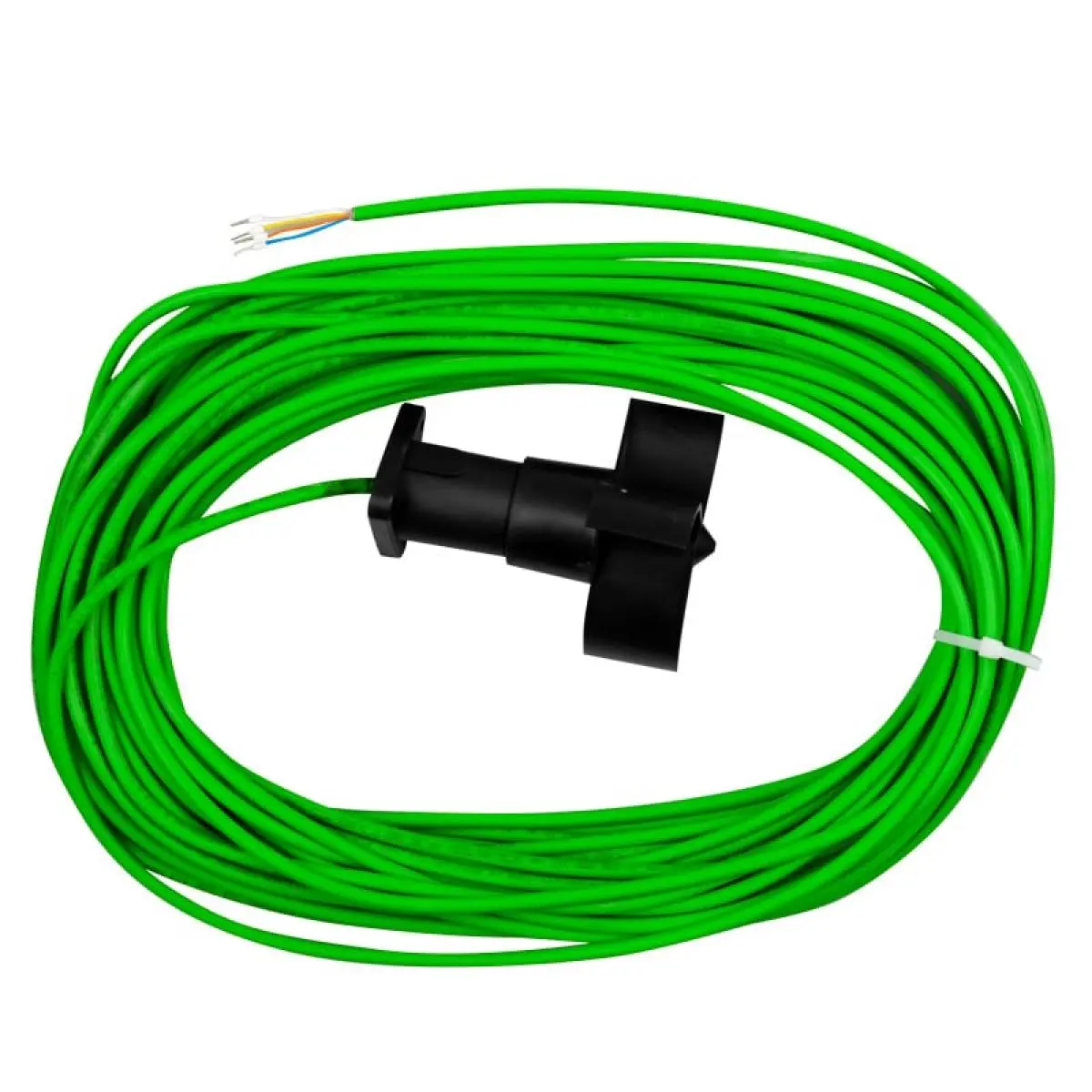

The Environmental Tester is made of robust plastic and is therefore resistant to rust and corrosion. The Environmental Tester is also protected to IP65. The design of the Environmental Tester also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Environmental Tester has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Environmental Tester is optionally available.

Highlights

- Robust PA plastic housing
- IP 65 protection
- mA, V, pulse or Modbus output
- Long lifetime
- Direct measurement of wind speed
- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Measuring range2.62 ... 164.04 ft/s, 0.8 m / s ... 50 m / s
Measurement from≤2.62 ft/s, 0.8 m / s
OutputModbus RTU
Accuracy<13.12 ft/s: ± 0.89 ft/s, <4 m / s: ± 0.27 m / s
 > 13.12 ft/s: ± 3%, > 4 m / s: ± 3%
Operating voltage12 ... 30 V DC
Operating temperature range -4 ... +185 ° F, -20 ... +80 ° C at ≤95% rel. humidity
Maximum wind speed   180.45 ft/s, 123 mph, 55 m / s

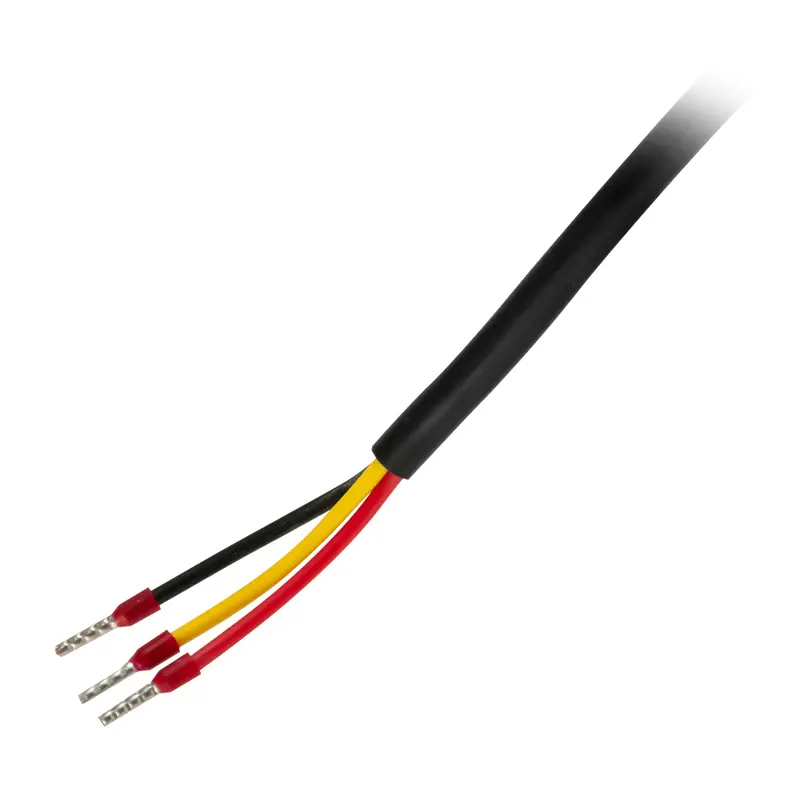

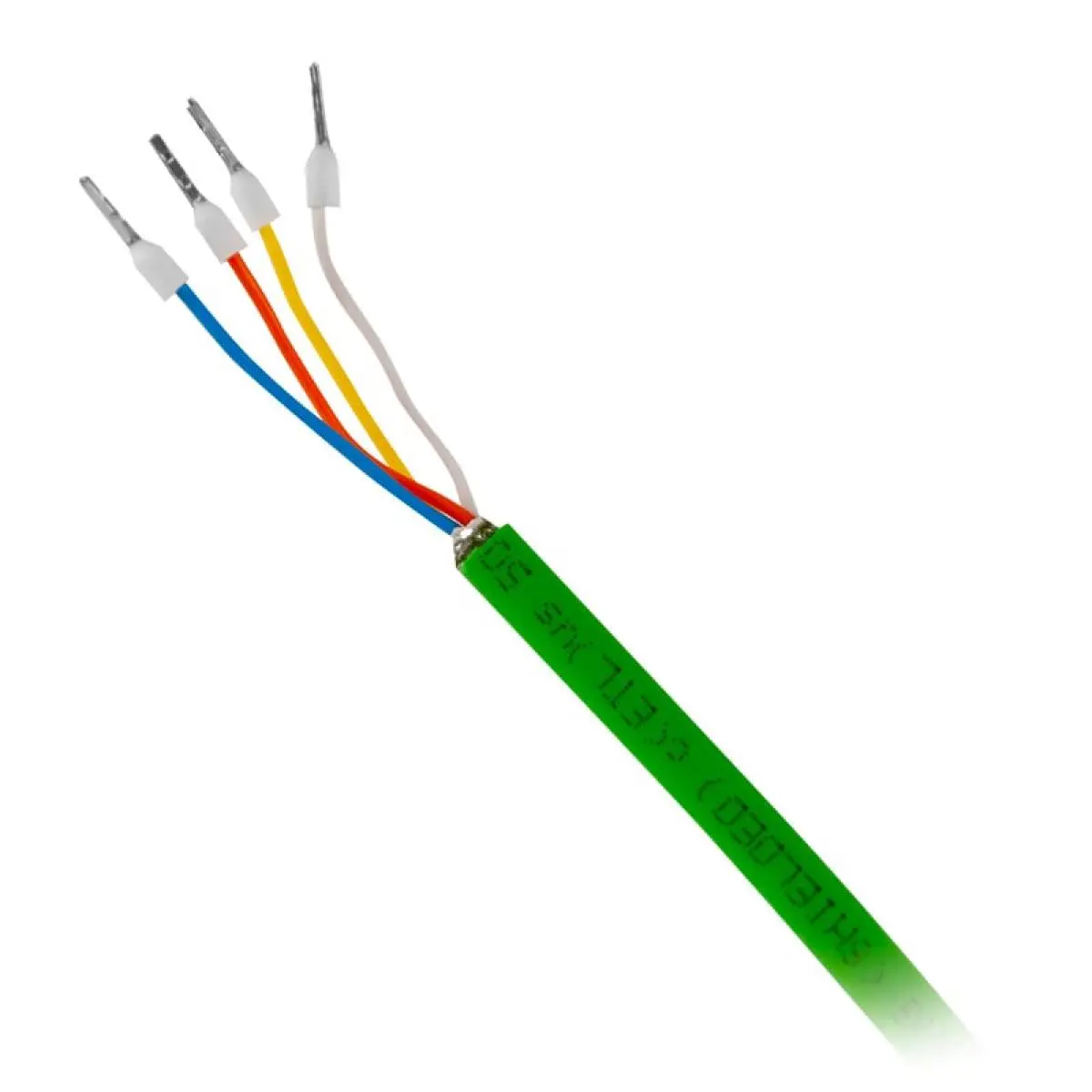

Electrical connection65 ft, 20 m connection cable
Protection classIP65

Delivery Scope

1 x Environmental Tester PCE-WS RS485
1 x instruction manual
