Food / Hygiene ATP Testing Meter PCE-ATP 1 KIT3 for surfaces and water

Order no.: PCE-ATP 1-KIT3
GTIN (EAN): 4250348728296
£ 1,622.00
£ 1,946.40
price ex. (VAT / delivery)
:
4250348728296
PCE-ATP 1-KIT3
Delivery time: 1-2 working days

Description

PCE-ATP 1 KIT3 Food & Hygiene ATP Testing Meter / Fast hygiene measurement / Simple sampling / USB and Bluetooth printer interface / Self-calibration at power up

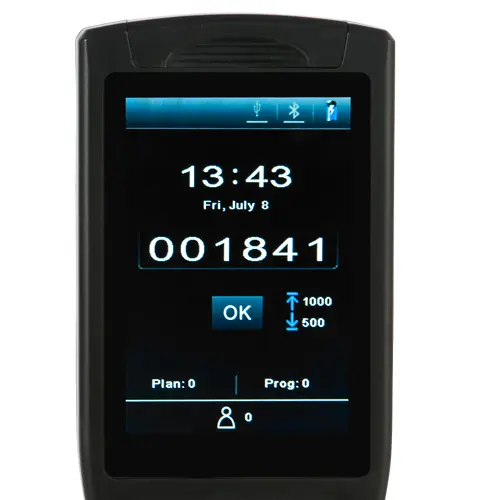

The ATP Testing Meter with 200 swabs included is used to quickly and easily check the cleanliness of surfaces and water. The Food / Hygiene ATP Testing Meter displays a measurement result on the large LC display after only 10 seconds. Up to 10,000 measurement data sets with time and date can be stored on the internal memory of the Food / Hygiene ATP Testing Meter.

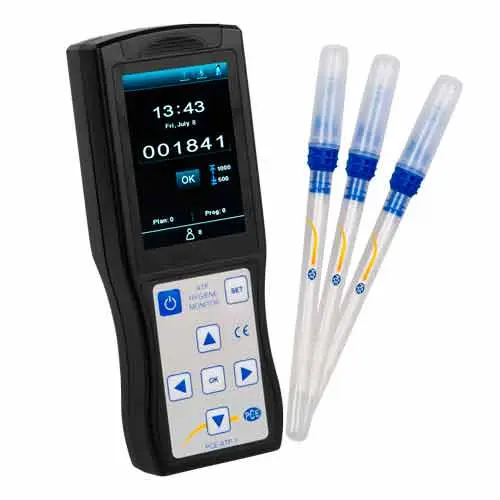

The ATP Testing Meter with the associated PCE-ATP Surface Swab Pens, allows a quick detection of food or microbiological residues on all surfaces in contact with the product as an effectiveness test of cleaning and disinfection measures. Quantitative determination of intracellular and extracellular adenosine triphosphate (ATP) is performed in the portable ATP Testing Meter.

The measured data from the Food / Hygiene ATP Testing Meter can be stored and further processed after the measurement. The Food / Hygiene ATP Testing Meter is used in the hygiene control in pharmacy, medicine, gastronomy, wholesalers and more.

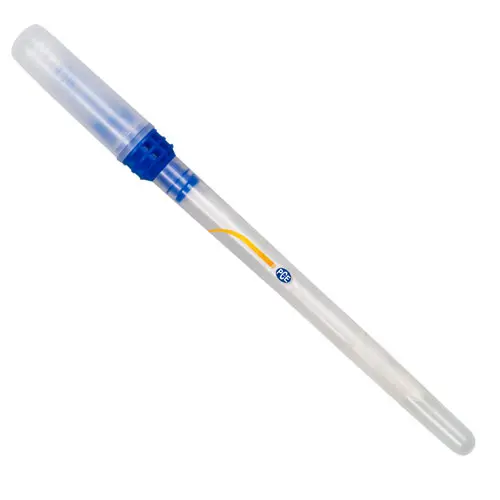

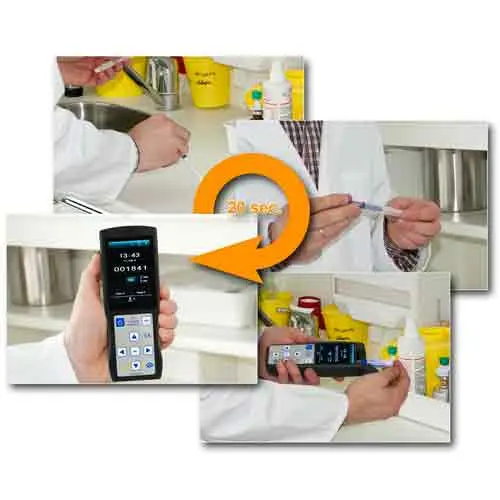

The measurements with the Food / Hygiene ATP Testing Meter are carried out with the specially available ATP test tubes. With the swab contained in the tube, the surface is sampled. The swab is then pressed all the way down into the tube, whereby it comes into contact with the reaction liquid and the actual reagent. By gentle shaking, the reaction liquid collects in the reaction chamber of the tube. The entire test tube is then inserted into the measuring chamber of the ATP Testing Meter. Then the measurement is started. After 10 seconds, the measurement result is displayed in RLU (Relative Light Units) on the display of the Food / Hygiene ATP Testing Meter.

The ATP Testing Meter can be used in different business branches. Thus, the Food / Hygiene ATP Testing Meter enables complete control and documentation in the food industry. This can be in the control of cleanliness in a large kitchen or in the processing of food in large industrial enterprises. The ATP Testing Meter helps to implement the HACCP concept.

In addition to the application in the food industry, the hygiene tester can also be used by cleaning companies to provide evidence of cleaning services. The memory of the ATP Testing Meter documents the time of the measurement with date and time. Furthermore, different users can be added to differentiate the measurement data.

In addition, the  ATP Testing Meter finds its application in the field of health care. Wherever the cleanest surfaces and sterility are required, the luminometer can be used to quickly control cleanliness.


Highlights

- HACCP concept implementation
- Low weight and short measuring time
- Data transfer to the evaluation software
- Measured value memory for 10,000 measurement results
- Automatic self-calibration
- USB and Bluetooth printer interface
- Incl. 100 Test tubes (swabs) for surfaces
- Incl. 100 Test tubes (swabs) for water

Specification

Detection methods

Analog integration by photodiodes

Data output

RLU (Relative Light Unit)

Background interference

± 5 RLU

Measuring width

0 ... 999,999 RLU

Measuring time

10 seconds

Display

3.5" graphic LCD

Interface

USB
Bluetooth

Storage

256 users
10,000 records

Self-diagnosis

Automatic cleanliness test before each use

Environmental conditions

5 ... 40°C / 41 ... 104°F, 20 ... 80% rh

Storage conditions

-10 ... 40°C / 14 ... 104°F, max. 60% rh

Voltage supply

3.7V / 2300-mAh Li-ion battery

Battery Life

Operation 10 hours
Standby: 600 hours

Dimensions

189 x 70 x 35 mm / 7.4 x 2.8 x 1.4 in

Weight

Approx. 280 g / < 1 lb



Delivery Scope

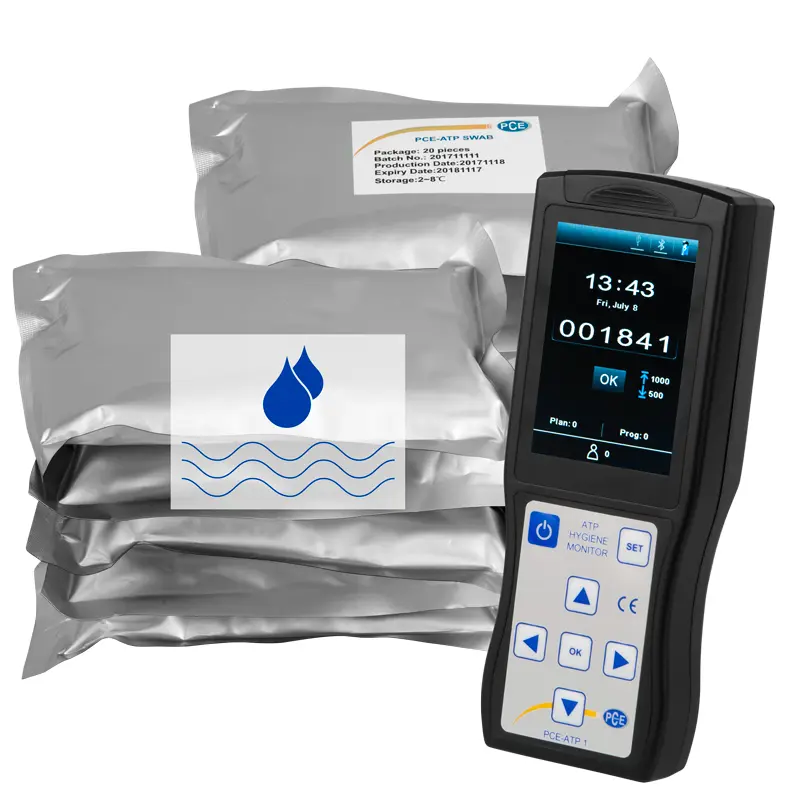

1 x PCE-ATP 1 KIT3 Food / Hygiene ATP Testing Meter
1 x 3.7V / 2300-mAh Li-ion battery
1 x USB cable
1 x USB charger
1 x Wrist strap
1 x PC software
1 x Test tubes or swabs (100 pieces) (for surfaces)
1 x Test tubes or swabs (100 pieces) (for water)
