Force Gage PCE-DDM 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-DDM 10-ICA

GTIN (EAN):

Accessory

Calibration certificate for tensile or compressive force up to max 200kN / 20t

£ 503.00

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

£ 1,212.00

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

£ 1,268.00

Description

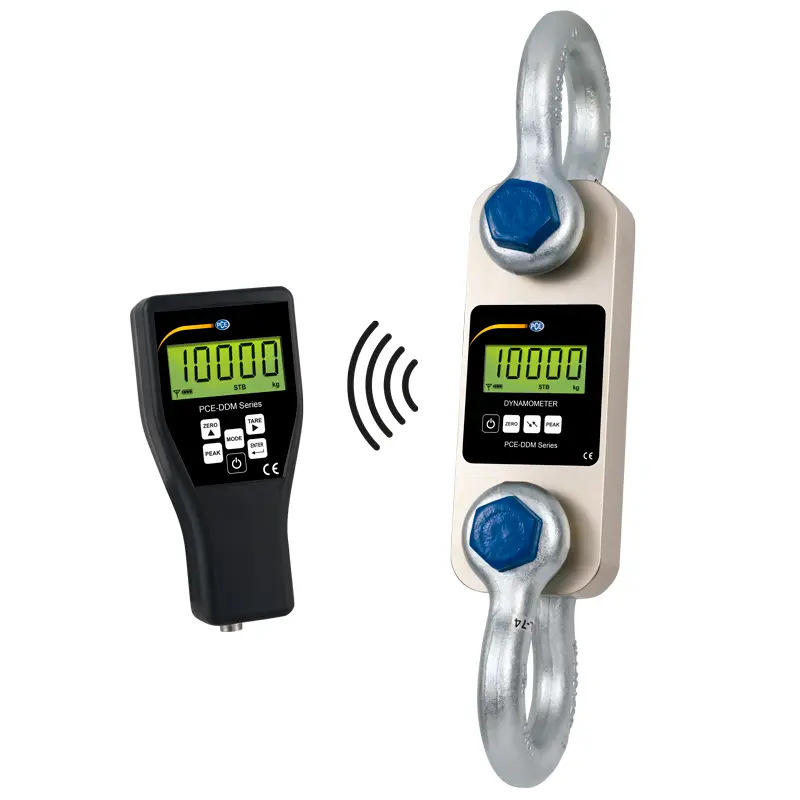

Mobile Force Gage / Measuring range up to 10 t /
PEAK hold function / incl. remote display / incl. shackles and transport case

The force gage is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension force gage. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension force gage is supplied with a radio display and two shackles in a transport case.

Interesting functions of the force gage are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile force gage is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- Measuring range up to 10,000 kg / 100 kN
- Low device weight
- Compact design
- Long battery life
- Remote radio display
- PEAK Hold function
- Summing function
- Measurement units: kg / t / lbs / N / kN
- Adjustable gravitation range
- Shackles and transport case incl.

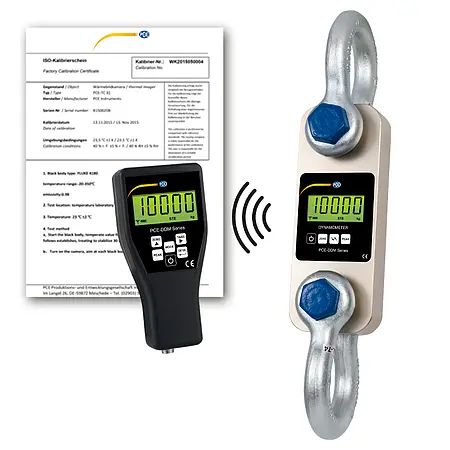

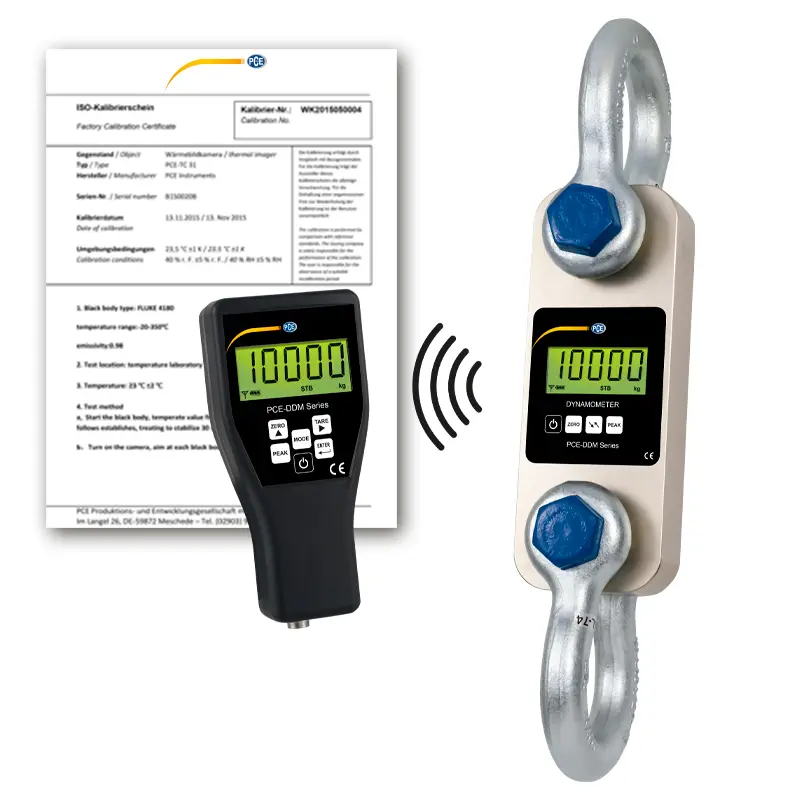

- incl. ISO Calibration Certificate

Specification

Measuring range	10000 kg / 100 kN / 22046 lbs
Resolution	5 kg / 50 N / 11 lbs
Min. range	100 kg / 220 lbs
Weight (with shackle)	11 kg / 24 lbs (25 kg / 55 lbs)
Accuracy	±0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 22 mm / 0.9 in digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature	-10° C ... +40° C / +14° F ... +104° F
Power supply	3 x 1.5 V AA batteries
Operating time	Approx. 50 hours

Technical drawing

Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM

A	B	C	D	Ø E	Ø F	G	H	Material
320 mm 12.6 in	120 mm 4.7 in	57 mm 2.2 in	230 mm 9.1 in	92 mm 3.6 in	41 mm 1.6 in	54 mm 2.1 in	535 mm 21.1 in	Aluminum

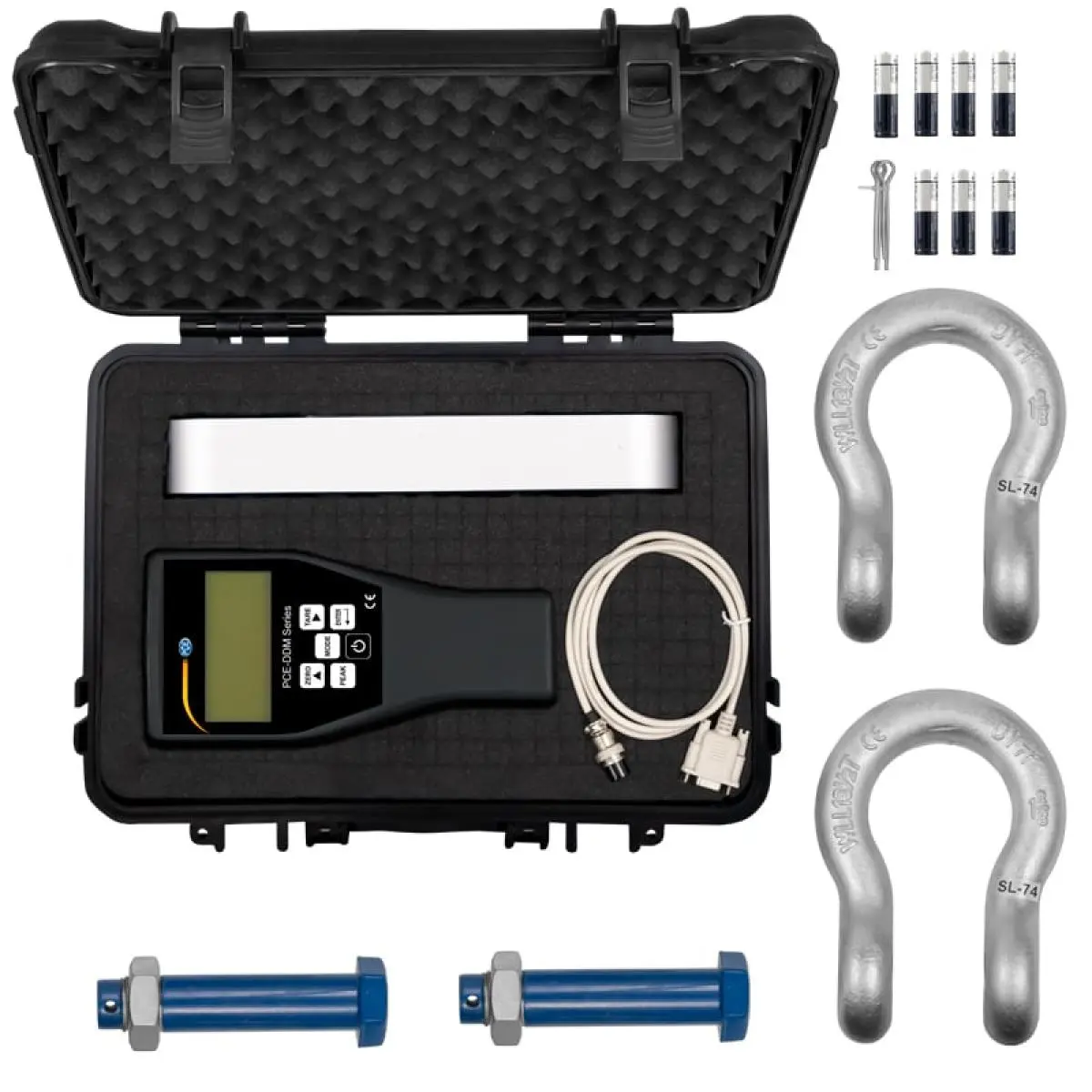

Delivery Scope

1 x Force Gage PCE-DDM 10-ICA

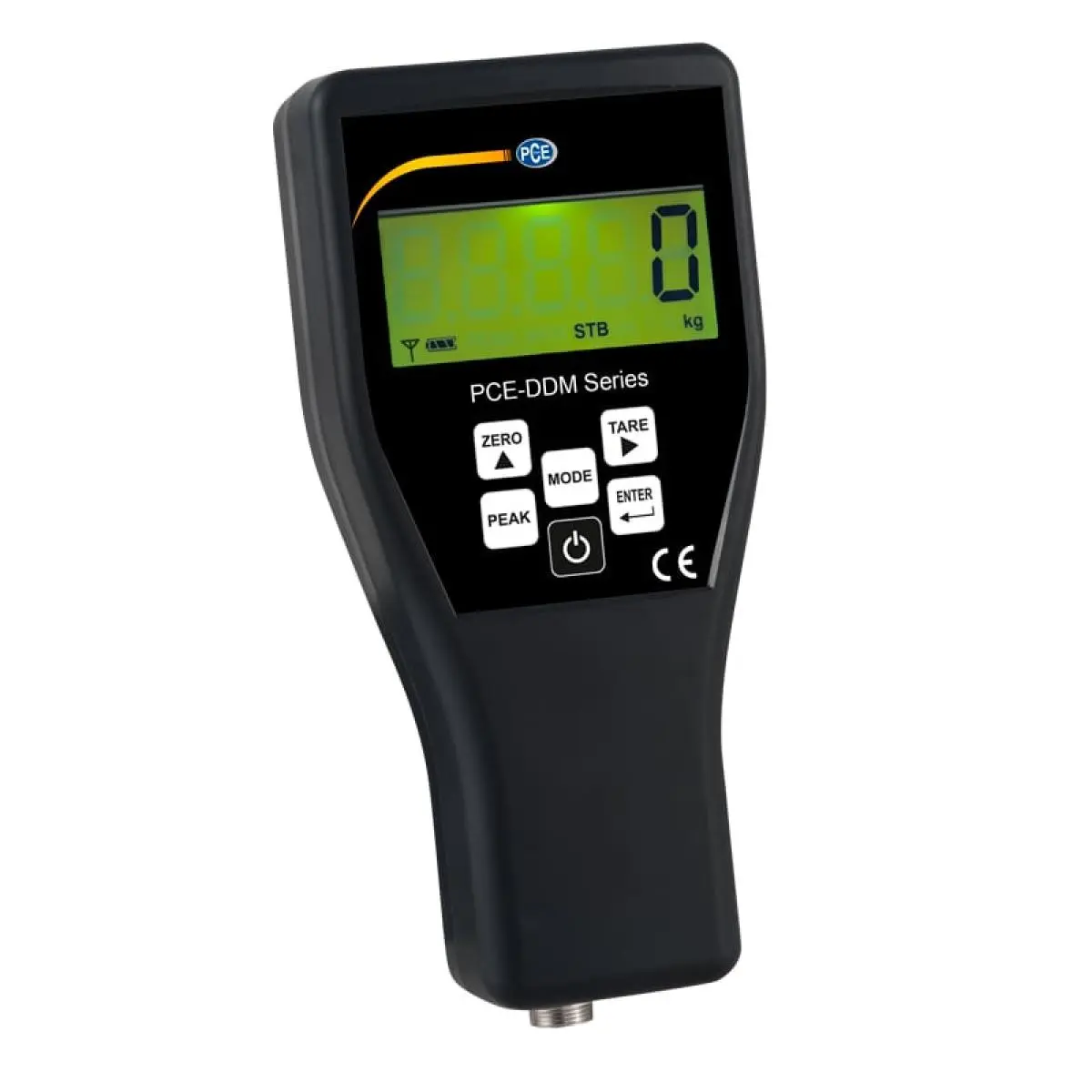

1 x Remote control indicator

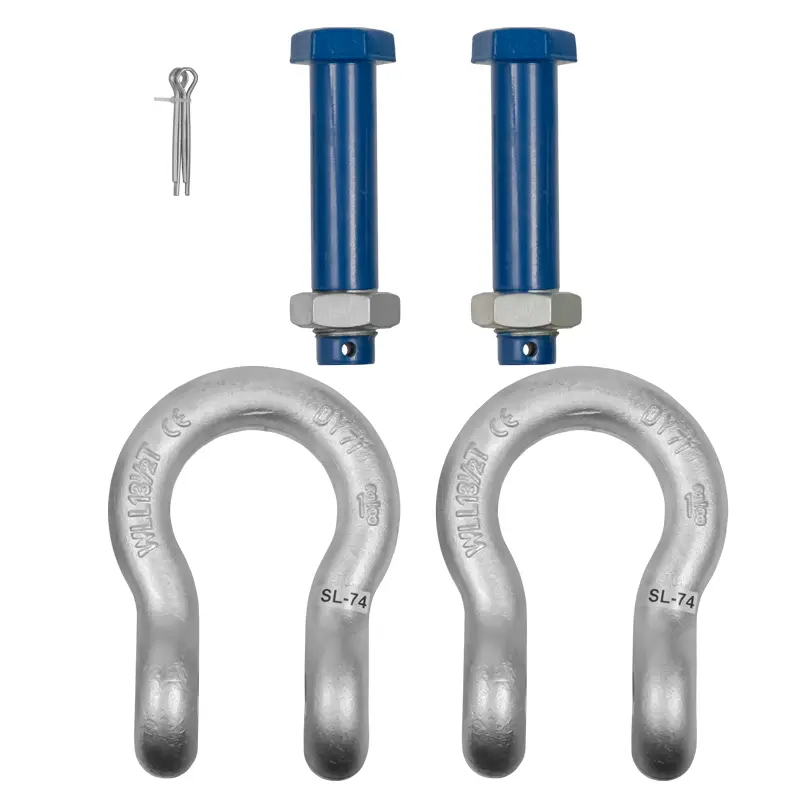

2 x Shackles
1 x Carrying case
7 x AA 1.5 V batteries
1 x User manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
