Price excl. VAT &. delivery
2 year Warranty
Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.
- Capacity 5000 N / 1,124 lbs
- Material is iron
- Opening is 4 mm
- M10 threaded connection

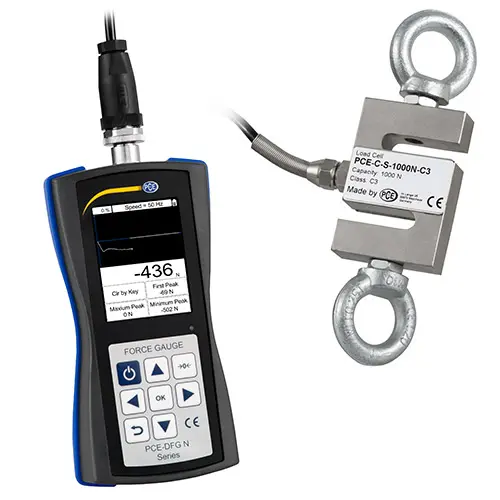

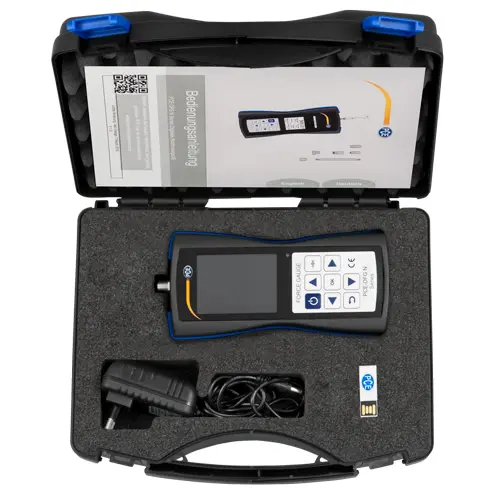

PCE-DFG N Force Gage series

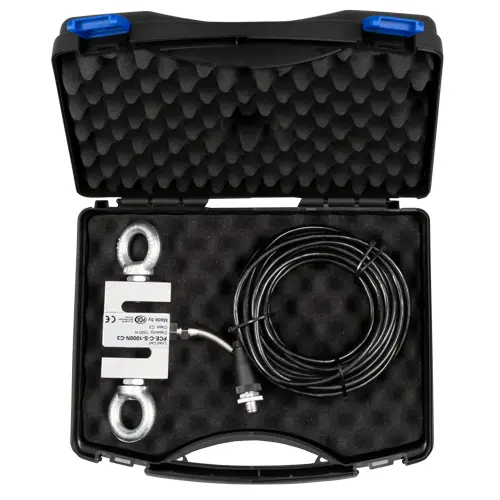

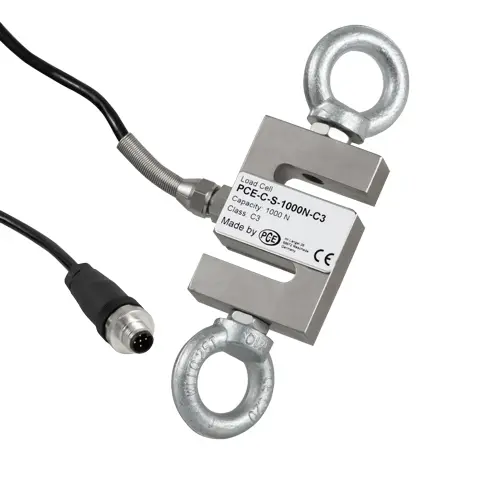

With external measuring cell and USB interface for connection to a PC
Measuring range | 0 ... 1,000 N / 0 ... 225 lbs |
Resolution | 0.5 N / 0.11 lbs |
Accuracy | ± 0.1% of the measuring range |
Measurement units | N, kg, lb, KPa |
Display | 2.8" TFT graphic display |
Alarm Modes | Inside, Outside, Crack, Shutdown |
Sampling rate | 6 ... 1600 Hz |
Storage | 100 measurements |
Power supply | NiMH battery, 6V / 1600-mAh |
Battery life | About 10 hours |
Power adapter / charging adapter | 12V / 1A |
Outputs | Interface: USB Switching output: 12V / 50-mA |
Protection class | IP 54 |
Operating and storage conditions | -10 ... 50°C / 14 ... 122°F 5 ... 95% rh non-condensing |
Mounting thread Measuring cell up to 1,000 N / 225 lbs 2,500 ... 10,000 N / 562 ... 2,248 lbs |
M10 M12 |
Dimensions | 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 |
Weight | 540 g / 1.2 lbs |
Price excl. VAT &. delivery
2 year Warranty
Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.
Price excl. VAT &. delivery
2 year Warranty
Adapter for pressure force testing of sponge, foam glass, rock material, etc.
Price excl. VAT &. delivery
2 year Warranty
Adapter-stamp for pressure force test of spring and sponge etc.
Price excl. VAT &. delivery
2 year Warranty
Adapter clamps for tensile testing of wire and filaments.
Price excl. VAT &. delivery
2 year Warranty
Fork holder for tensile and pressure tests.
Price excl. VAT &. delivery
2 year Warranty
Tensioning device for tensile tests.
Price excl. VAT &. delivery
2 year Warranty
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
Price excl. VAT &. delivery
2 year Warranty
Set of thrust washers (square) for engine test stand PCE-MTS500.
Price excl. VAT &. delivery
2 year Warranty
Thrust washer set (round) for engine test bench PCE-MTS500.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Mounting plate for adapting the load cell of the PCE-FM1000 to the test stand LTS-20.
Price excl. VAT &. delivery
2 year Warranty
Clamping device with large opening width for peel test of block, glass and cardboard.
Price excl. VAT &. delivery
2 year Warranty
Our test stand for force gauge PCE-MTS500 can be coupled and operated in a wide variety of versions with our force gauges, the PCE series. The test stand for force gauge lets you carry out almost all of your compression and tensile force applications with repeatability. The use of the test stand for force gauge offers the operator the most precise equality of test bench and sample.
Price excl. VAT &. delivery
2 year Warranty
The force gauge test stand is used in various combinations with our force measuring devices. Manual force measuring test stand for tensile and compressive force measurement. Suitable for many devices from PCE force measurement technology with an internally built-in force measuring cell.
Price excl. VAT &. delivery
2 year Warranty
ISO re-calibration incl. certificate for force gauge over 50 kg / 500 N / 112 lbs. This is often required to comply with DIN ISO 9000.
If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.
Calibration certificates are issued specifically for the customer and are excluded from the right of return
