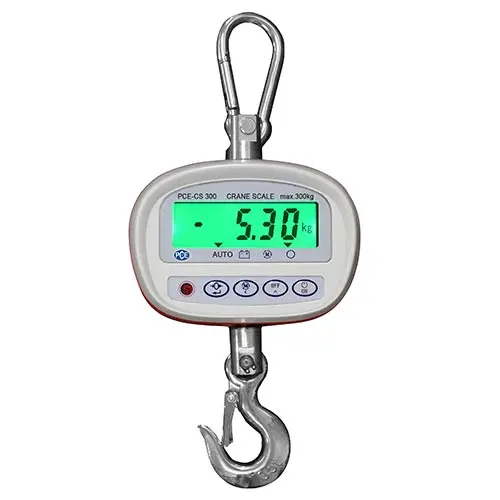

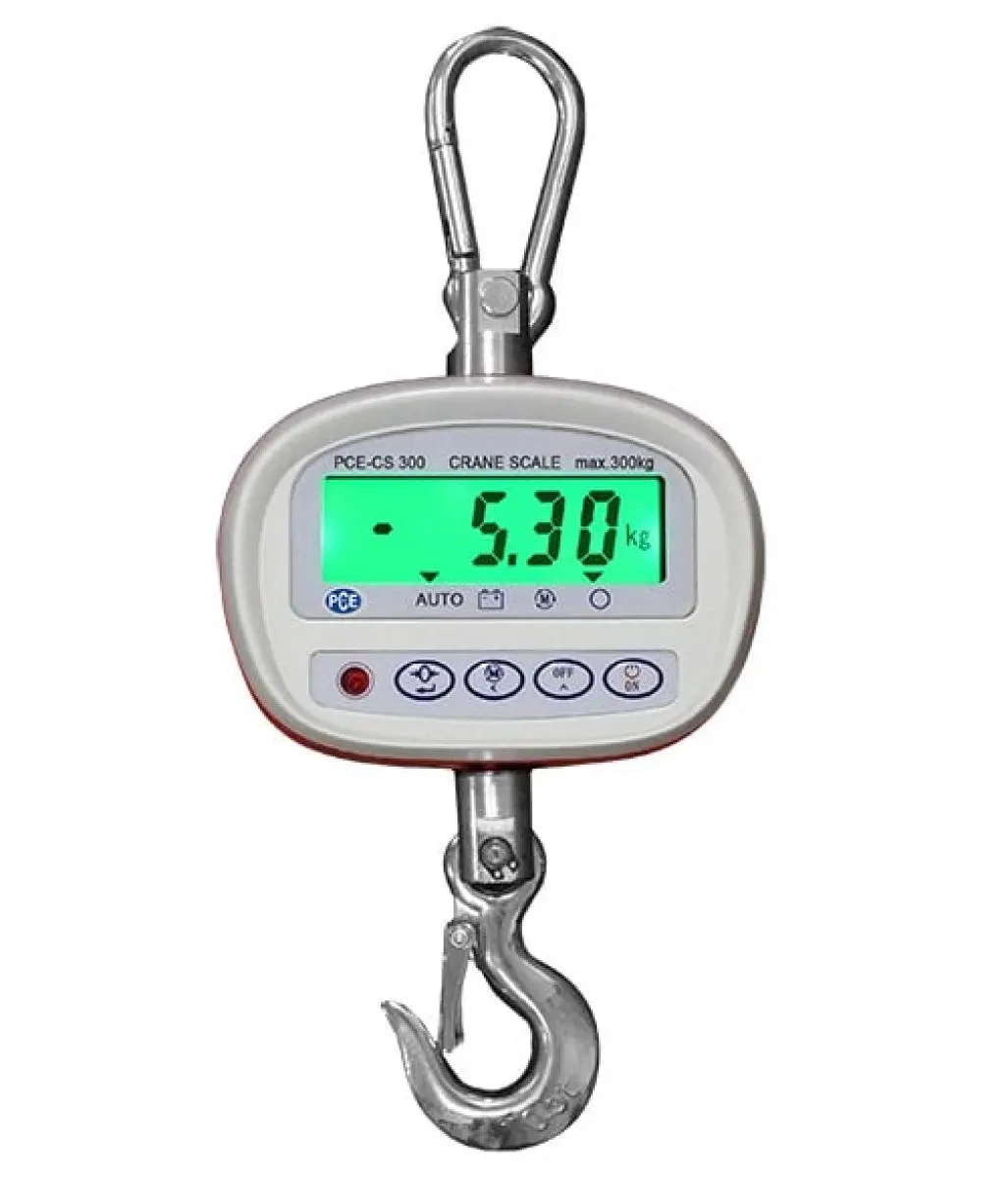

Force Gauge PCE-CS 300

Order no.: PCE-CS 300

GTIN (EAN): 4250348700643

Accessory

ISO Calibration Certificate CAL-0.5T

£ 201.00

Description

PCE-CS 300 Force Gauge
hanging hook / shackle / remote control

PCE-CS 300 is a digital, battery-powered Force Gauge for indoor use. The rugged design of the Force Gauge accommodates applications in rough industrial conditions as well as in fields such as food and hygiene. A stainless-steel, carabiner-style shackle, a zinc-coated hook, and an infrared remote control are included with the Force Gauge, as are six 1.5 V AA batteries. The Force Gauge comes factory calibrated, and, for an additional fee, the PCE-CS 300 can be calibrated according to ISO standards.

Highlights

Battery-powered
Rugged design
Stainless-steel, carabiner-style shackle
Zinc-coated hook
Infrared remote control

Specification

Technical specifications
Weighing capacity	300 kg / 661.39 lbs
Readability	0.05 kg / 0.11 lbs
Repeatability	0.1 kg / 0.22 lbs
Min. weight	2 kg / 4.41 lbs
TARE	Full range
Protection	IP54 (dust and splash proof)
Settling time	< 10 s
Max. overload	50 %
Units of weight	kg / lbs
LCD Display	Character height of 20 mm / 0.78 in
Power supply	4 x 1.5 V AA batteries 2 x 1.5 V AA batteries (for remote control)
Operating temperature	-10°C … +40°C / +14°F … +104°F
Operating humidity	30% … 90%
Net weight	1.2 kg / 2.65 lbs incl. batteries
Remote control	Infrared, for distances up to 10 m / 32.80 ft

Delivery Scope

Delivery contents
1 x PCE-CS-300 Force Gauge
6 x 1.5 V AA batteries
1 x infrared remote control
1 x stainless-steel, carabiner-style shackle
1 x zinc-coated hook
1 x user manual

Downloads

Manual

Datasheet

Diagram

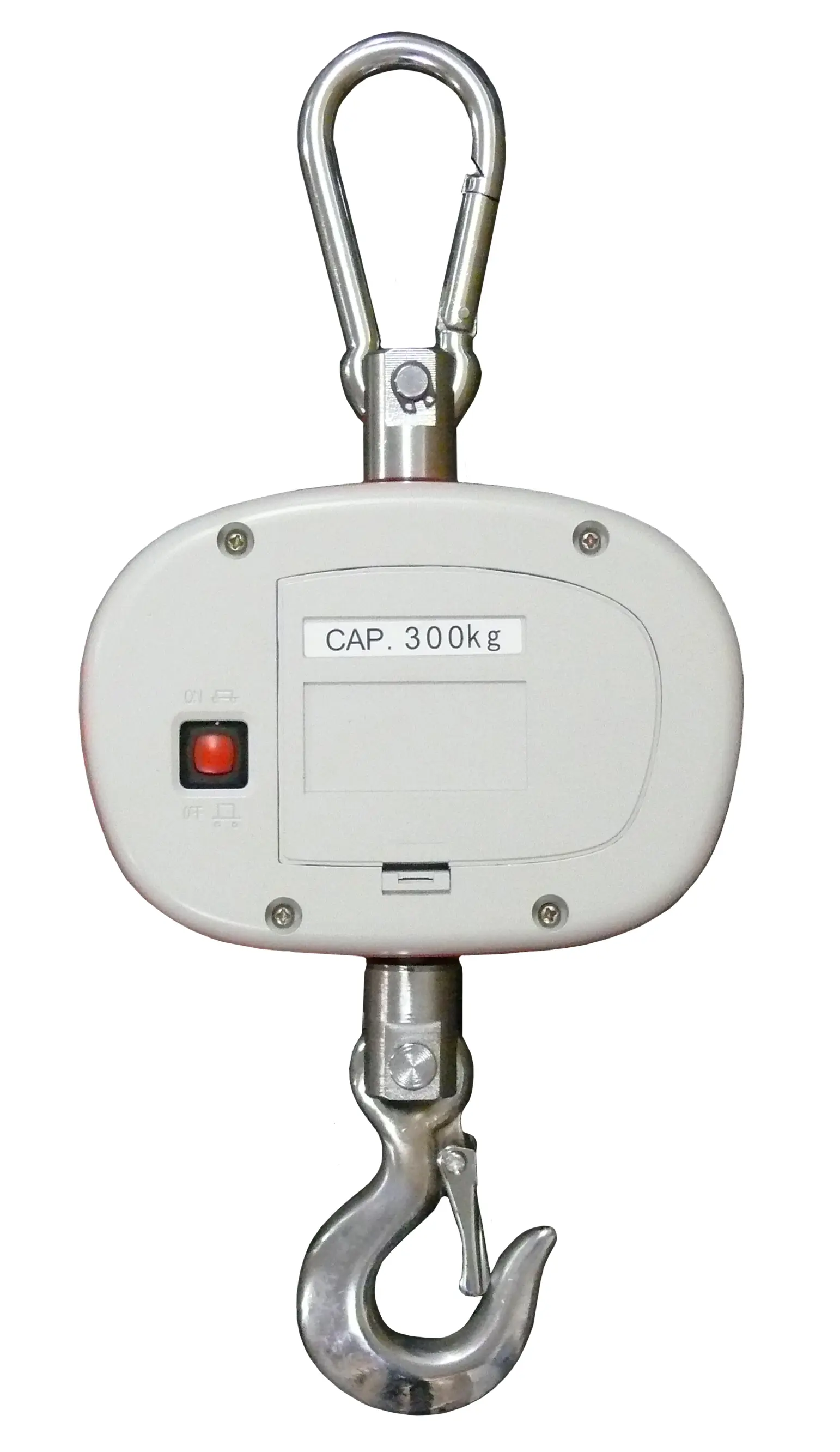

Force Gauge PCE-CS 300 backsite

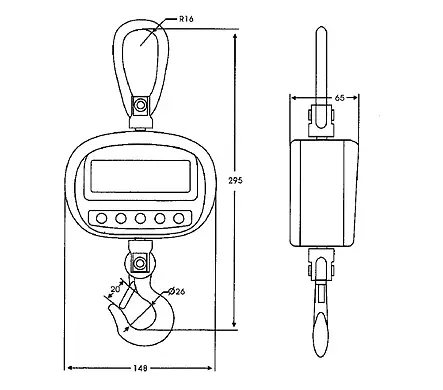

Force Gauge PCE-CS 300 skizze
