N.B. Force gauge not included in delivery.

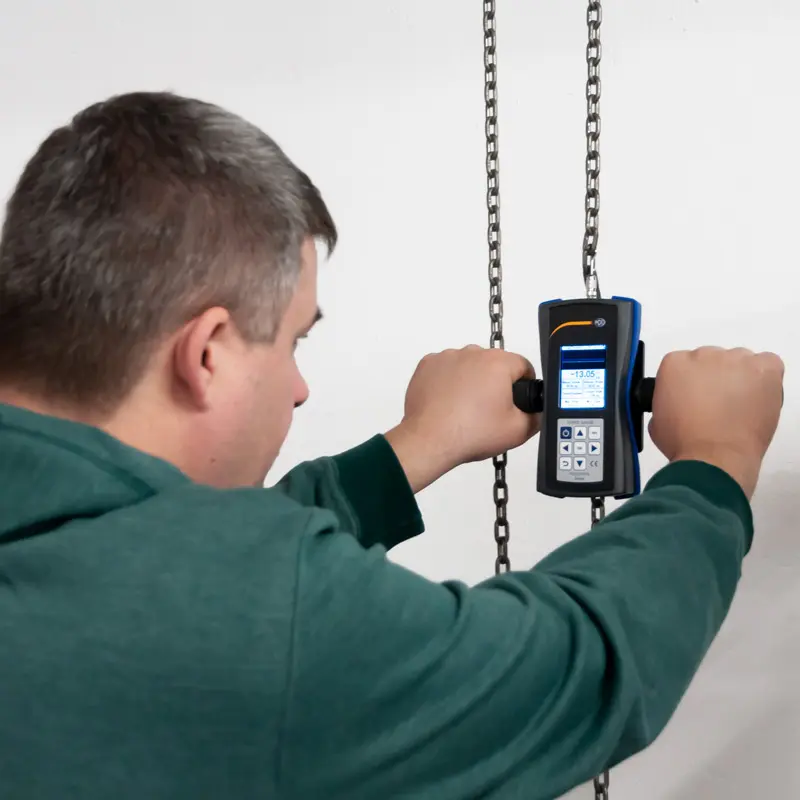

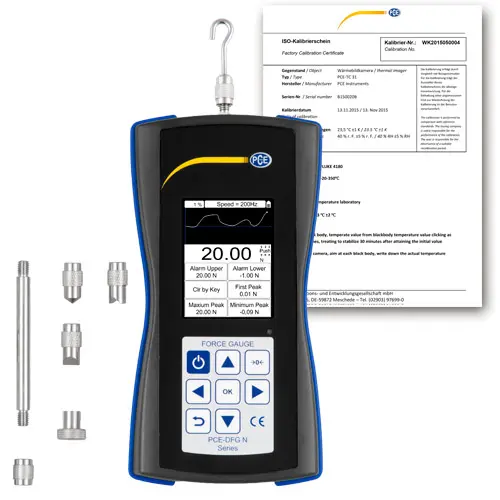

In addition to the internal storage option of 100 measured values, a USB interface is available for data transmission. With the software, the measured values can be saved on a computer for later evaluation. Due to its robust housing, a sensible menu navigation and the simple operation via 8 keys, the digital force meter PCE-DFG N 20 is characterized by a high degree of user-friendliness. The power supply of the dynamometer via batteries, which can be charged via a included charger and allow a continuous operation of the device of 10 hours. With these characteristics, the digital force gauge is suitable for quality control in the production area, for incoming and outgoing inspection as well as for the development of new components or for testing safety-relevant components.
Measuring range | 0 ... 20 N, 0 ... 4.5 lbs |
Accuracy | ± 0.1% of the measuring range |
Resolution | 0.01 N |
Measurement units | N, kg, lb, KPa |
Display | 2.8" TFT graphic display |
Alarm Modes | Inside, Outside, Crack, Shutdown |
Sampling rate | 6 ... 1600 Hz |
Storage | 100 measurements |
Power supply | NiMh battery 6V / 1600-mAh |
Battery life | About 10 hours |
Charging adapter | 12V / 1A |
Outputs | Interface: USB Switching output: 12V / 50-mA |
Protection class | IP 54 |
Operating and storage conditions | -10 ... 50°C / 14 ... 122°F 5 ... 95% rh non-condensing |
Force-receiving piece | M6 x 7 mm |
Dimensions | 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in |
Weight | 540 g / 1.2 lbs |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Force test stand PCE-FTS50 with digital display is suitable for load cells with internal measuring cell, e.g. for the PCE-FM50, PCE-FM200, PCE-DFG N 200, PCE-DFG N 500, or PCE-PTR 200.
Price excl. VAT &. delivery
2 year Warranty
Our test stand for force gauge PCE-MTS500 can be coupled and operated in a wide variety of versions with our force gauges, the PCE series. The test stand for force gauge lets you carry out almost all of your compression and tensile force applications with repeatability. The use of the test stand for force gauge offers the operator the most precise equality of test bench and sample.
Price excl. VAT &. delivery
2 year Warranty
The force gauge test stand is used in various combinations with our force measuring devices. Manual force measuring test stand for tensile and compressive force measurement. Suitable for many devices from PCE force measurement technology with an internally built-in force measuring cell.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Mounting plate for adapting the load cell of the PCE-FM1000 to the test stand LTS-20.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Thread reducer for SJJ accessories and force gauges / test stands
Price excl. VAT &. delivery
2 year Warranty
Adapter for pressure force testing of sponge, foam glass, rock material, etc.
Price excl. VAT &. delivery
2 year Warranty
Adapter ring for tensile tests. Diameter is 20 mm and capacity is 0.5 kN / 500 N / 112.4 lbs.
Price excl. VAT &. delivery
2 year Warranty
Clamping device for tensile tests of rubber, wires and cables, paper, plastic film, etc.
Price excl. VAT &. delivery
2 year Warranty
Adapter-stamp for pressure force test of spring and sponge etc.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Adapter clamps for tensile testing of wire and filaments.
Price excl. VAT &. delivery
2 year Warranty
Use clamping device for tensile testing of electronic parts, wires, etc.
Price excl. VAT &. delivery
2 year Warranty
Use clamping pliers for tensile tests of electronic components, wires, etc.
Price excl. VAT &. delivery
2 year Warranty
Fork holder for tensile and pressure tests.
Price excl. VAT &. delivery
2 year Warranty
Adapter clamp for tensile tests.
Price excl. VAT &. delivery
2 year Warranty
Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.
Price excl. VAT &. delivery
2 year Warranty
Tensioning device for tensile tests.
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Clamping device with large opening width for peel test of block, glass and cardboard.
Price excl. VAT &. delivery
2 year Warranty
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
Price excl. VAT &. delivery
2 year Warranty
Clamping device for testing bristles.Max. Capacity: 500 N / 112 lbs
Price excl. VAT &. delivery
2 year Warranty
Clamping device with soft jaws for tension testing of paper, film etc.
Price excl. VAT &. delivery
2 year Warranty
Clamping device for testing bristles.Max. Capacity: 500 N / 112 lbs
Price excl. VAT &. delivery
2 year Warranty
Holder for knob and rivet test.Max. Capacity: 500 N / 112 lbs
Price excl. VAT &. delivery
2 year Warranty
Pliers for trigger tests.
Price excl. VAT &. delivery
2 year Warranty
ISO re-calibration incl. certificate for force gauge max. 50 kg / 500 N / 112 lbs. This is often required to comply with DIN ISO 9000.
If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.
Calibration certificates are issued specifically for the customer and are excluded from the right of return
