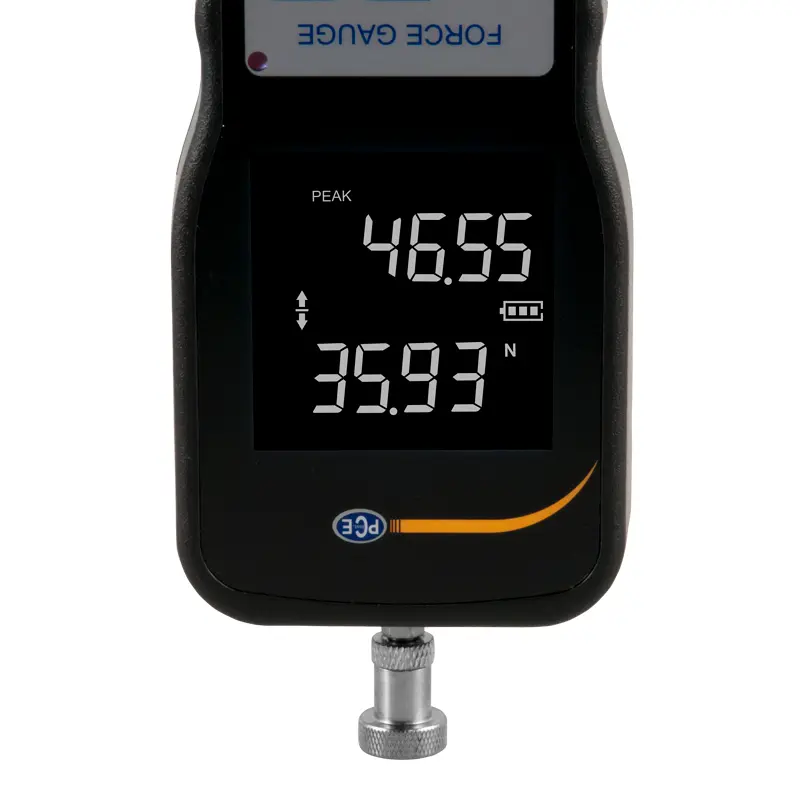

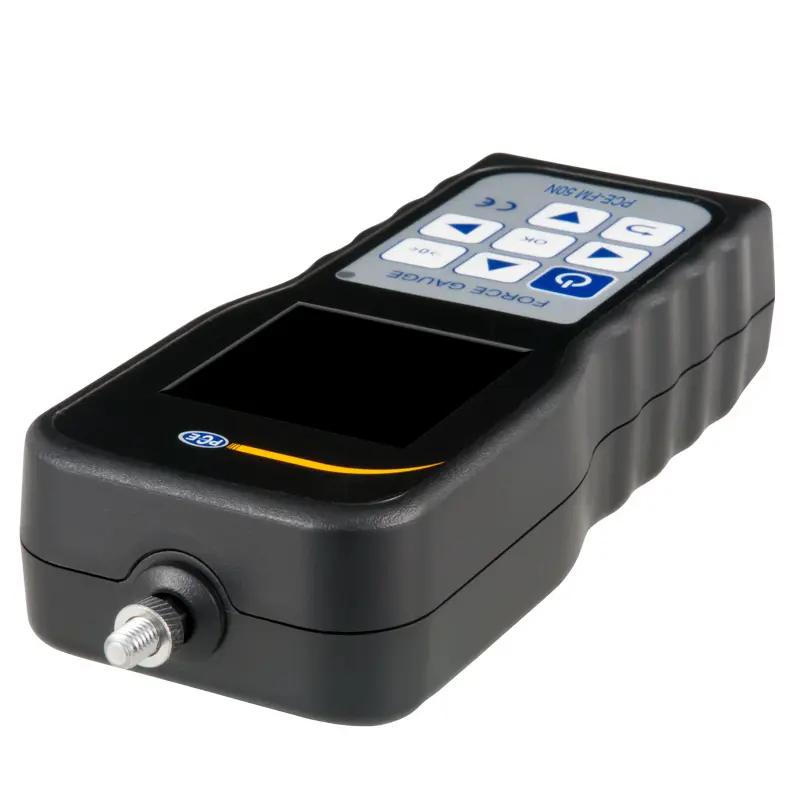

This force gauge is a tensile / compressive force gauge. This tensile / compressive force gauge has an internal load cell. It is a portable traction / compression force gauge that can be installed in a force measurement stand. The measuring range of this tensile and compressive force gauge is up to 50 N / 11 lbs. So the meter is suitable for more precise tensile and compression tests.

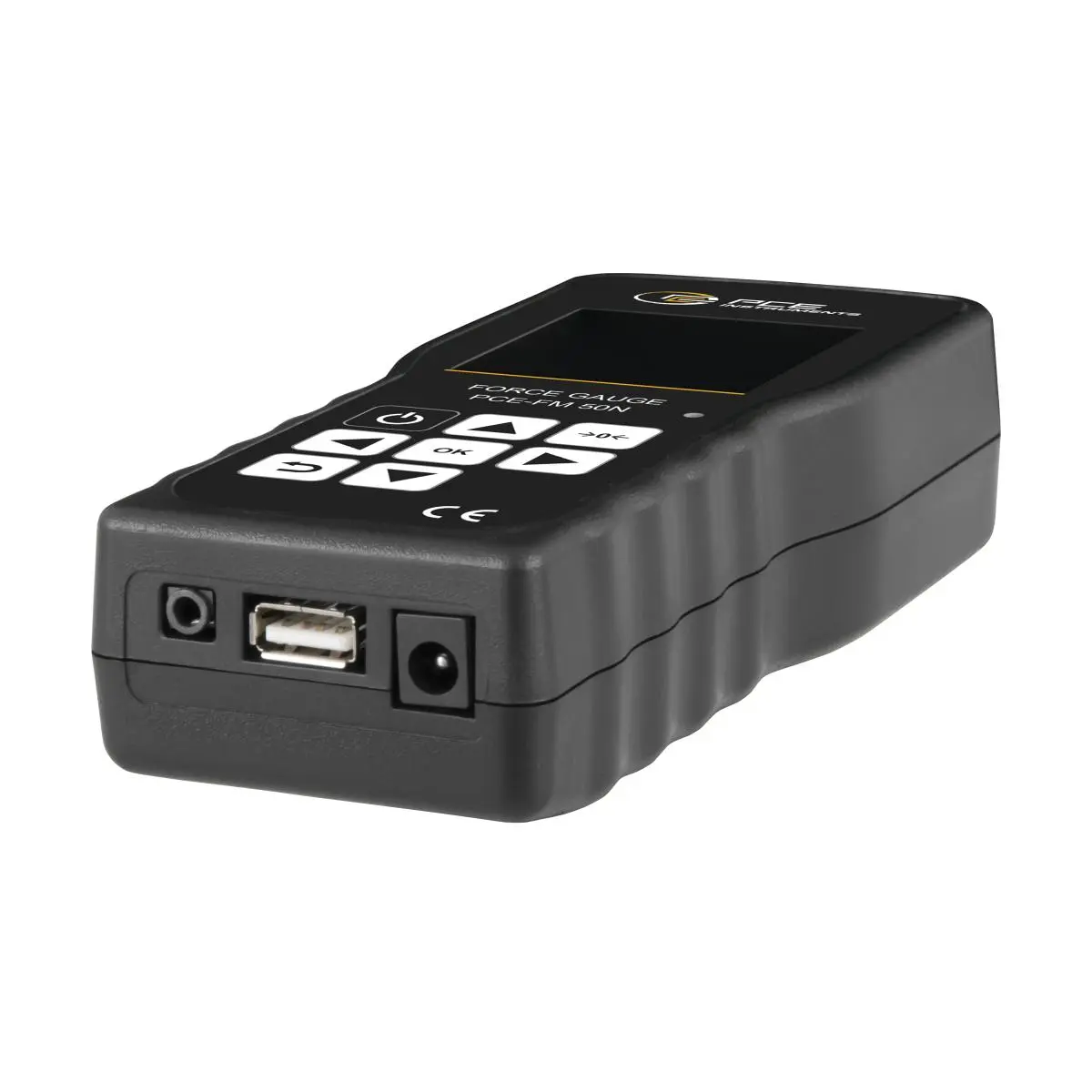

The measurement results can be transferred directly to the PC via USB interface. There they can be archived and evaluated. An integrated statistical evaluation is used to evaluate the measurement results. The force measuring device is thus able to automatically store maximum and minimum measured values in the display.
| Measuring range | 0.5 ... 50 N / 0.1 ... 11 lbs |
| Resolution | 0.01 N / 0.002 lbs |
| Pressure calibration | 0.1 Mpa |
| Load cell | Integrated load cell with M6 connection |
| Measuring range | 1 ... 100% of the full scale |
| Measurement accuracy | ± 0.5 % |
| Units | N, kg, lb |
| Display | LCD |
| Power supply | Internal battery, 12V / 1 A power adapter |
| Operating temperature | 10 ... 30 °C / 50 ... 86°F |
| Relative humidity | 15 ... 80 % relative humidity |
| Weight | 1 kg / 2.2 lbs |
| Working conditions | |
The device must not be near sources of vibration or corrosive substances |
|

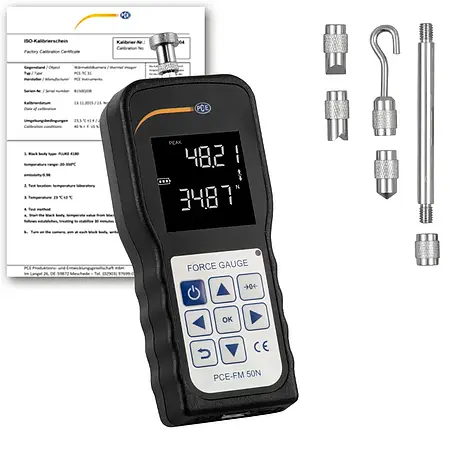

1 x PCE-FM 50N Force Gauge with internal load cell
1 x Downloadable evaluation software
1 x USB cable
1 x Flat head adapter
1 x Hook adapter
1 x Ball head adapter
1 x Chisel head adapter
1 x Notched head adapter
1 x Adapter for extension rod
1 x Extension bar (65 mm / 26 in)
1 x Charging adapter
1 x Device case
1 x User manual
1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
