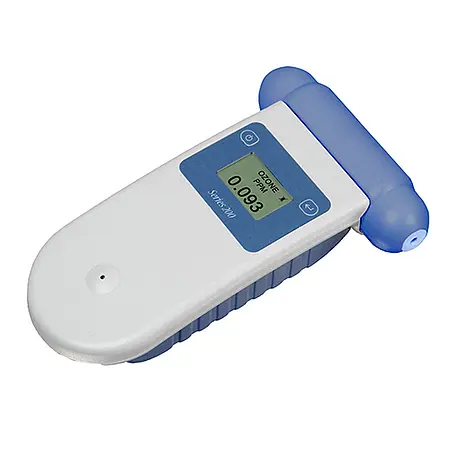

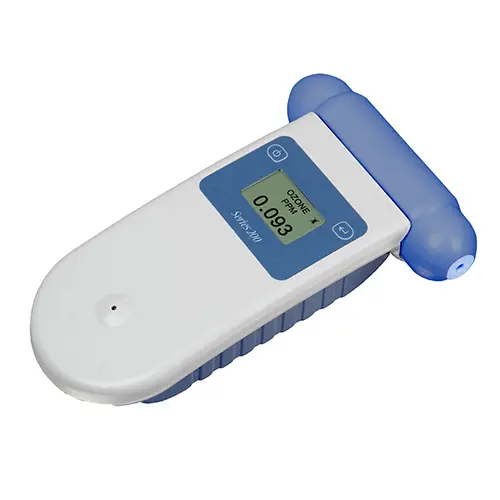

Thanks to the leading GSS technology of the sensors, the Gas Detector is not only high precision, but also has a long lifespan. The unique possibility to refresh the sensors makes their maintenance more economical than the maintenance of other types of sensors. Depending on the model, the measured concentrations may be written to the internal memory of the Gas Detector via an analog interface with a 0... 5 V output, or the output is transferred via a USB interface to a PC. Similarly, a remote kit is available as an option, allowing the Gas Detector to take measurements in a secure room while the sensor is connected via cable to the Gas Detector. Through simplicity of operation the alarm thresholds for the optical or acoustic signal can be changed in a very short time. In addition to the measured concentrations in the LCD display, which are displayed in ppm or mg / m³, the high and low alarms are shown.
Digital output | RS232 with USB converter | ||||
Data Logger | 8188 values | ||||
PC transfer | Software and data cable included | ||||
Model 200, 300 and 500 Series | |||||
Power supply | 12 V DC | ||||
Rechargeable battery | Lithium-Polymer 12 V DC / 2700 mAh | ||||
Charger | 12.6V 2 A | ||||
Charging voltage | 12.6V | ||||
Charging time | 2... 3 hours | ||||
Lifecycle | > 500 charges | ||||
Housing | PC & ABS / IP20 & NEMA 1 | ||||
Dimensions (incl. opt. sensorsavailable) | 7.7 x 4.8 x 2.1 in / 195 x 122 x 54 mm | ||||
Weight | < 1 lb / 460 g (with battery) | ||||
Approvals | EN 50082-1: 1997, EN 50081-1: 1992, CE | ||||
1 x Gas Detector AQ-500 Set EF
1 x 12V DC 800 mA AC/DC Power
Supply Unit
1 x Battery pack 12V
1 x Software und data cable (USB)
1 x Operating
instructions.
