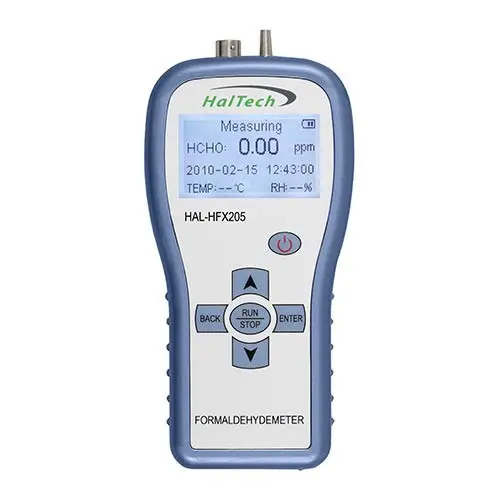

Gas Detector HFX205-25

Order no.: HFX205-25
GTIN (EAN):

£ 1,063.00
£ 1,275.60
price ex. (VAT / delivery)
HFX205-25
Delivery time: Not in stock!

Description

Professional Gas Detector to measure air after the evaporation of wooden material, flooring, furniture, textiles… / alarm signal exceeding of limit / USB-interface

This Alert Meter is designed to detect formaldehyde in air. The Alert Meter shows the formaldehyde-concentration on site and thereby avoids time-consuming and expensive analysis in laboratories. The formaldehyde Alert Meter runs with help of an electromechanical sensor and is designed to determine the current permitted limit. A measurement can be accomplished in less than 30 seconds. The concentration is measured in ppm units. Some substances such as ethanol, propanol or methanol can interfere with the measuring data. An optionally purchasable hygrometer-sensor allows for a correction of the measured data in order to achieve accurate measurements.



The Alert Meter can be connected to a computer or laptop by means of the USB-Interface, thereby allowing an automatic and continuous measuring over a long period of time. Time and battery status are shown continuously on a display. Information on all the gass-measuring devices of PCE Instruments is shown below. For further information, please feel free to read the following technical data. Our engineers and technicians will gladly advise you on the measuring device for formaldehyde concentration or any other product in terms of regulation and control, or scales and balances of PCE Instruments.


Highlights

- Short reaction time
- Real-time display
-
Manual and auto data storage
- High-speed USB
- Software for Online Data transfer
- No warm-up time necessary
- Automatic background lightening
- Self-calibration

- Alarm signal if level of limit is reached
- Operating time up to 6 hrs

Specification

Measuring range0…25 ppm
Resolution0.01 ppm
Accuracy < ± 2 %
Reaction time< 30 seconds
Data storageup to 500 datasets
Operation temperature5 ... 40 °C
Power SupplyLi-ion battery (3.7 V/1200 mAh)
AC-adapter 100 ... 240 V to 5 VDC / 1 A
Operation time6 hrs. with batteries
Dimensions80 x 36 x 150 mm
Weightapprox. 200g
Interference with measuring rate of formaldehyde
ChemicalFormaldehyde equivalent
100 ppm methanol1 ppm
100 ppm ethanol1 ppm
100 ppm isopropanol0.5 ppm
100 ppm CO1 ppm
25 ppm phenol0.05 ppm
100 ppm acetaldehyde0.5 ppm
100 ppm hydrogen3 ppm
50 ppm hydrogen sulphide0.5 ppm
50 ppm sulphur dioxide0.5 ppm

Delivery Scope

1 x Gas Detector HFX205-25
1 x rechargeable battery (Li-Ion)
1 x 230 V adaptor to recharge battery
1 x USB- cable
1 x software for online data-transfer
1 x instruction manual (in German language)
