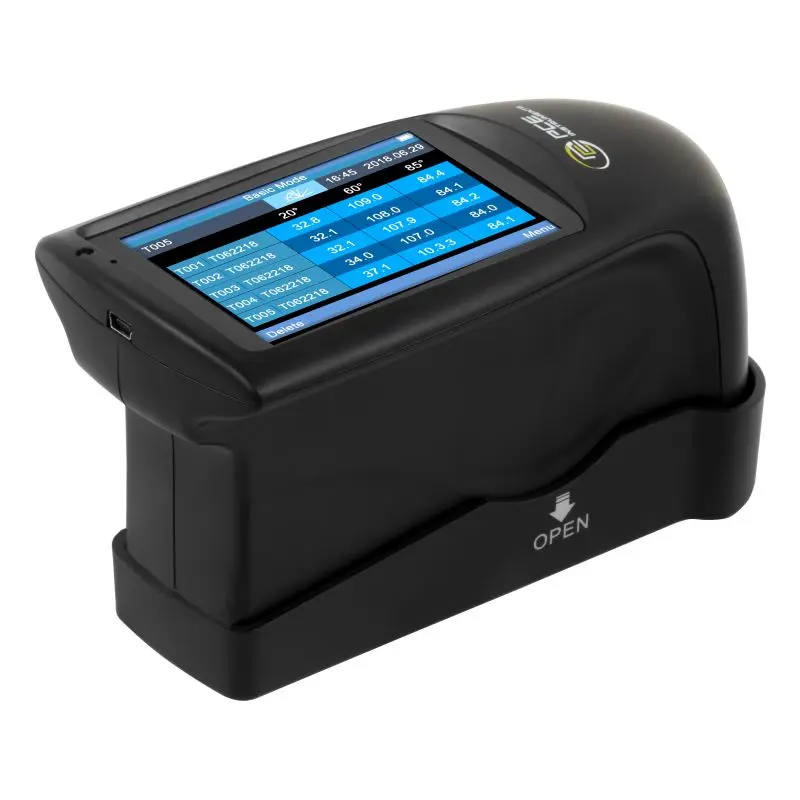

Gloss Meter PCE-IGM 100-ICA incl. ISO calibration certificate

Order no.: PCE-IGM 100-ICA
GTIN (EAN): 4250348728050
£ 2,272.00
£ 2,726.40
ISO Calibration
price ex. (VAT / delivery)
:
4250348728050
PCE-IGM 100-ICA
Delivery time: 10 - 14 days
20° / 60° / 85°

Description

Gloss meter for mobile use / Different measuring geometries /
3.5" TFT-Display / Fast measurement time / Internal data memory /
Including evaluation software

A gloss meter is a tester for determining surface gloss. Thereby, with the gloss meter, spectral reflections of a light beam that hits the surface, are measured. The touch screen allows for easy navigation.

The gloss meter is applied especially in areas where it is important that the surfaces have the same structure, and thus have the same surface characteristics. This often happens in quality control. Thus, the gloss meter is a measuring instrument which can be used in many different companies.

Included with this gloss meter there is also a CD-Rom with special evaluation software. So the measured data can be first stored on the device and later transferred to a computer. The software of the gloss meter also has an analysis function that serves for precise evaluation.


Highlights

- Different measuring geometries
- 3.5" TFT
- Internal data memory
- Calibration plate supplied
- Fast measurement time
- With evaluation software
- Light source: D65
- Wave length: 400-700 nm

Specification

Measuring geometries20° / 60° / 85°/ 20° 60° 85°

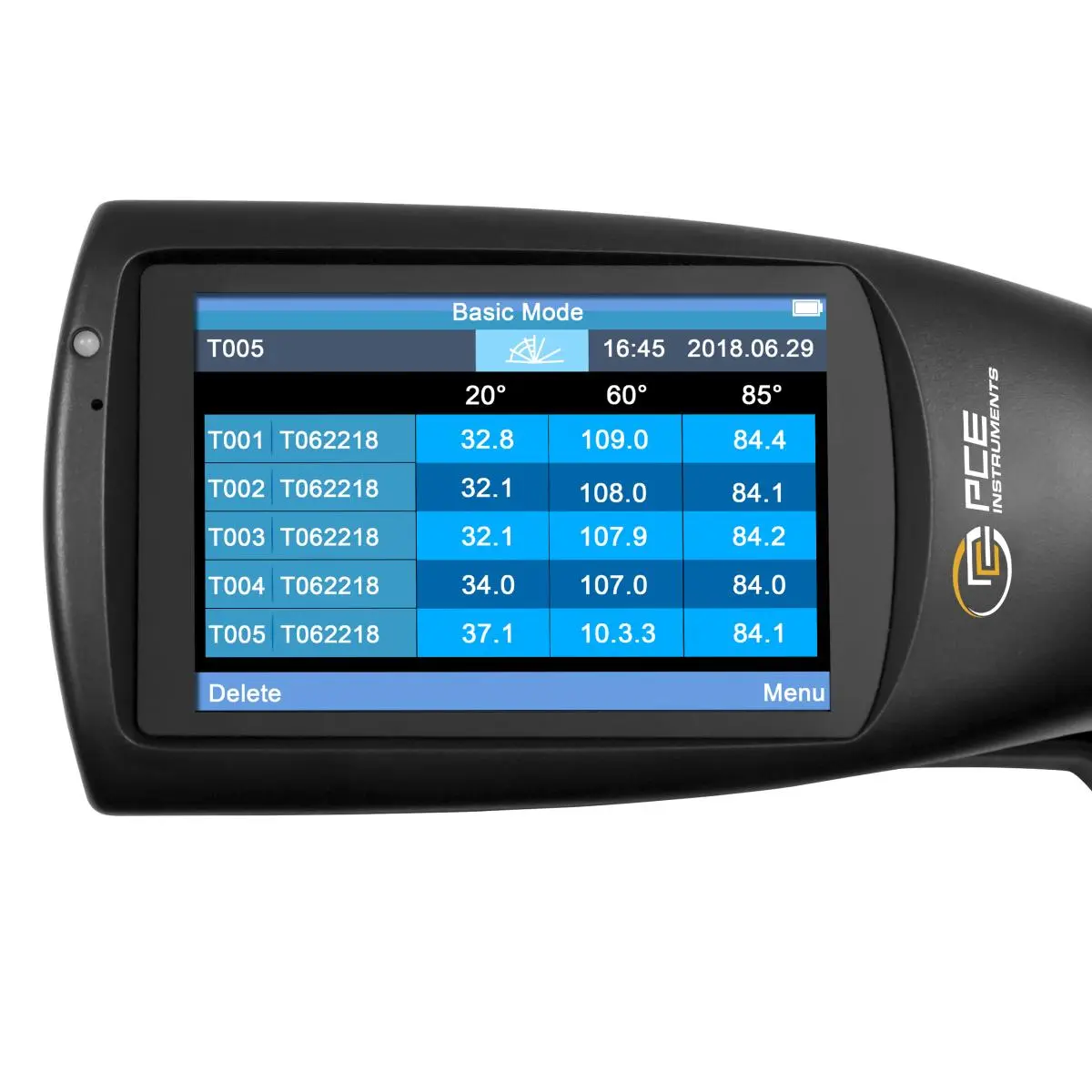

Display3.5 in TFT touch display (320 x 480 Pixel)
StandardsISO 2813
GB/T 9754
ASTM D 523
ASTM D 2457

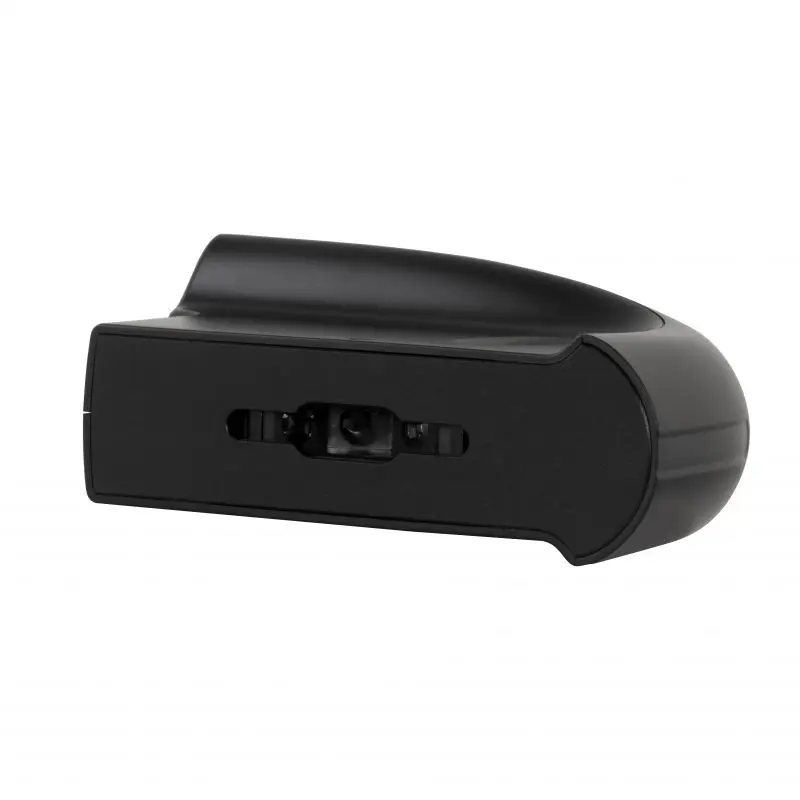

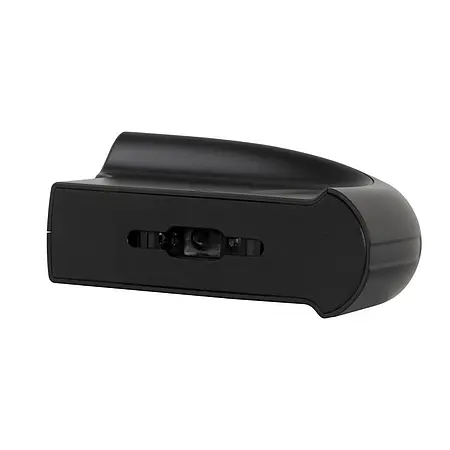

Measuring surface20° : 10 x 10 mm / .4 x .4 in
60° : 9 x 15 mm / .4 x .6 in
85° : 5 x 36 mm / .2 x 1.4 in
Measuring range20° : 0 ... 1000 GU
60° : 0 ... 1000 GU
85° :0 ... 160 GU
Readability0.1 GU
RepeatabilityMeasuring range 0 ... 10 GU: ±0.1 GU
Measuring range 10 ... 100 GU: ±0.2 GU
Measuring range 100 ... 1000 GU: ±0.2 GU (%)
ReproducibilityMeasuring range 0 ... 10 GU: ±0.2 GU
Measuring range 10 ... 100 GU: ±0.5 GU
Measuring range 100 ... 1000 GU: ±0.5 GU (%)
ChromaticityMeets CIE 1931 (2°) under a CIE C - light source
Measurement accuracy±1.2 / ±1.2%
Measuring time1 second
Dimensions160 x 75 x 90 mm / 6.3 x 3 x 3.5 in
Weight350 g / < 1 lb
Menu languageEnglish, Chinese
Power supply3200-mAh Li-ion rechargeable battery
InterfaceUSB / RS-232
Measurement memoryBased measurement: 1000
Statistical mode: 5000
Continuous measurement: 5000
SoftwareIncluded in delivery
Ambient temperature0 ... 40°C / 32 ... 104°F
Storage temperature-20 ... 50°C / -4 ... 122°F
Relative humidity< 85 % rel. humidity (not condensing)

Delivery Scope

1 x Glossmeter PCE-IGM 100
1 x Evaluation software (on CD-ROM)
1 x Charging adapter
1 x USB cable

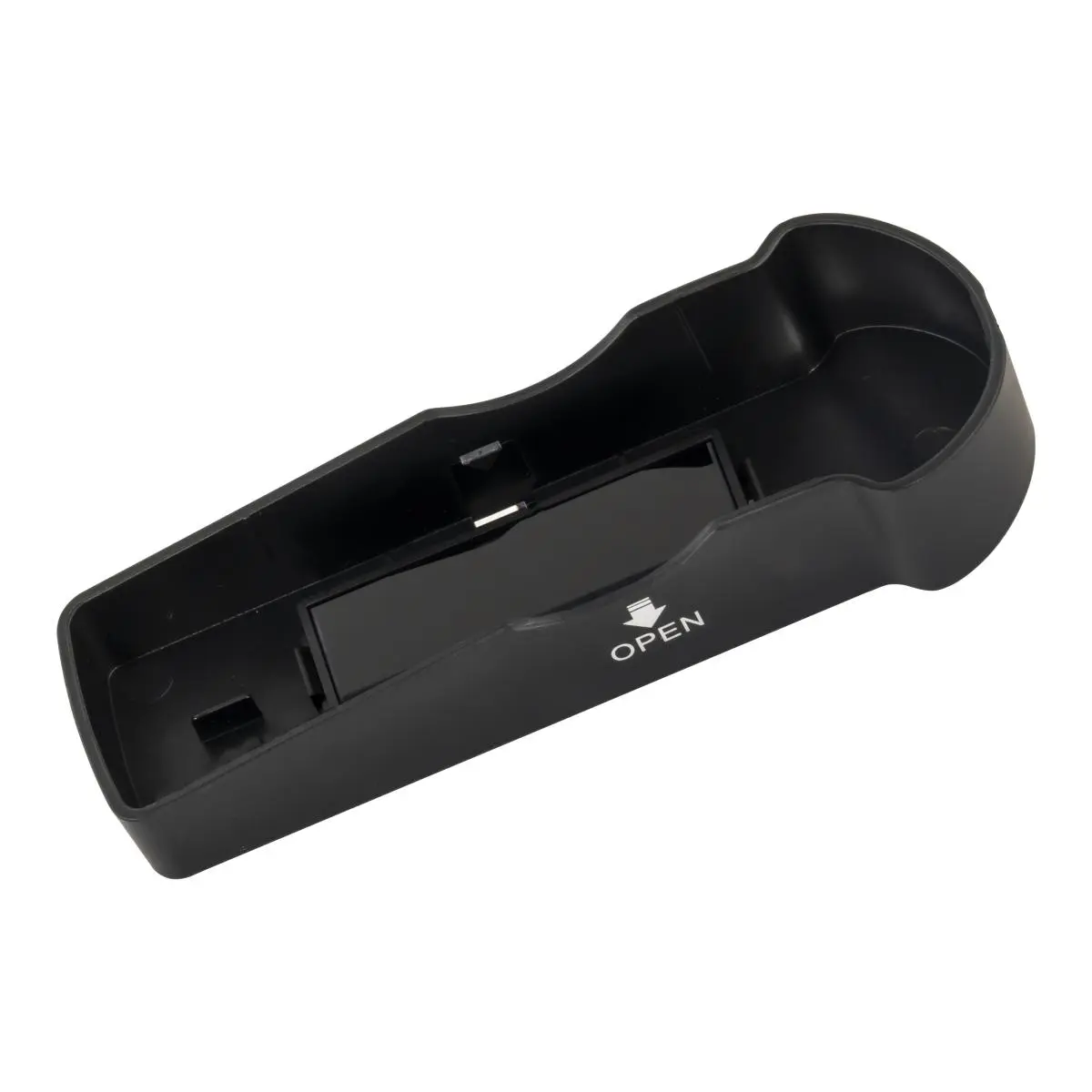

1 x Calibration plate
1 x Instruction manual

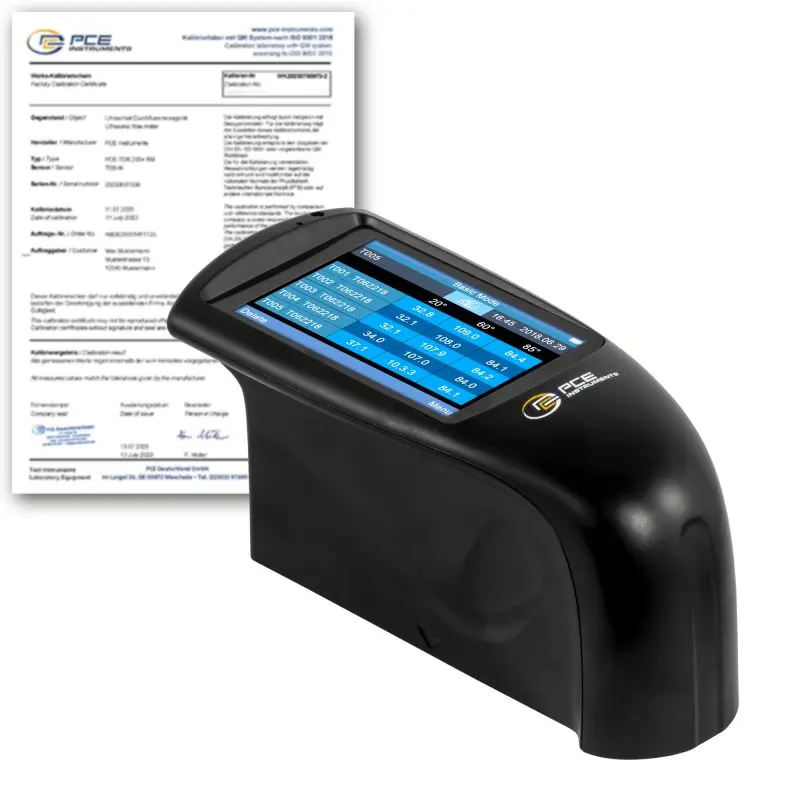

1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
