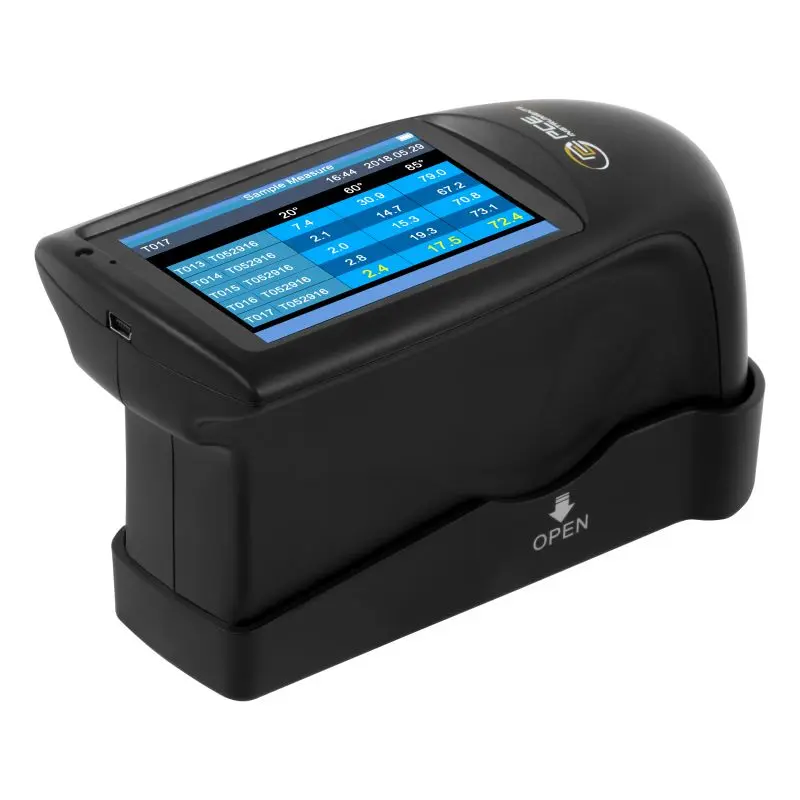

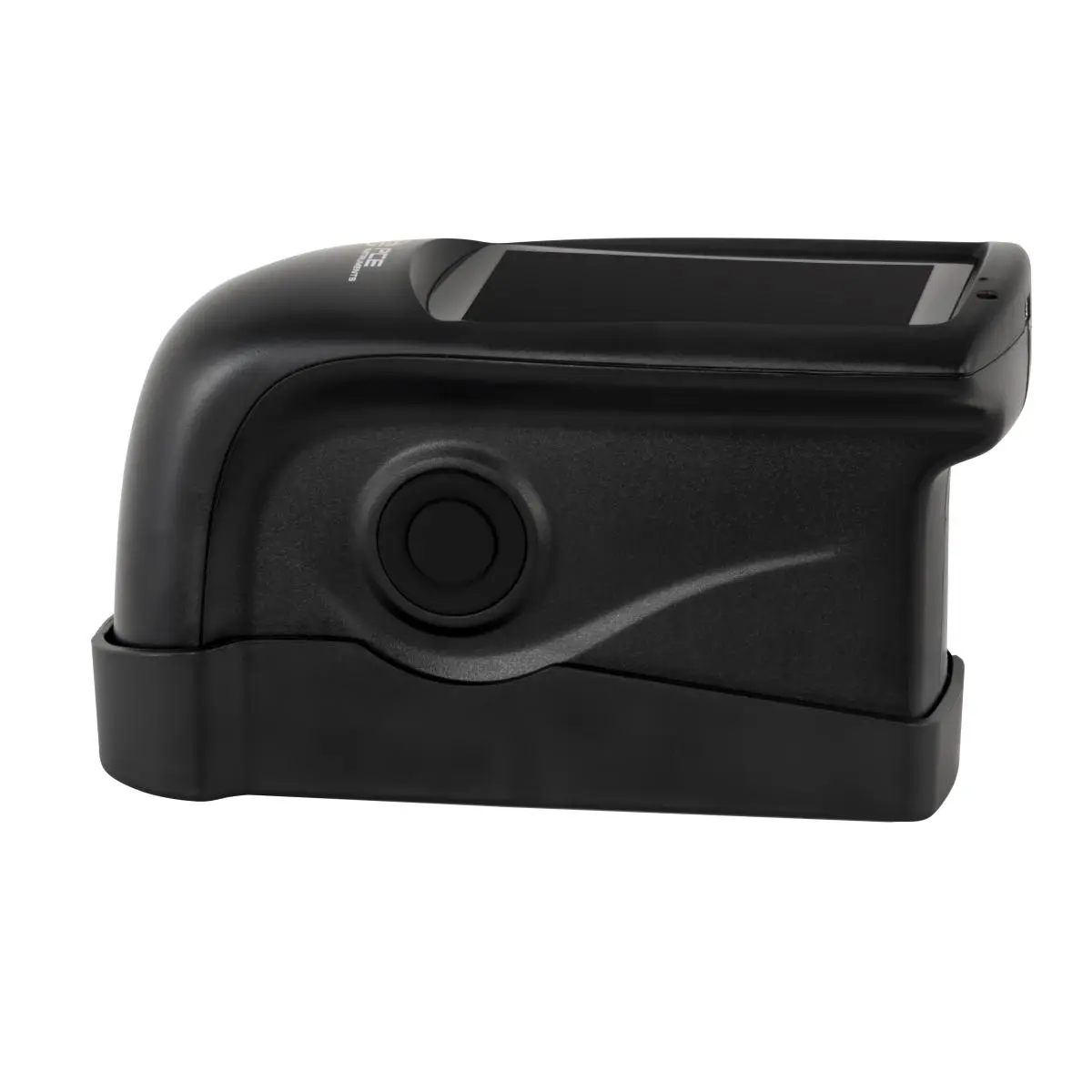

The PCE-PGM 100 gloss meter works with measuring geometries of 20°, 60° and 85°, using the reflection principle. This means that the gloss meter emits light which hits the surface to be tested. A part of the light will be absorbed by the surface and another part will be reflected. After this, the gloss meter will calculate the degree of gloss.
The wide measurement range allows the user to test many different surfaces. These features make the gloss degree meter very useful for gloss measurements in quality and incoming goods control. The included software makes later evaluation of the measured data easily possible.
| Technical Data | |
| Measurement geometry | 20° / 60° / 85° |

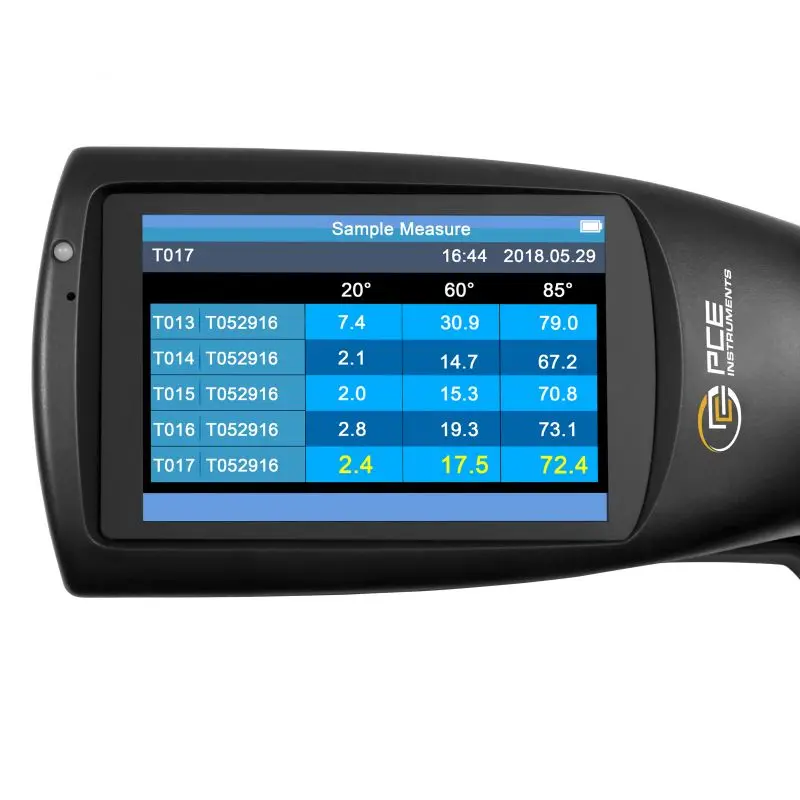

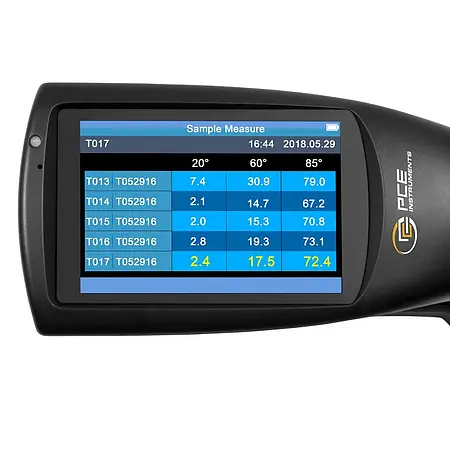

| Display | 3.5 in TFT touch display |
| Standards | ISO 2813 GB/T 9754 ASTM D 523 ASTM D 2457 |
| Measuring surface | 20° : 10 x 10 mm / .4 x .4 in 60° : 9 x 15 mm / .4 x .6 in 85° : 5 x 36 mm / .2 x 1.4 in |
| Measuring range | 20° : 0 ... 1000 GU 60° : 0 ... 1000 GU 85° : 0 ... 160 GU |
| Readability | 0.1 GU |
| Repeatability | Meas. range 0 ... 10 GU: ±0.1 GU Meas. range 10 ... 100 GU: ±0.2 GU Meas. range 100 ... 1000 GU: ±0.2 GU (%) |
| Reproducibility | Meas. range 0 ... 10 GU: ±0.2 GU Meas. range 10 ... 100 GU: ±0.5 GU Meas. range 100 ... 1000 GU: ±0.5 GU (%) |
| Chromaticity | Fulfils CIE 1931 (2°) under a CIE C – light source |
| Measurement accuracy | ±1.5 / ±1.5% |
| Measuring time | 0.1 second |
| Dimensions | 160 x 75 x 90 mm / 6.3 x 3 x 3.5 in |
| Weight | 350 g / < 1 lb |
| Menu language | English, Chinese |
| Power supply | 3200-mAh Li-ion rechargeable battery |

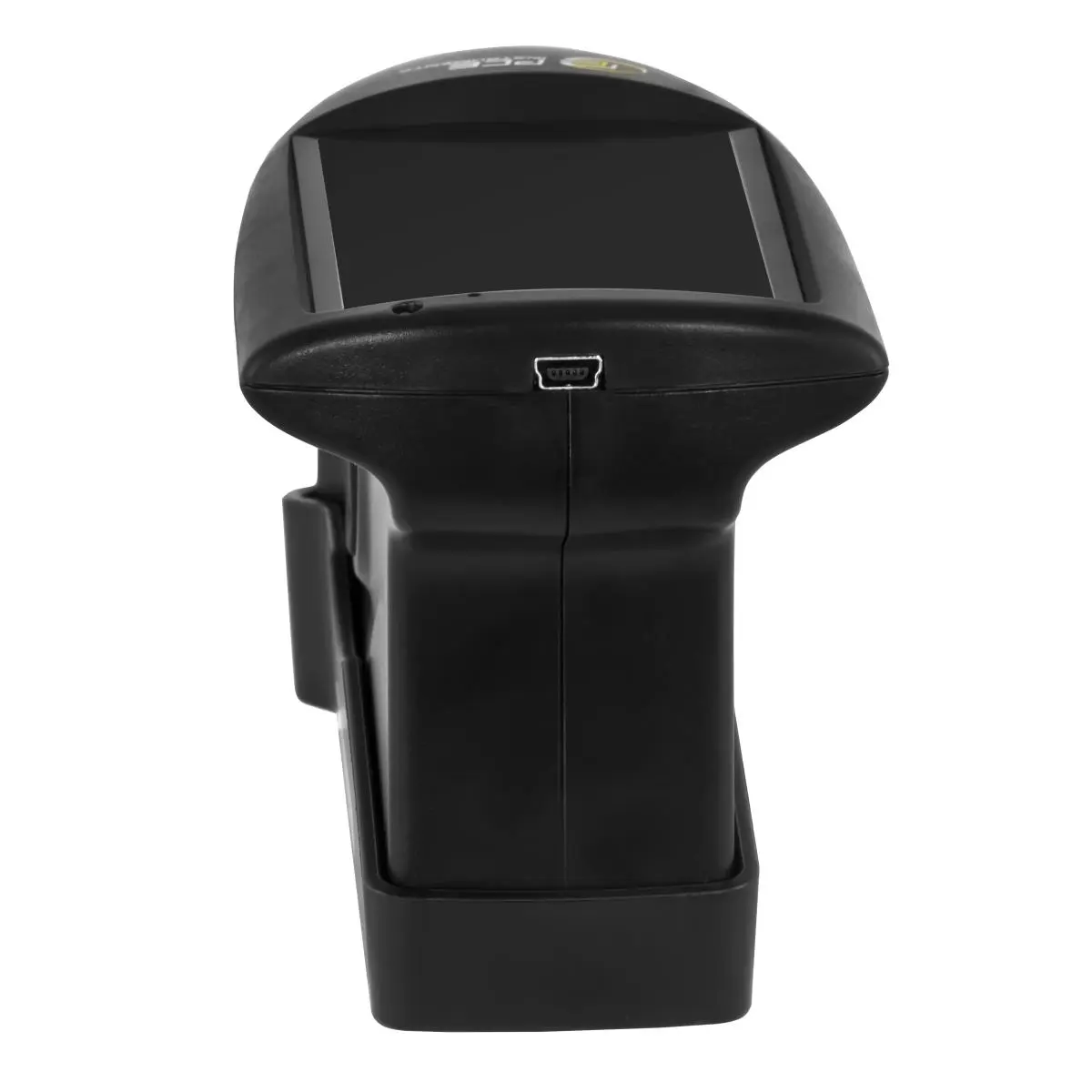

| Interface | USB / RS-232 |
| Measuring storage | Baseline measurement:1000 |
| Operating temperature | 0 ... 40°C / 32 ... 104°F |
| Storage temperature | -20 ... 50°C / -4 ... 122°F |
| Relative humidity | < 85% rel. humidity (non-condensing) |
