Handheld Tachometer PCE-LES 500

Order no.: PCE-LES 500
GTIN (EAN): 4250348734303
£ 4,254.00
£ 5,104.80
price ex. (VAT / delivery)
:
4250348734303
PCE-LES 500
Delivery time: 1-2 working days

Description

Handheld Tachometer with trigger input / 28 high-power LEDs / phase shift 0 ... 359 ° / 2439 lux @ 50,000 FPM, 20 cm / robust metal housing / additional spare battery

Our extremely powerful Handheld Tachometer is unrivalled in terms of light intensity, operation and technology. This very robust and precise hand-held stroboscope is used for measurements in demanding industrial environments and is specially designed for maintenance, commissioning and inspection. The way it works is very simple: fast-moving parts are optically "frozen" and thus made visible to the human eye. In this way, defective components or sub-optimal settings can be detected and corrected during operation.

With its large measuring range of 50 to 50,000 FPM, it is versatile and offers precise measurements for a wide range of applications. Its compact size and low weight make it extremely handy and can be taken anywhere. Equipped with 28 energy-saving and long-lasting LEDs as a light source, the Handheld Tachometer guarantees reliable performance and a long service life. With a resolution of 0.1 FPM and an accuracy of 0.01%, it delivers extremely precise measurement results that fulfil even the highest demands. It is used, for example, especially for measuring steel and aluminium coils, flat sheets or other rotating objects.

In addition, the Handheld Tachometer impresses with an appealing illuminance of 2439 lux at 50,000 FPM and a distance of 20 cm. The adjustable phase shift from 0 to 360 degrees enables precise synchronisation with other devices or processes and makes it an extremely versatile tool. The Handheld Tachometer has a trigger input for external control and other features such as an ergonomic handle for comfortable handling and a robust metal housing that ensures safe use even in harsh environments. The removable rechargeable battery provides a convenient power supply when travelling, while an additional spare battery extends the operating time.


Highlights

- Frequency: 50 ... 50,000 FPM

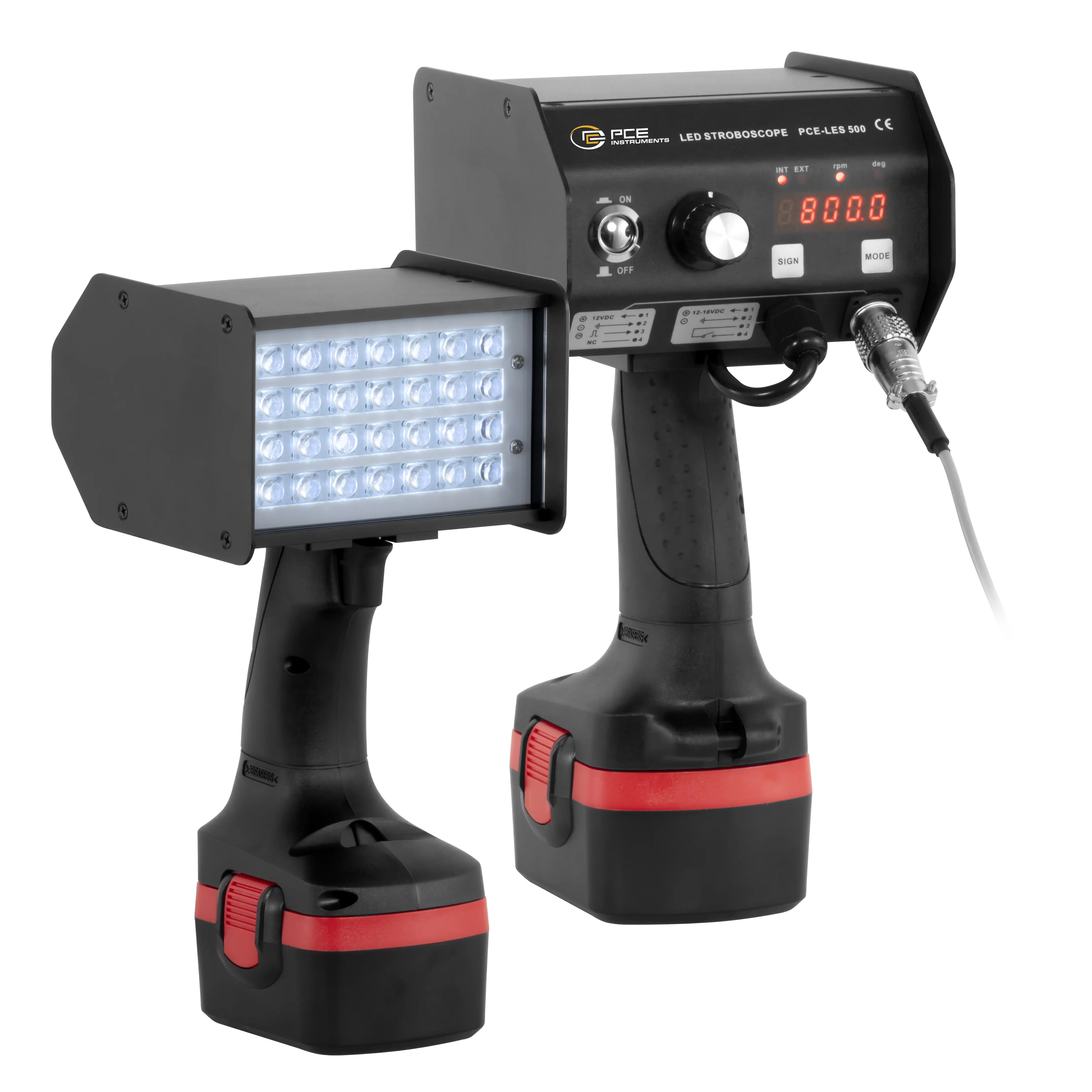

- Light source 28 LEDs
- Illuminance: 2439 lux @ 50,000 FPM / 20 cm
- Phase shift: 0 ... 359 °
- External trigger input
- Ergonomic handle

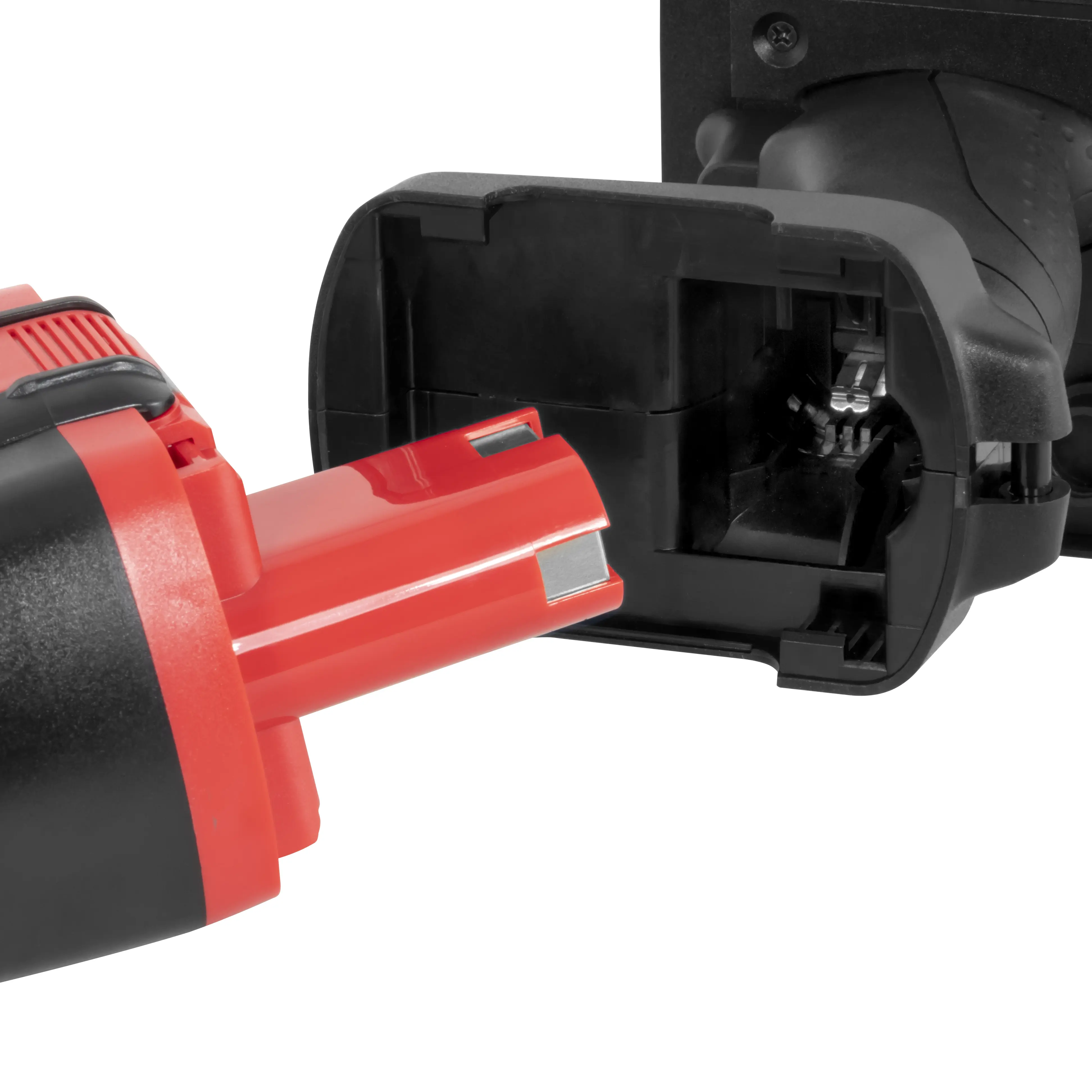

- 2 removable rechargeable batteries
- Measurement on coils and flat sheets

Specification

Frequency
Measurement range up to  50 ... 50000 FPM
Resolution  0,1 FPM
Accuracy  ±0.01 % v.Mw.

Frequency
Measurement range up to  1 ... 1000 FPS
Resolution  0,01 FPS
Accuracy  ±0.01 % v.Mw.

General technical data

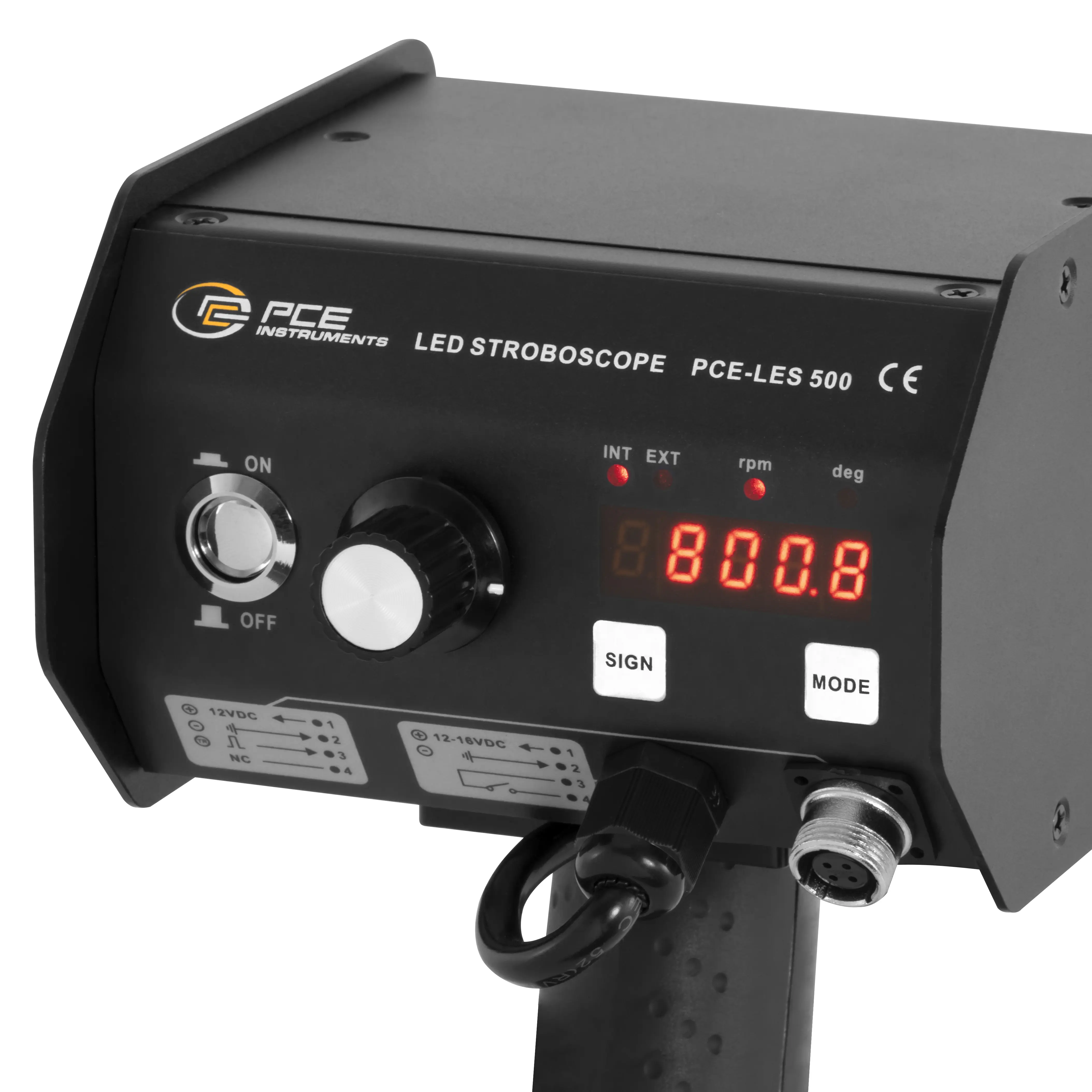

Display type  7-segment display
Operating time  4 h
Luminous intensity  2439 Lux @ 50.000 FPM / 20 cm
Phase shift  0 ... 359 °
Pulse width  8 ... 100 µs
Light source  28 LED's
Trigger input  greater than + 2.5 V peak, 20 µs min. Pulse width
Sensor supply: 12 V, 50 mA
Protection class (device)  IP20
Power supply  14.4 V DC
Weight  903 g
Operating conditions  0 ... 50 °C , 0 ... 95 % r.F
Storage conditions  0 ... 50 °C , 0 ... 95 % r.F
Capacity  3000 mAh
Dimensions ( L x W x H )  270 x 130 x 140 mm

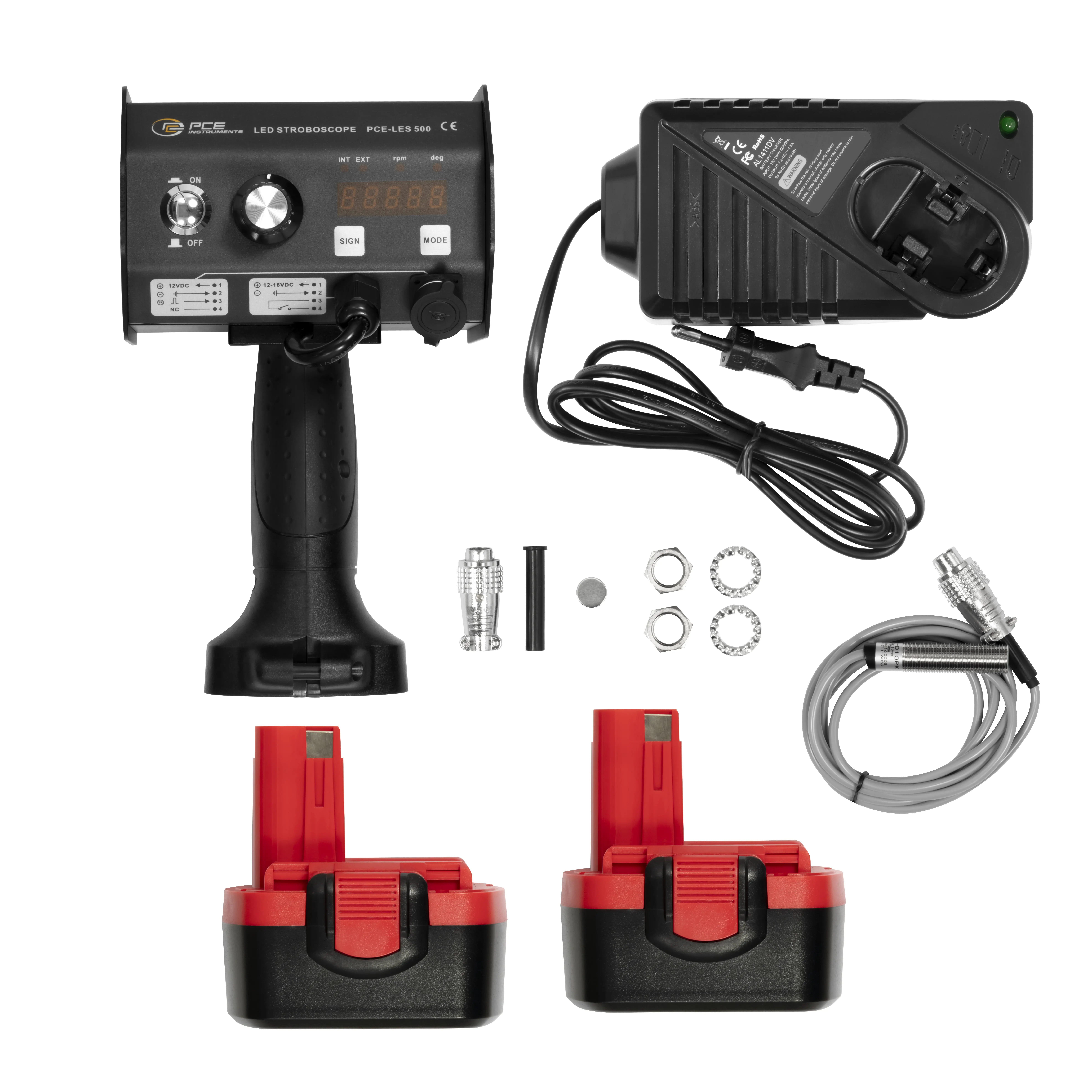

Delivery Scope

1 x Handheld Tachometer PCE-LES 500
1 x Ni-MH battery charger
2 x Ni-MH 3000 mAh battery
1 x 4-pin coupling
1 x rubber grommet

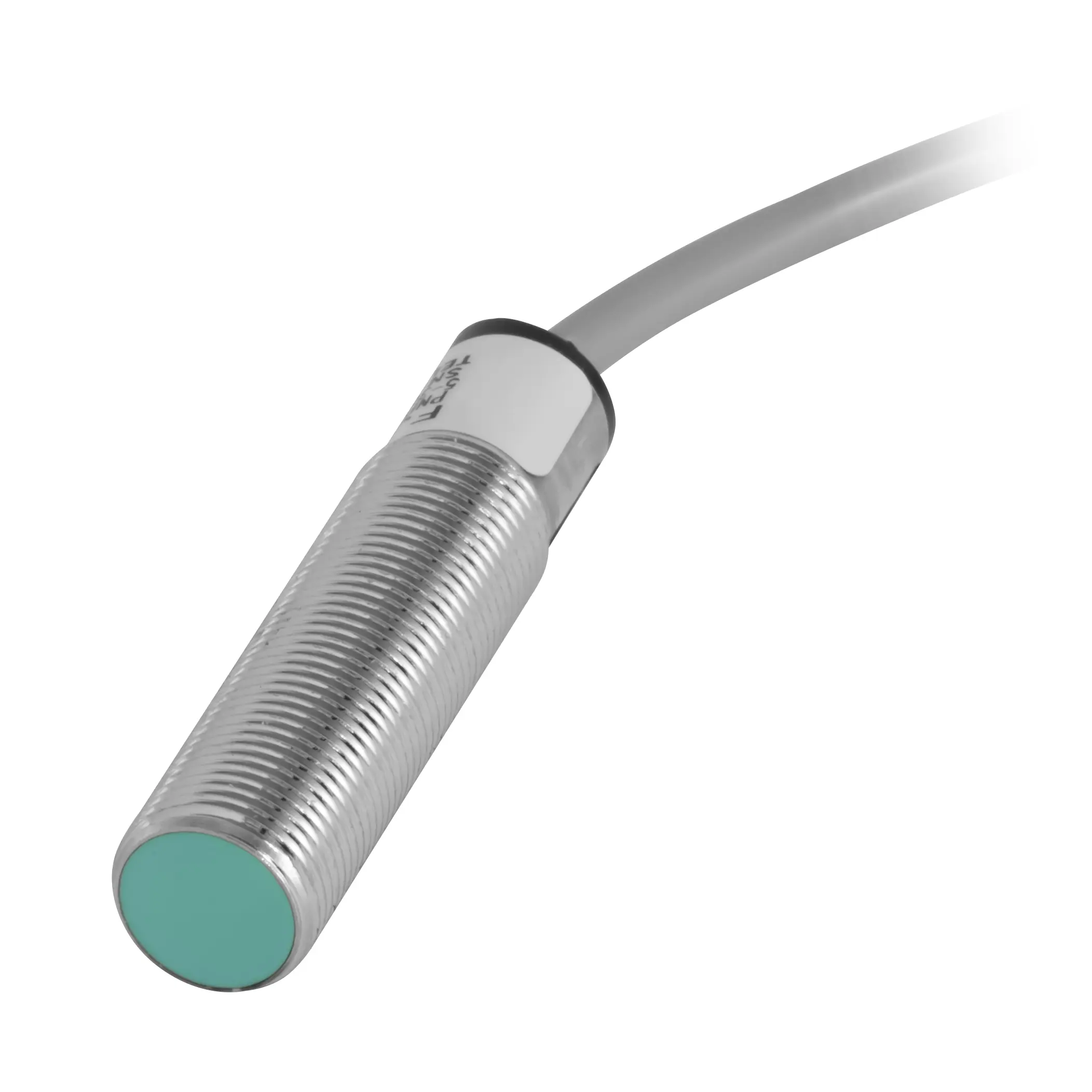

1 x External trigger sensor
1 x Carrying case
1 x Operating instructions
