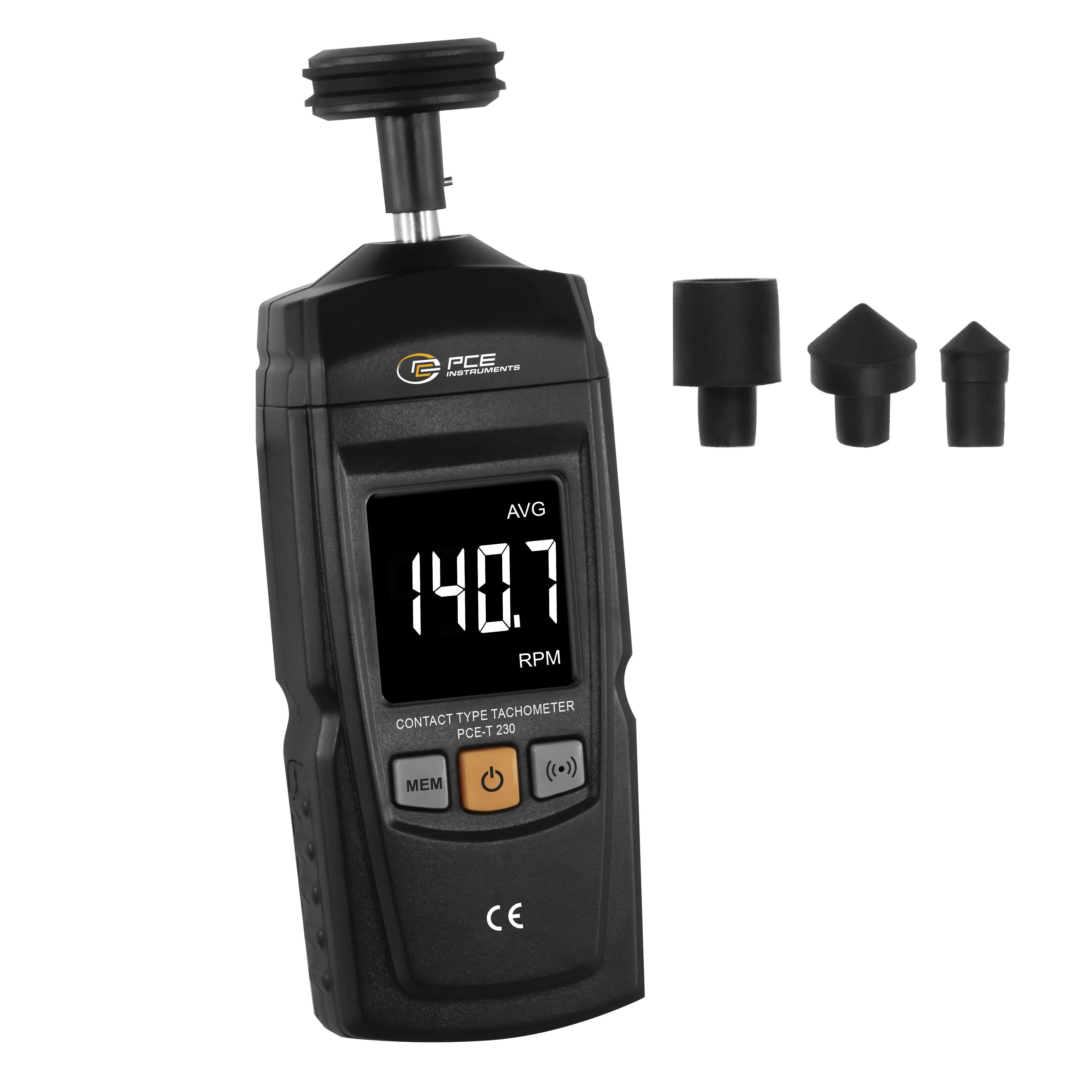

Handheld Tachometer PCE-T 230

Order no.: PCE-T 230
GTIN (EAN): 4250348734310
£ 61.00
£ 73.20
price ex. (VAT / delivery)
:
4250348734310
PCE-T 230
Delivery time: 1-2 working days

Description

Handheld Tachometer / optical speed measurement / measuring functions: minimum, maximum, last, average value / automatic power off / battery operation

Our Handheld Tachometer with a measurement range of 0.5 ... 19999 rpm and a resolution of 0.1 rpm enables accurate and reliable measurements in many applications. With a sampling rate of 0.8 seconds, the Handheld Tachometer delivers quick results. It offers multiple measurement functions to choose from, including MAX, MIN, LAST and AVG, to capture different aspects of rotational speed measurement. The units can be flexibly selected between rpm, m/min and ft/min.

The Handheld Tachometer has a low battery indicator and is powered by two AAA batteries. Automatic power off after 60 seconds helps to save energy. The Handheld Tachometer fits compactly in the hand and can be operated using just three keys. The 1.8-inch LC display ensures that the measured values are clear and easy to read.

In addition to the Handheld Tachometer, the delivery scope includes an adaptor and four additional rubber pads for various measurements. These accessories extend the device's range of applications and make it a practical tool for users in various industries.


Highlights

- measuring functions: MAX, MIN, LAST, AVG
- units: rpm, m/min, ft/min
- sampling rate: 0.8 s
- automatic power off after 60 s
- 1.8-inch LC display

Specification

Optical speed
Measurement range up to  0,5 ... 9999 RPM
Resolution  0,1 RPM
Accuracy  0.05 % of Rd + 1 digit

Optical speed
Measurement range up to  1000 ... 19999 RPM
Resolution  1 RPM
Accuracy  0.05 % of Rd + 1 digit

General technical data
Measuring functions  MIN, MAX, LAST, AVG
Units  ft/min, m/min, RPM
Display type  LCD
Display size  1,8 Inch
Measuring rate  0,8 s
Automatic power-off  60 s
Menu language  English, English (GB)
Protection class (device)  IP20
Weight  110 g
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  -10 ... 80 °C , 10 ... 75 % RH

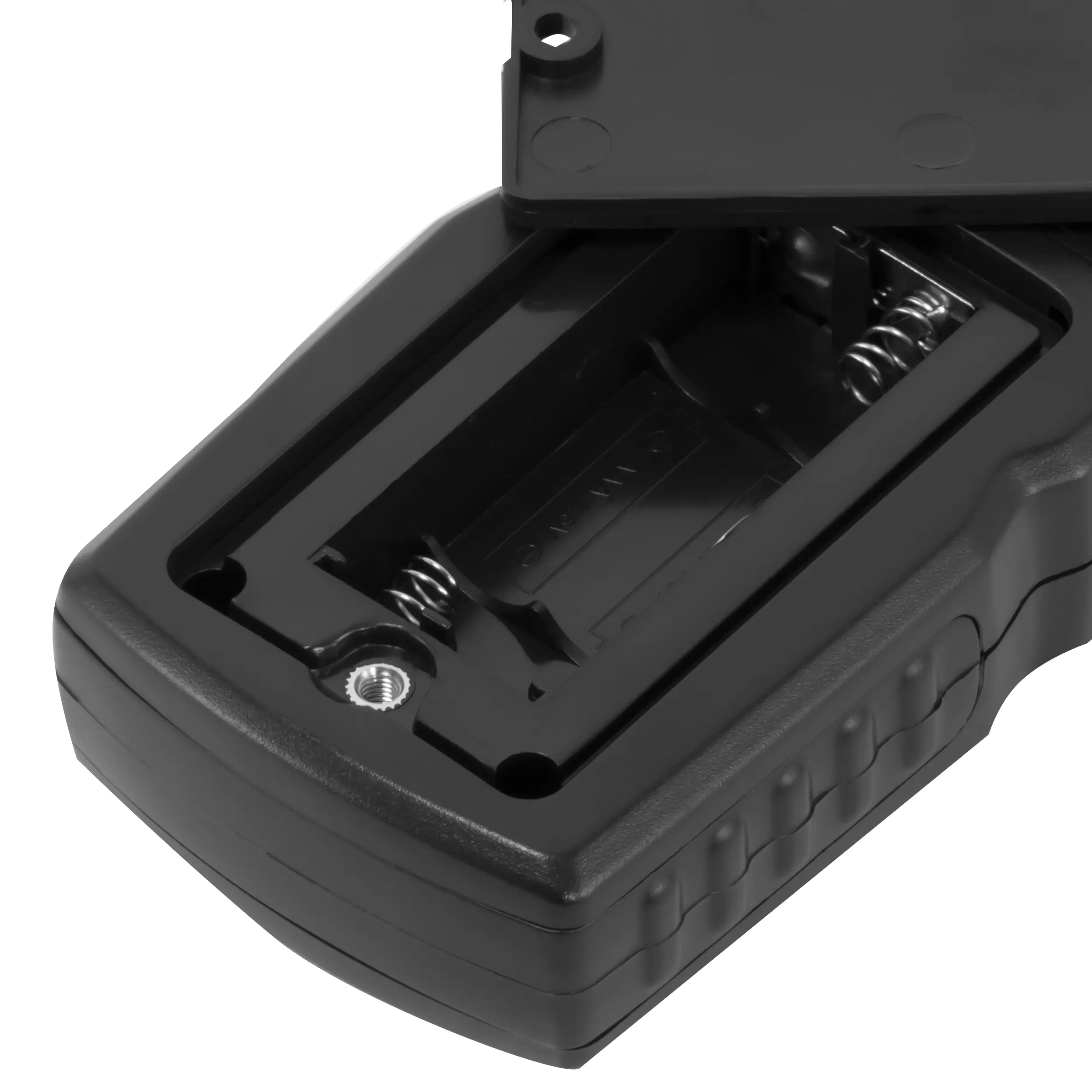

(Rechargeable) battery  2 x 1,5 V AAA battery , Zinc carbon
Capacity  400 mAh
Dimensions ( L x W x H )  144 x 51 x 30 mm

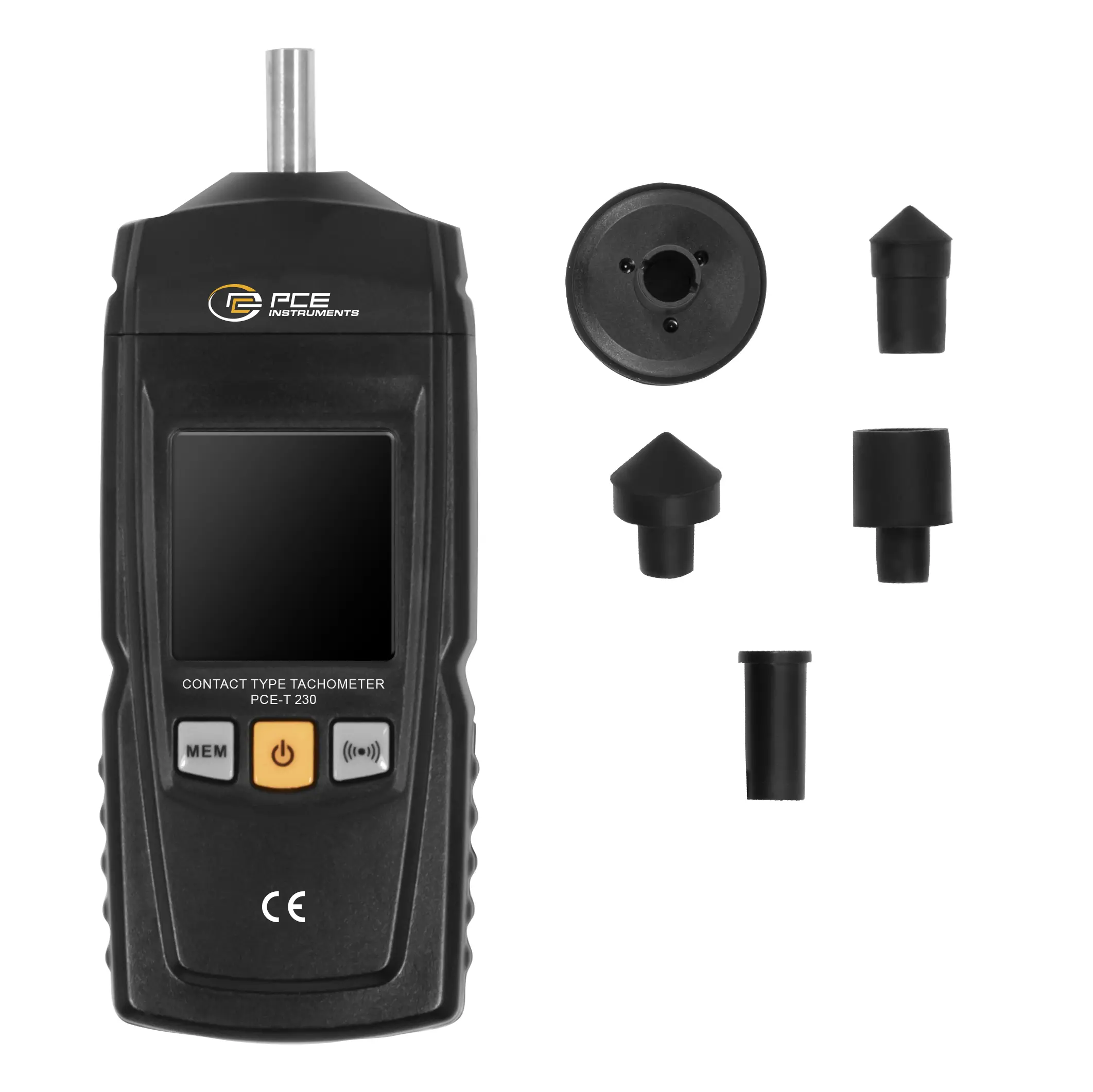

Delivery Scope

1 x Handheld Tachometer PCE-T 230
1 x adaptor wheel

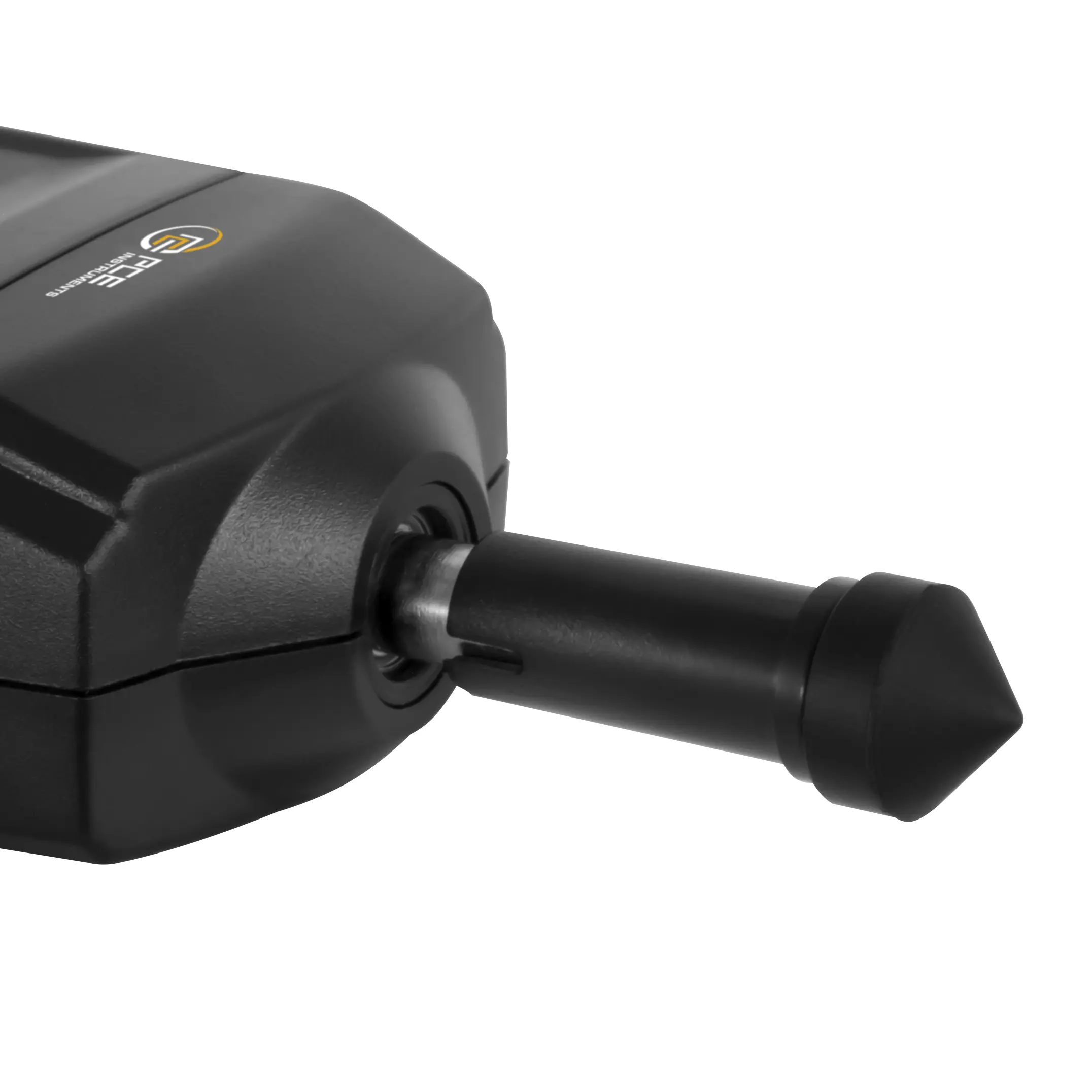

1 x small measuring tip (outer cone)
1 x large measuring tip (outer cone)
1 x hollow measuring tip (inner cone)
1 x measuring wheel Ø32 mm
1 x user manual
2 x 1.5 V AAA battery
