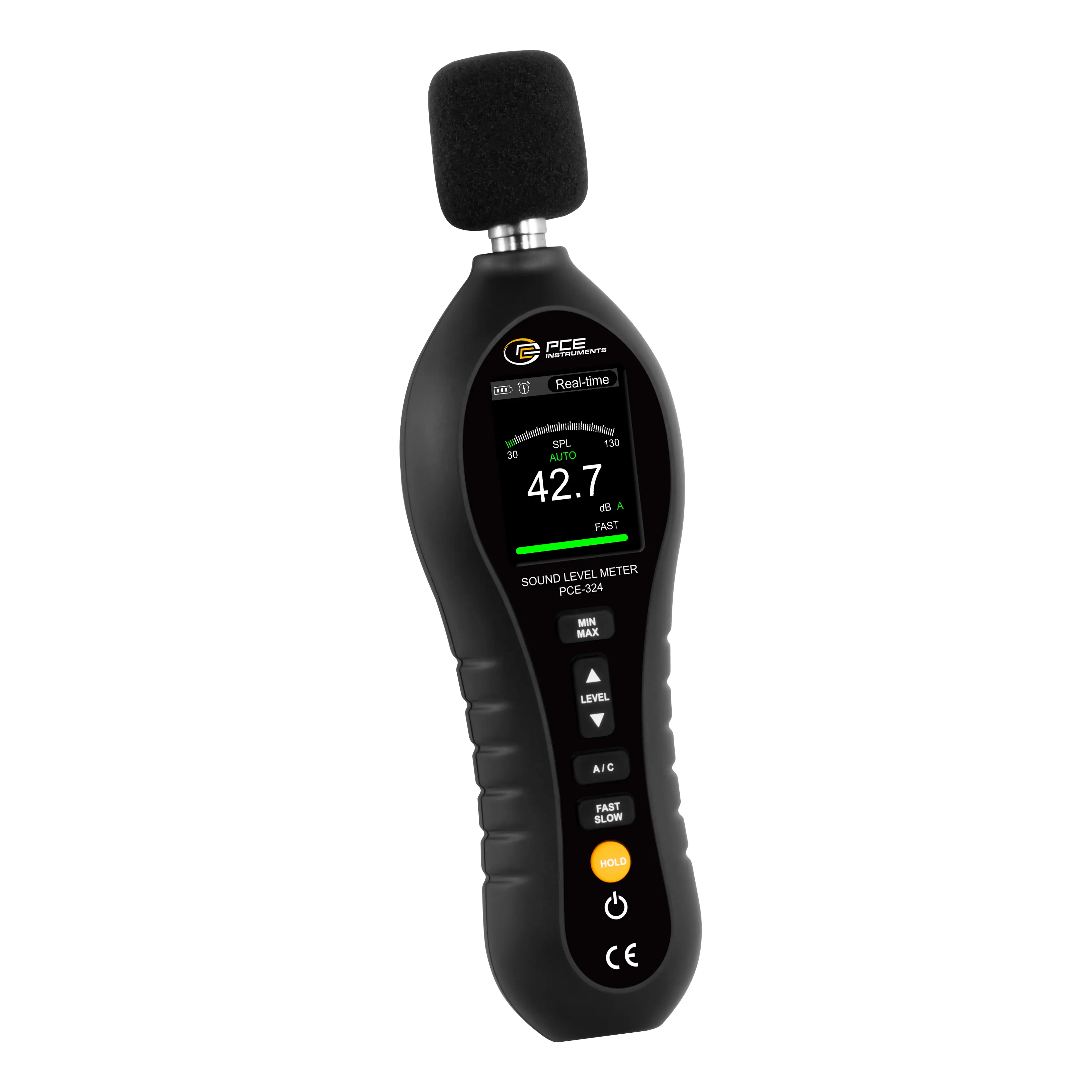

The Sound Level Meter offers a wide measurement range of 30 to 130 dB (dBA) and 35 to 130 dB (dBC), making it suitable for accurate measurements in various acoustic environments. The accuracy of the device is ±1.5 dB at 94 dB @ 1 kHz. Equipped with functions for A and C frequency weighting and both fast and slow time weighting, our Sound Level Meter is versatile and adaptable to different requirements.

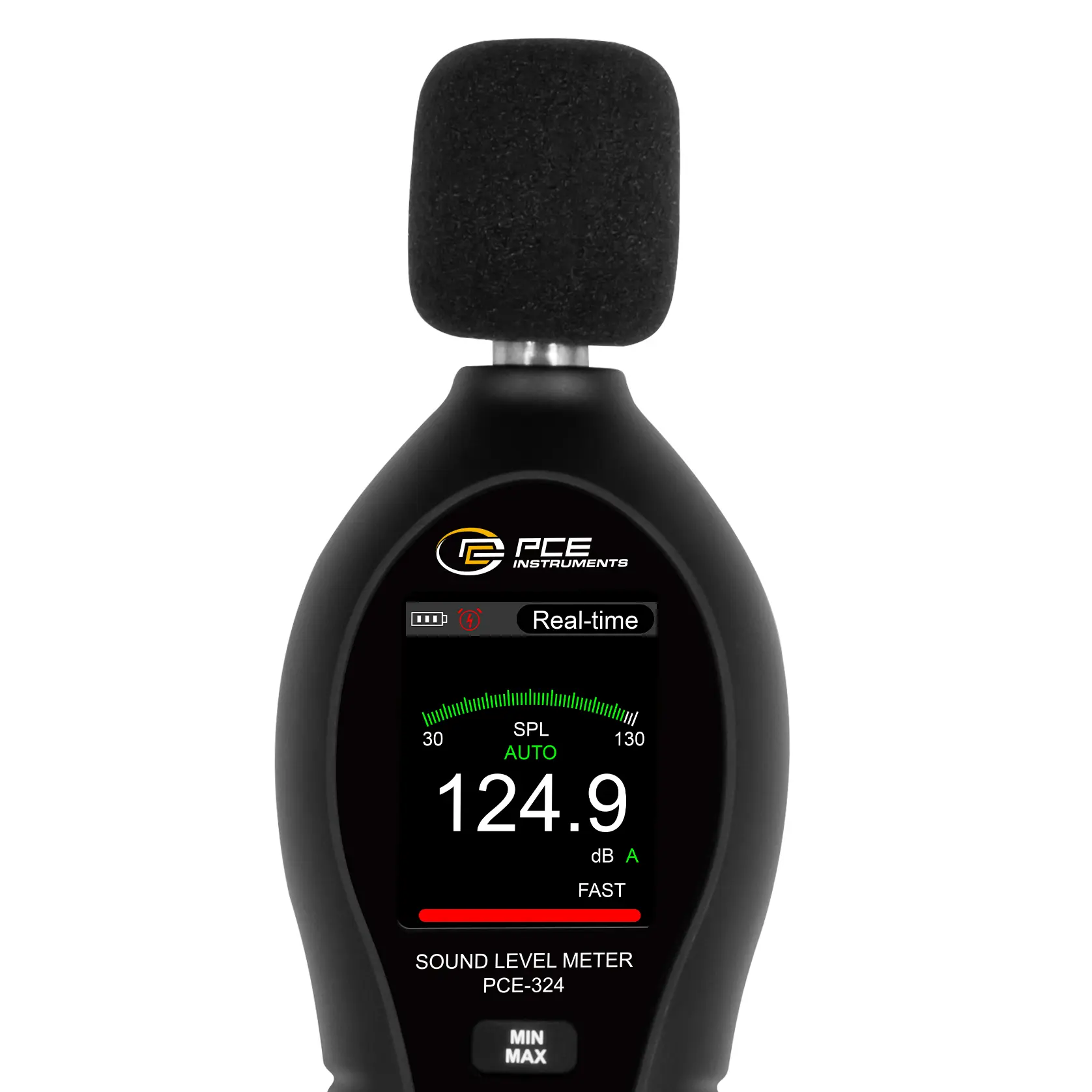

The 2-inch LC colour display provides a clear and easy-to-read display of the measured values in numerical form. In addition, the device has a scale that enables a quick visual assessment of the sound level. With a sampling rate of 2 x per second, the Sound Level Meter records acoustic changes almost in real time and is therefore particularly suitable for monitoring sound levels in dynamic environments.
The Sound Level Meter is equipped with functions such as MIN, MAX and HOLD. Thanks to the automatic power off function, the device is energy-efficient and saves battery power, which extends the operating time. The Sound Level Meter complies with IEC 61672-1 (class II). It is powered by 4 AAA batteries and is therefore mobile and flexible in use. Whether in residential areas, offices, production facilities or other environments - this Sound Level Meter is versatile and delivers precise results in a wide variety of acoustic scenarios.
Sound level | |
Measurement range up to | 30 ... 130 dBA |
Resolution | 0,1 dB |
Accuracy | ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz) |
Sound level | |
Measurement range up to | 35 ... 130 dBC |
Resolution | 0,1 dB |
Accuracy | ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz) |
Sound level | |
Measurement range up to | 30 ... 80 dB |
Resolution | 0,1 dB |
Accuracy | ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz) |
Sound level | |
Measurement range up to | 60 ... 110 dB |
Resolution | 0,1 dB |
Accuracy | ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz) |
Sound level | |
Measurement range up to | 80 ... 130 dB |
Resolution | 0,1 dB |
Accuracy | ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz) |
General technical data | |
Measuring functions | MIN, MAX, HOLD |
Time weighting | fast (125 ms), slow (1 s) |
Frequency weighting | A, C |
Display type | LC colour display with backlight |
Display size | 2 Inch |
Measuring rate | 2 x per second |

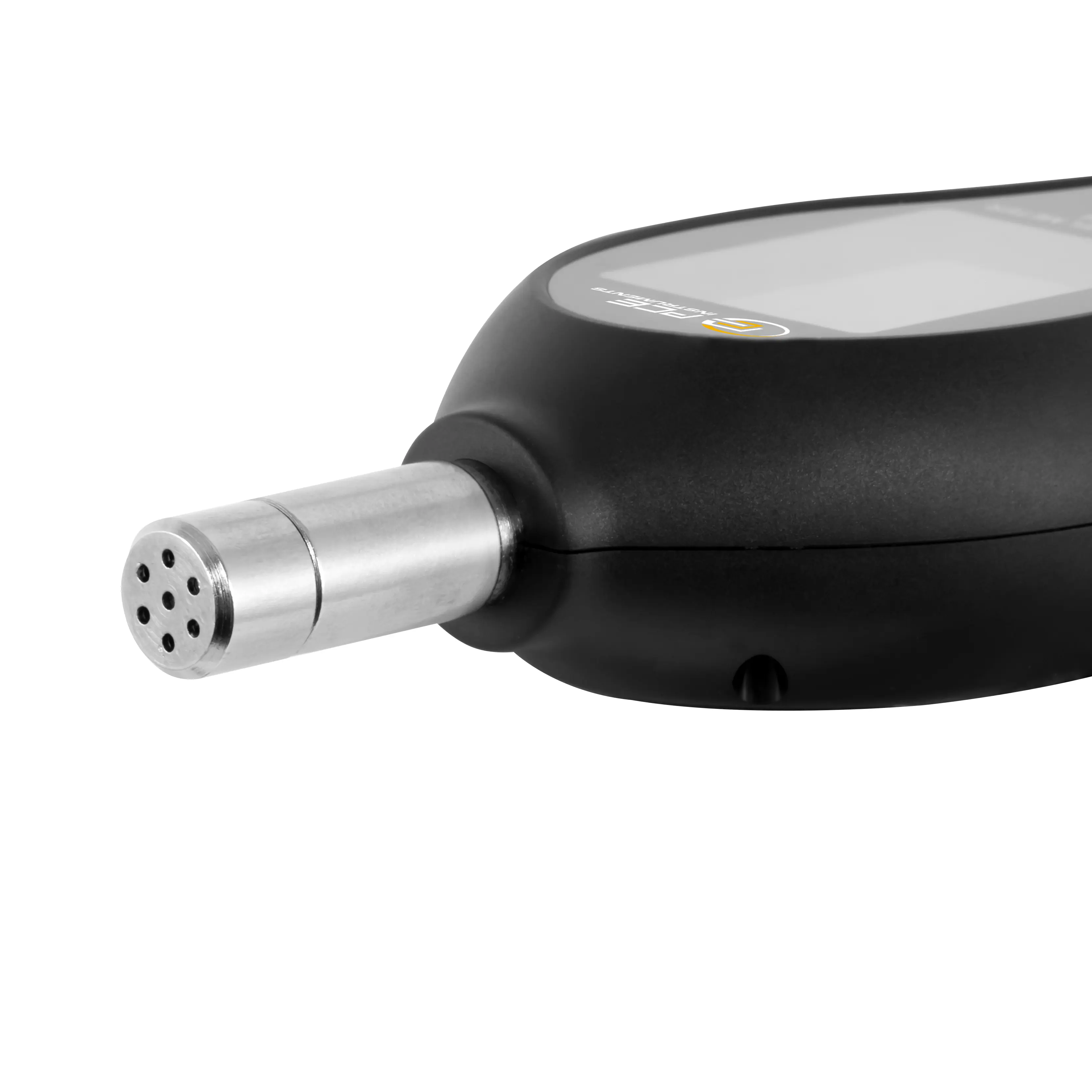

Microphone type | Condenser microphone |
Standard(s) | IEC 61672-1 (Class II) |
Automatic power-off | 20 min |
Automatic power-off can be deactivated | Yes |

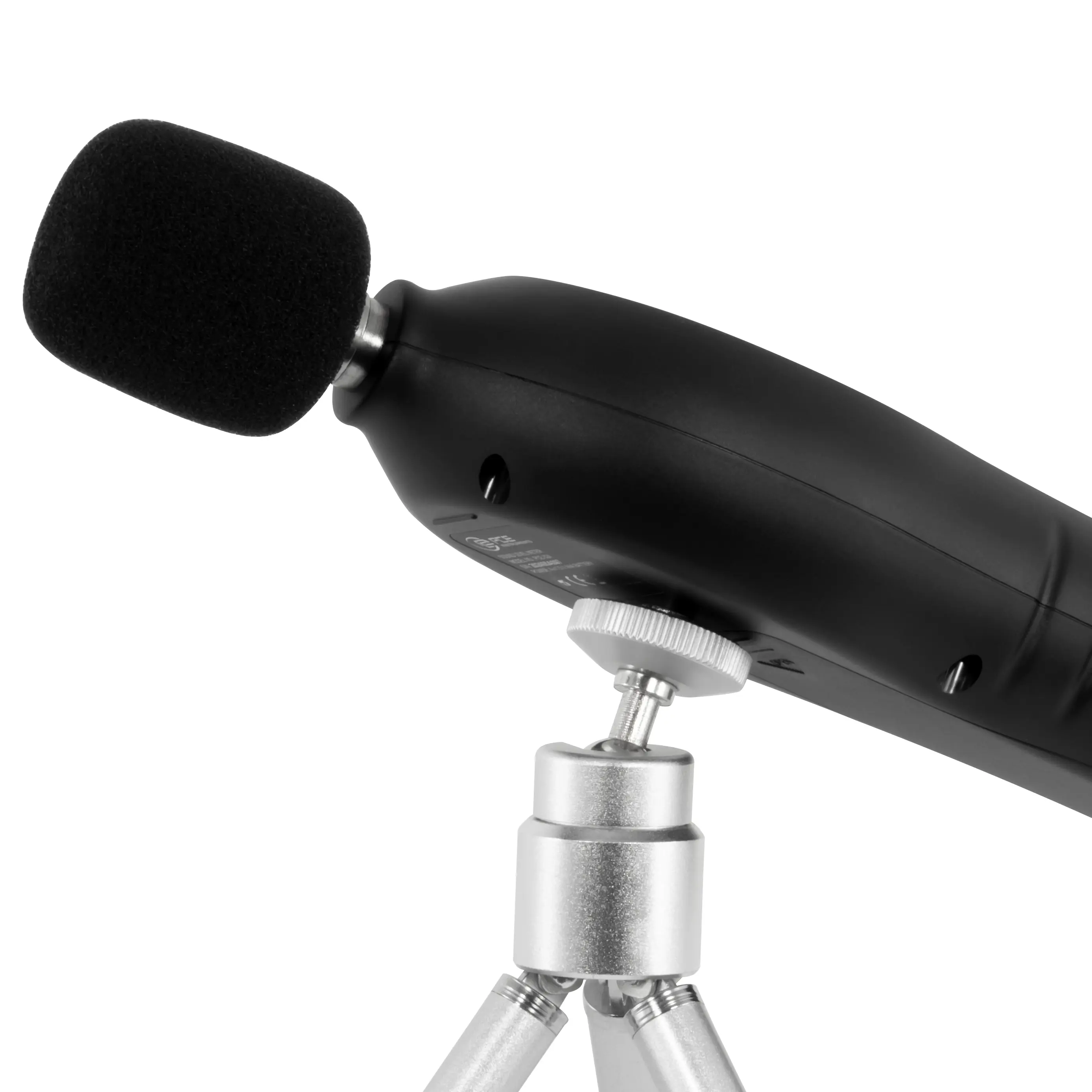

Tripod thread | 1/4 inch |
Menu language | English, English (GB) |
Protection class (device) | IP20 |
Weight | 123 g |
Operating conditions | 0 ... 40 °C , 10 ... 80 % RH |
Storage conditions | -10 ... 60 °C , 10 ... 70 % RH |

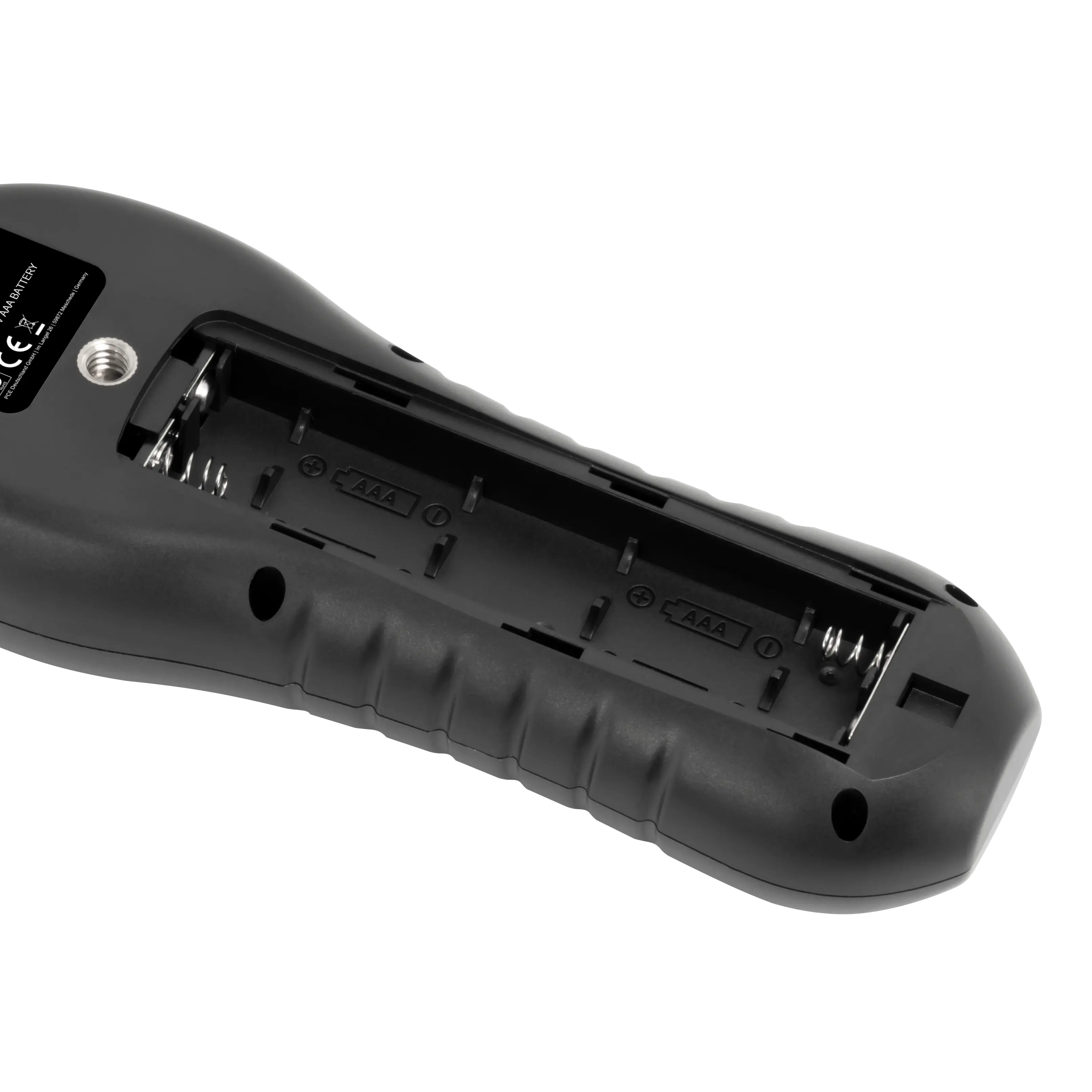

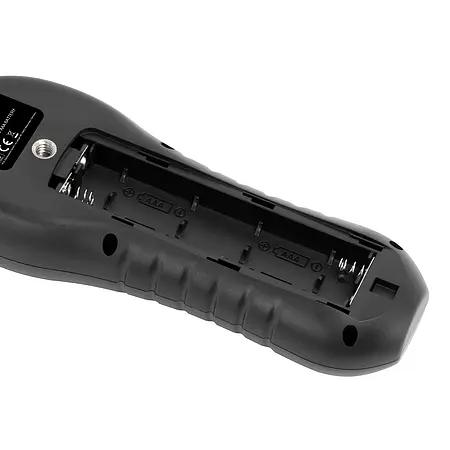

(Rechargeable) battery | 4 x 1,5 V AAA battery , Alkali-manganese |
Capacity | 1200 mAh |
Dimensions ( L x W x H ) | 210 x 64 x 32 mm |
