Manometer PCE-932

Order no.: PCE-932
GTIN (EAN): 4250348701770
£ 234.00
£ 280.80
price ex. (VAT / delivery)
:
4250348701770
PCE-932
Delivery time: 1-2 working days
Digital
Handheld
0 to 400 bar
Yes
Yes

Accessory

Pressure Sensor PS-100-5 (5 bar)
Pressure Sensor PS-100-5 (5 bar)
£ 133.00
Pressure Sensor PS-100-20 (20 bar)
Pressure Sensor PS-100-20 (20 bar)
£ 133.00
Pressure Sensor PS-100-50 (50 bar)
Pressure Sensor PS-100-50 (50 bar)
£ 133.00
Pressure Sensor PS-100-100 (100 bar)
Pressure Sensor PS-100-100 (100 bar)
£ 133.00
Pressure Sensor PS-100-400 (400 bar)
Pressure Sensor PS-100-400 (400 bar)
£ 133.00
Pressure Sensor PS-100-2 (2 bar)
Pressure Sensor PS-100-2 (2 bar)
£ 133.00
Pressure Sensor PS-100-10 (10 bar)
Pressure Sensor PS-100-10 (10 bar)
£ 133.00
Software and RS-232 Cable
Software and RS-232 Cable
£ 44.00
Power supply North America
Power Supply 9 V / 0.8 A (US / North American)
£ 14.00
Power Supply 9 V / 1 A (European)
Power Supply 9 V / 1 A (European)
£ 22.00
USB Data Cable Incl. Software SOFT-LUT-USB
USB Data Cable Incl. Software SOFT-LUT-USB
£ 76.00
ISO calibration certificate CAL-PCE-932 (up to 1000 bar)
ISO calibration certificate CAL-PCE-932 (up to 1000 bar)
£ 218.00
Software SOFT-LUT-D
Software SOFT-LUT-D
£ 53.00

Description

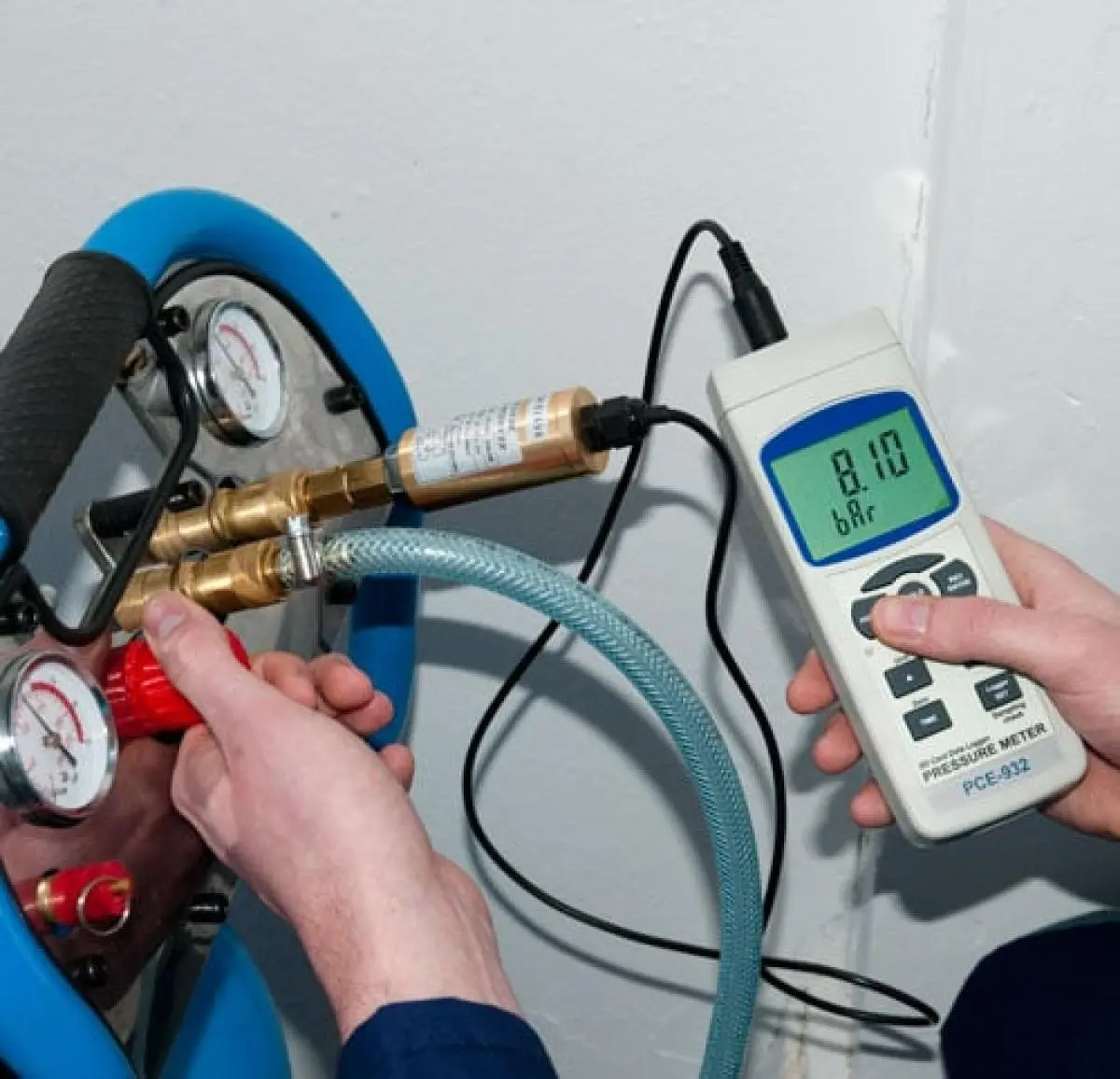

PCE-932 is an easy-to-use, digital, handheld device for high pressure measurement in hydraulic and compressor systems, pumps, tanks and silos in chemical, manufacturing, plastics and HVAC industries. This portable pressure measuring device can be connected to pressure sensors with ranges up to 400 bar (each with a 1.2 m / 3.9 ft connecting cable).

Please note: Pressure sensors are sold separately. See also for recommendations.

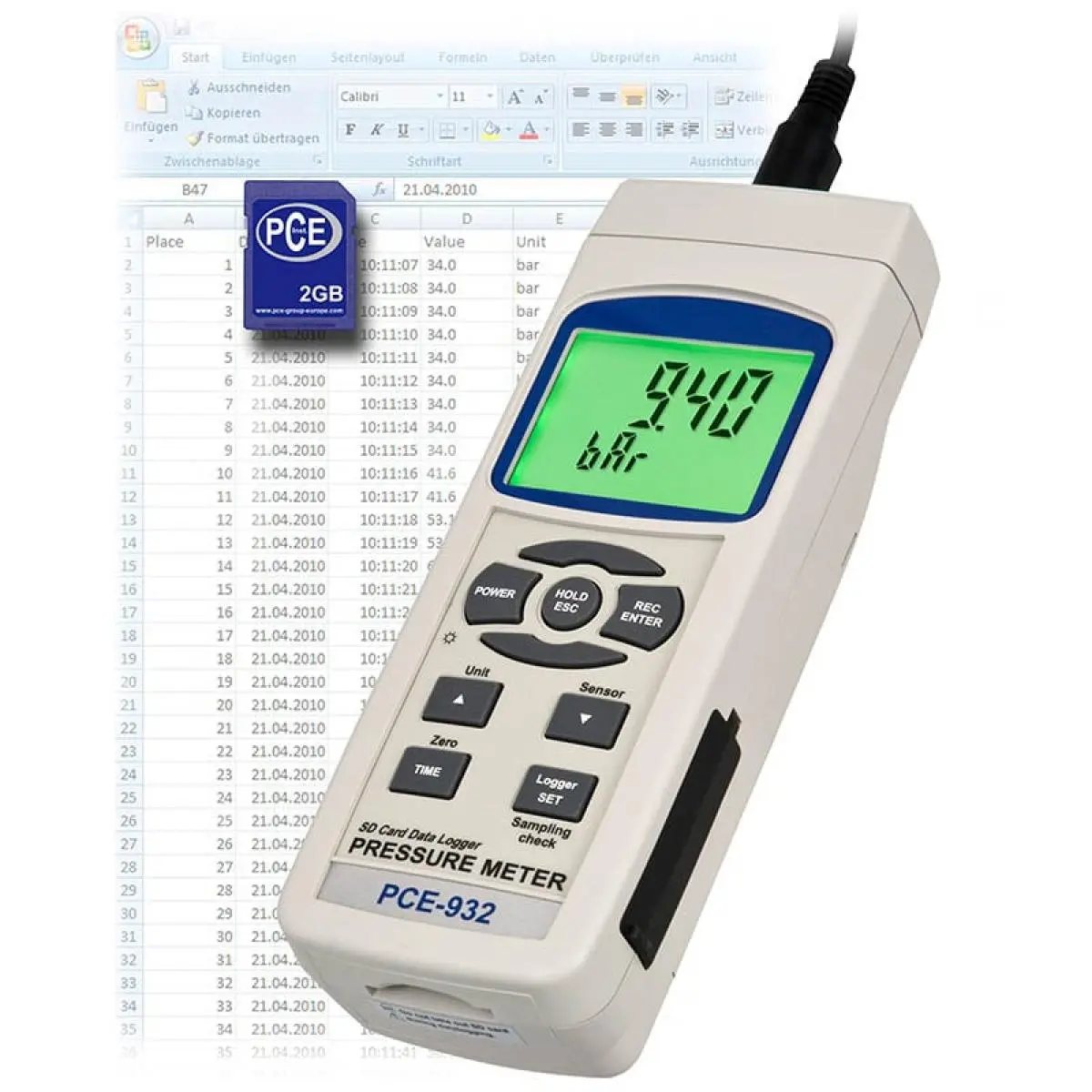

Measurement values are stored in a Microsoft Excel-compatible format to the included SD card memory. PCE-932 comes calibrated from the factory, but an ISO calibration certificate may be obtained for an additional fee. See also for ISO calibration details.


Highlights

- Measuring range: 0 to 400 bar, depending on sensor
- Measures system pressure in all media (e.g., gasses, liquids, etc.)
- Offers min, max and hold functionality
- Recalibration not required when changing sensors
- Choose from 8 different measuring units
- Accommodates SD cards up to 16 GB
- Features power-saving auto shut-off (can be disabled), a low battery indicator and an adjustable measurement rate
- Provides high accuracy and quality at an affordable price

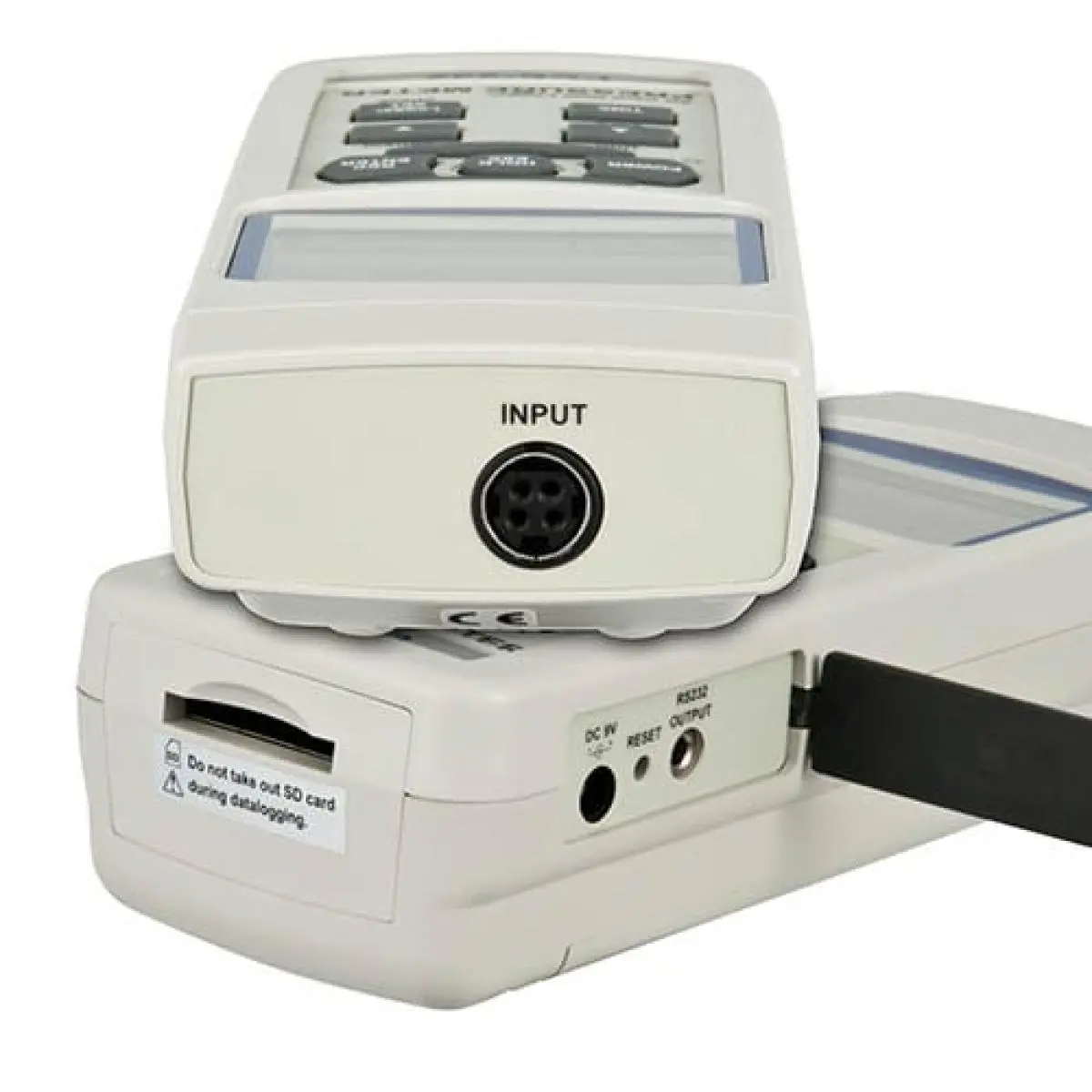

- Contains an RS-232 interface for real-time data transfer to PC (requires optional software - see also)
- Ideal for research and development applications as well as testing and optimizing processes

(Sensors sold separately. See also for recommendations.)

Specification

Measurement range 0 ... 400 bar (depending on the sensor)
Selectable units bar, psi, kg/cm2, mm/Hg, inch/Hg,
meter/H2O, inch/H2O, atmosphere
Pressure connectorOptional, 5V DC, maximum output of sensor is 100 mV DC (see also for ranges)
Zero resetBy way of keypad
Auto shut-offYes (this function can be disabled)
FunctionsMeasurement of pressure, min, max and hold
Auto shut-offTo conserve battery power (can be disabled)
Rate of measurementApprox. every 0.8 seconds
LCD displayApprox. 52 x 38 mm / 2.05 x 1.50 in
Memory SD card up to 16 GB
Enclosure ABS plastic
SoftwareOptional (required only for real-time data transfer - see also)
Power supply 6 x 1.5V AA batteries
AC power cable (optional - see also)
DimensionsApprox. 177 x 68 x 45 mm / 6.97 x 2.68 x 1.77 in
WeightApprox. 350 g / < 1 lb
Operating temperature 0 ... 50°C / 32 ... 122°F
Operating humidity 0 ... 80% rh

Delivery Scope

1 x Manometer PCE-932
1 x SD card (2 GB)
1 x User manual

(Sensors sold separately. See accessories.)
