Measures temperature and humidity / output as standard signal / compact
Modbus RTU interface / wall mounting

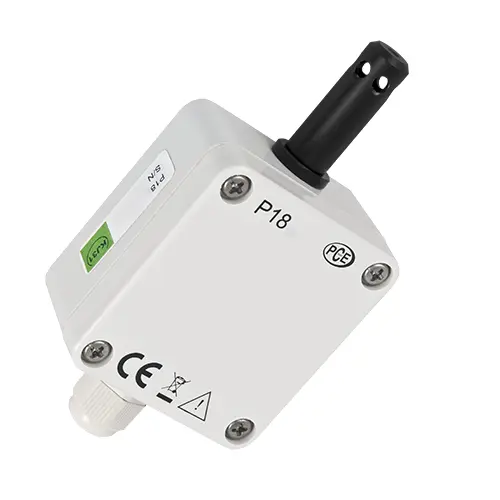

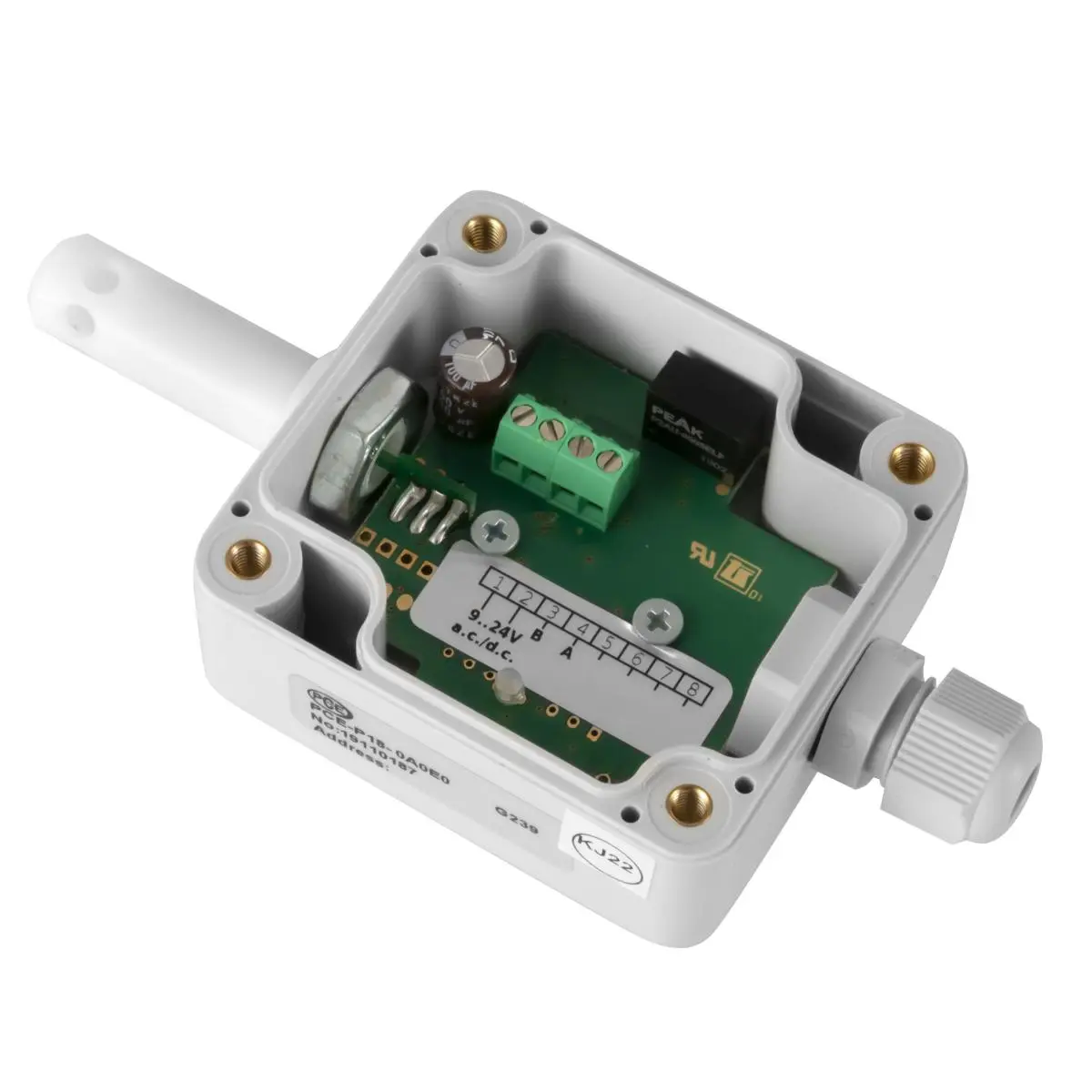

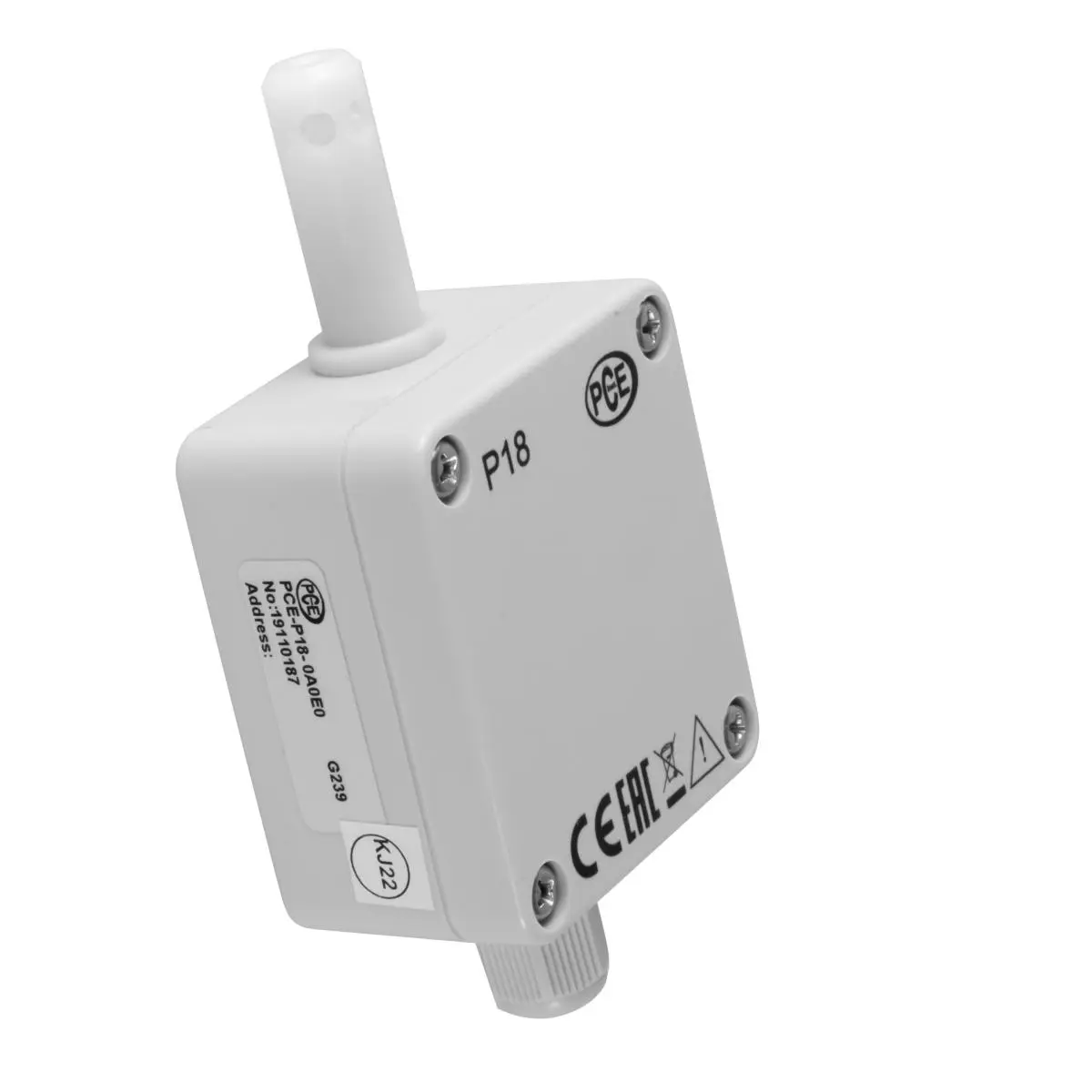

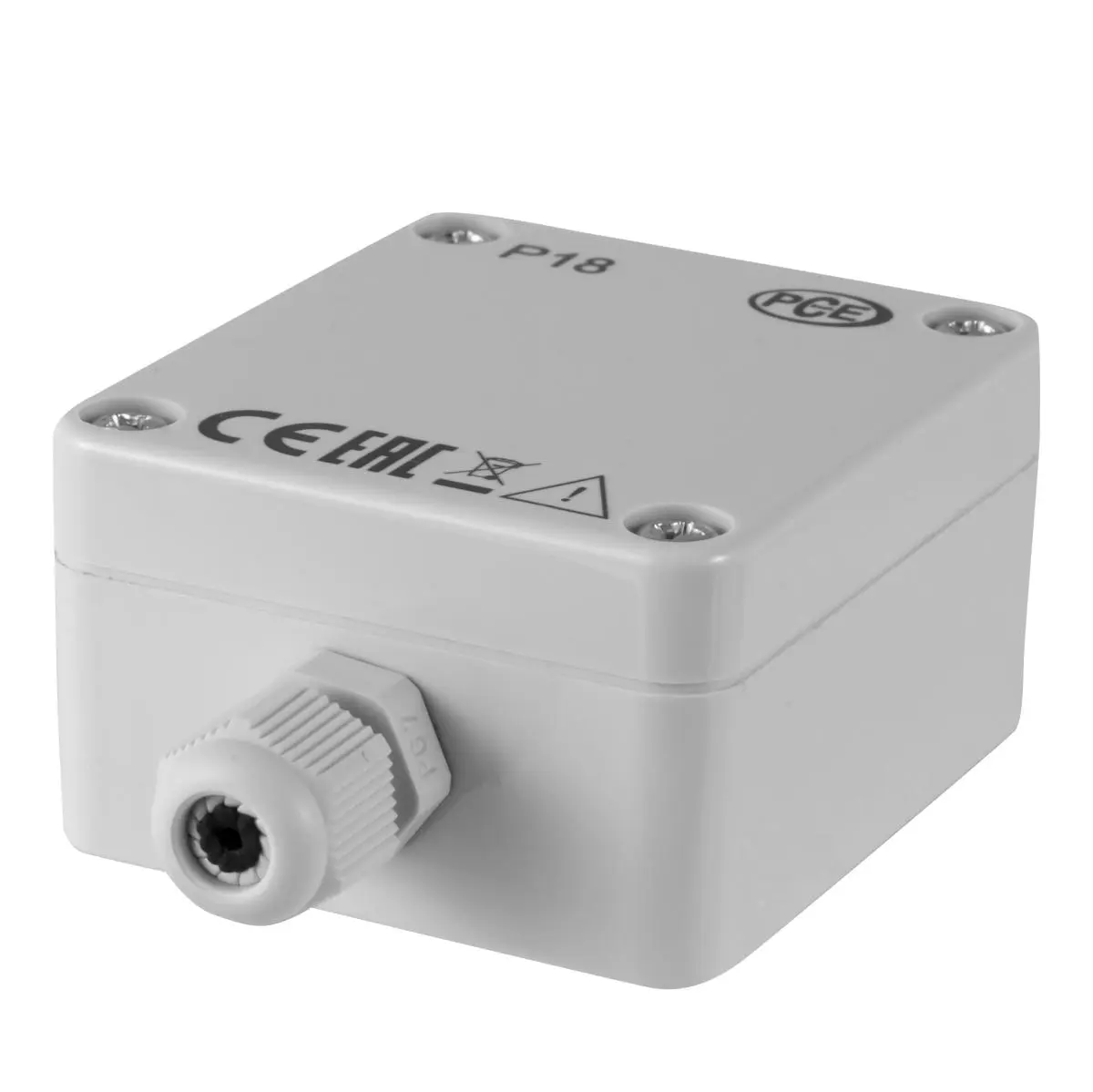

The humidity detector is used in HVAC technology to monitor humidity and temperature. The measured values are output by the humidity detector via the RS485 interface. In this compact humidity detector, air humidity and temperature are precisely determined using a semiconductor component. For commissioning, the humidity detector is supplied via a DC voltage. The measured variables are output via a two-wire line. All connections are made via screw contacts in the waterproof IP 65 housing. This function is particularly useful if several measuring points are to be linked to one another during your home surveillance.
Technical data humidity sensor PCE-P18 | ||
humidity | ||
measuring range | 0 ... 100% RH | |
accuracy | ± 2% (in the range 10% .... 90% RH) 3% (remaining area) | |
hysteresis | ± 1% RH | |
temperature | ||
measuring range | - 20 ... 60 ° C | |
accuracy |
| |
temperature effect | ± 25% / 10 ° C | |
Humidity sensor output | ||
Data Interface | RS-485 Modbus RTU | |
transfer mode | 8N1, 8N2, 8E1, 8O1 | |
baud rate | 4800 bps 9600 bps 19200 bps 38400 bps 57600 bit / s | |
General technical data for humidity sensors | ||
supply voltage | 19 V ... 30 V DC | |
power | <1.5 W | |
ambient temperature | - 30 ° C ... 85 ° C | |
Max. humidity | ≤ 95% RH | |
preheat | 15 minutes | |
degree of protection | IP 65 | |
Assembly | wall mounting | |
Dimensions (wxhxd) | 35 x 58 x 118 mm | |
Weight | 125 g |
