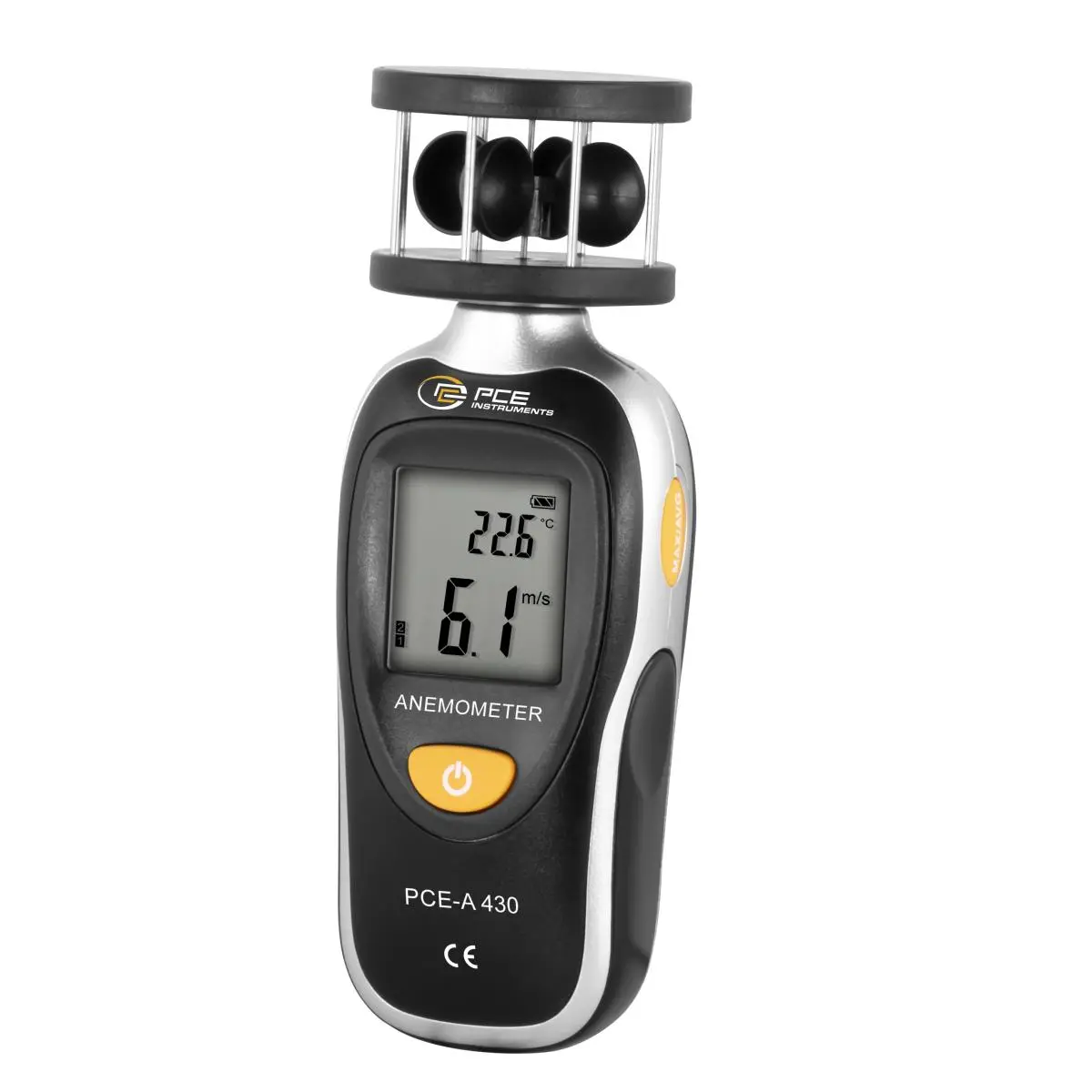

HVAC Meter PCE-A 430

Order no.: PCE-A 430

GTIN (EAN): 4250348733566

Description

Handheld HVAC meter / Measuring range 0.7... 30 m/s / Temperature measurement in C° / F° / Units: m/s, km/h, kn, mph / MAX, AVG display

The HVAC meter enables wind speed measurements up to 105 km/h and is versatile in use. The HVAC meter is equipped with an integrated temperature sensor that measures both Celsius and Fahrenheit. The functions for maximum and average wind speed enable effective monitoring of the measurement results.

The HVAC meter enables measurements in various units such as m/s, km/h, kn and mph and also has a Beaufort scale for quick assessment of the wind force. The easy-to-read LCD display with backlighting ensures optimum readability in all lighting conditions. The automatic switch-off function after 15 minutes of inactivity extends the battery life to at least approx. 30 hours. The HVAC meter is supplied with a practical carrying case for travelling.

Highlights

- Wind speed measurement up to 105 km/h

- m/s, km/h, kn, mph

- Temperature measurement in C° / F°

- Beaufort scale

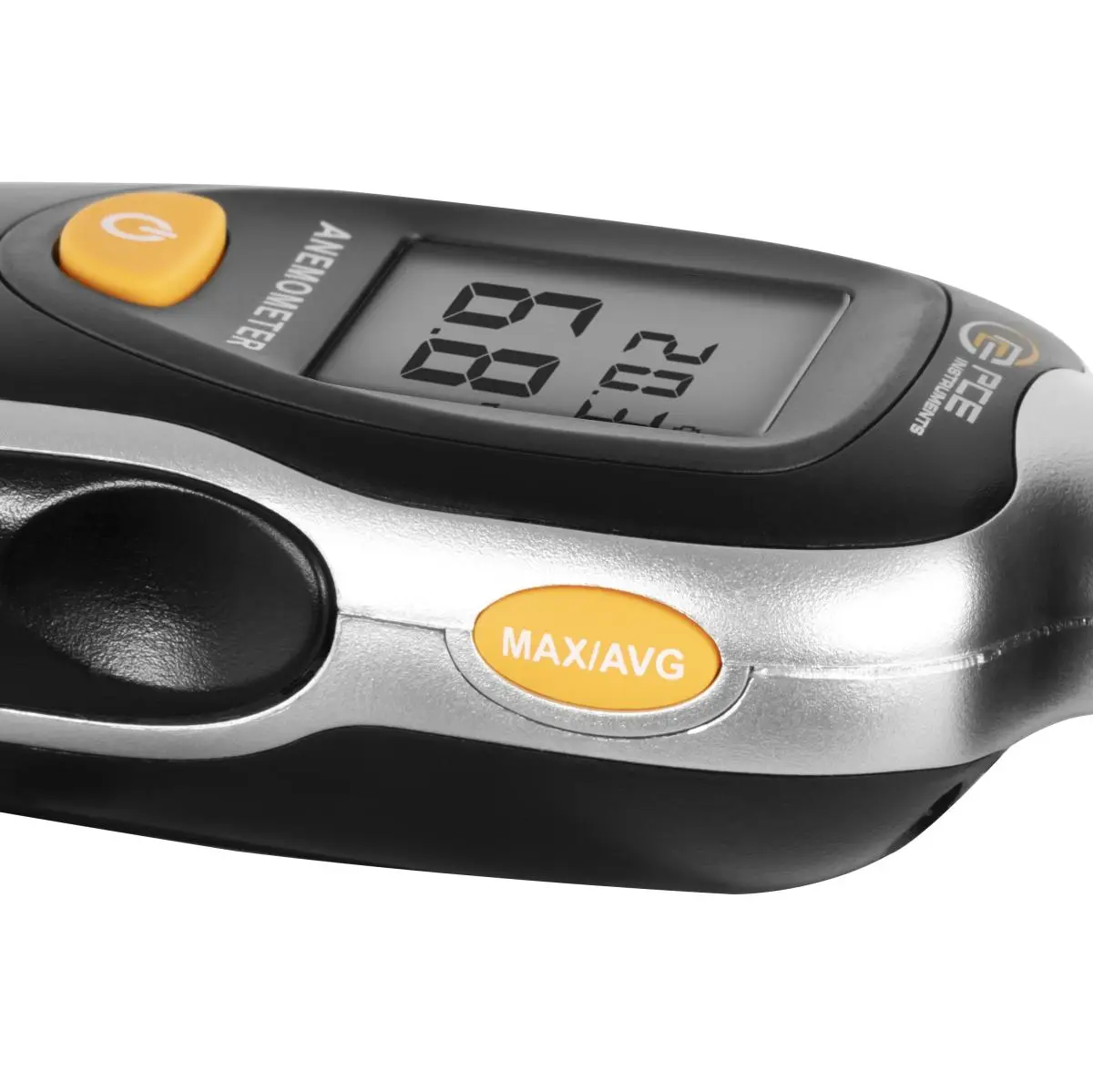

- MAX, AVG display

- LC display with illumination

- Automatic switch-off after 15 min

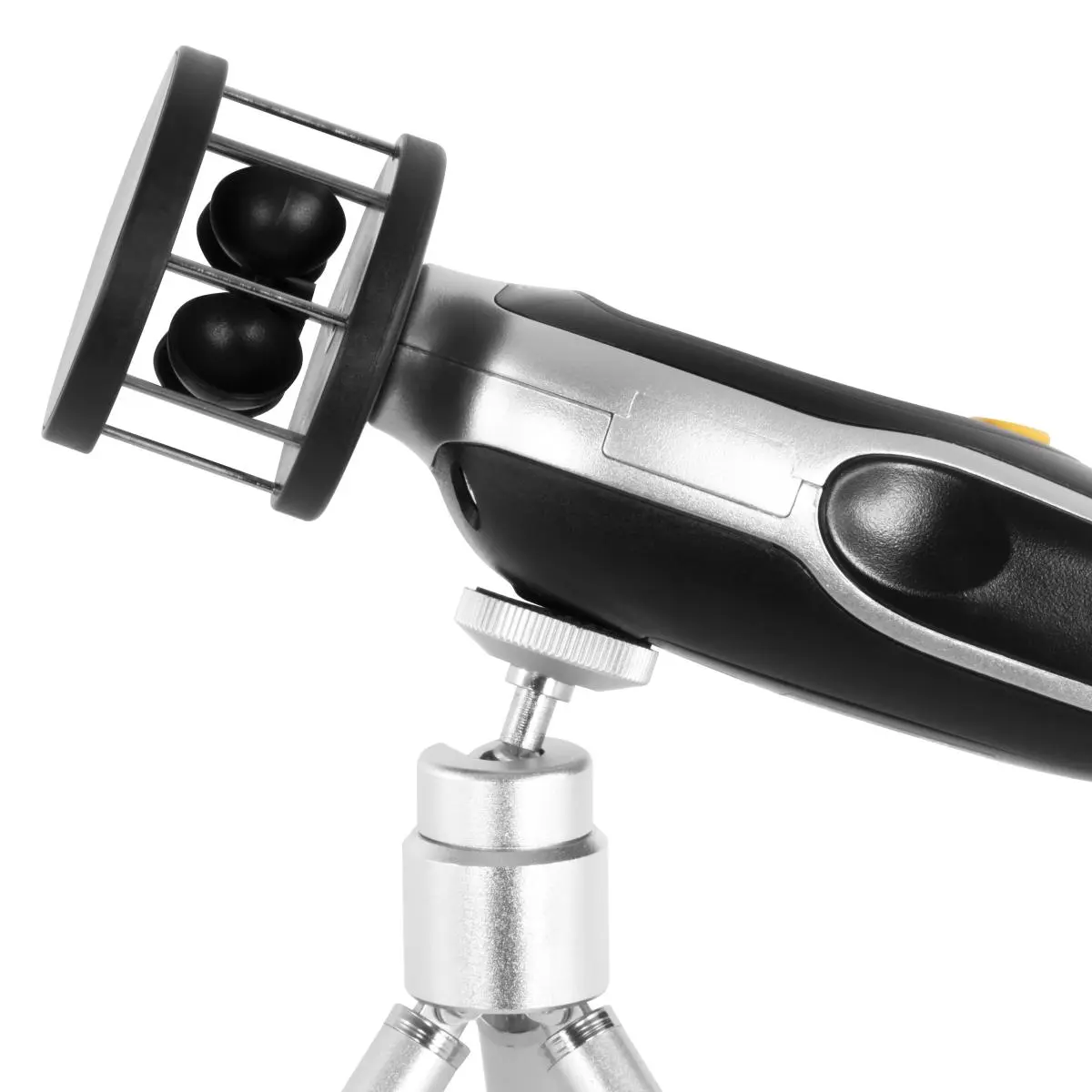

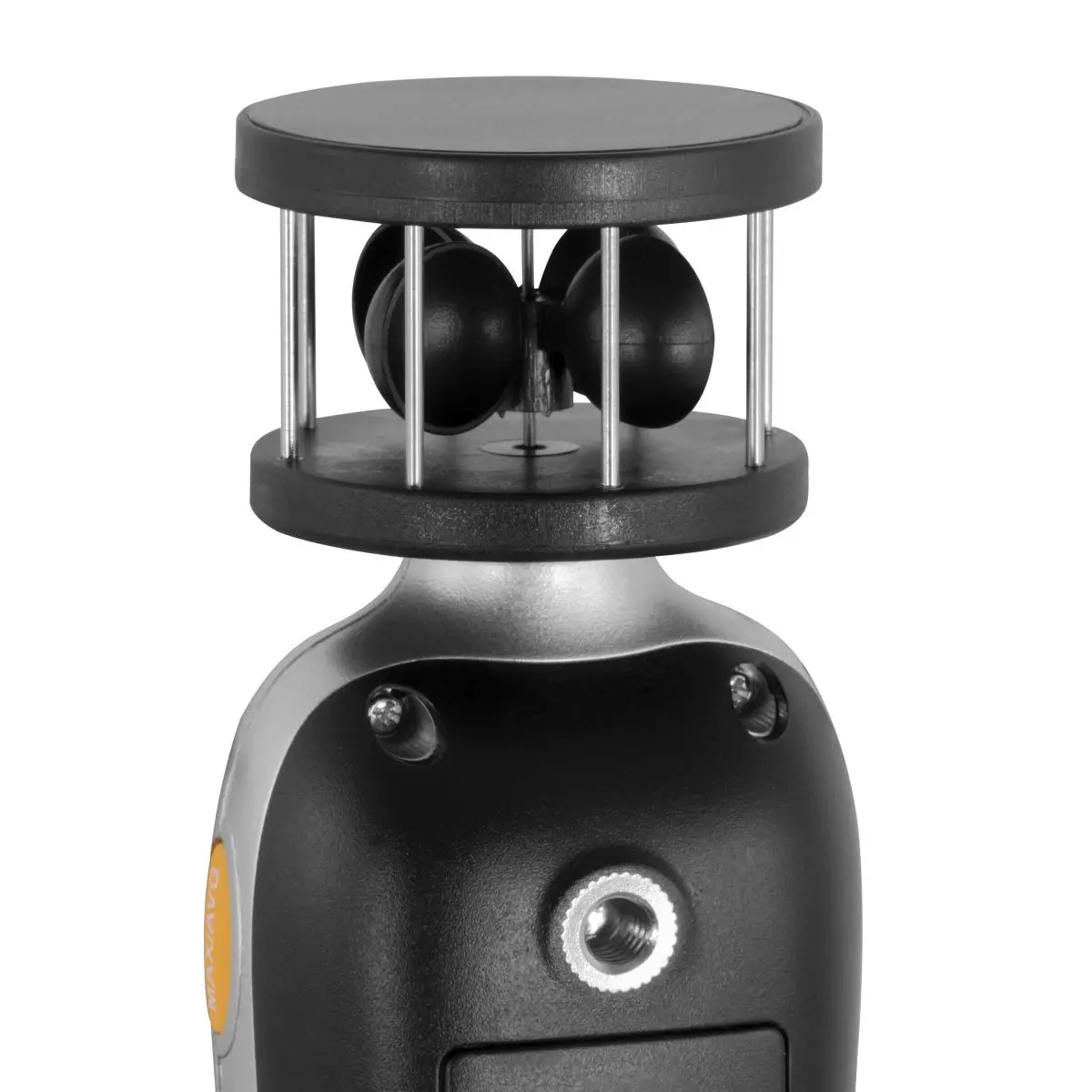

- Cup cross - sensor

Specification

Speed
Measuring range	0.7 m/s ... 30 m/s
Resolution	< 20: 0.1 m/s / > 20: 1 m/s
Accuracy	±(4 % +2 digit)

Speed
Measuring range	2.5 km/h ... 105 km/h
Resolution	< 20: 0.1 km/h / > 20: 1 km/h
Accuracy	±(4 % +2 digit)

Speed
Measurement range	1.5 mph ... 67 mph
Resolution	< 20: 0.1 mph / > 20: 1 mph
Accuracy	±(4 % +2 digit)

Speed
Measurement range	1.3 knots ... 58.3 knots
Resolution	< 20: 0.1 nodes / > 20: 1 nodes
Accuracy	±(4 % +2 digit)

Temperature
Measuring range	-20 °C ... +50 °C
Resolution alt	0.1 °C
Accuracy	±1.5 °C

Temperature
Measuring range	-4 °F ... +122 °F
Resolution	0.1 °F
Accuracy	±2.7 °F

General technical data
Measurement functions	MAX, average value
Units	m/s, km/h, kn, mph
Display type	LCD with illumination
Sensor	Shell cross
Automatic switch-off	15 min
Menu language	English
Protection class (device)	IP20
Weight	36.5 g
Dimensions (L x W x H)	145 x 55 x 48 mm
Operating conditions	-20 ... 60 °C , 10 ... 90 % r.H
Storage conditions	-20 ... 60 °C , 10 ... 75 % r.H

Delivery Scope

1 x PCE-A 430 HVAC meter

1 x manual

1 x 9V block battery

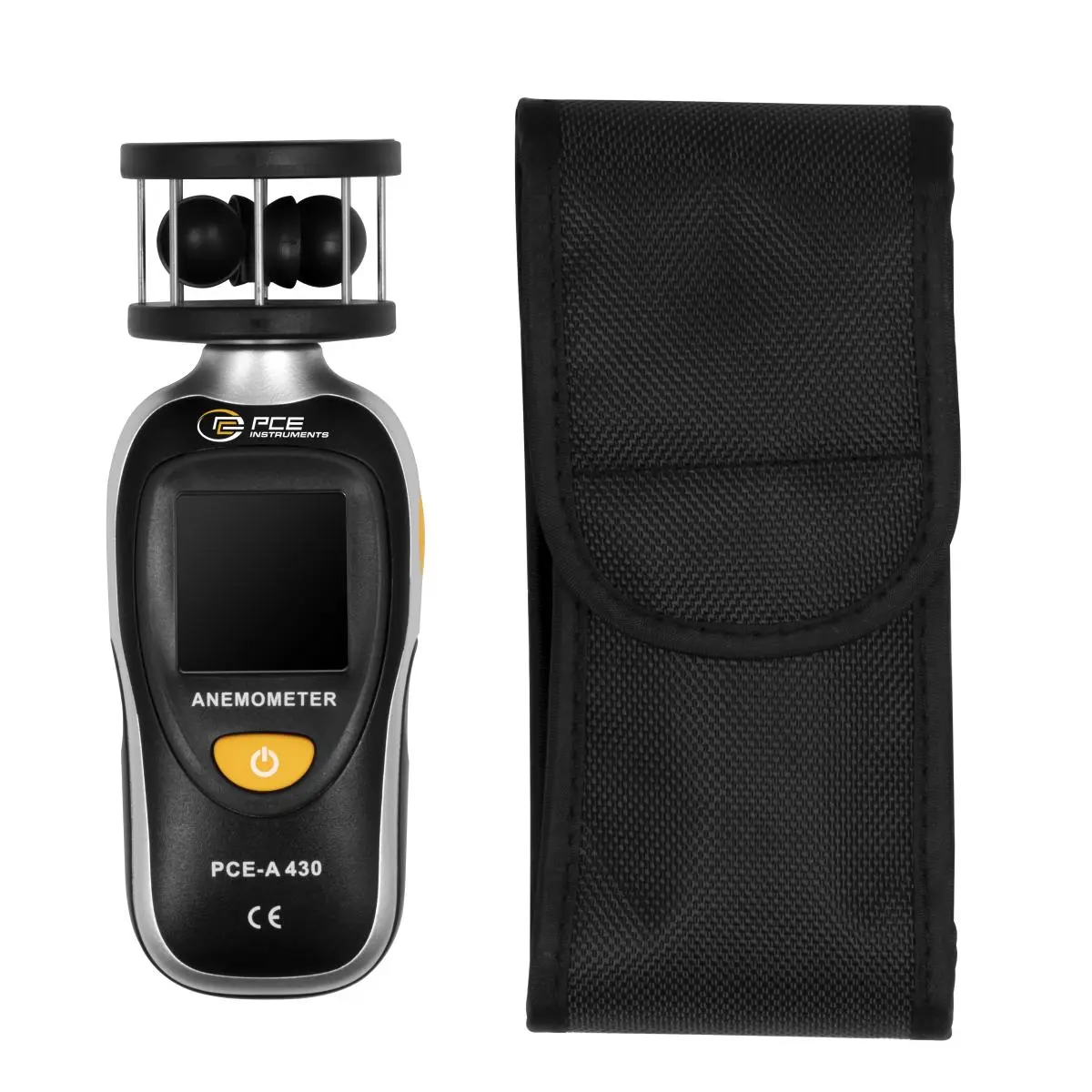

1 x carrying case
