Price excl. VAT &. delivery
2 year Warranty
2.5 Mhz sensor
- Measuring range: 1.2 … 300 mm / 0.04 … 11.81"
- Probe frequency: 2.5 MHz
- Diameter: 12 mm
- Temperature range: -10 … 60 °C / 14 … 140 °F
The HVAC meter can measure material thicknesses up to 300 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding sonic velocity in the HVAC meter. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sonic velocities are already stored in the device library. This means that the HVAC meter can be used universally.
Individual maximum and minimum values can be stored with the HVAC meter's limit value function. If the measured value of the test specimen is outside the limits, the HVAC meter signals this visually. If required, the HVAC meter can also provide acoustic signalling in addition to the visual display. The HVAC meter is therefore used, for example, in quality assurance and incoming goods inspection.
The HVAC meter has a data memory on which the measured values can be recorded. After a measurement process, the stored measured values can be analysed directly on the HVAC meter. The stored data is displayed graphically by the HVAC meter. In addition, each individual measuring point can be approached and read in the graphic of the HVAC meter. To simplify the analysis of the measured values, the average, the largest and smallest measured values are displayed on the HVAC meter. The HVAC meter can optionally be equipped with an ISO calibration certificate.
Material thickness | |
Measuring range | 1 mm ... 99.99 mm |
Resolution | 0.01 mm |
Accuracy | ±0.5 % v. Mw. + 0.05 mm |
Material thickness | |
Measuring range | 100 mm ... 300 mm |
Resolution | 0.1 mm |
Accuracy | ±0.5 % v. Mw. + 0.05 mm |
Sensor | |
Designation | PCE-TG 5M10d |
Frequency | 5 MHz |
Temperature range | -10 ... 60 °C |
Measurable materials | Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials |
Minimum diameter of pipes | 30 mm |
Additional description | Standard probe for flat materials |
Dimensions | Ø 10mm x 23.4 mm |
Weight | 39.5 g |
Sensor | |

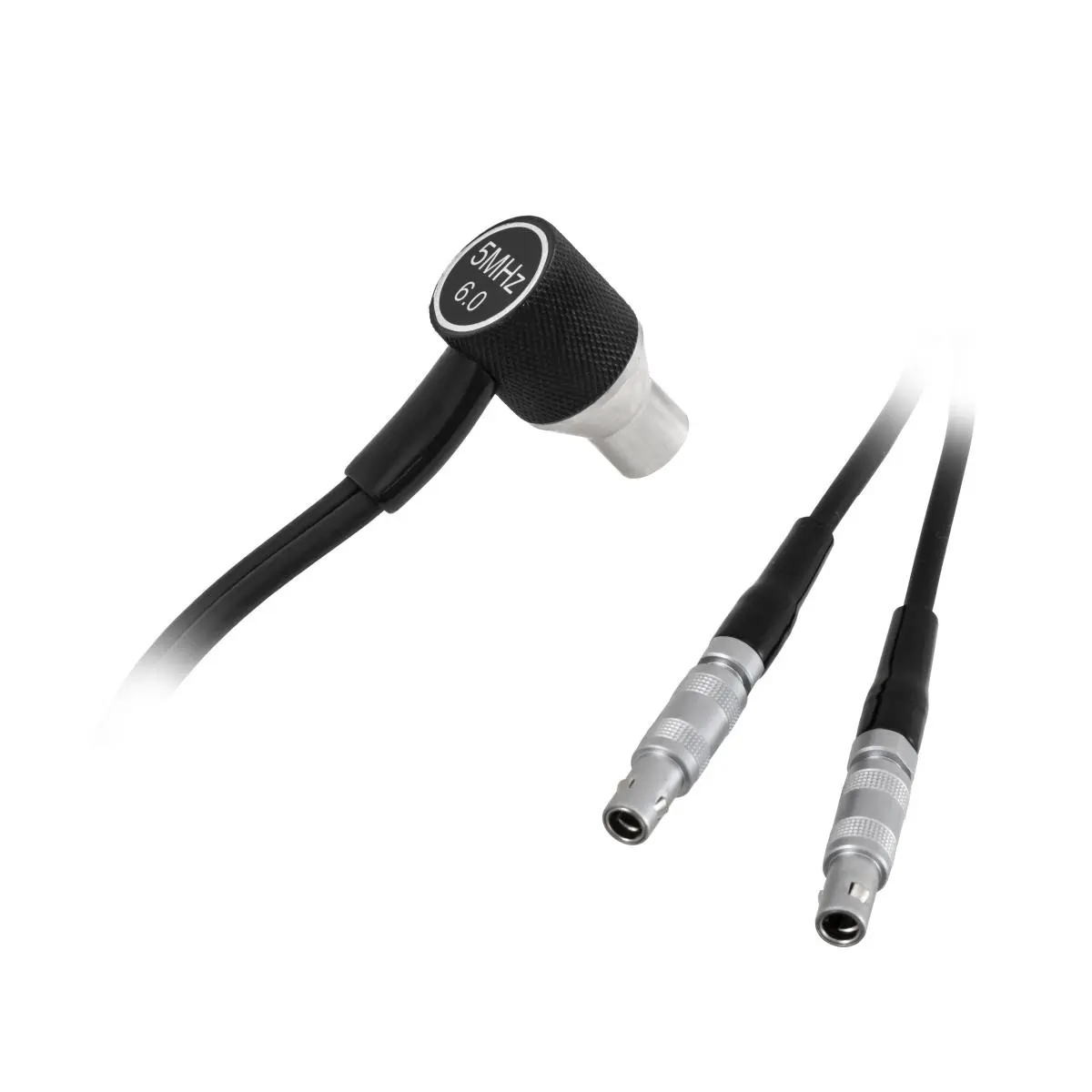

Designation | PCE-TG 5M6d |
Measuring range | 1 mm ... 50 mm |
Frequency | 5 MHz |
Temperature range | -10 ... 60 °C |
Measurable materials | Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials |
Minimum diameter of pipes | 20 mm |
Additional description | Standard probe for flat materials |
Dimensions | Ø 6mm x 25.3 mm |
Weight | 35 g |
General technical data | |
Units | mm |
Display type | TFT colour display |
Display size | 2.4 inch |
Storage medium | Internal memory |
Memory capacity | 1500 values |
Automatic switch-off from...to | 2 ... 30 min. |
Automatic switch-off can be deactivated | Yes |
Sonic speed adjustable | 1000 ... 9999 m/s |
Menu language | English (US), Chinese |
Protection class (device) | IP52 |
Weight | 230 g |
Dimensions (L x W x H) | 168 x 87 x 35 mm |
Operating conditions | 0 ... 40 °C , 0 ... 90 % r.H |
Storage conditions | 0 ... 40 °C , 0 ... 90 % r.H |
Accumulator/battery | 3x 1.5 V AA battery , alkaline-manganese |
Capacity | 3000 mAh |
Price excl. VAT &. delivery
2 year Warranty
Measurement accuracy: | five parallel gauge blocks with the thicknesses 5 mm; 10 mm; 20 mm; 50 mm and 100 mm |
N.B. The calibration certificate is issued by the PCE calibration service specifically for the customer and is excluded from the right of return.
Price excl. VAT &. delivery
2 year Warranty
ISO re-calibration incl. certificate for material thickness meter. This is often required to comply with DIN ISO 9000.
Calibration points are: 5; 10; 20; 50 and 100 mmIf your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.
Calibration certificates are issued specifically for the customer and are excluded from the right of return
Price excl. VAT &. delivery
2 year Warranty
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The high temperature contact gel can be used at temperatures up to 350°C / 662°F.
