Stainless steel air sensor with handle and 1 m cable for air and gases with fast response time
- Tmax.: 600 °C / 1112 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 6 mm
- Length: 130 mm
- Thermocouple Type K

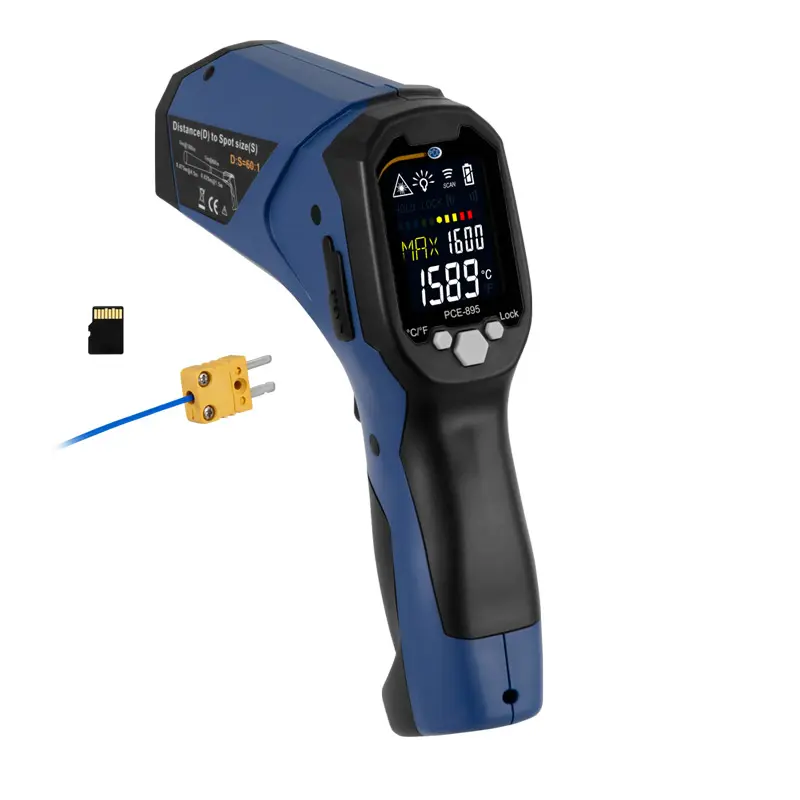

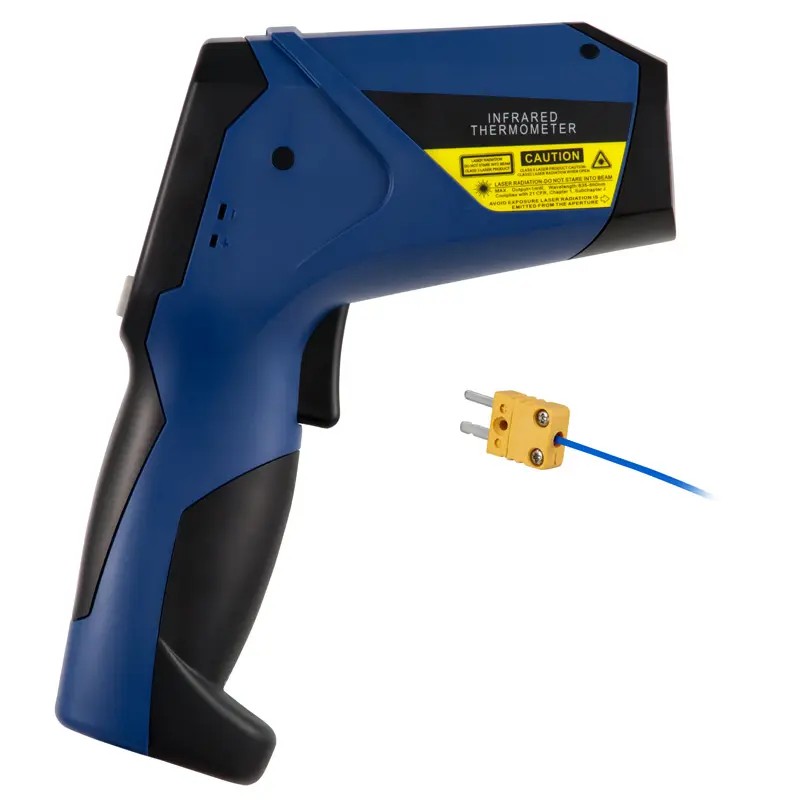

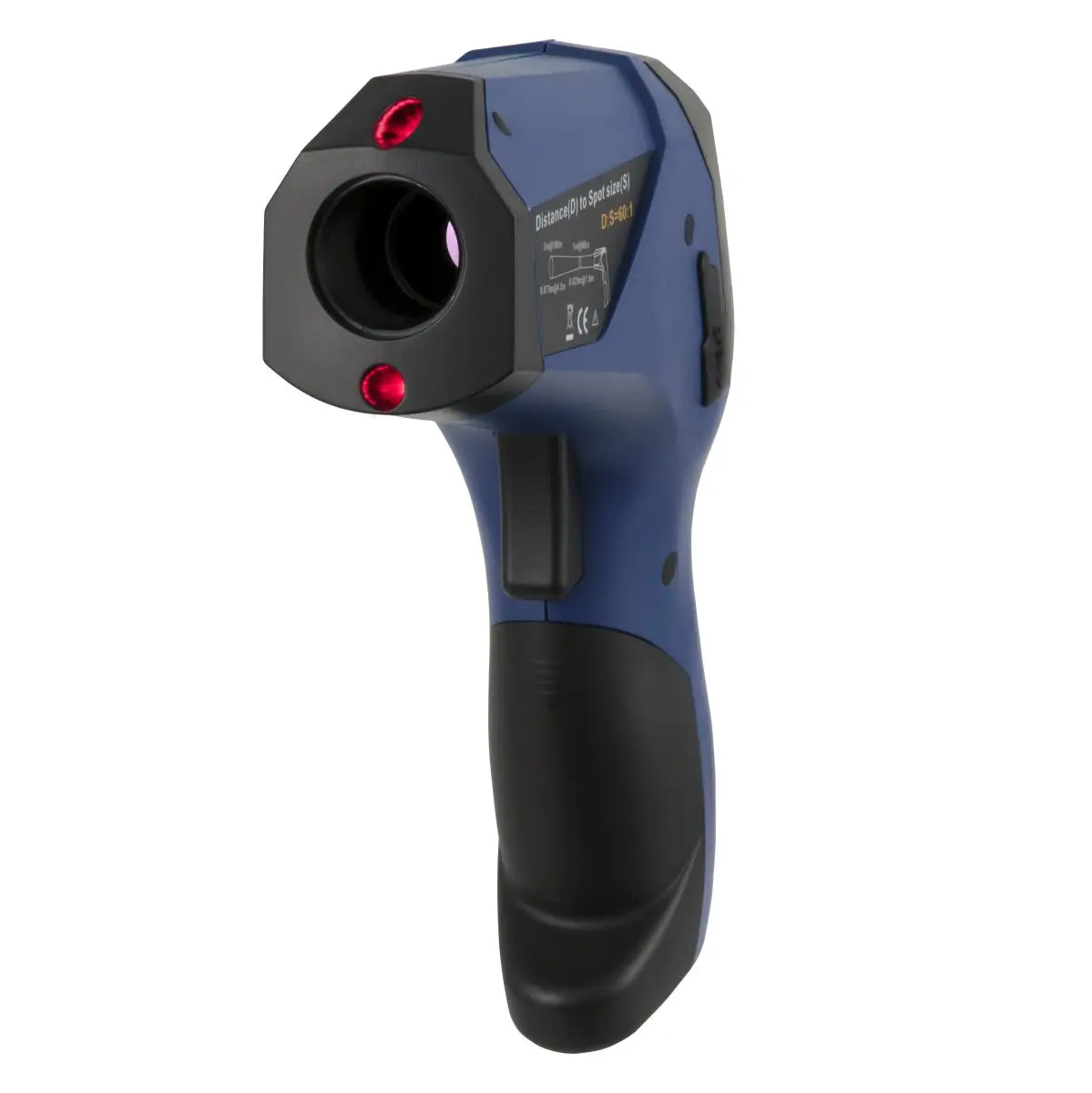

The HVACR tester is used for fast surface temperature measurement. The two laser points of the HVACR tester mark the exact measuring point and thus offer excellent assistance with the temperature measurement. Due to the cross laser function, the two laser spots indicate exactly how large the actual IR spot is. The emissivity of the HVACR tester is adjustable in the range of 0.10 ... 1.0. Thus, the HVACR tester is suitable for almost all surfaces.

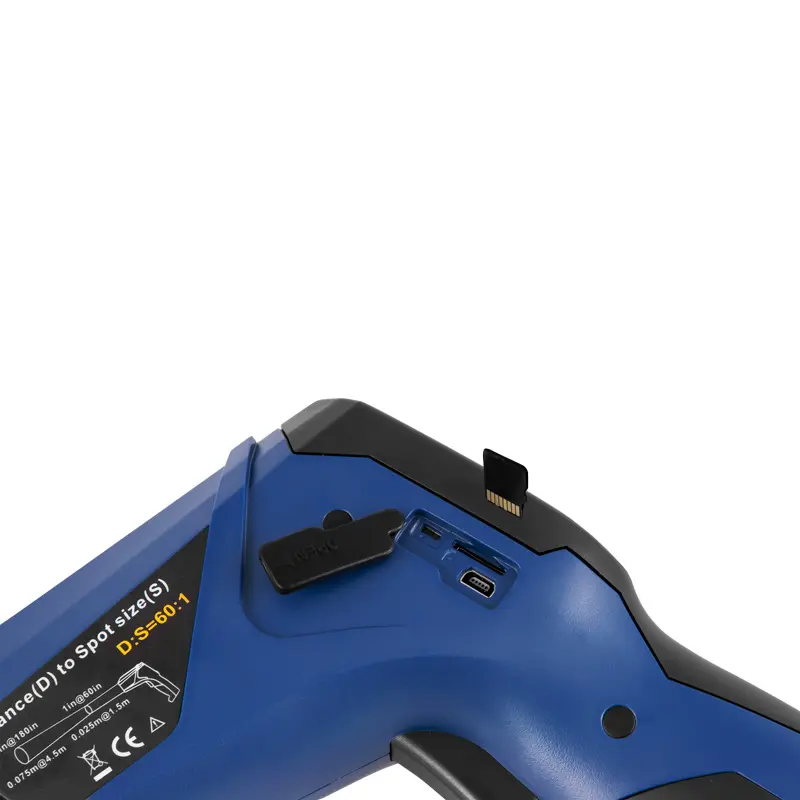

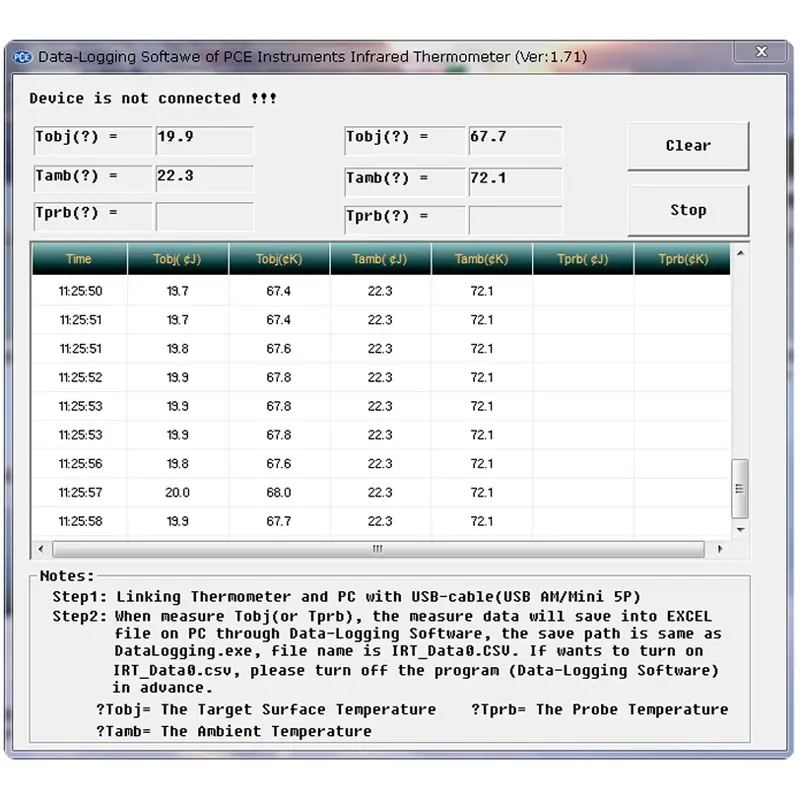

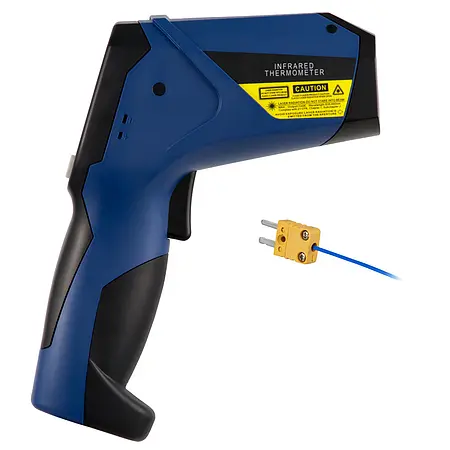

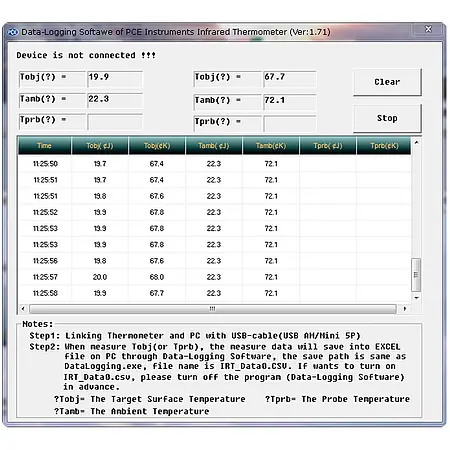

The temperature measuring range extends from -35 ... 1600°C / -31 ... 2912°F. In addition to the IR function, a type K thermocouple can also be connected to the HVACR tester. A USB interface and an SD memory card slot complete the functionality of this professional HVACR tester. The SD card enables data logging of several hours on machines and systems. Using the PC software, the stored temperature profiles can be read out and exported. This makes the HVACR tester ideal for long-term temperature measurements.
Infrared |
|
Measuring range | -35 ... 1600°C / -31 ... 2912°F |
Measuring accuracy (at 23 ... 25°C ambient temperature) | -35 ... 0°C / 0°F: ± 2°C / 3.6°F + 0.05*TObj 0 ... 1600°C: ± 2% of rdg. or ± 2°C / 3.6°F |
Resolution | 1°C / 1.8°F at 1000 .... 1600°C / 1832 ... 2912°F |
Thermocouple |
|
Measuring range | Type K: -64 ... 1400°C / -83 ... 2552°F |
Measuring accuracy (at 23 ... 25°C ambient temperature) | ± 1% of rdg. or ± 1°C / 1.8°F |
Resolution | 0.1°C / 0.18°F at -64 ... 999.9°C / -83.2 ... 1831.8°F |
Emissivity | Adjustable 0.10 ... 1.0 |
Spectral range | 8 ... 14 µm |
Response time | 1 s |

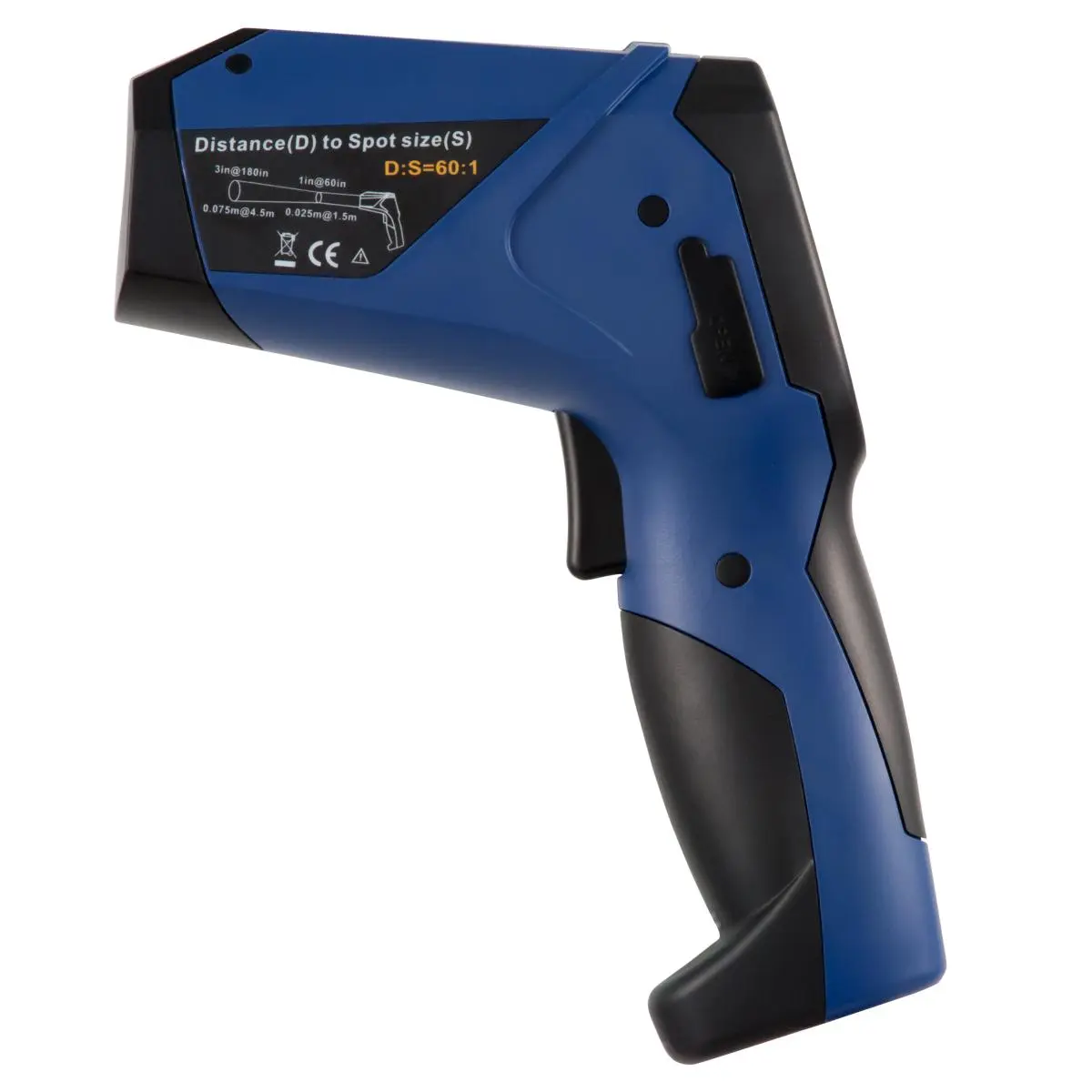

Optical resolution / measurement spot ratio | 60:1 |
Storage | Internal: 24 memory points External (micro-SD card): max. 8 GB supported |
Interface | USB |

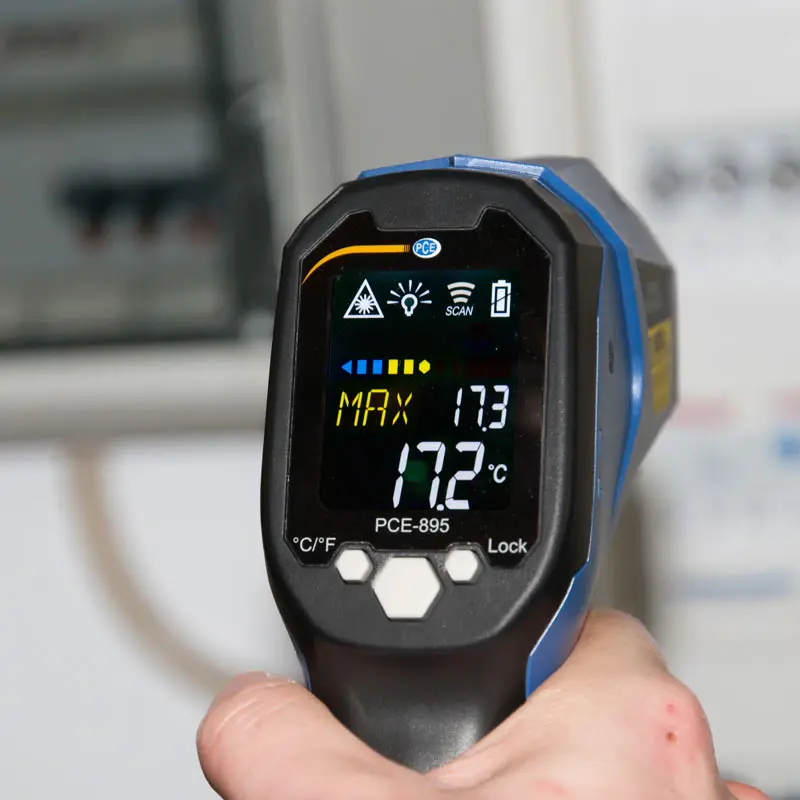

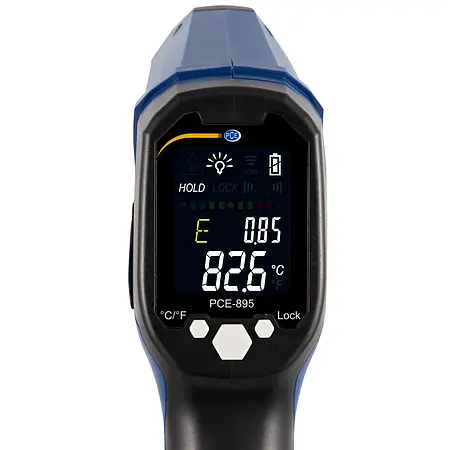

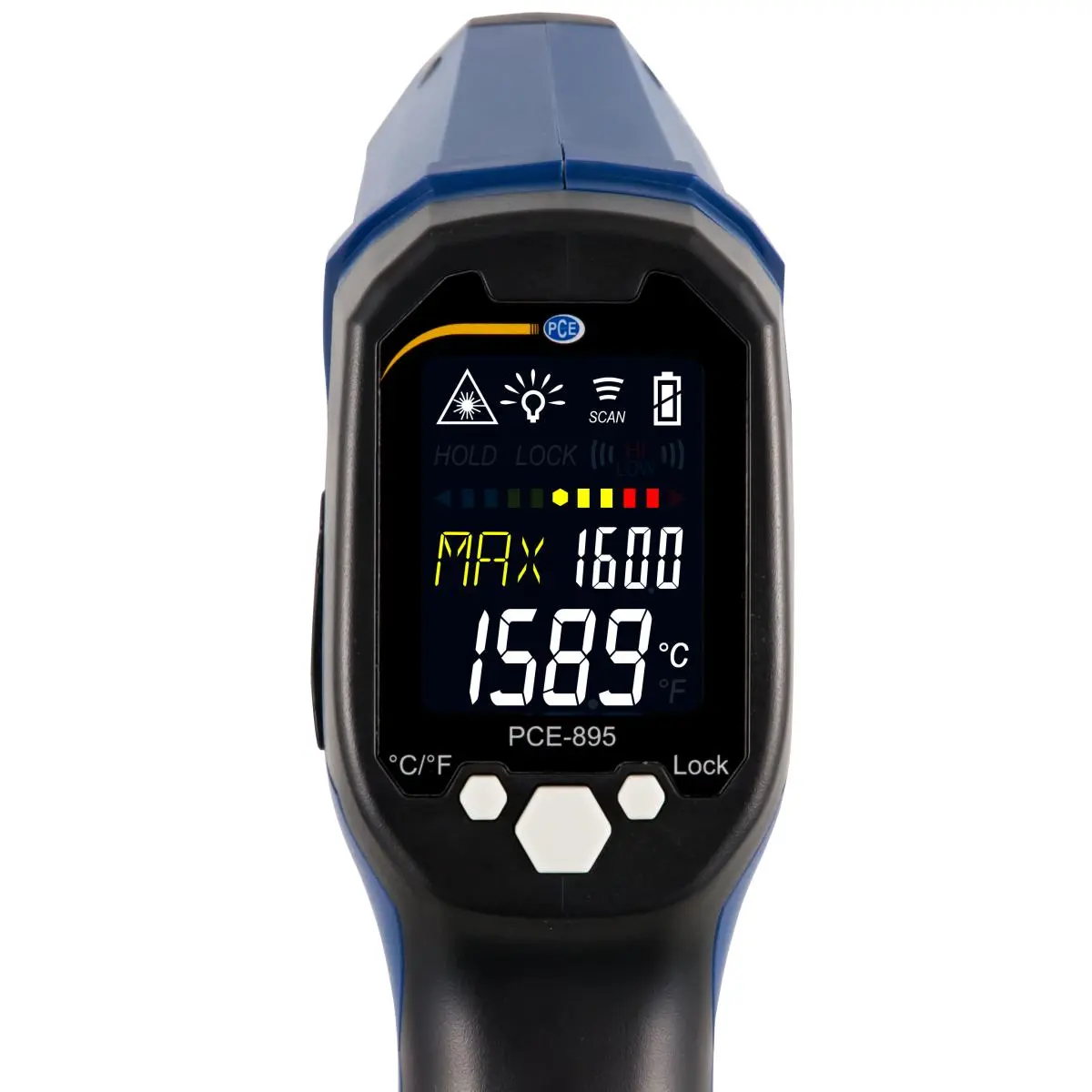

Display | LCD illuminated |
Power supply | 2 x 1.5V AA batteries |
Operating time | Typical: 14 h Continuous: 10 h |
Operating conditions | 0 ... 50°C / 32 ... 122°F |
Weight | ca. 400 g / 14.1 oz |
Dimensions | 203 x 176 x 89 mm / 7.9 x 6.9 x 3.5 in |

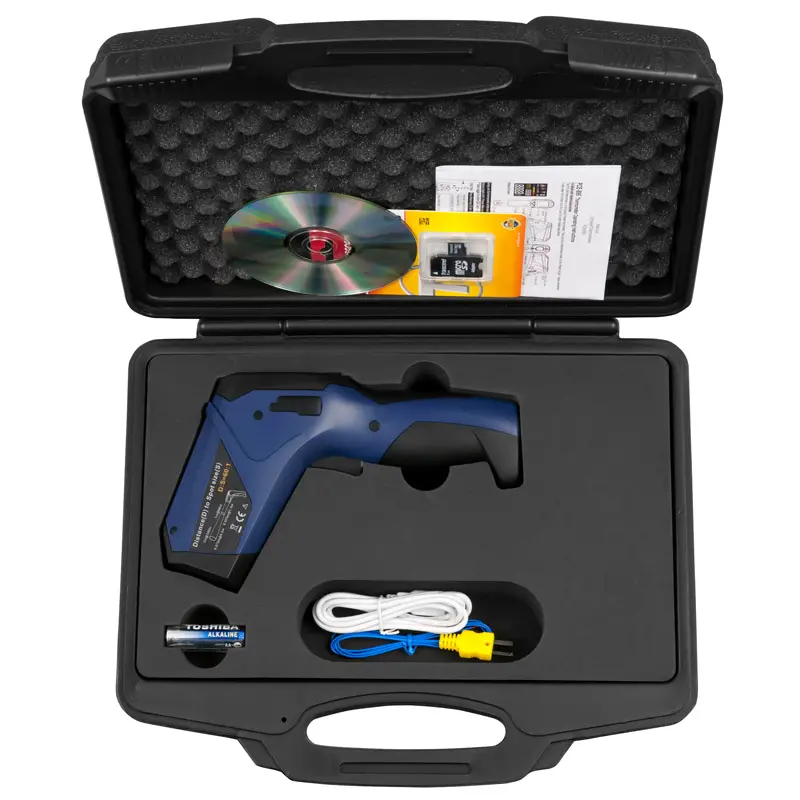

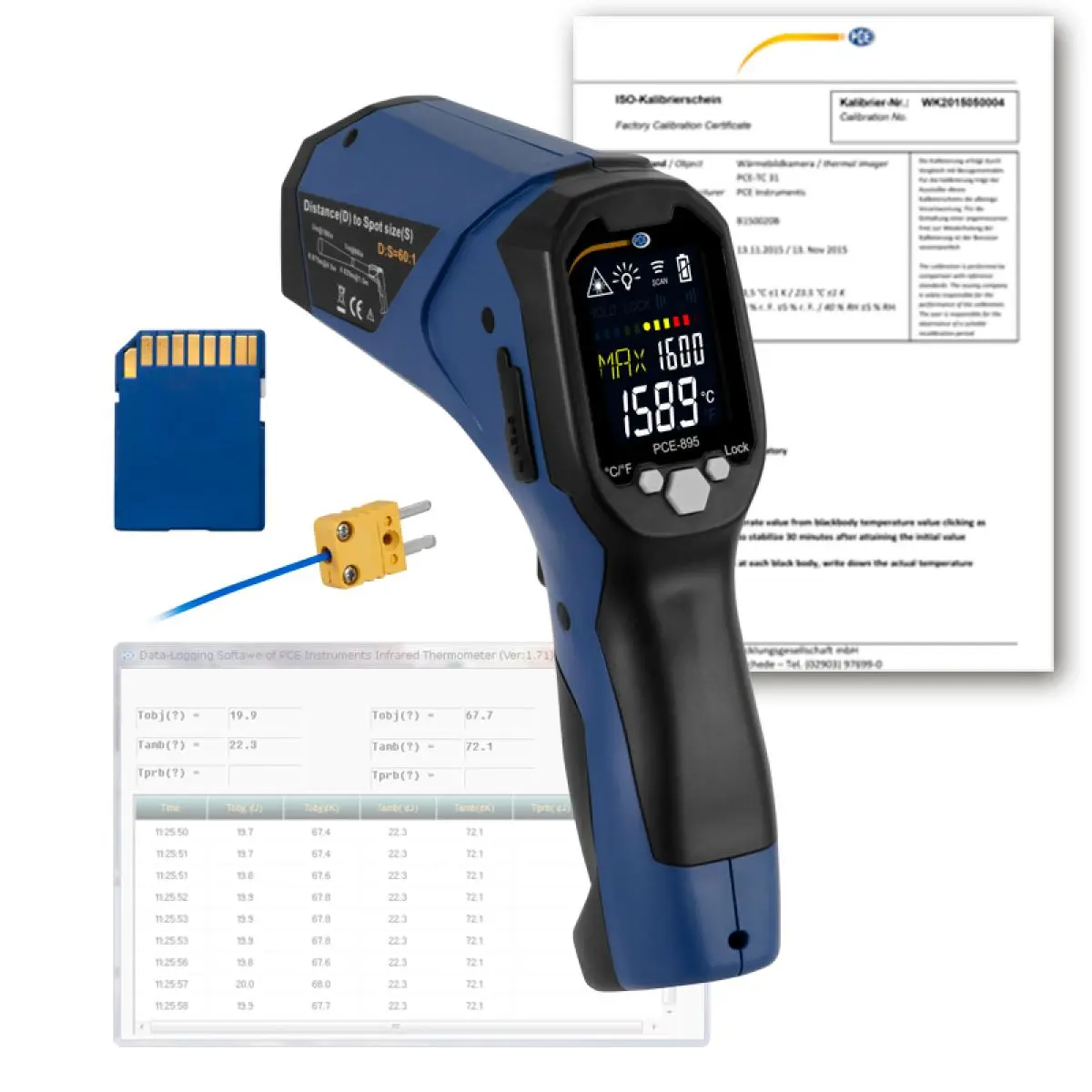

1 x HVACR Tester PCE-895-ICA
1 x USB Cable
1 x Micro SD Card 8 GB
1 x PC Software
2 x 1.5V AA Batteries
1 x Thermocouple Type K ( 0 ... 250°C / 32 ... 482°F)
1 x User manual
1 x ISO Calibration Certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
