Multifunction HVAC Meter with Flow Hoods PCE-VA 20-SET

Order no.: PCE-VA 20-SET

GTIN (EAN): 4250348714664

Accessory

Set of 2 x Capture Flow Hoods for PCE-VA 20

£ 159.00

ISO Calibration Certificate CAL-AM

£ 164.00

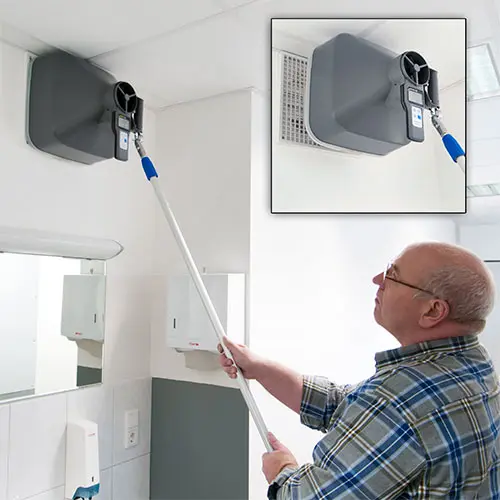

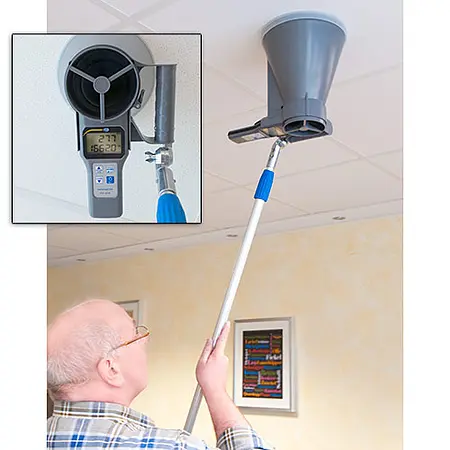

Telescoping Pole for PCE-VA 20

£ 112.00

Description

PCE-VA 20-SET Multifunction HVAC Meter with Flow Hoods
Combination anemometer-hygrometer-thermometer for HVAC system testing, adjusting and balancing (TAB)

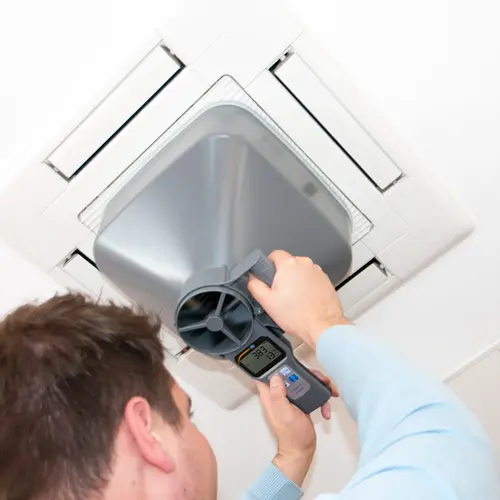

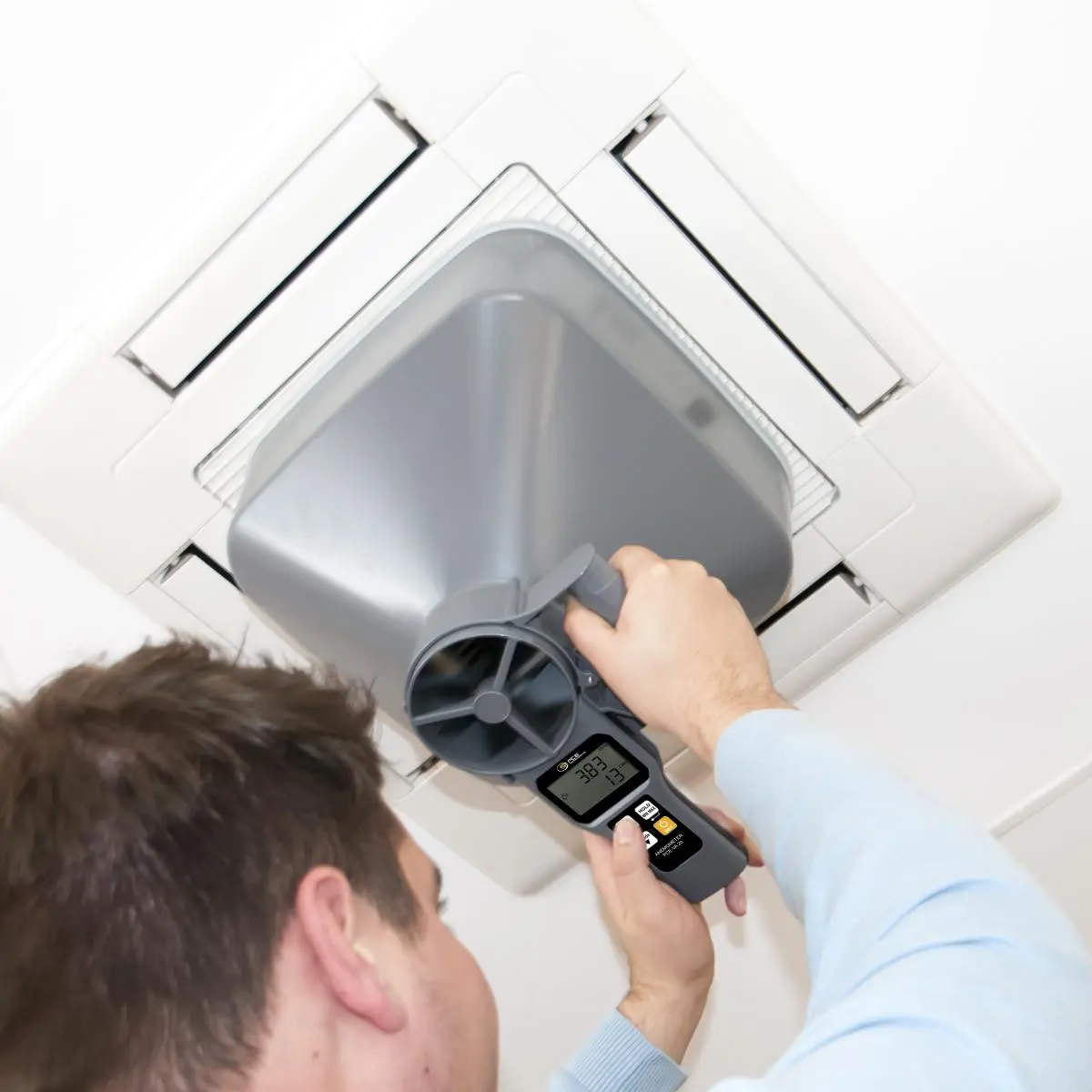

PCE-VA 20-SET is a multifunction HVAC meter with flow hoods for testing, assessing and balancing (TAB) heating, ventilation and air conditioning or cooling (HVAC) systems. This combination anemometer-hygrometer-thermometer features a 10 cm / 3.9" diameter fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.

Highlights

- Measures air flow velocity, volume flow, relative humidity, air temperature, dew point temperature and wet-bulb temperature
- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of measured value + 0.3 m/s) when more than 20 m/s
- Resolution: 0.1

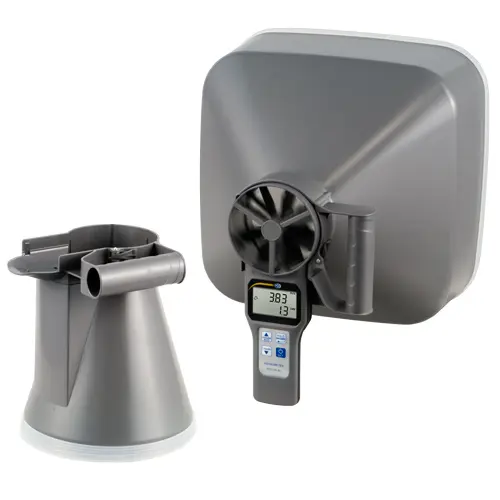

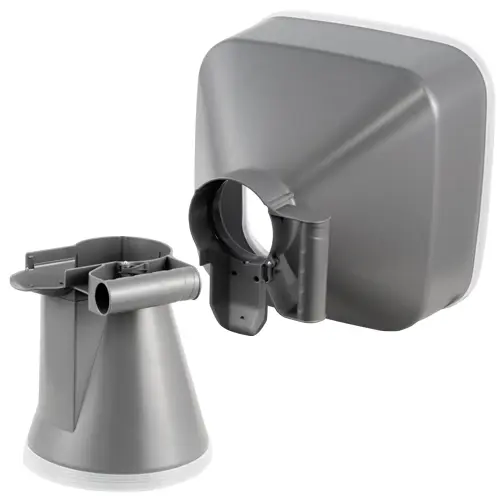

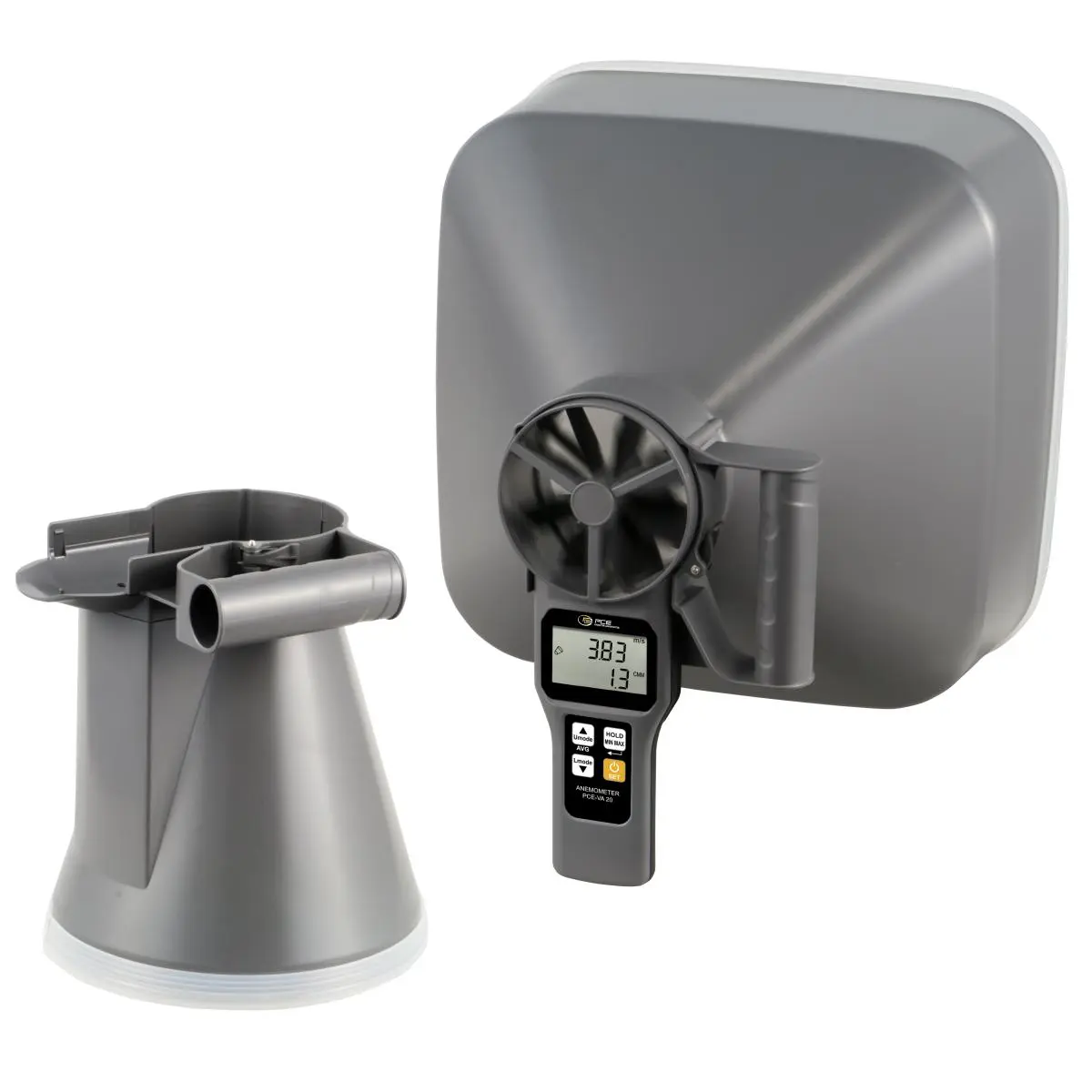

- Includes 2 x capture hoods (1 x round 210 mm / 8.3 in Ø, 1 x square 346 x 346 mm / 13.6 x 13.6 in)

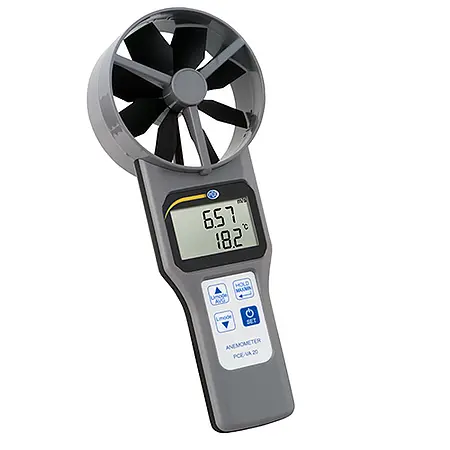

- 10 cm / 3.9 in Ø fan impeller

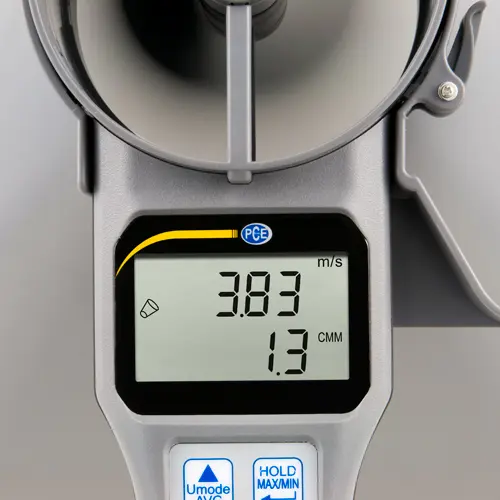

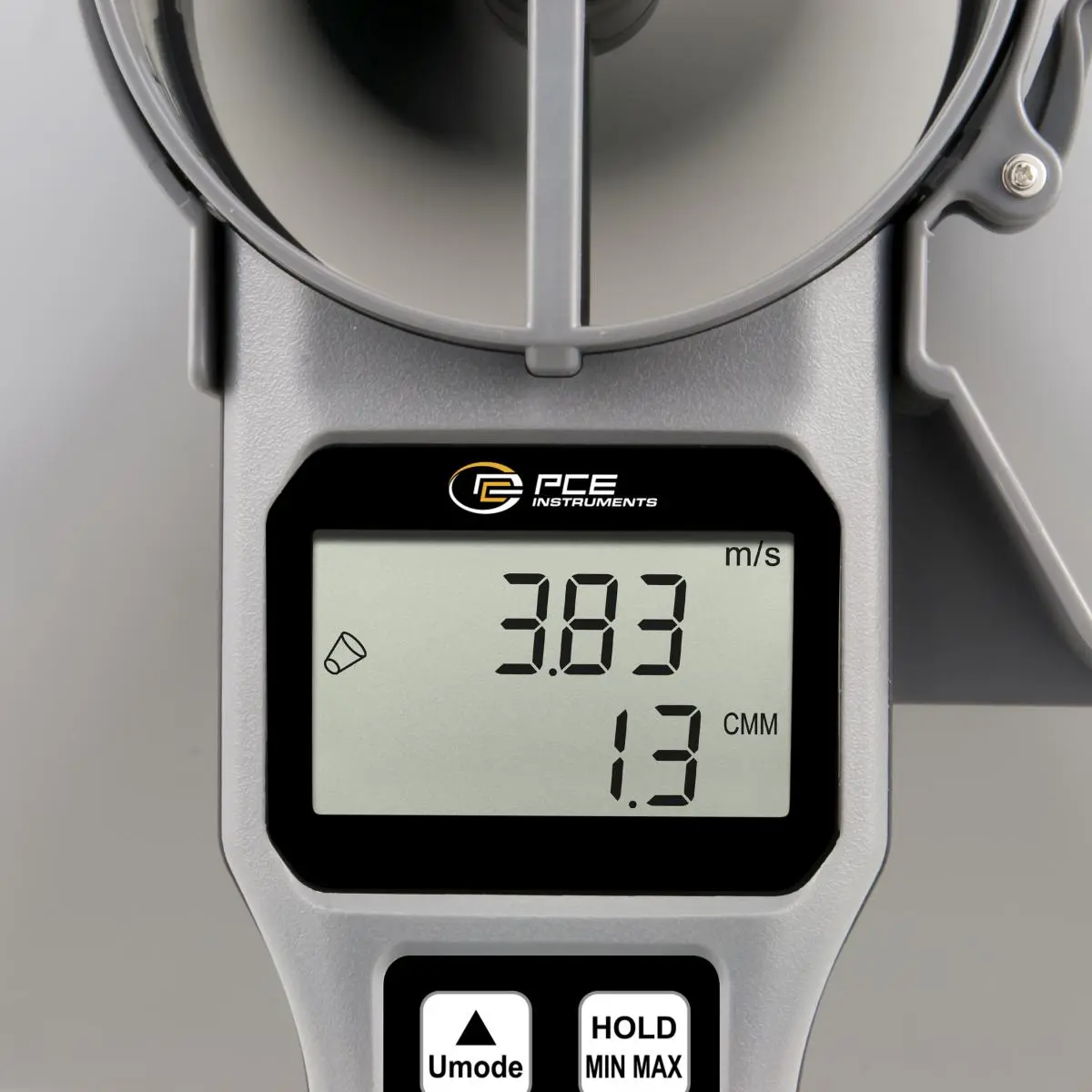

- Easy-to-read backlit LCD
- Display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection functions

Specification

Technical Specification

Air flow velocity measuring range

0.2 ... 30 m/s (39.4 ... 5905.5 fpm)

Air flow velocity accuracy

<20 m/s: ±(1.5% of rdg. + 0.3 m/s)
>20 m/s: ±(3% of rdg. + 0.3 m/s)

Air temperature measuring range

-20 ... 60 °C / -4 ... 140 °F

Air temperature accuracy

±0.6 °C

Air temperature resolution

0.1 °C / °F

Humidity measuring range

0.1 ... 99.9 % r.H.

Humidity accuracy

±3 % r.H. (at 25 °C / 77 °F and 10...90 % r.H.)
else: ±5 % r.H.

Humidity resolution

0.1 % r.H.

Temperature response time

60 seconds

Humidity response time

60 seconds

LCD update

1 x per second

Wet bulb temperature display

-20 ... +59.9 °C / -4 ... 139.8°F

Dew point temperature display

-5 ... +59.9 °C / 23 ... 139.8°F

Volume flow display

0 ... 99999 m³/min

Volume flow resolution

0.1 m³/min (0...9999,9 m³/min)
1 m³/min (10000...99999 m³/min)

Automatic shutdown

after 20 minutes of inactivity

LCD size

32.5 x 54 mm / 1.28 x 2.13" (H x W)

Power supply

4 x 1.5 V AAA batteries

Operating conditions

0 ... +50 °C / 32 ... 89.6°F, <80 % r.H.

Storage conditions

-10 ... +50 °C / 14 ... 89.6°F, <90 % r.H.

Dimensions

269 x 106 x 51 mm / 10.6 x 4.1 x 2.0"

Weight

ca. 200 g / 7 oz

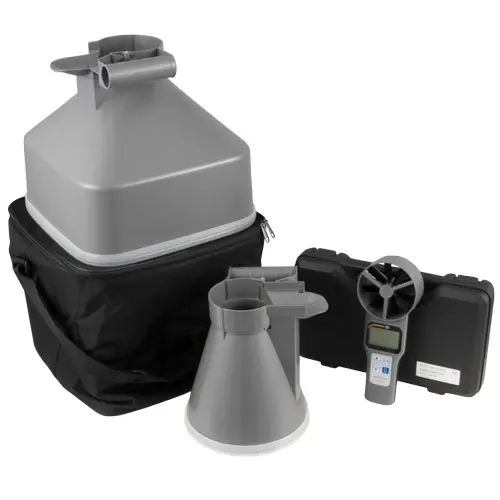

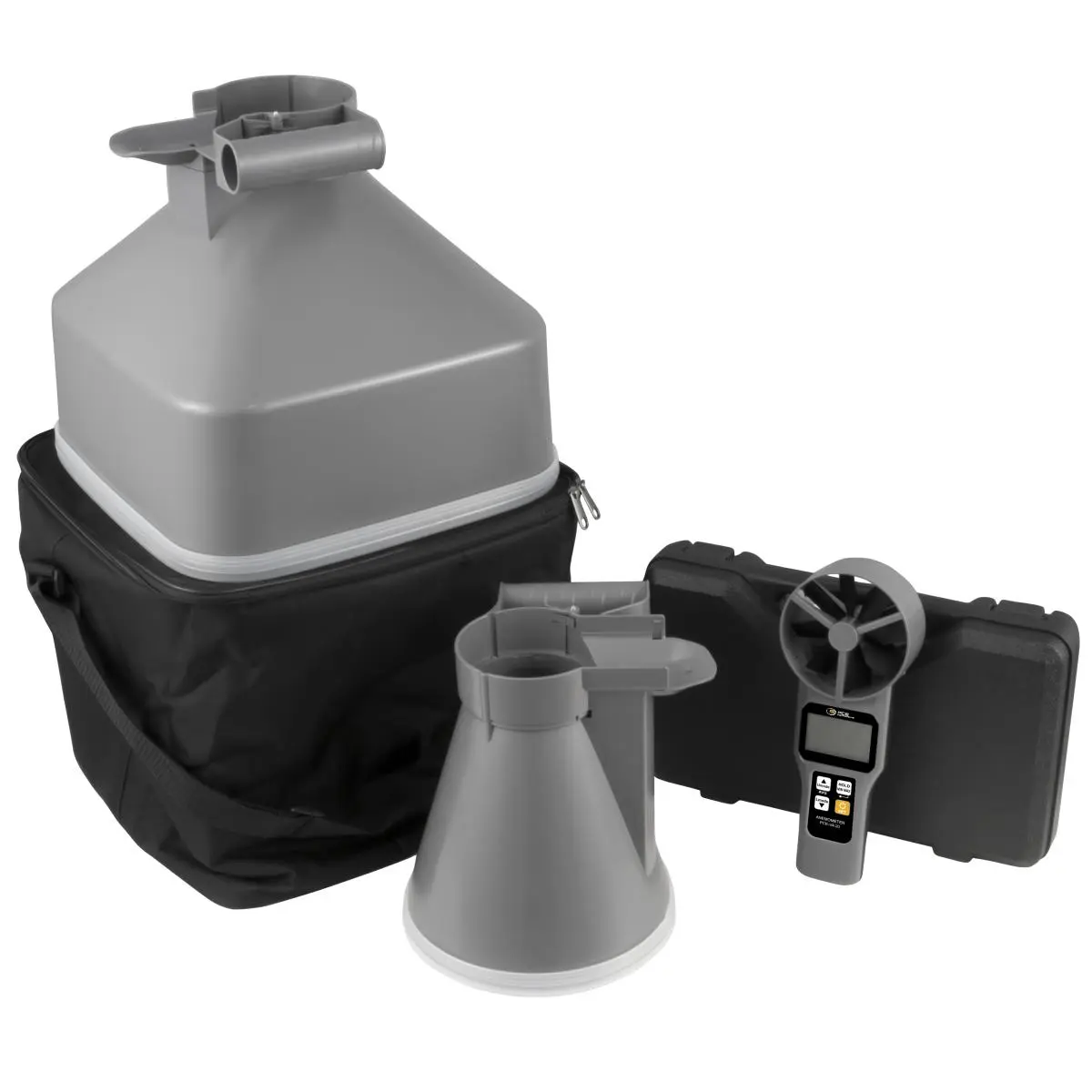

Delivery Scope

1 x Multifunction HVAC meter (PCE-VA 20)
1 x Square flow hood (AFC-PCE-VA)
1 x Round flow hood (AFC-PCE-VA)
4 x AAA batteries
1 x User manual
1 x Carrying case
