Industrial Borescope PCE-VE 370HR3

Order no.: PCE-VE 370HR3
GTIN (EAN): 4250348715784

£ 3,355.00
£ 4,026.00
price ex. (VAT / delivery)
:
4250348715784
PCE-VE 370HR3
Delivery time: 1-2 working days
Flexible
No
6 mm
3 m
320 x 240 / 640 x 480 pixels
Digital
4-way
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)

Description

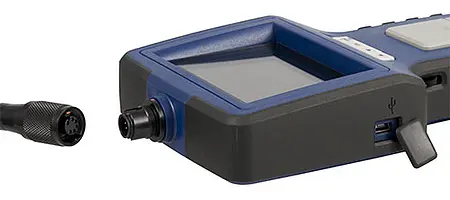

PCE-VE 370HR3 Industrial Borescope
Four-way articulating inspection camera, industrial endoscope or videoscope with IP67 ingress protection rating, boost functionality and 5 LED lights (3 front, 2 side) for optimal illumination

PCE-VE 370HR3 is a four-way articulating industrial borescope, industrial endoscope, inspection camera or videoscope for the non-destructive inspection (NDI) of machines, equipment and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 5 LED lights (3 front, 2 side) for optimal illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost functionality for improved image quality in the dark.

The borescope stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 3 m / 9.8 ft cable length and 6.0 mm / 0.24 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***


Highlights

- With boost function: better images in dark surroundings
- Flexible cable
- Cable diameter: Ø 6 mm / 0.24"
- Image capture / Photos and Videos
- LED lighting (3 LEDs)
- 4-way optics
- 8 GB SD memory card
- Robust carrying case included

Specification

Cable diameter

6.0 mm / 0.24 in

Cable length

3 m / 9.8 ft

Depth of field

1.5 … 10 cm / 0.59 ... 3.94 in

Field of view

67°

Bending radius 90 mm / 3.54 in
Illumination 3 LEDs  automatic
Boost function For improved image quality in the dark
Image sensor CMOS
Picture rate 30 frames per second (fps)
Display
88.9 mm / 3.5 in TFT LCD monitor
Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage 8 GB memory card (can be increased to 32 GB)
Compression format MPEG 4
Picture format JPEG (640 x 480 pixel resolution)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature -10 ... 50°C / 14 ... 122°F
Voltage supply Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 450 g / 1 lb
Protection type, camera IP 67 = Dust tight, no ingress of dust, complete protection against contact. Protected against liquid immersion up to 1 m / 3.28 ft, ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of press and time (up to 1 m / 3.28 ft of submersion).






Delivery Scope

1 x Industrial Borescope PCE-VE 370HR3
1 x 8 GB SD memory card
1 x USB cable
1 x Carrying case
1 x Mains power adapter
1 x User manual

Please note: Not to be used for medical applications!
