Industrial Borescope PCE-VE 390N

Order no.: PCE-VE 390N

GTIN (EAN): 4250348718761

£ 1,246.00

Price (exclude VAT)

£ 1,495.20

Price (include VAT)

price ex. (VAT / delivery)

GTIN (EAN):

4250348718761

Order no.

PCE-VE 390N

Prices excl. VAT excl. delivery

Delivery time: 1-2 working days

Type

Flexible

Wireless-Display

Camera / Cable Diameter

28 mm

Working length

10 m

Display

320 x 240 / 640 x 480 pixels

Type of instrument

Digital

Articulation

Recording

Image, Video

Memory

Yes (SD card)

Interface

Yes (Mini USB, AV out)

Question / Callback

Accessory

Guide ball for camera head GB-50-28-PCE-VE

£ 65.00

90º Field-of-View Mirror ES-45-VE 300N

£ 27.00

Guide Ball for PCE-VE Series

£ 52.00

Guide Ball for PCE-VE Series

£ 31.00

Magnetic Hook Attachment for PCE-VE 3xxN series

£ 27.00

Camera guide PCE-VE-WAGON

£ 807.00

Flexible Borescope Cable PCE-VE-N-SC2F

£ 518.00

Semi-rigid borescope cable HighRes PCE-VE-N-SC1-HR

£ 518.00

Centering brush PCE-VE-CB

£ 89.00

Surveying Software for PCE-VE 3xxN series

£ 201.00

Cable Holder for the PCE-VE 3xxN series

£ 114.00

Waterproof Camera Cable for PCE-VE Series

£ 1,495.00

Two-Way Articulating Camera Cable for PCE-VE Series

£ 1,564.00

Two-in-One Semi-Flexible Camera Cable for PCE-VE Series

£ 559.00

Semi-Flexible Camera Cable for PCE-VE Series

£ 432.00

Semi-Flexible Camera Cable for PCE-VE Series

£ 450.00

Flexible Camera Cable for PCE-VE Series

£ 869.00

Flexible Front Camera Cable (30m) for PCE-VE 3xxN Series

Semi-Flexible Camera Cable for PCE-VE Series

£ 1,599.00

Semi-Flexible Camera Cables for PCE-VE Series

£ 627.00

Four-Way Articulating Camera Cable for PCE-VE Series

£ 2,296.00

Four-Way Articulating Camera Cable for PCE-VE Series

£ 3,046.00

Description

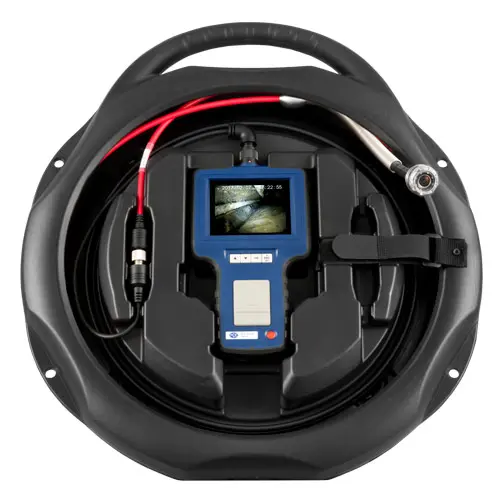

PCE-VE 390N Industrial Borescope

Includes semi-flexible / semi-rigid, 28 mm / 1.1 in diameter, 10 m / 32.8 ft long cable and SD card memory for saving pictures and videos

PCE-VE 390N is the ideal industrial borescope or snake inspection camera for the analysis of buildings (walls, supports, eaves, gutters, attics, crawl spaces), plumbing (pipes, drains, sewers, wells) and heating, ventilation, air conditioning and refrigeration (HVACR) systems (ducts, furnaces, chimneys, boiler and condenser tubes). The IP68-rated cable of this inspection camera is waterproof and heavy duty, making the PCE-VE 390N well suited for use in tough environments like construction sites and industrial installations.

*** Not suitable for medical use ***

Highlights

- Camera cable length 10 m / 32 ft 9"

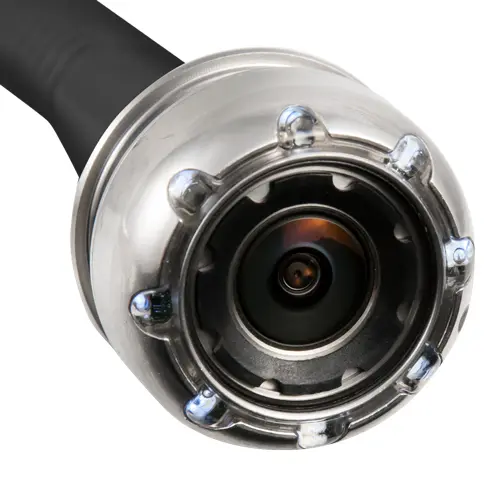

- Camera head diameter 28 mm / 1.1"
- Storage of images and videos
- 8 GB SD memory card incl.
- LED lighting

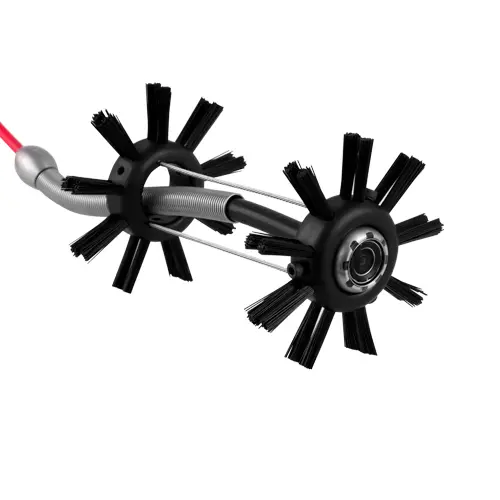

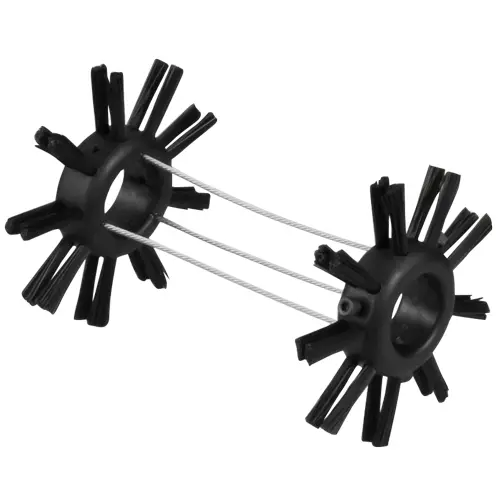

- With centering brush

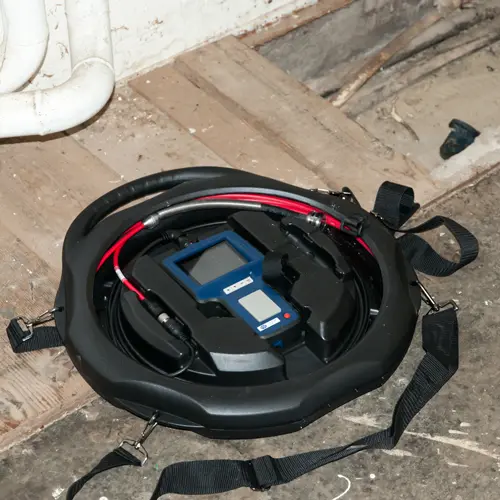

- Robust carrying case incl.
- Additional camera cables optional

Specification

Cable diameter	28 mm / 1.11 in
Cable length	10 m / 32.8 ft
Depth of field	10 mm … ∞ / 0.4 in to infinity
Field of view	150.8°
Bending radius	90 mm / 3.54 in.
Illumination	8 LEDs
Image sensor	CMOS / 640 x 480
Picture rate	30 / sec.
Display	88.9 mm / 3.5 in TFT LCD monitor
Interface	Mini USB 1.1 / AV out
Storage options	Image or video
Storage	8 GB memory card (can be increased to 32 GB)
Compression format	MPEG 4
Picture format	JPEG (640 x 480)
Video output format	NTSC / PAL
Video format	ASF (320 x 240)
Operation and storage temperature	-10 ... 60°C / 14 ... 140°F
Voltage supply	Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device	207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case	9.98 kg / 22 lbs
Protection type, camera	IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft

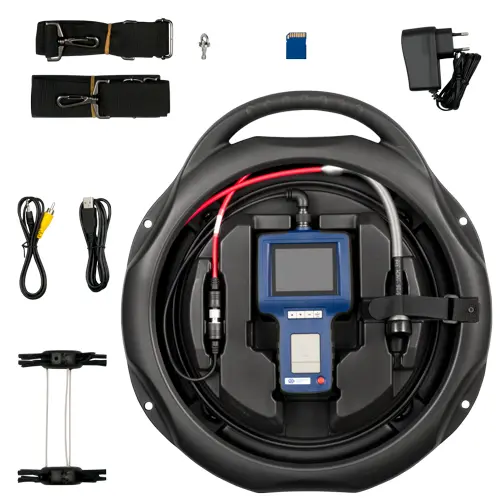

Delivery Scope

1 x Industrial Borescope PCE-VE 390N
1 x 8 GB SD memory card
1 x USB cable
1 x Carrying case
1 x Carrying straps
1 x Mains power adapter
1 x User manual

Please note: Not to be used for medical applications!
