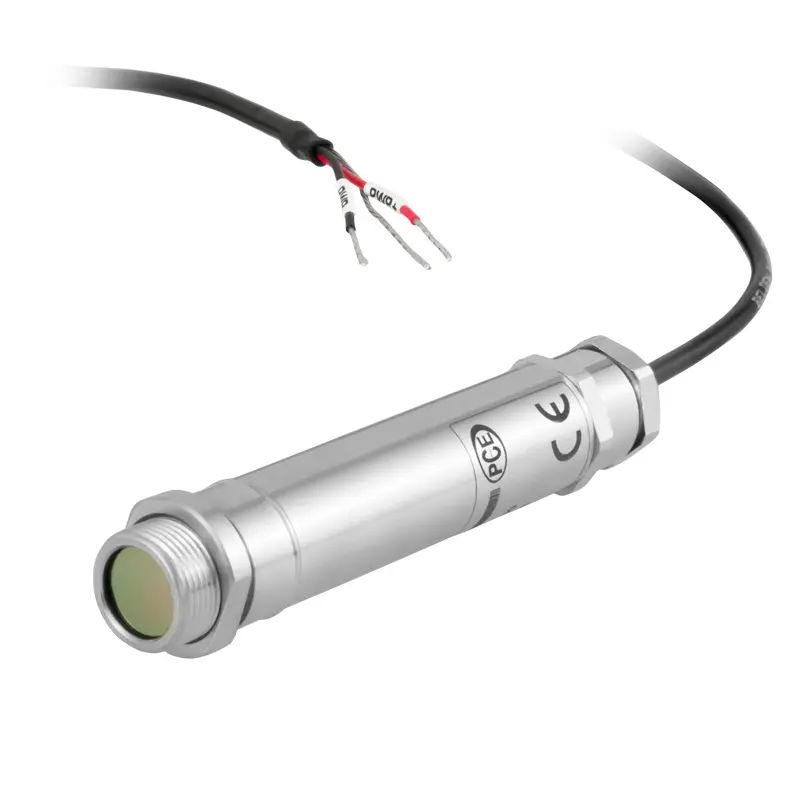

Infrared thermometer PCE-IR 50-ICA for non-contact measurement of surface temperatures / | |||

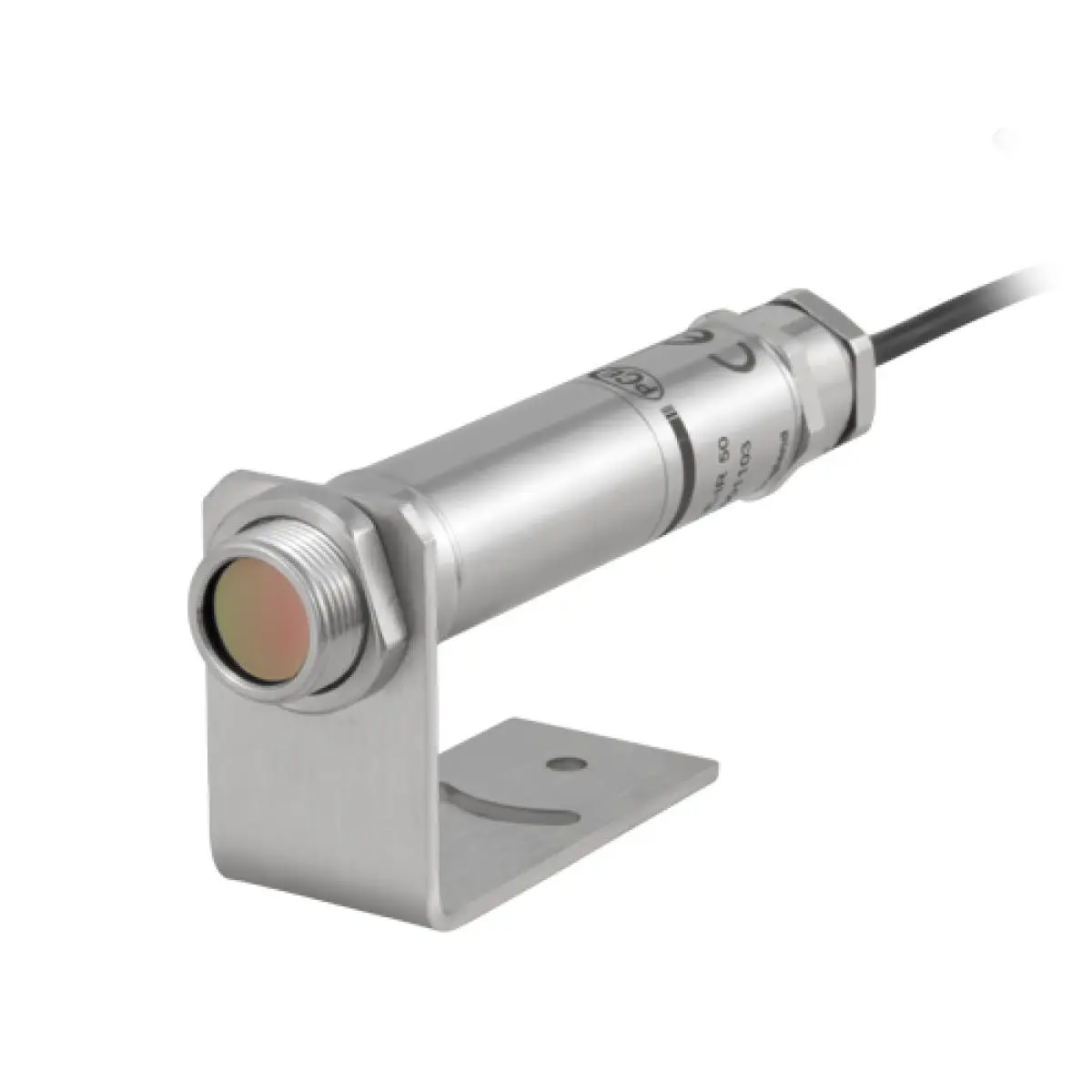

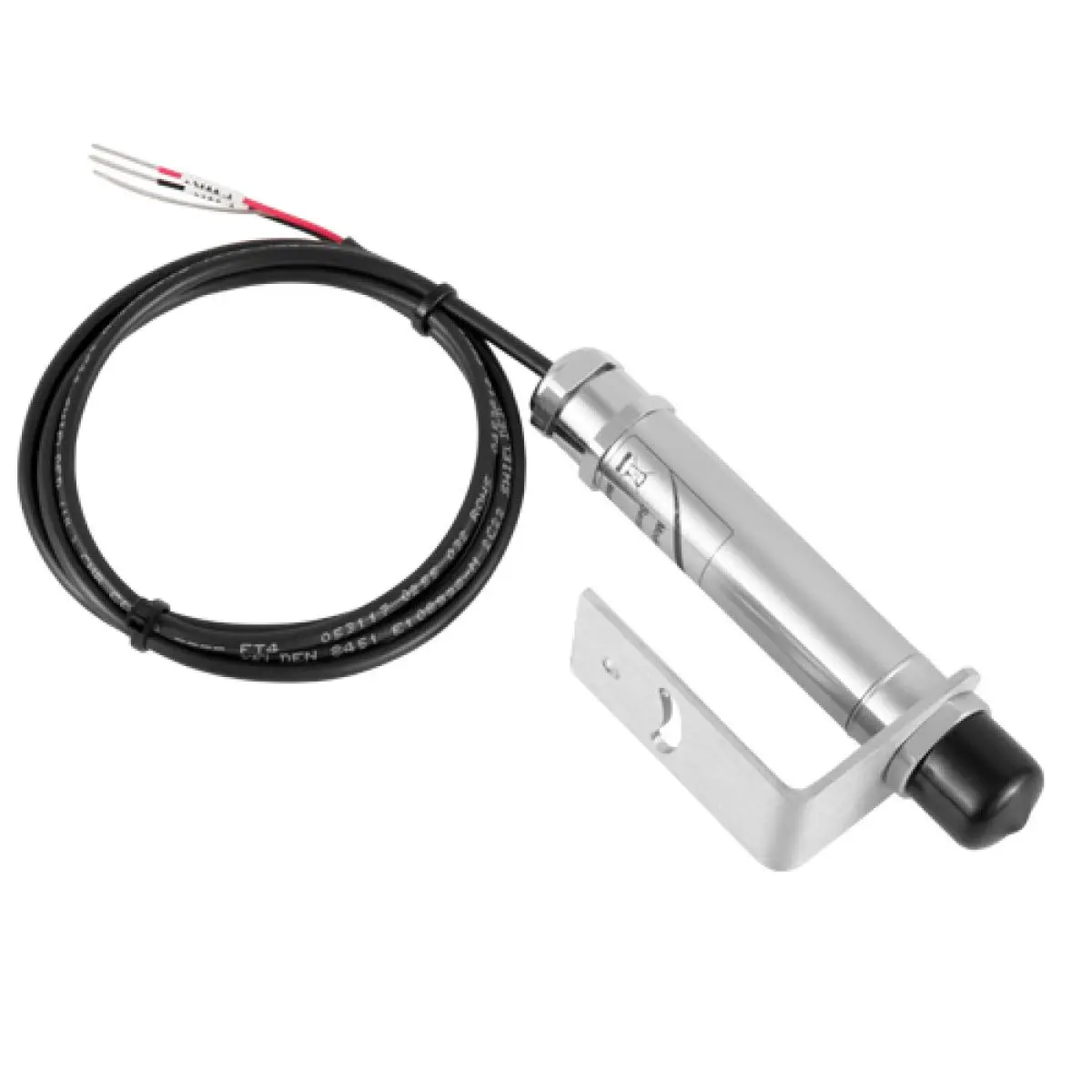

With the digital thermometer PCE-IR 50, surface temperatures can measured quickly and easily. The measuring range of the digital thermometer is 0 ...500°C / 32 ... 932°F. The measured temperature is provided as a 4 ... 20-mA standard signal which means that the digital thermometer can be easily integrated into different monitoring systems, including those in different production processes or food storage as well as the monitoring of electronic systems. The digital thermometer PCE-IR 50 comes with a mounting plate for fixed installation. The digital thermometer must simply be aligned with the heat source to be measured before starting the measurement. The 1.0 m cable of the digital thermometer PCE-IR 5 enables flexible use of the very robust device and even if the user opts for fixed installation, operation in areas which are hard to access will not be a problem at all as installation can be carried out quickly and easily. This type of digital thermometer is recommended when the areas to be measured are under high voltage. |
Measuring range | 0 ... +500 °C / 32 ... 932°F |
Measurement accuracy | ± 1 °C or 1% of the measured value, higher value applies |
Repeatability |
± 0.5 °C or 0.5% of the measured value, higher value applies |
Optical resolution | 15:1 |
Output signal | 4 ... 20 mA |
Spectral sensitivity | 8 ... 14 µm |
Emissivity | fixed at 0.95 |
Power supply | 24 VDC |
Load |
900 Ohm |
Protection class | IP65 |
Material | stainless steel |
Operating temperature | 0 ... +70 °C |
Relative humidity | 10 ... 95 % |
Measurement time | T90: 240 ms |

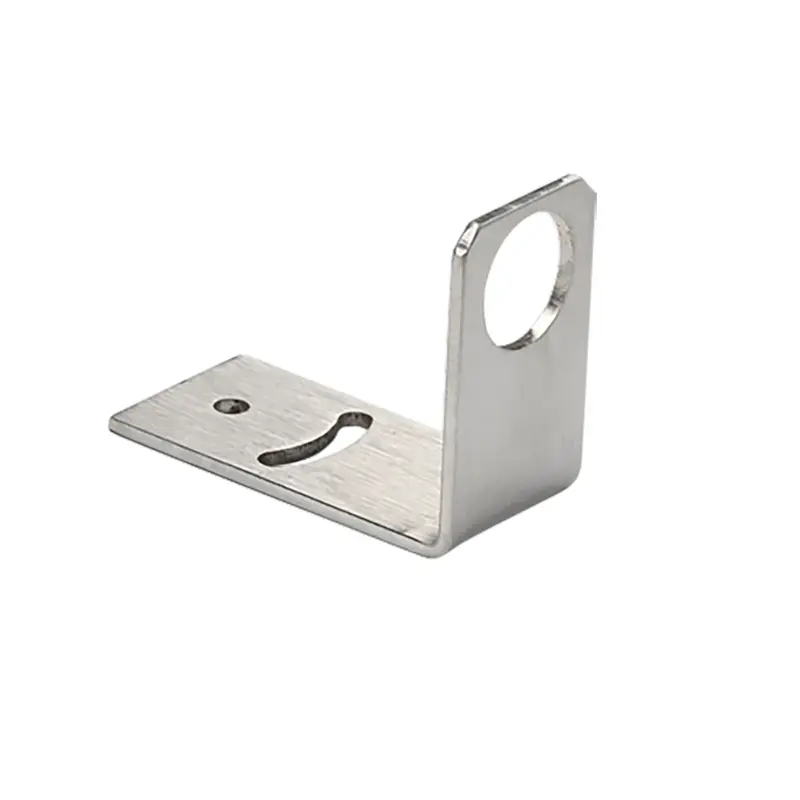

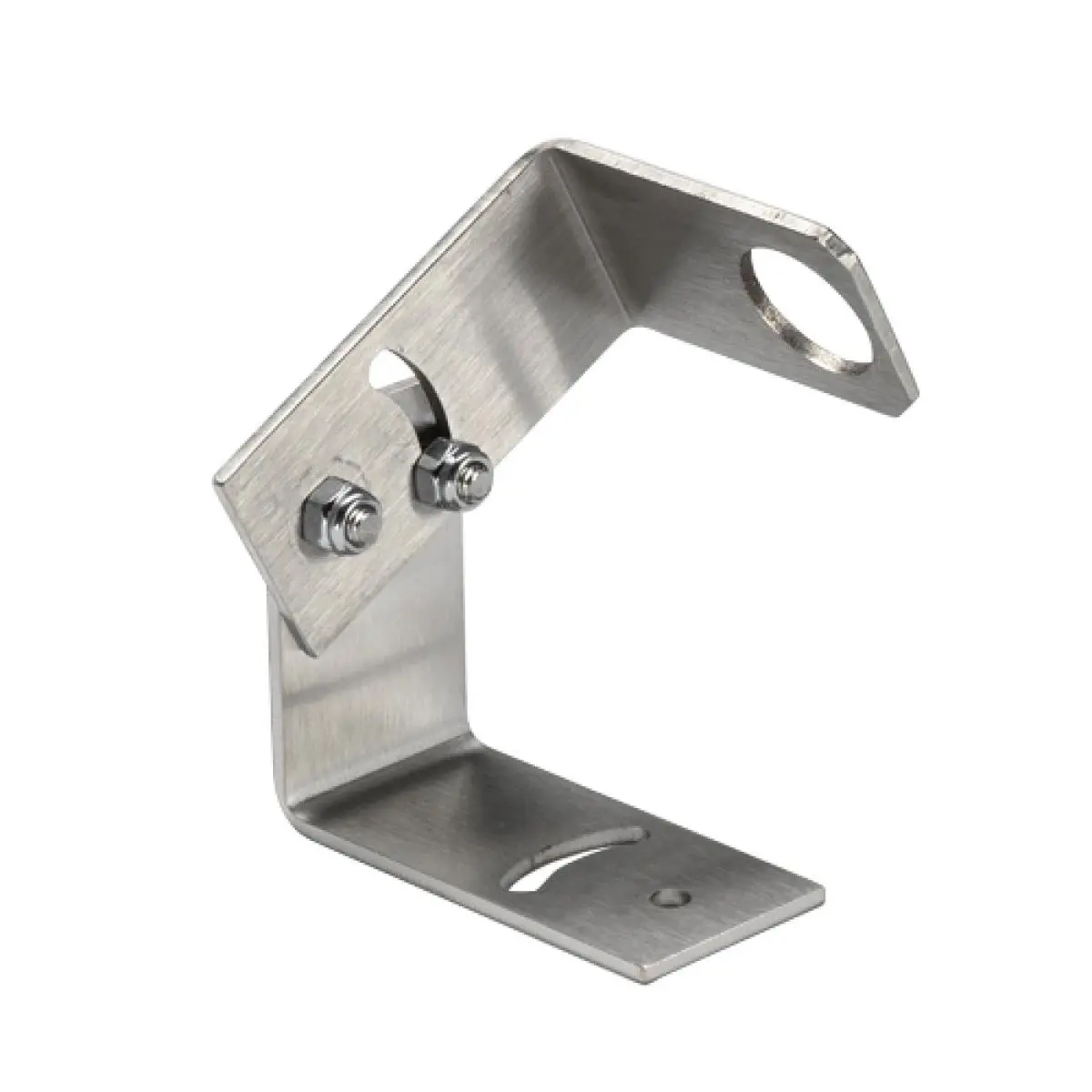

Accessories | mounting plate included in delivery |
Cable length | 1 m |
Dimensions | Ø18 x 103 mm |

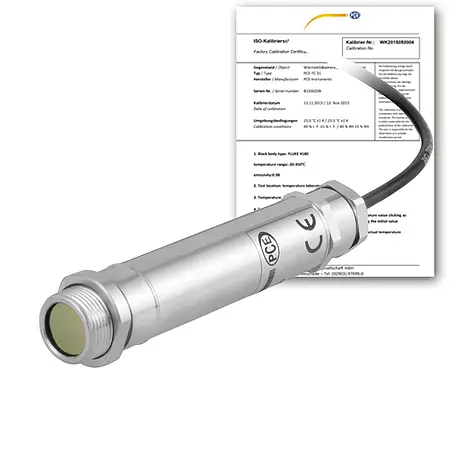

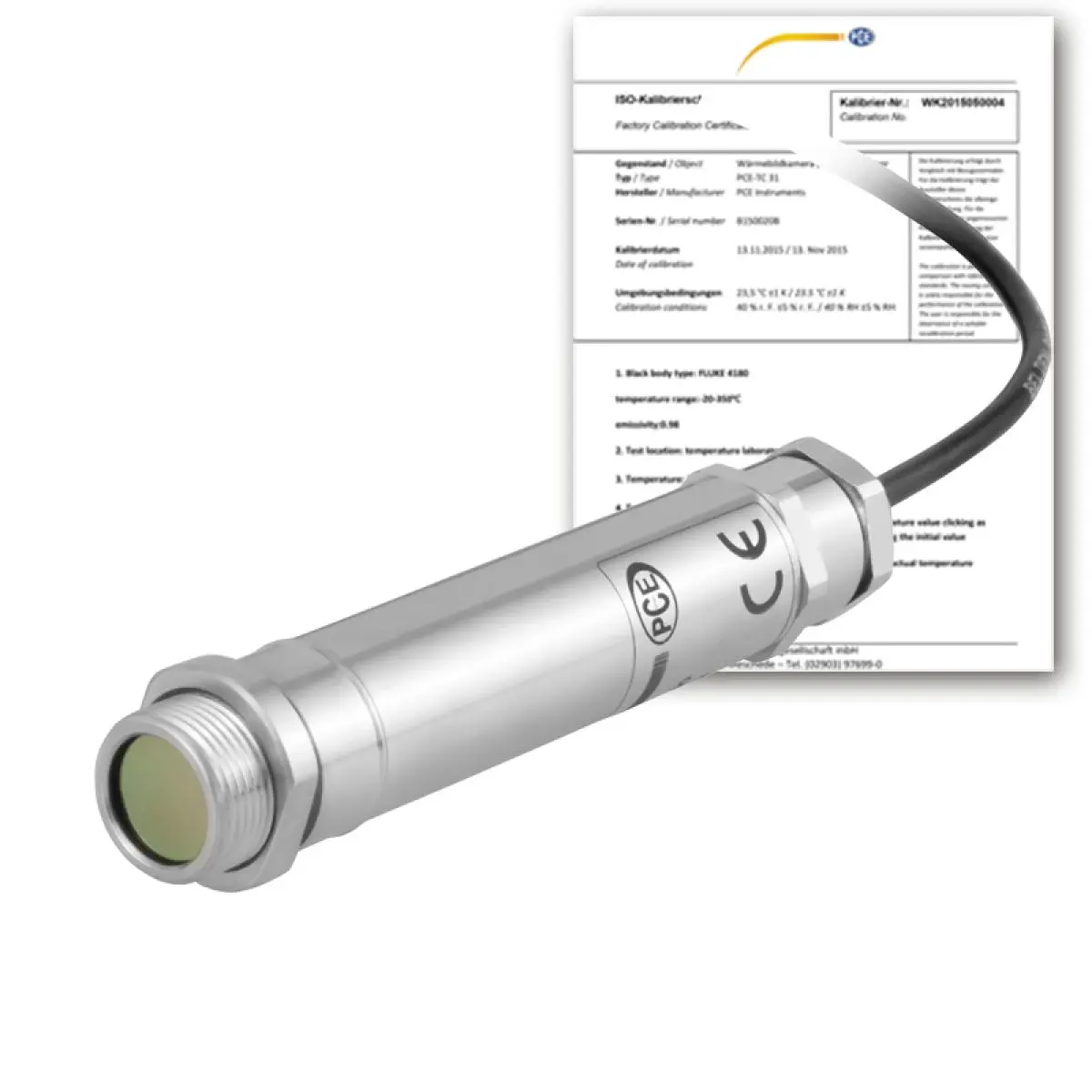

1 x Infrared Thermometer PCE-IR 50-ICA 1 x Mounting bracket 1 x User manual 1 x ISO Calibration Certificate |
