Infrared Thermometer PCE-IR 80-ICA Incl. ISO Calibration Certificate

Order no.: PCE-IR 80-ICA
GTIN (EAN):
£ 157.00
£ 188.40
ISO Calibration
price ex. (VAT / delivery)
PCE-IR 80-ICA
Delivery time: 10 - 14 days
Handheld
4 : 1
below 400 °C / 752 °F
No
No

Accessory

PCE-MS 25 Measuring Point Sticker
PCE-MS 25 Measuring Point Sticker
£ 13.00
ISO Calibration Certificate for Infrared Thermometer
ISO Calibration Certificate for Infrared Thermometer
£ 108.00

Description

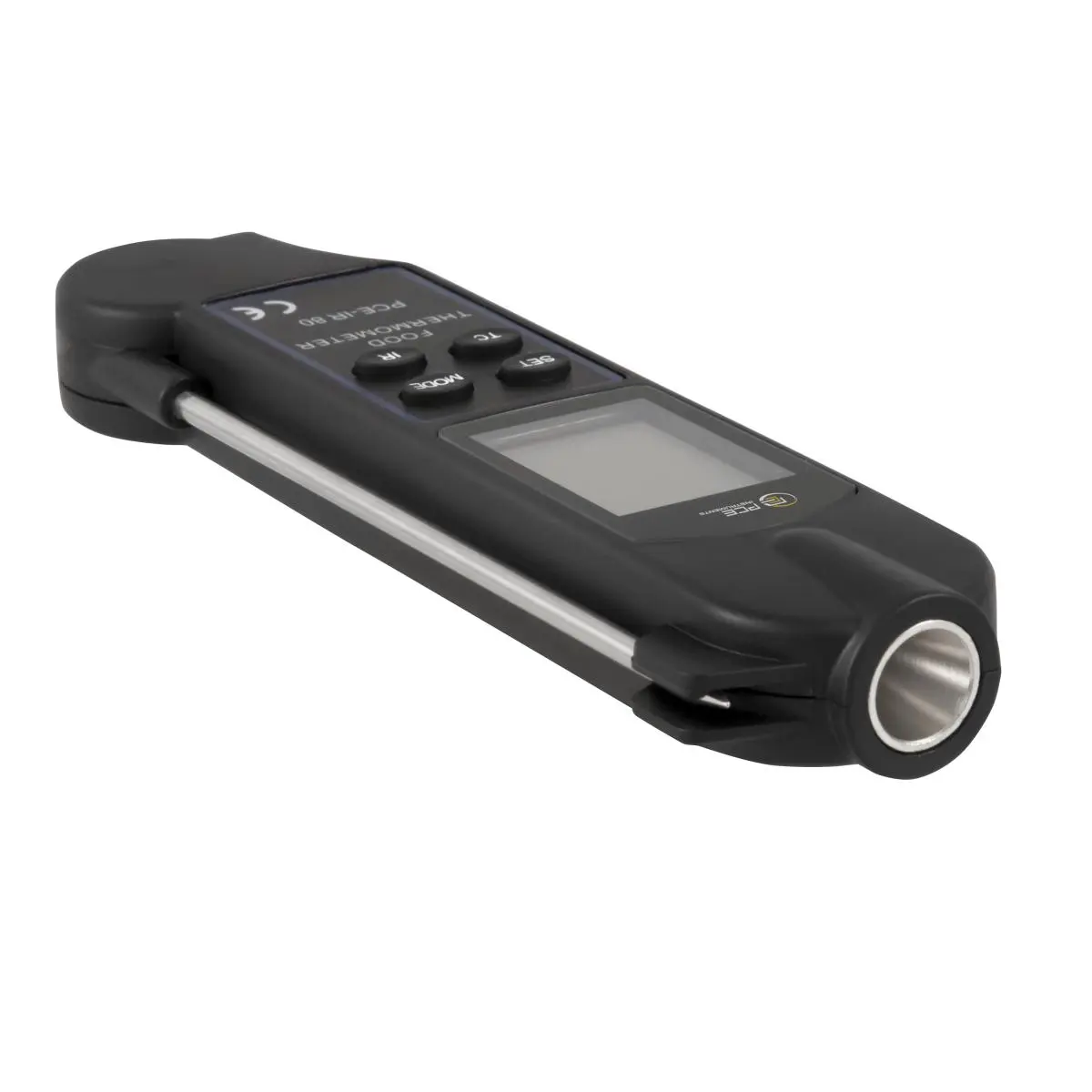

Infrared thermometer PCE-IR 80-ICA incl. ISO calibration certificate
Food thermometer for non-contact and contact measurement / Up to 330°C (626°F) / Probe made of stainless steel / Simple operation

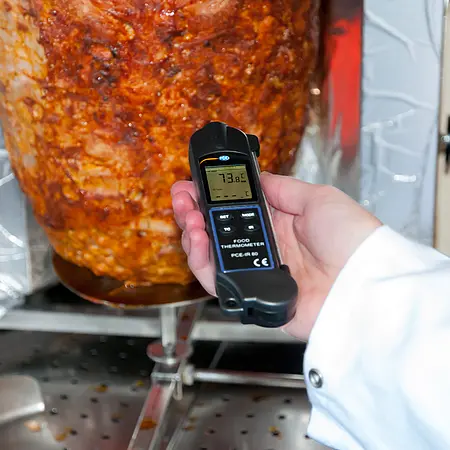

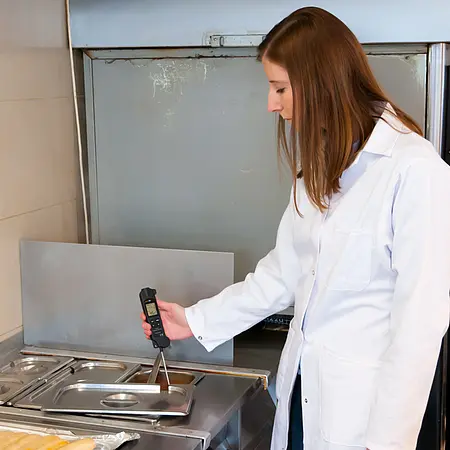

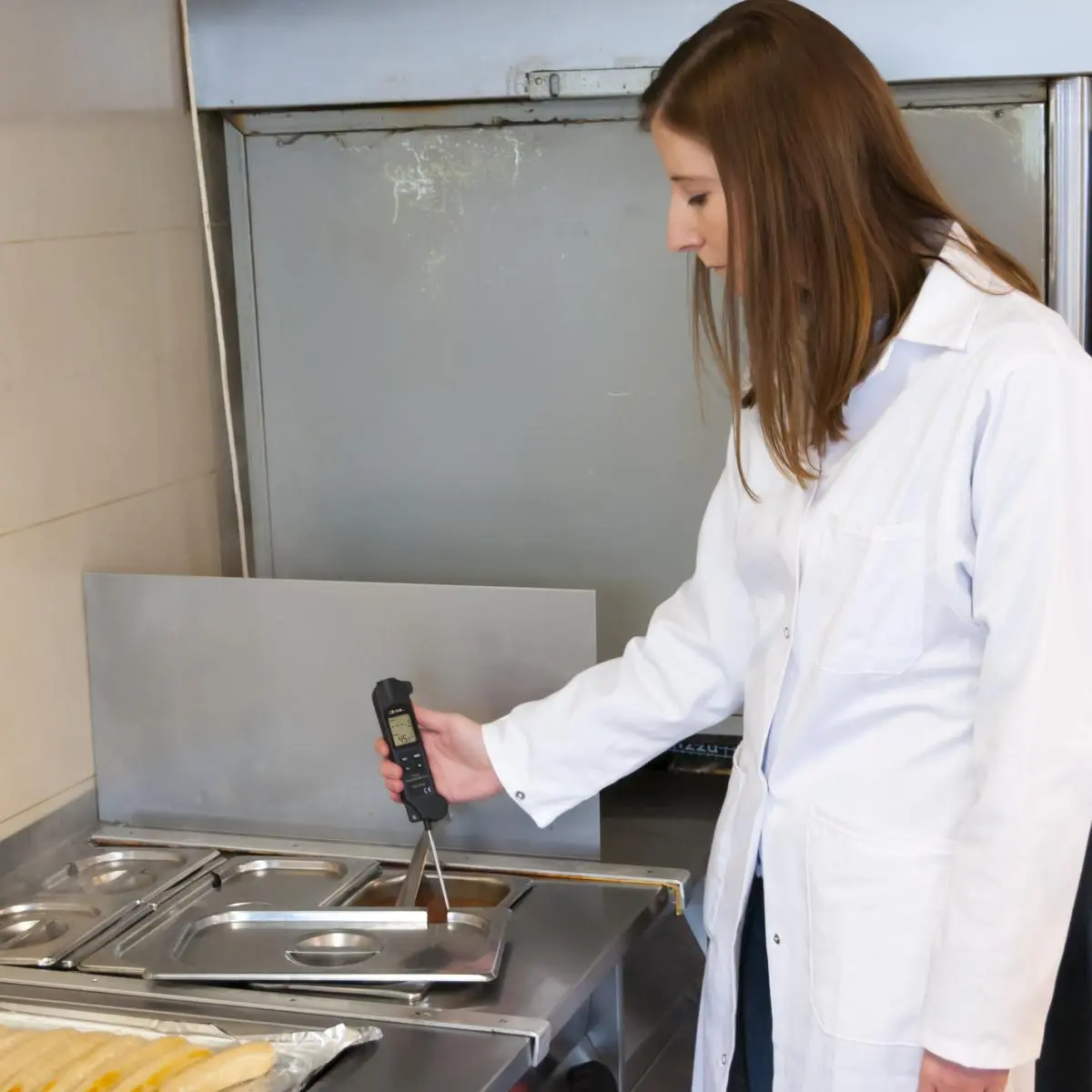

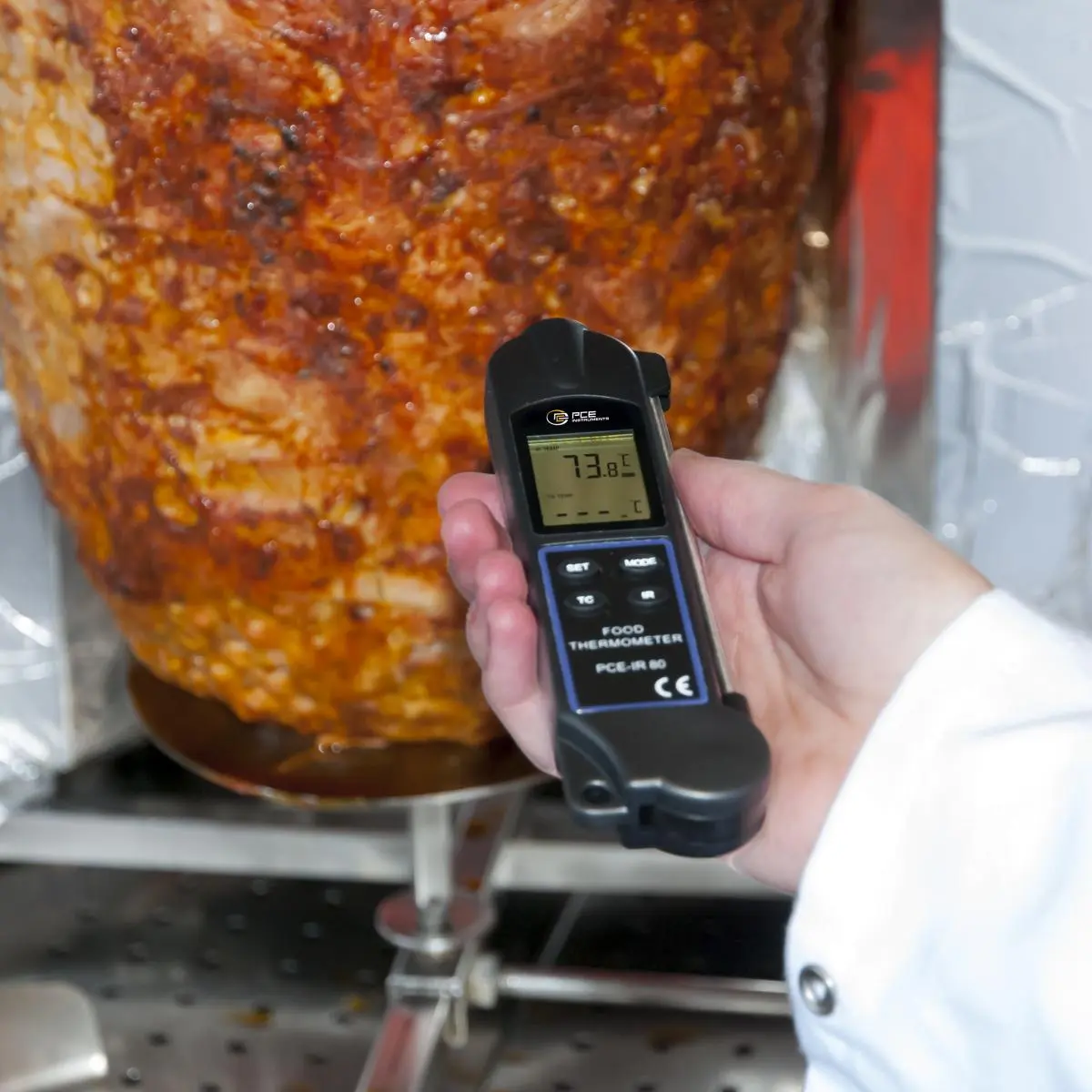

The infrared thermometer PCE-IR 80 is used to quickly control the temperature of food. The infrared thermometer is used in the area of ​​canteen kitchens, catering services, refrigerated warehouses and warehouses. The infrared thermometer has two types of measurement. On the one hand, the PCE-IR 80 infrared thermometer can measure the temperature of the object without contact via infrared. Here the measuring range is -35 ... 330°C / -31 ... 626°F. The emissivity of the infrared thermometer is adjustable, so that always best measuring results can be achieved.

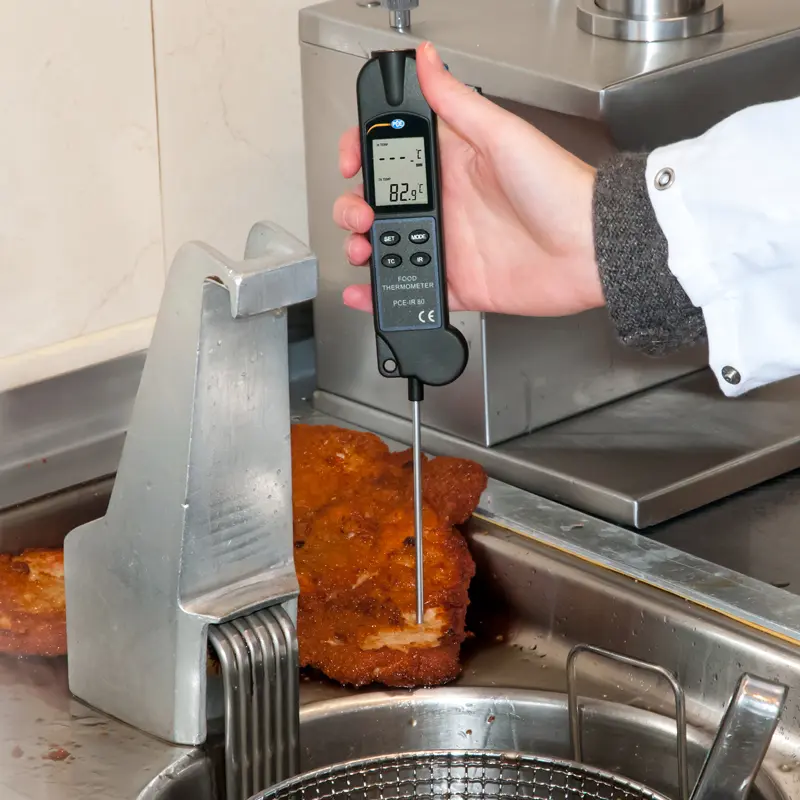

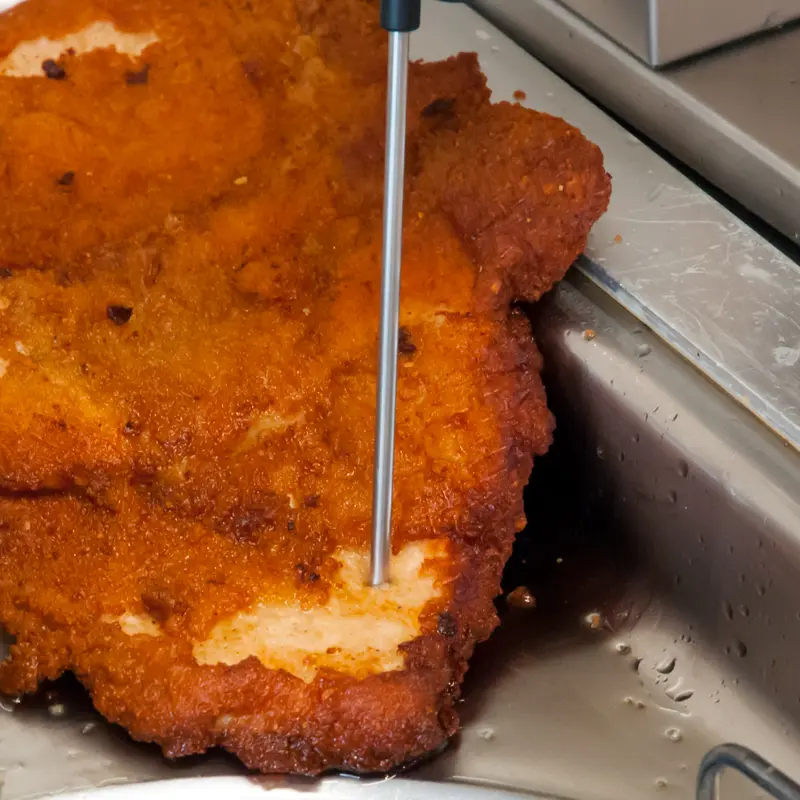

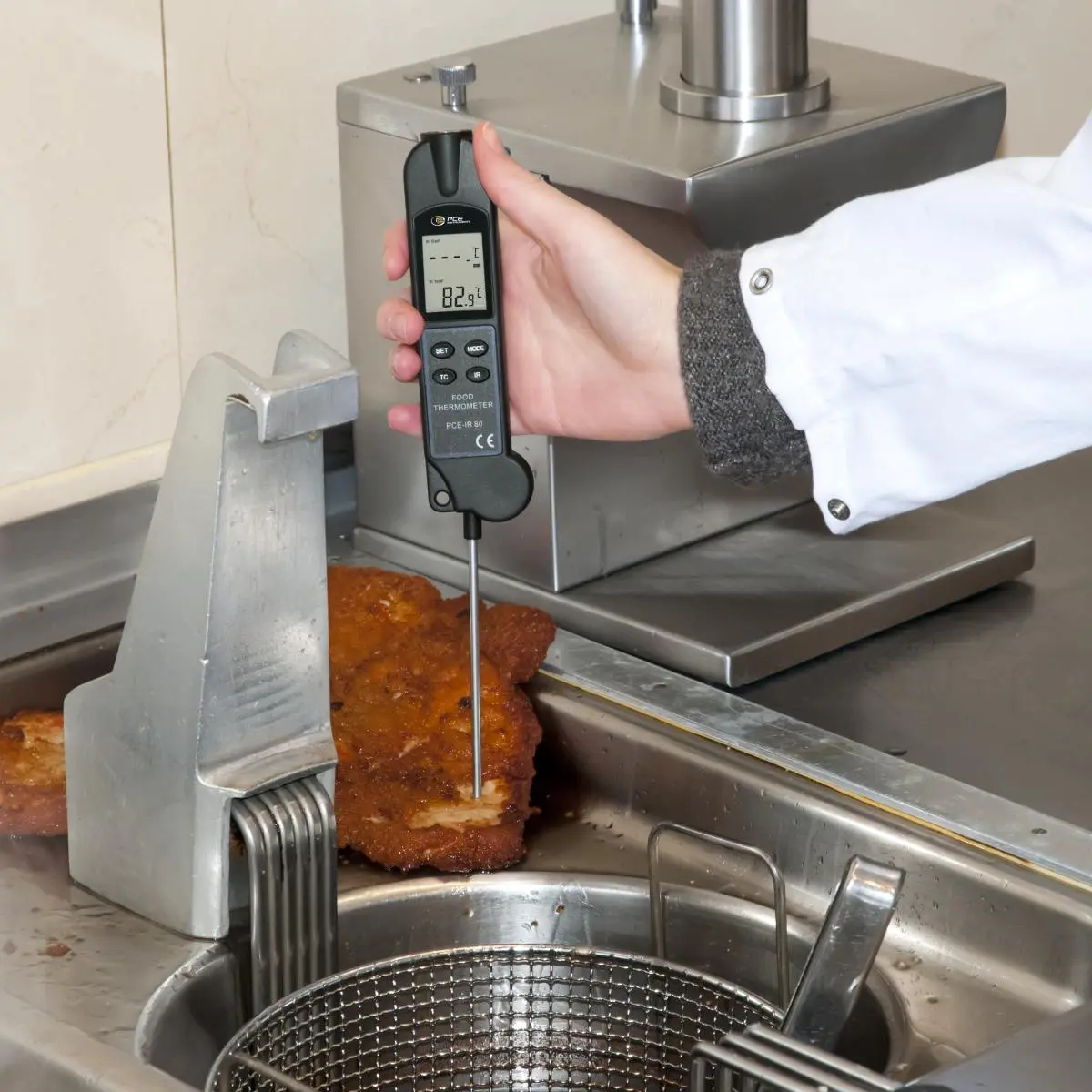

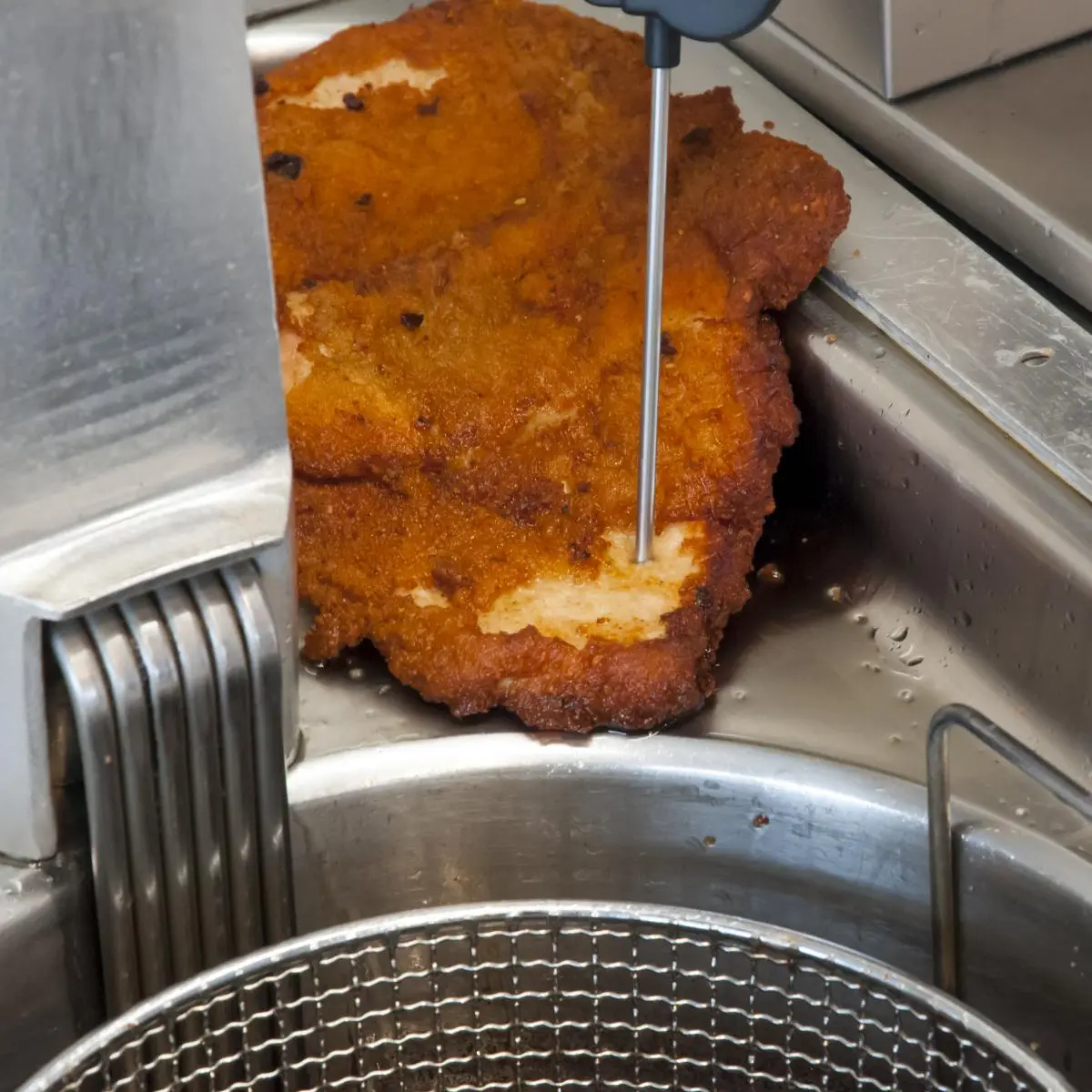

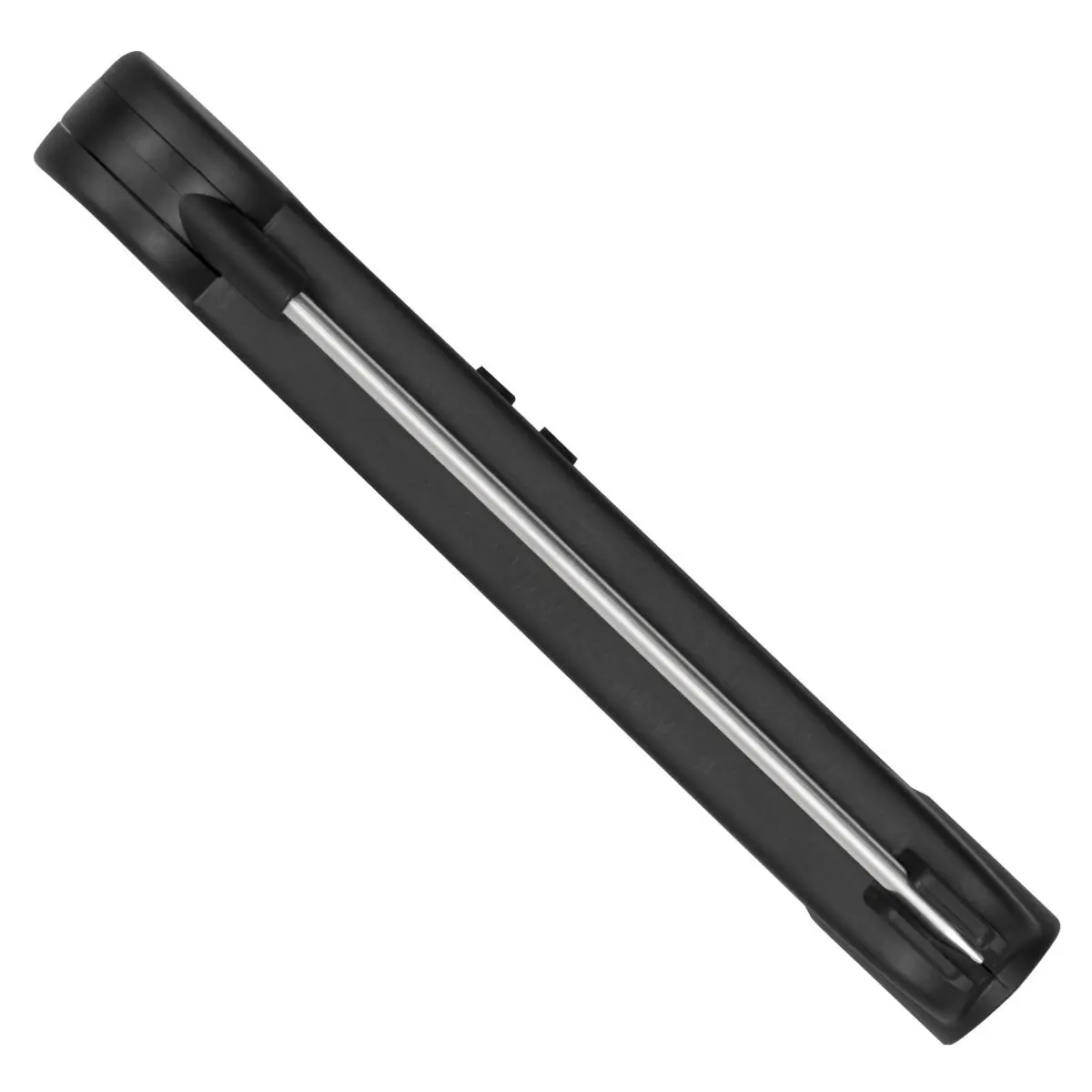

On the other hand, the infrared thermometer has a stainless steel needle sensor, so that the meter can also be used as a puncture, infrared thermometer. If the core temperature is measured by this method, the infrared thermometer can measure in the range between -20 ... 260°C / -4 ... 500°F. The unit of the penetration thermometer can be switched between °C and °F. The fast response time of 10 ms and high resolution of 0.1°C / 1.8°F complete the scope of the infrared thermometer. The thermometer is supplied with a CR2032 battery.

Highlights

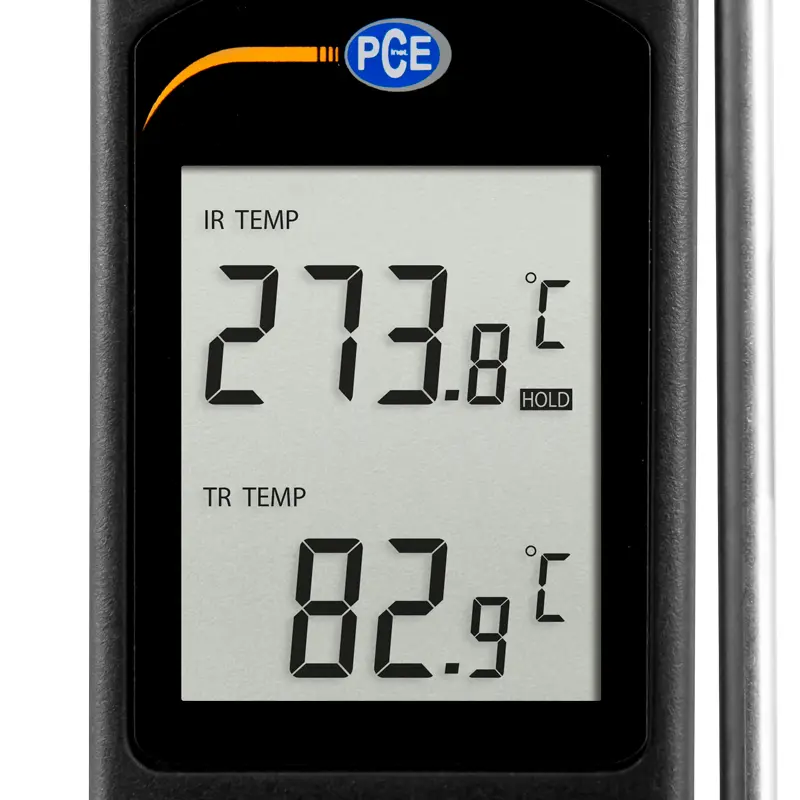

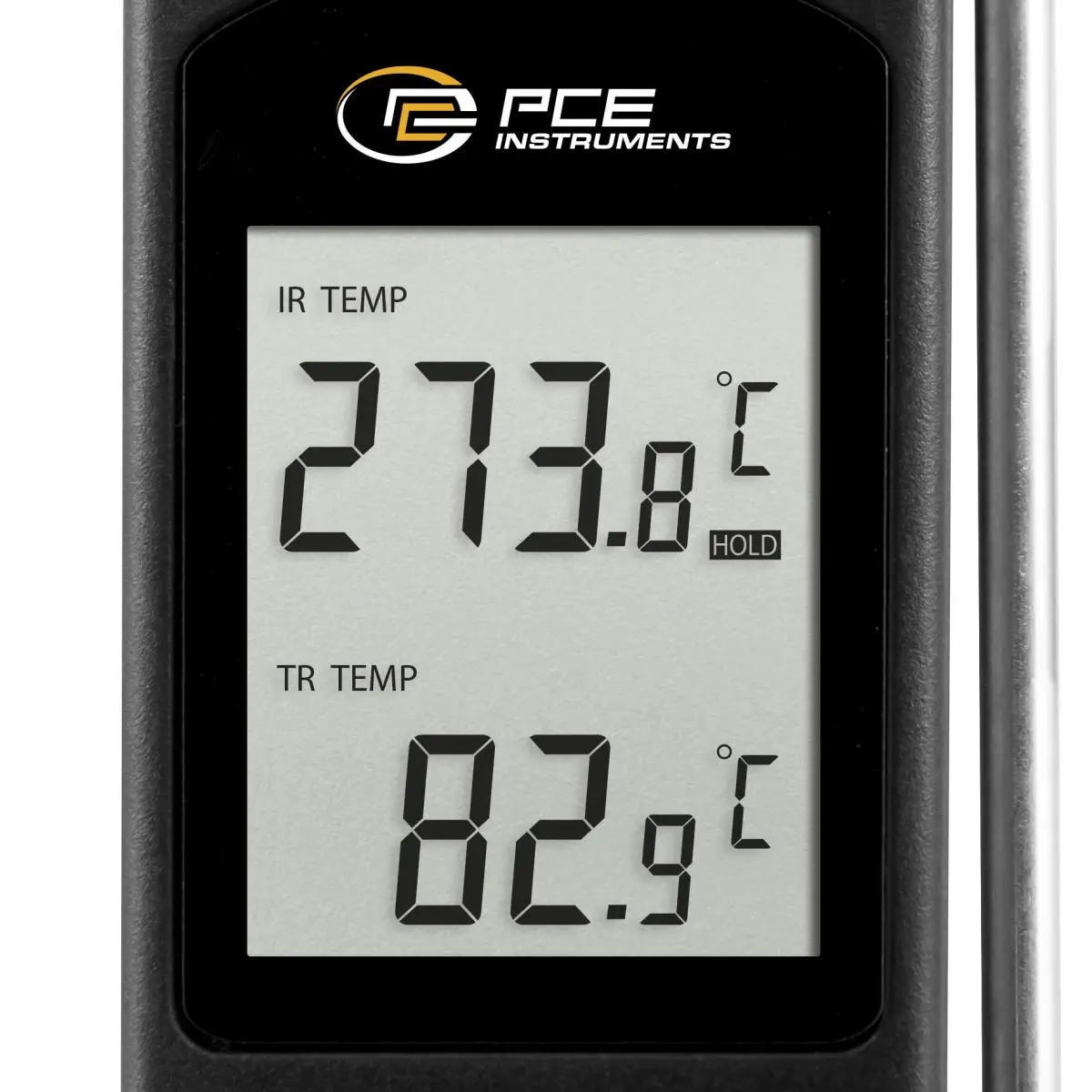

- Non-contact and contacting temperature measurement combined in one measuring device only
- Large measuring range
- Suitable for use in the food industry according to HACCP
- Emissivity adjustable (pre-set for food)
- Low response time
- Measurement hold function (Min./Max.)
- Continuous measurement function
- Waterproof, thus simple hygienic cleaning (flushable housing)
- Incl. ISO calibration certificate

Specification

Measurement type infrared
Measuring range-35 ... 330°C / -31 ... 626°F
Resolution0.1°C / 0.18°F
Accuracy-35 ... 0°C / -31 ... 32°F : ± 4°C / 7.2°F > 0°C / 32°F : ± 2% of rdg. ± 2°C / 3.6°F

Type of measurement Penetration sensor
Measuring range-20 ... 260°C / -4 ... 500°F
Resolution0.1°C / 0.18°F
Accuracy± 1% of of rdg. ± 1.5°C / 2.7°F

Optical resolution4: 1
EmissivityAdjustable 0.1 ... 1.0
Response time 10 ms
Spectral 8 ... 14 μm
Power supply 3.0V CR2032 battery
Operating conditions 0 ... 50°C / 32 ... 122°F, max. 80% rh
Weight About 100 g / < 1 lb
Dimensions 151 x 41 x 20 mm / 6 x 1.6 x 0.8 in

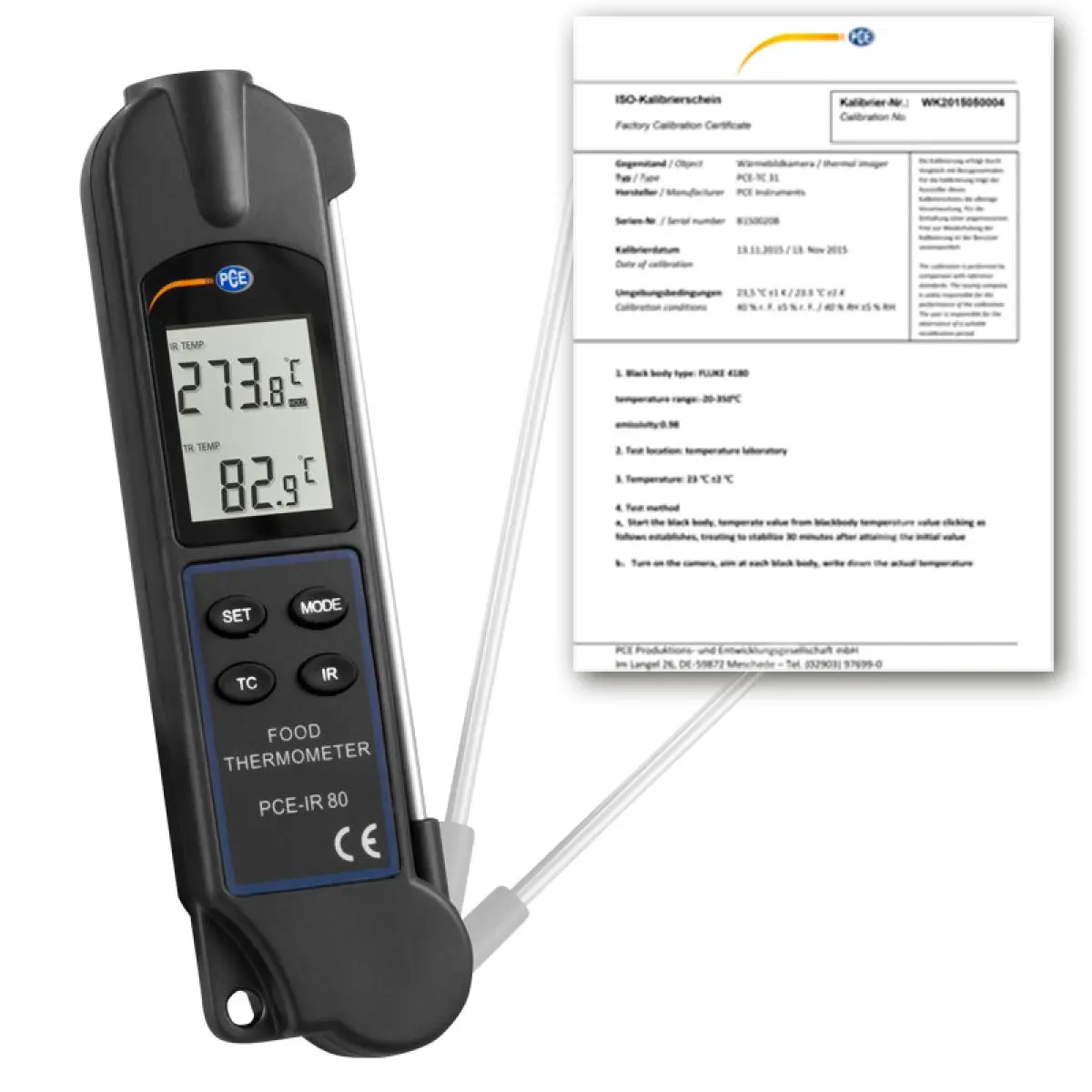

Delivery Scope

1 x PCE-IR 80 infrared thermometer
1 x User manual
1 x ISO calibration certificate
