Inspection Camera PCE-VE 200

Order no.: PCE-VE 200
GTIN (EAN): 4250348715104
£ 356.00
£ 427.20
Topseller
price ex. (VAT / delivery)
:
4250348715104
PCE-VE 200
Delivery time: 1-2 working days
1600 x 1200 pixels
Video borescope
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)

Description

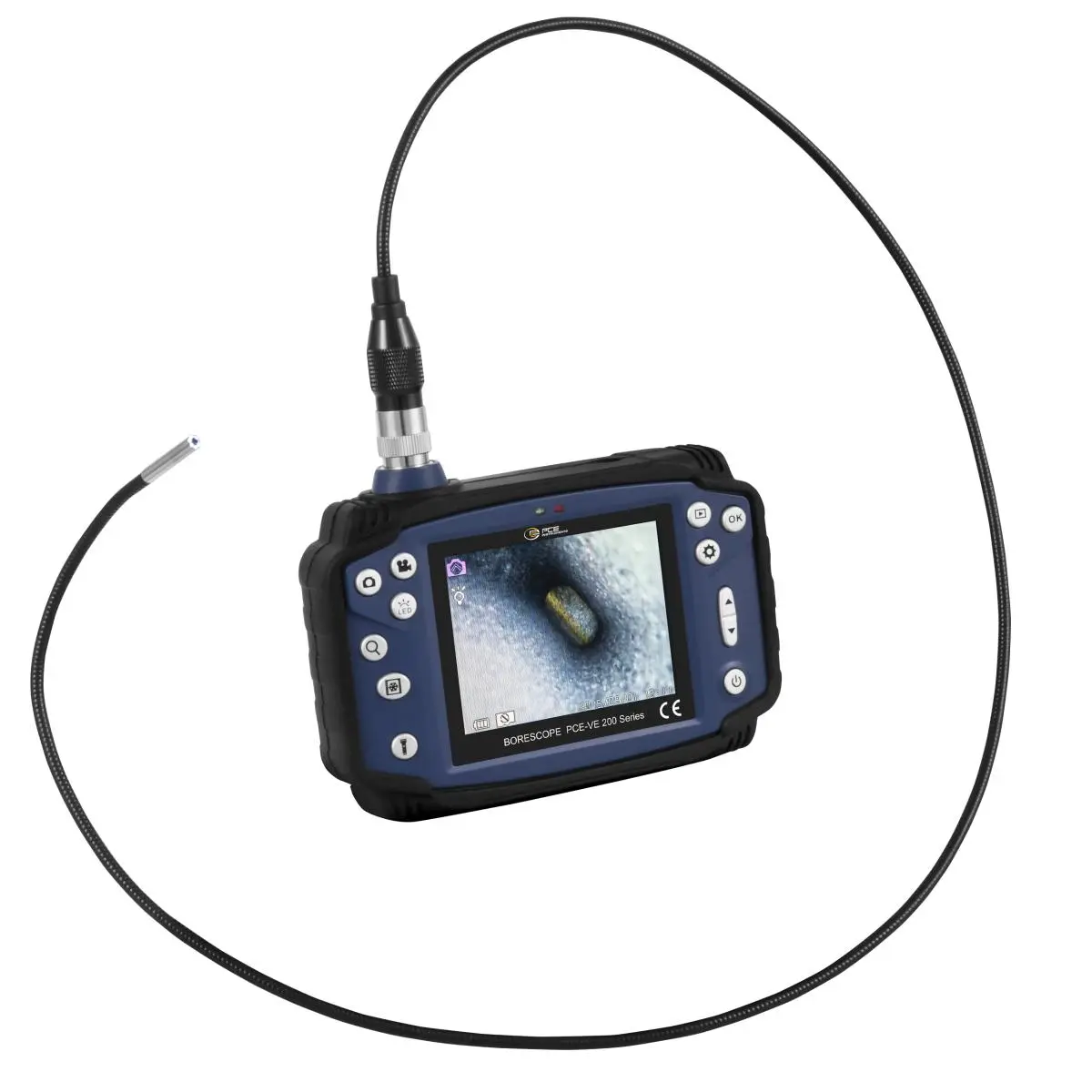

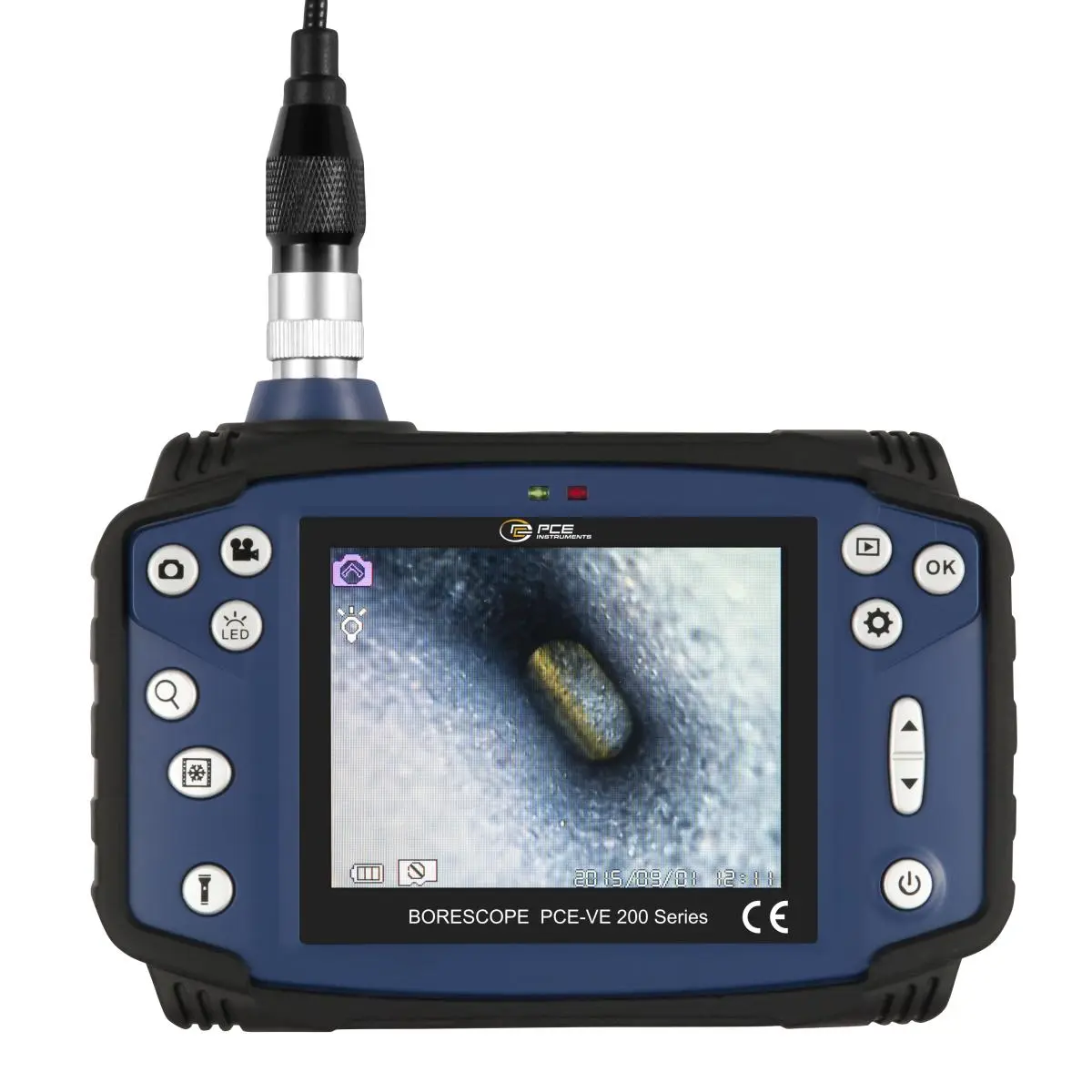

PCE-VE 200 Inspection Camera
Small diameter (ø 4.5 mm) industrial endoscopic video inspection camera with 1 m / 3.28 ft long cable provides excellent image quality at an affordable price





PCE-VE 200 is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This industrial borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

The borescope stores the recorded images and videos directly to a micro SD card memory. The 1 m / 3.28' cable length and 4.5 mm / 0.18" diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***




Highlights

- Waterproof camera head (IP67 protection class)
- 4.5 mm / 0.18 in diameter, semi-rigid
- 1 m / 3.28 ft cable length
- 180° image rotation
- 3.5" LCD display
- CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory
- Micro USB 2.0 and TV outputs

Specification

Technical Specification
Display 3.5" LCD
Resolution video function AVI (640 x 480)
Resolution image function JPEG (1600 x 1200)
Image rotation 180° rotation and mirror function
Freeze function yes
Zoom up to 4-times
Storage medium Micro SD card
Menu languages German
English
Spanish
French
Russian
Japanese
simplified Chinese
traditional Chinese

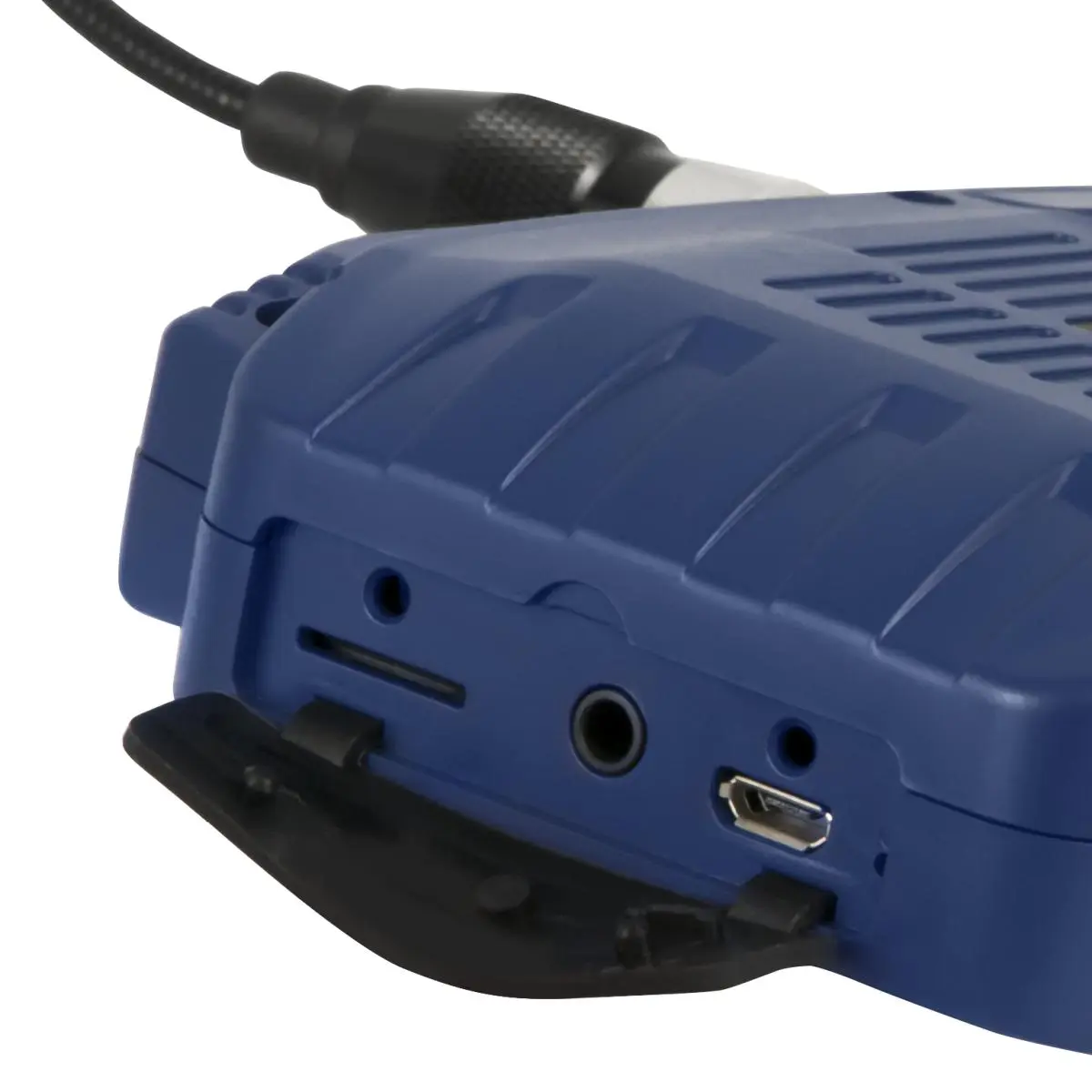

Interfaces Micro USB 2.0, TV-output, Micro SD card slot
TV-output PAL
Power supply Li-Ion battery
Battery capacity 2600 mAh
Operating conditions -10 ... +40 °C / 14 ... 104 °F, rel. humidity <75 %
Technical Specification of Video Borescope PCE-VE 200 (Borescope cable)
Cable diameter 4.5 mm / 0.17"
Image sensor 1/8" CMOS chip
Resolution camera 640 x 480 pixel
Camera lighting 6 white LEDs (intensity can be set)
Field of view / angle of view 90 °
Field of view depth 15 ... 100 mm / 0.59 ... 3.94"
Length of camera hose 1 m / 3ft 3"
Pushcable semi-flexible (semi-rigid spiral)
Environmental conditions of Video Borescope PCE-VE 200

Operating temperature

Probe

In air: -10 … +50 °C  / 14 ... 122 °F
In water: +5 … +50 °C  / 41 ... 122 °F

Main unit

In air: -10 … +50 °C   / 14 ... 122 °F

Relative humidity

Probe and main unit

15 ... 90 %

Fluid resistance

Probe and main unit

Machine oil, light oil or cooking salt solution 5 %

Protection against penetration

Probe

Water, oil and dust, according to protection class IP67

Main unit

Rain and wind (battery compartment must be closed)
Not under water

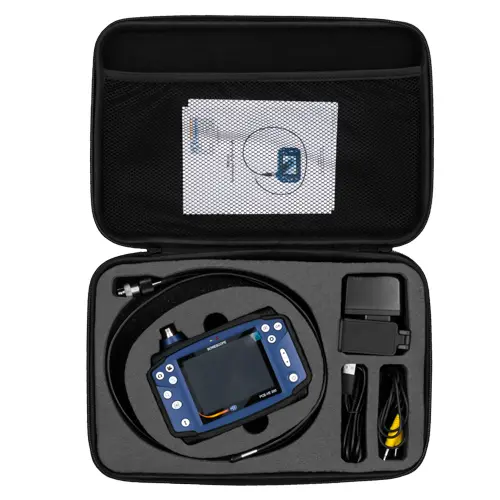

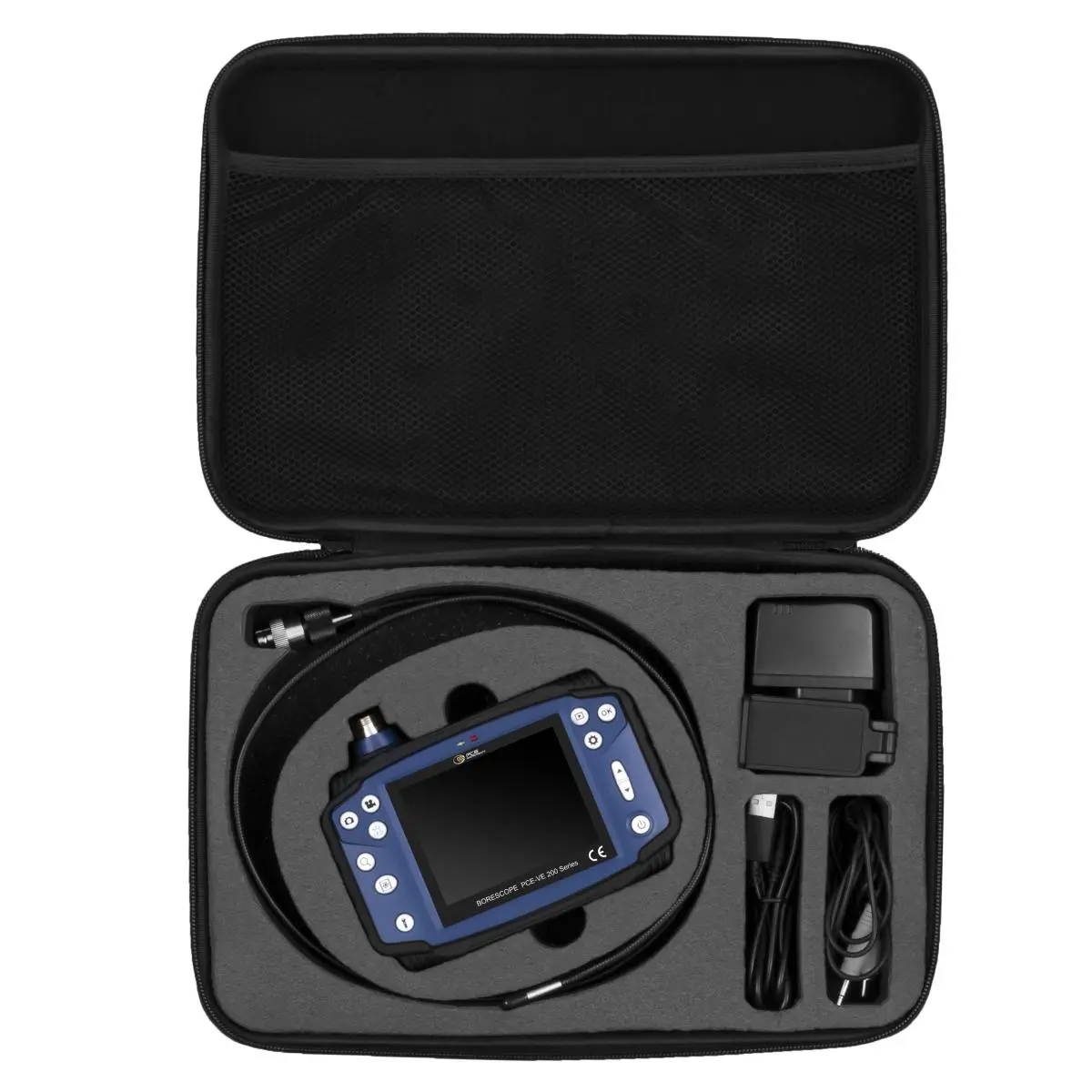

Delivery Scope

1 x PCE-VE 200 inspection camera
1 x Wall charger with detachable USB to Micro USB cable
1 x Video output cable
1 x User manual
