Insulation Tester PCE-IT55

Order no.: PCE-IT55
GTIN (EAN): 4250348700988
£ 200.00
£ 240.00
price ex. (VAT / delivery)
:
4250348700988
PCE-IT55
Delivery time: 1-2 working days

Description

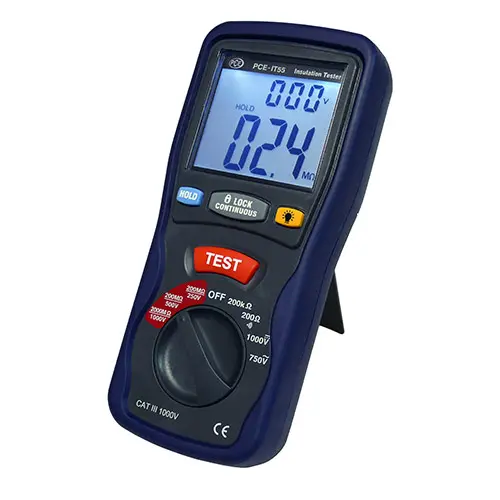

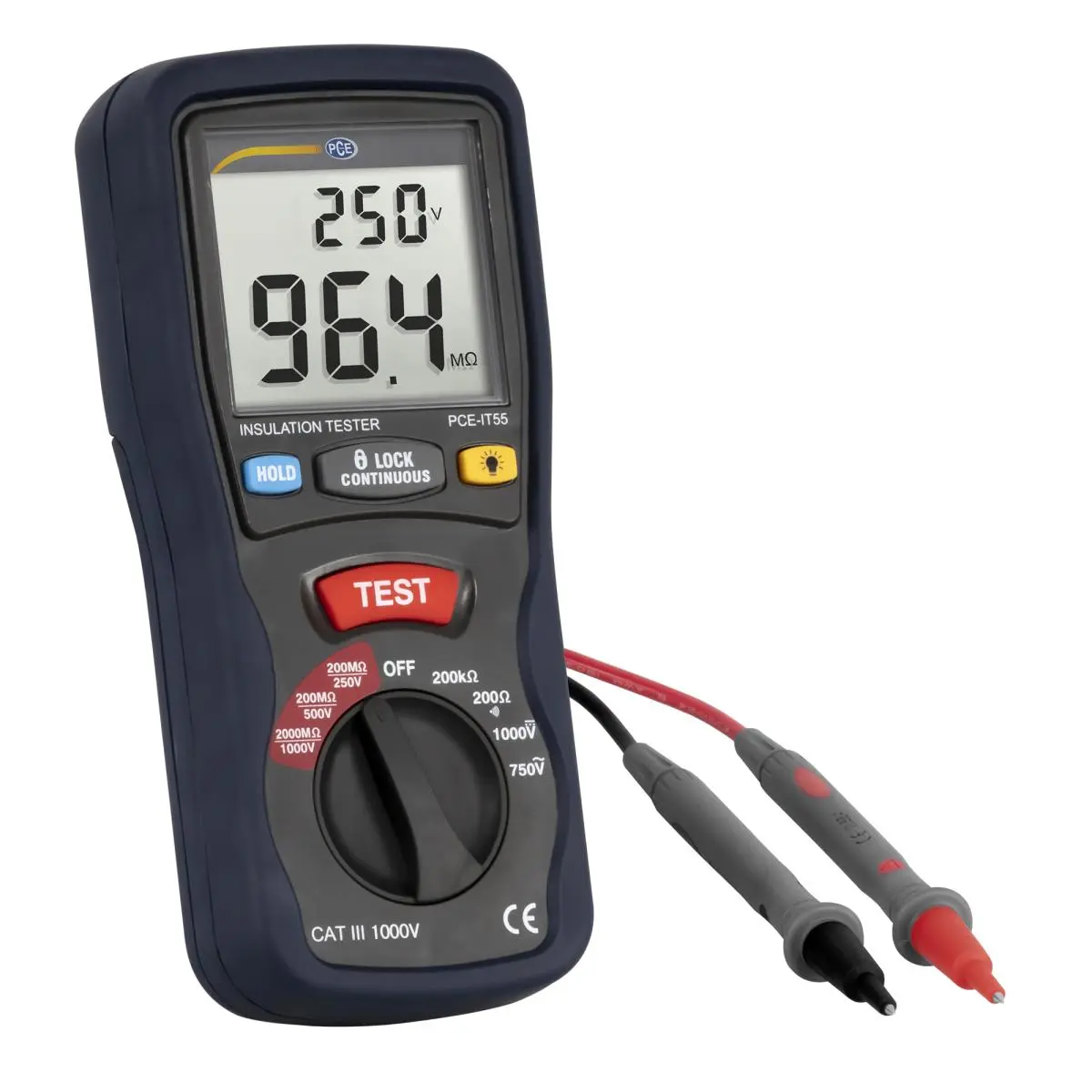

Insulation Tester PCE-IT 55
CAT III 1000V / For insulation resistance up to 2000 MΩ

The PCE-IT 55 Insulation Tester determines insulation resistance up to a maximum of 2000 MΩ (for auxiliary voltages of 250, 500 and 1000V). This Insulation Tester also offers the ability to measure alternate and continuous currents up to a maximum 750V / 1000V and resistance up to 2 kΩ. Includes test current and a warning whistle. The device meets with these standards: DIN 57 411 part 1 / VDE 0411 part 1, protective measures for electronic devices (IEC1010-1) and DIN VDE 0413 (Insulation Tester). It comes calibrated from the manufacturer and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations.


Highlights

- Meets the standards: IEC1010-1, CAT III 1000V
- Has a large dual, backlit display
- Individual or prolonged measurements can be made by pressing the "lock" key
- Indicates overload and battery level
- Auto shut of to conserve battery power
- Comes ready to use in its own carrying case
- Optional ISO calibration certificate

Specification

Measurement ranges:   Voltage AC
                                  Voltage DC
                                  Resistance
                                  Insulation resistance  		0 ... 750V
0 ... 1000V
0 ... 200 Ω / 200 ... 2000 Ω
0 ... 200 MΩ / 200 ... 2000 MΩ
Resolution                   Voltage AC
                                  Voltage DC
                                  Resistance
                                  Insulation resistance		1V
1V
0.1 Ω / 1 Ω
100 kΩ to1 MΩ
Accuracy                     Voltage AC
                                  Voltage DC
                                  Resistance
                                  Insulation resistance		±1.2% ± 10 digits
±0.8% ± 3 digits
±1.0% ± 2 digits
±3.5% ± 5 digits
Test voltages 250V - 200 MΩ
 500V - 200 MΩ
1000V - 2000 MΩ
Test currentWhistle: ≤40 Ω, test current ≤200-mA
Power6 AA batteries
Operating conditions0 ... 40°C / 32 ... 104°F,  <80% r.h.
Dimensions200 x 92 x 50 mm / 7.9 x 3.6 x 2 in
Weight700 g / 1.5 lbs
StandardsIEC10101, CAT III 1000V

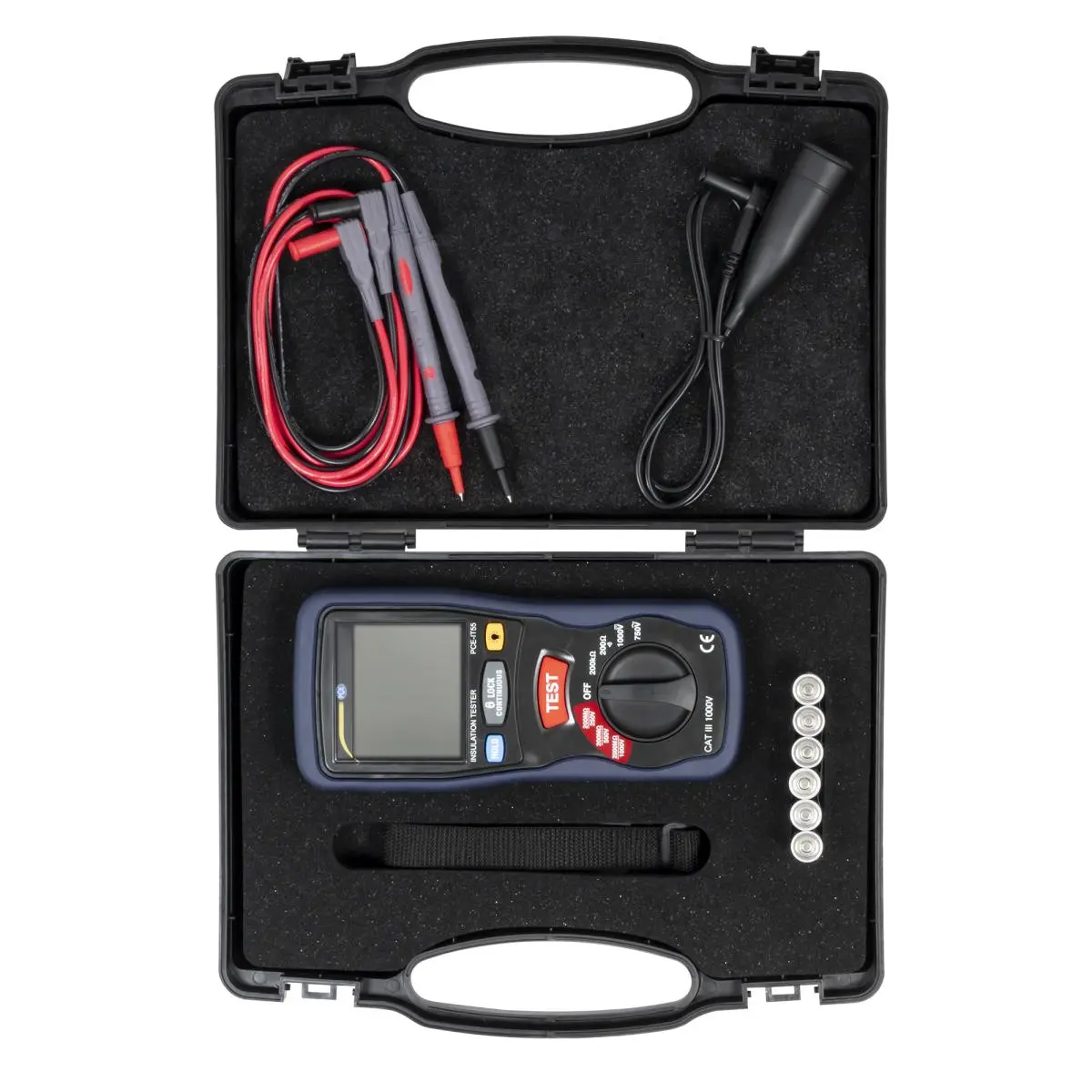

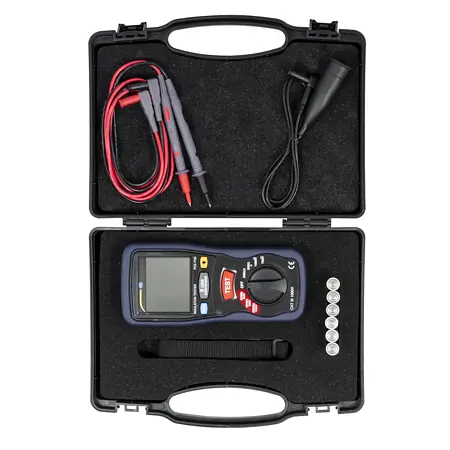

Delivery Scope

1 x PCE-IT 55 Insulation tester

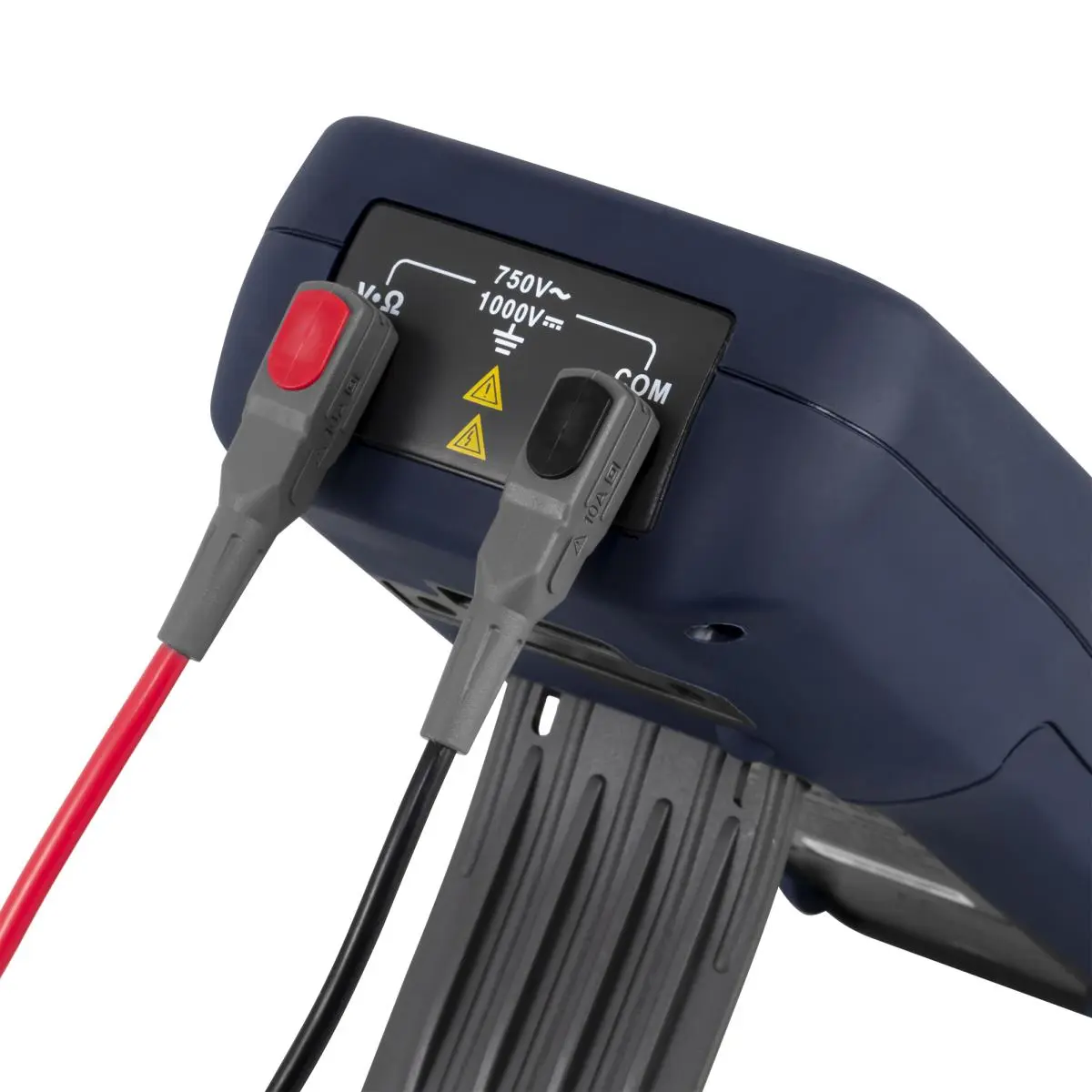

1 x Test cables

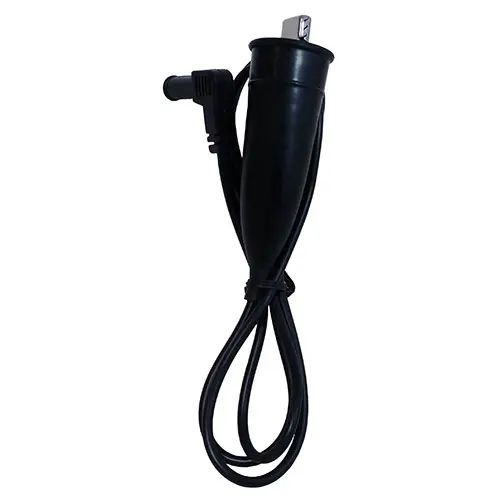

1 x Extractable clamp with 1 m / 3.3 ft cable
6 x Batteries
1 x Carrying case
1 x User's manual (see image)
