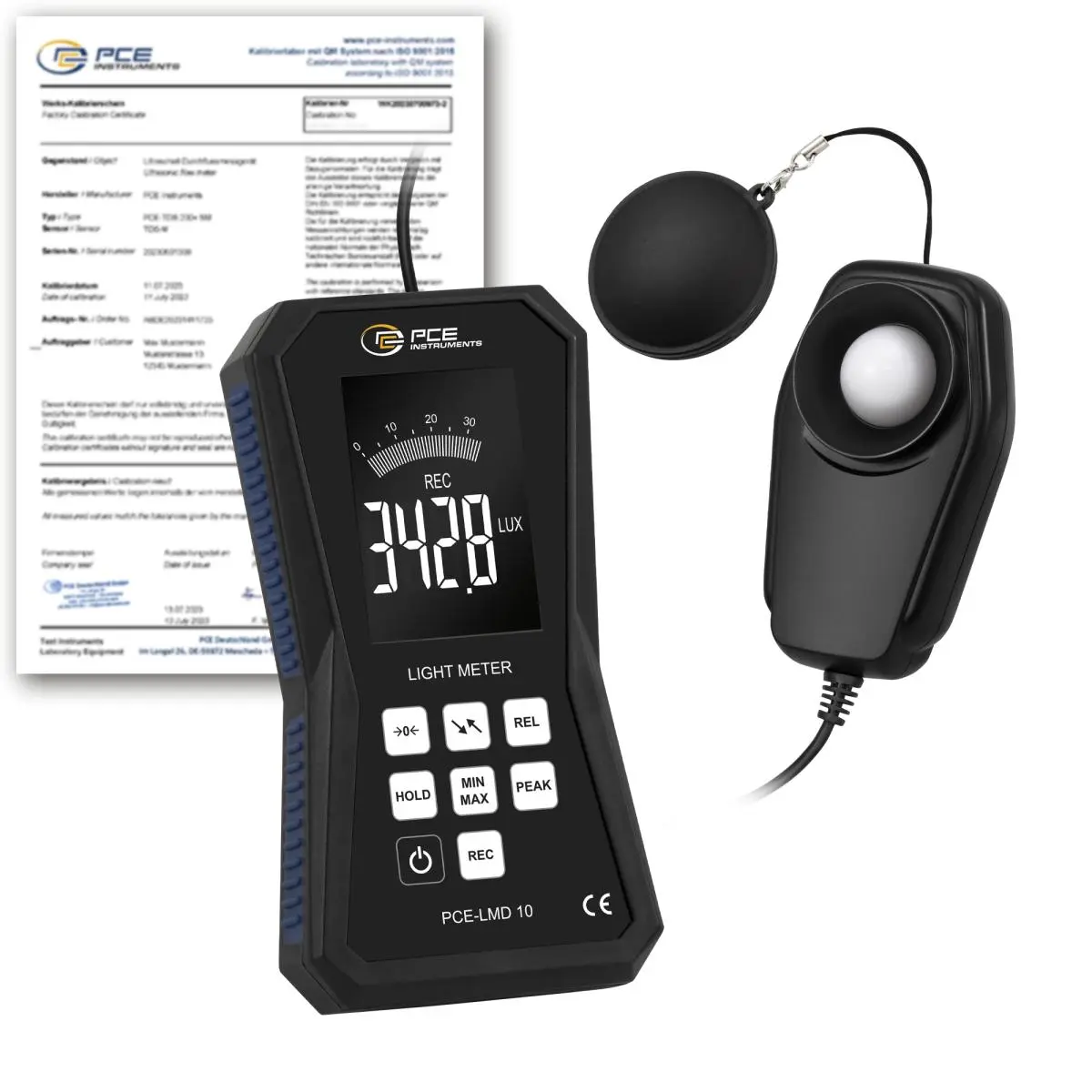

Light Meter PCE-LMD 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-LMD 10-ICA

GTIN (EAN):

Accessory

ISO Calibration Certificate for Lux Meters

£ 206.00

Description

Light meter with external probe / Sampling rate 4 Hz / Measuring range 0 ... 400 kLux / Micro-USB interface / Units: lux, footcandle / Incl. ISO calibration certificate

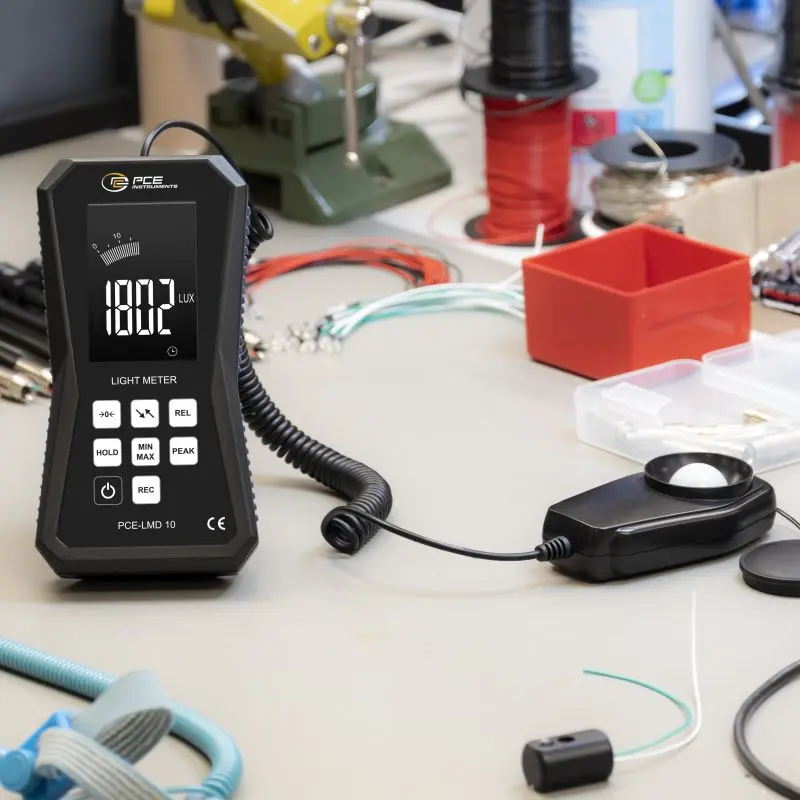

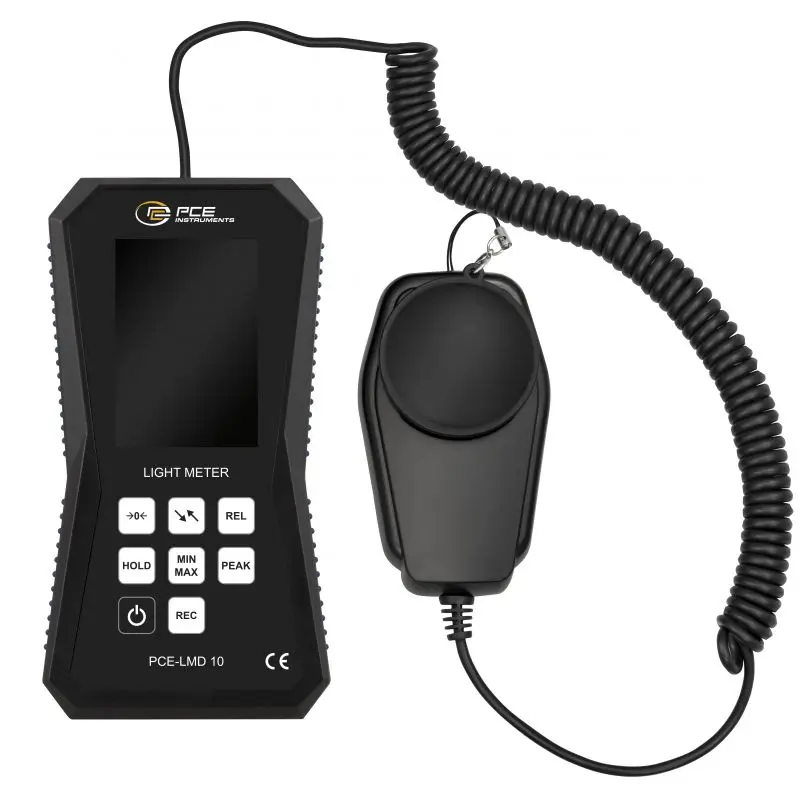

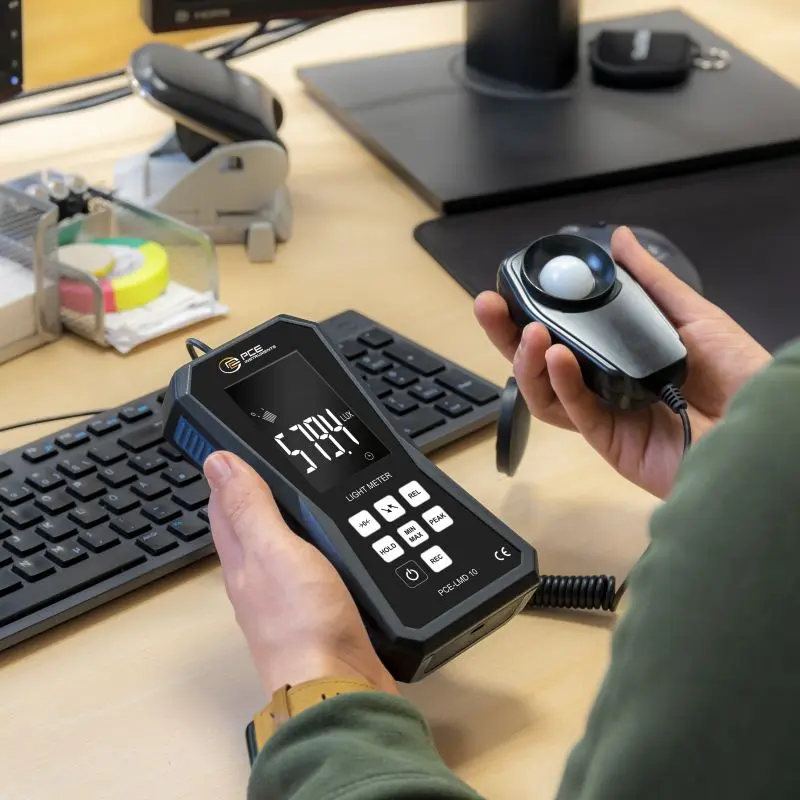

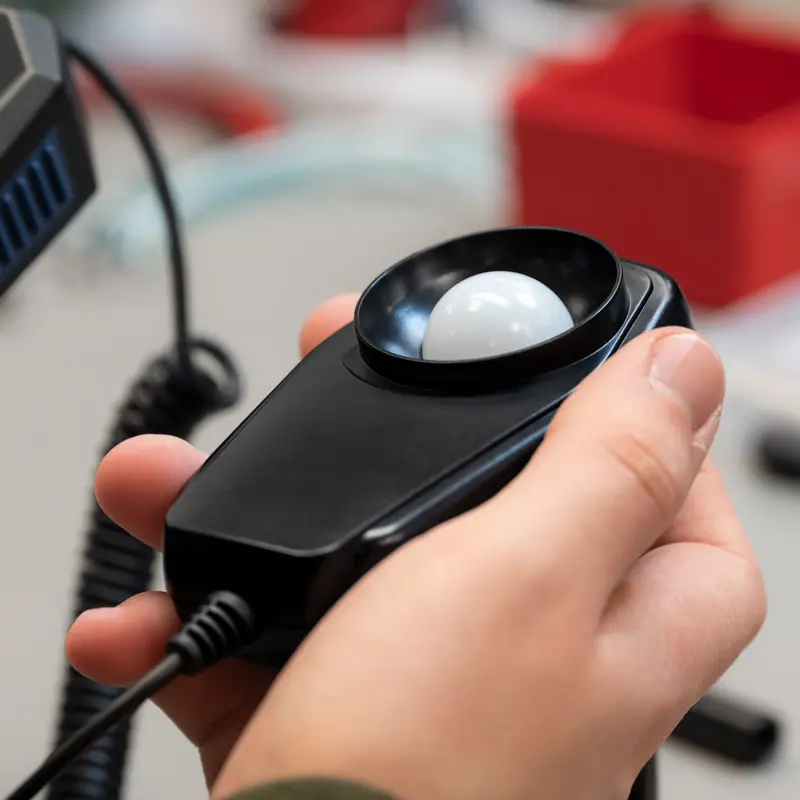

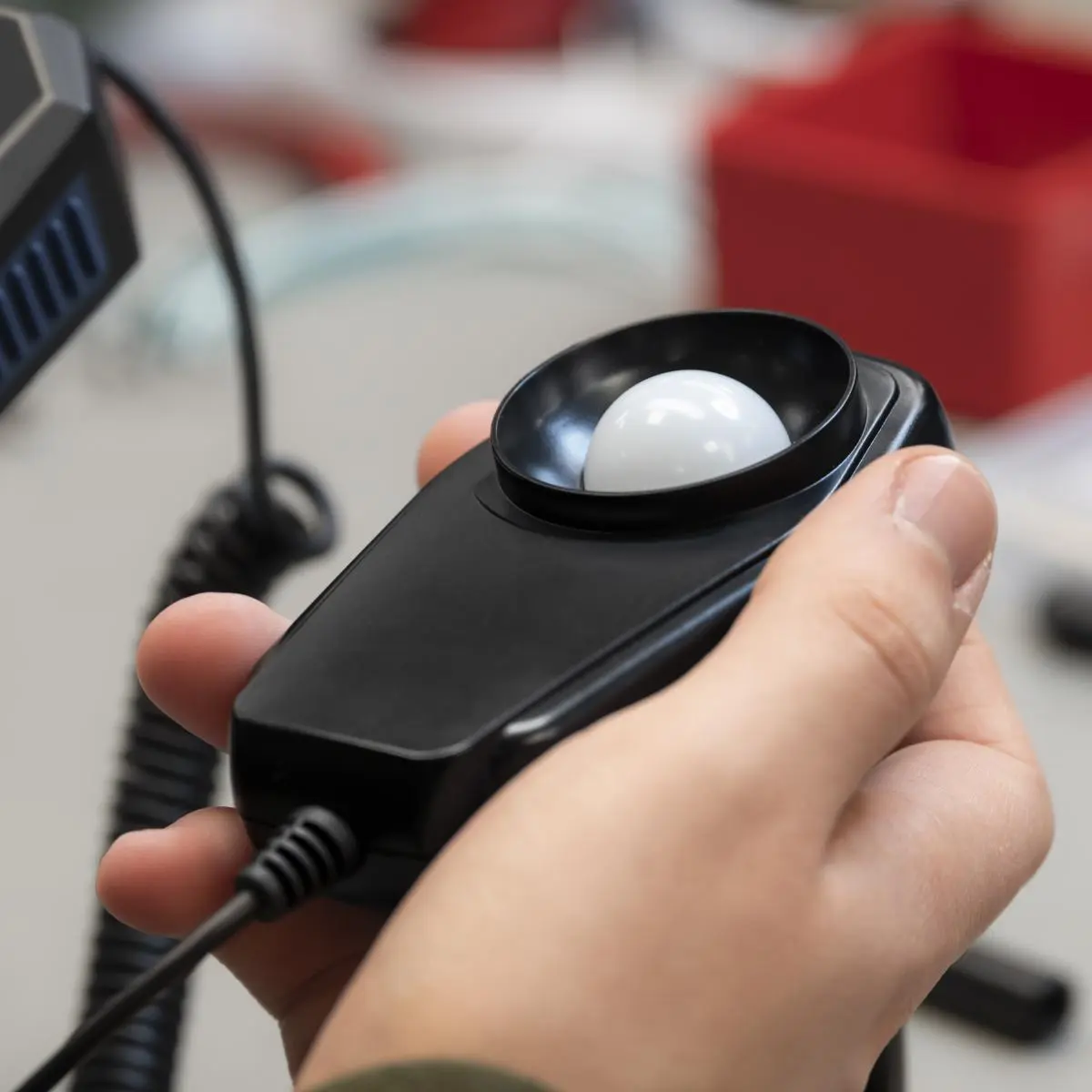

The light meter has a large measuring range of 0 … 400 lux. The illuminance is measured using an external silicon photodiode with a spectral filter. This means that the light meter can be positioned appropriately for every measuring task. The measured values can be displayed by the light meter in lux and in footcandles. In addition to the normal measured value display on the light meter, the measured value is also displayed on a scale.

The light meter has additional functions so that an analysis of the illuminance can be carried out. With the additional functions of the light meter, the largest and smallest measured value can be output using the "MIN" and "MAX" buttons. In addition, the displayed measured value can be set in relation to a reference using the "REL" button. With the "PEAK" function, the light meter records peak values. The light meter has a sampling rate of 10 µs.

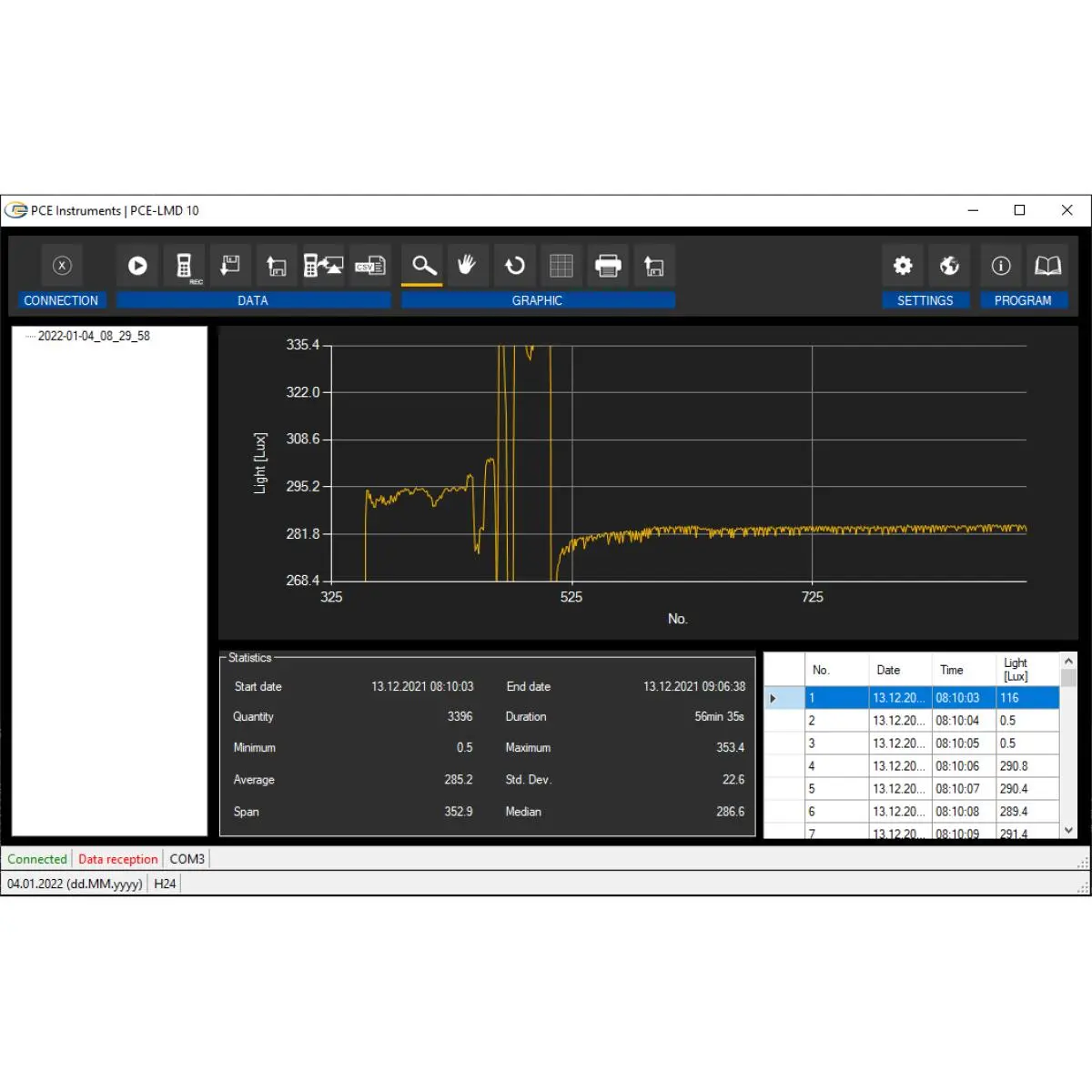

The light meter also has a data memory of 32,000 measured values. The measured values from the light meter can be read out and analyzed on the PC after a measurement. A live measurement on the PC with the light meter is also possible. The data from the light meter can be exported in CSV format for further processing.

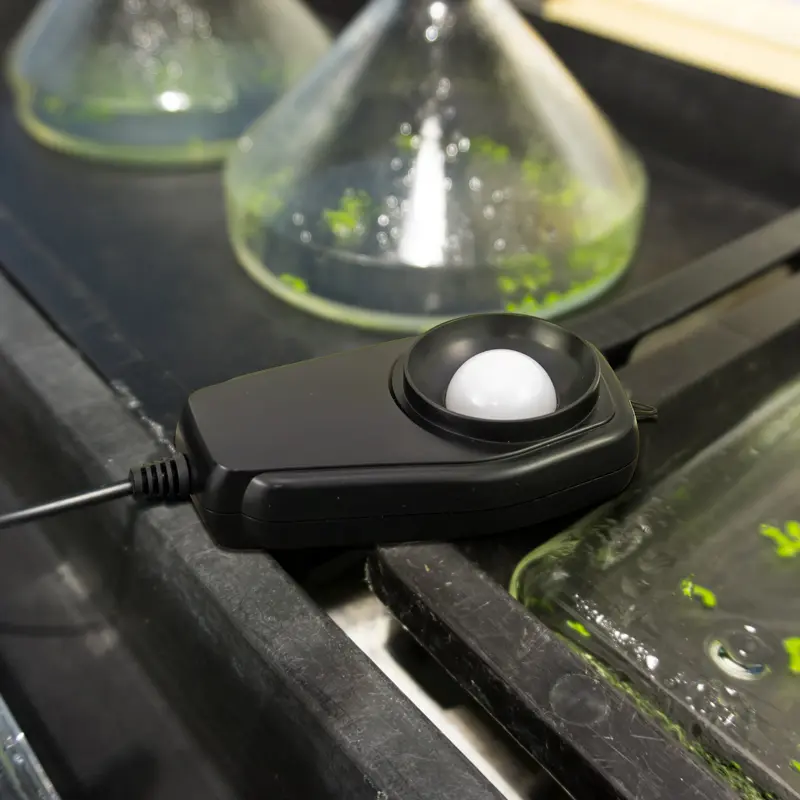

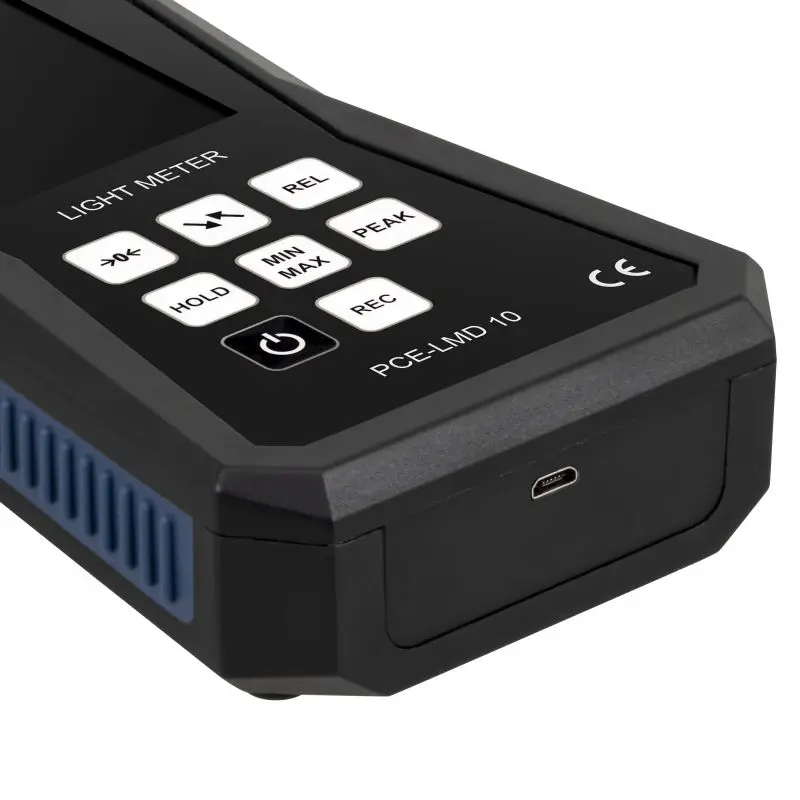

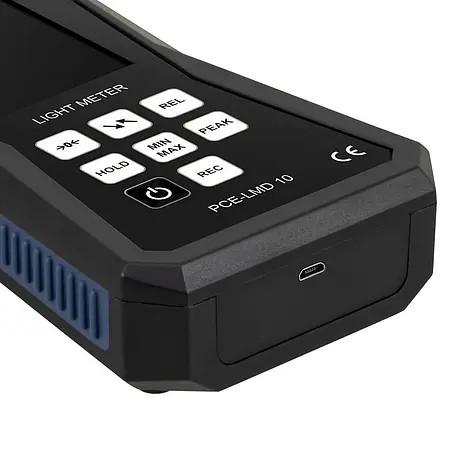

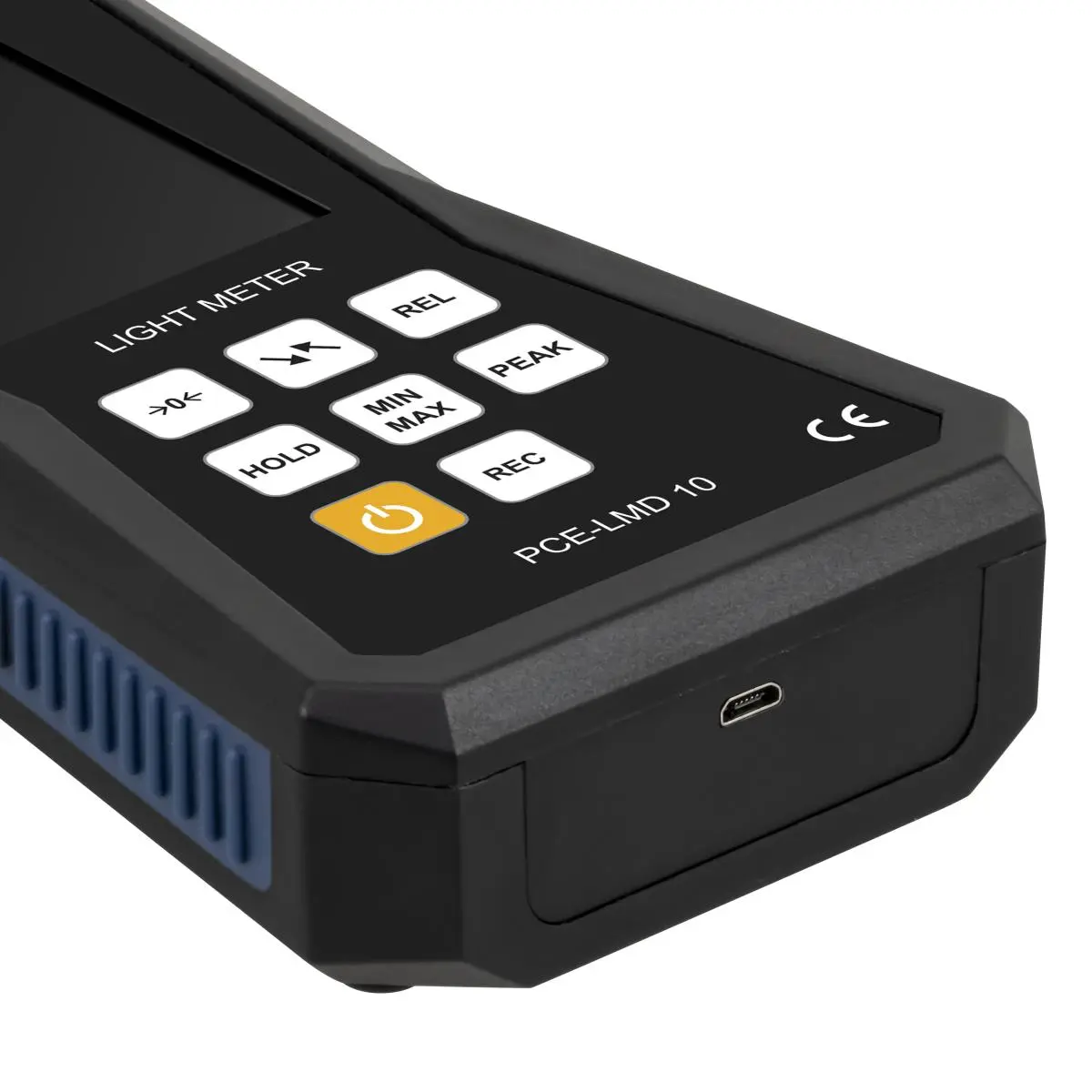

The built-in 3.7V Li-Ion battery can be recharged from the light meter via a 5V DC connection via the micro-USB interface. Due to its measuring range and its various functions, the light meter is used to control the lighting in greenhouses, at the workplace in production workshops or in photo studios, for example. The light meter is equipped with an ISO calibration certificate.

Highlights

- Rechargeable battery
- Micro USB interface
- Measuring range 0 ... 400.0 kLux
- Lux and footcandle units
- LCD display with backlight
- Incl. ISO calibration certificate

Specification

Measuring range	1000 ... 400,000 Lux
	0.0 ... 999.9 Lux
Resolution	1 Lux
	0.1 Lux

Measuring range (footcandle)	1000 ... 400,000 fc
	100 ... 999 fc
	0.00 ... 99.00 fc
Resolution	1 fc
	1 fc
	0.01 fc

Accuracy	±5 % of measured value ±10 digits with standard light A
	±10 % of measured value ±10 digits
Repeatability	±2 %
Sampling rate	4 Hz
Sampling rate peak hold	10 µs
Sensor	silicon photodiode with spectral filter
Battery status display	battery symbol appears,
	when the battery voltage is too low.
Interface	Micro-USB
Data storage	32,000 measurement sets
Power supply battery	3.7 V Li-Ion battery
Power supply USB	5 V DC, 1 A
Operating conditions	-10 … 50 °C / 14 ... 122°F / <80 % RH,
	non-condensing
Storage conditions	-20 … 50 °C / -4 ... 122° / <80 % RH,
	non-condensing
Dimensions	meter: 162 x 88 x 32 mm / 6.4 x 3.5 x 1.3"
	sensor: 102 x 60 x 25 mm / 4 x 2.4 x 1"
Weight	ca. 320 g / 11.3 oz

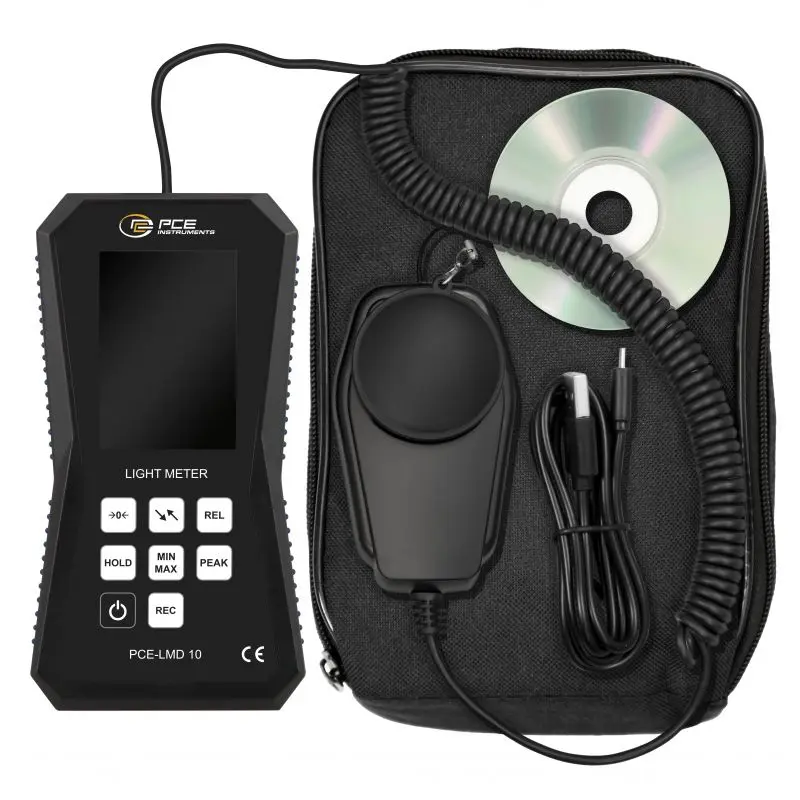

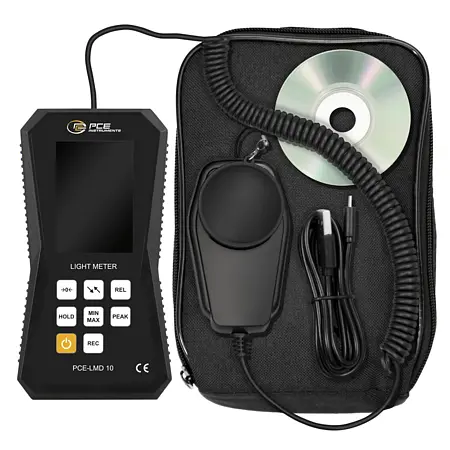

Delivery Scope

1 x Light meter PCE-LMD 10-ICA
1 x USB Cable
1 x PC software
1 x Service bag
1 x Instruction Manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
