PCE-917 Differential Pressure Manometer
Portable handheld meter measures differential pressure from ± 5 to 7000 mbar (± 0.05 / 0.1 to 101.5 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory

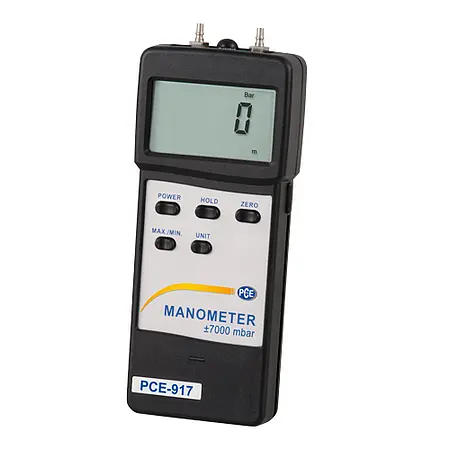

PCE-917 is a portable handheld digital differential pressure manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-917 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.

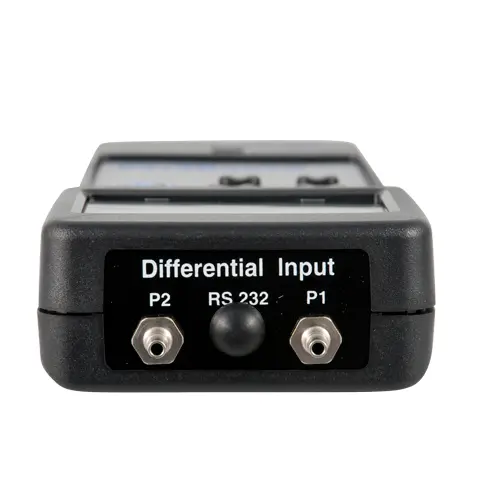

The PCE-917 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn't have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).
mbar | Resolution: 5 Range: ± 7000 |
psi | Resolution: 0.05 / 0.1 Range: ± 101.5 |
inH2O | Resolution: 2 Range: ± 2800 |
mH2O | Resolution: 0.05 Range: ± 70.00 |
inHg | Resolution: 0.1 Range: ± 206.0 |
mmHg |
Resolution: 5 Range: ± 5250 |
Torr | Resolution: - Range: - |
Pa / kPa | Resolution: - Range: - |
atm | Resolution: 0.005 Range: ± 6.905 |
kg/cm² | Resolution: 0.005 Range: ± 7.000 |
Accuracy | ± 2% (full range) |
Reproducibility | ± 1% |
Response time | 0.8 second |
Interface | RS-232 port |
Power supply | 1 x 9V block battery |
Housing material | Plastic |
Housing dimensions | Approx. 180 x 72 x 32 mm / 7.09 x 2.84 x 1.26 in |
Weight | Approx. 210 g / < 1 lb |
Warning: | ***Exceeding the maximum pressure range will destroy the sensor*** |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
2 x tubes for use with PCE-series pressure metersEach tube is 2 m long, with an inner diameter of 3.5 mm
Price excl. VAT &. delivery
2 year Warranty
Certificate, e.g. for compliance with your DIN ISO 9000. For this purpose, we send the pressure gauge to an independent calibration laboratory. The measured values, the serial number and you as the client are recorded on this ISO certificate.
