Order no.: PCE-HVAC 2

Multifunction Manometer PCE-HVAC 2

£ 291.00
£ 349.20
:
4250348716026
PCE-HVAC 2
price ex. (VAT / delivery)
Digital
Handheld
0 to 5000 Pa
Yes (integrated)
Yes (USB)
Delivery time: 1-2 working days

Description

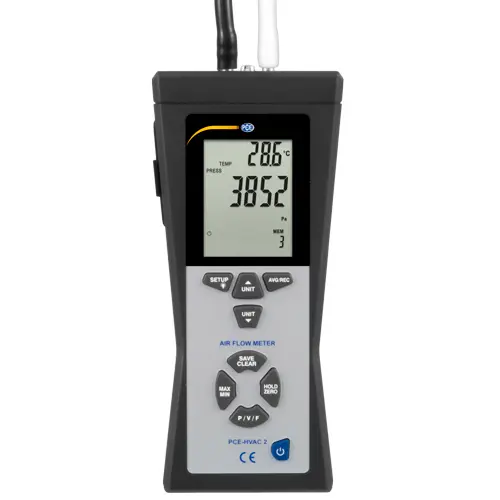

 PCE-HVAC 2 Multifunction manometer with a pitot tube
Measures air velocities up to 80 m/s (178.66 mph) / Zero, minimum, maximum, average, record and hold functions / Stores to memory up to 99 measurement values per parameter





PCE-HVAC 2 is a high-velocity multifunction manometer with a pitot tube. This portable manometer can be used to determine air speed, air pressure, air flow, differential pressure and ambient temperature. The pitot tube allows access through tiny openings to take measurements in small pipe systems and other confined spaces.

- Measures air velocities up to 80 meters per second (m / s)
- Zero, minimum, maximum, average, record and hold functions
- Stores to memory up to 99 measurement values per parameter

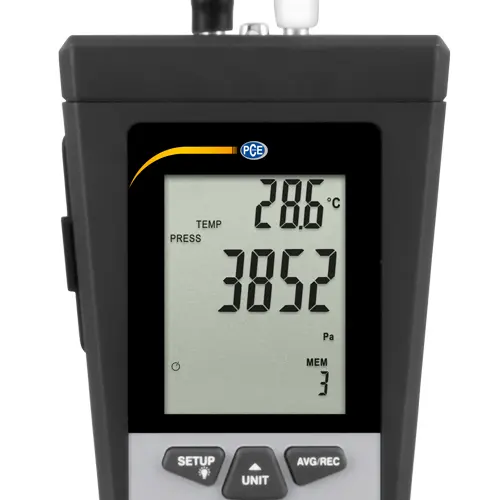

Stored measurement values ​​can be called or read out later on the device itself or on the computer. The transfer to a computer works easily via a USB interface. A real-time measurement can also be carried out via this interface. When a USB connection is established, the measured values ​​are displayed on the computer screen using the downloadable PC-compatible software. In addition to an ergonomic design, the anemometer boasts a backlit display that enables use in low-light conditions. The PCE-HVAC 2 has a thread on the bottom, so the device can be mounted on a tripod. The measuring hoses are inserted at the top of the device allowing for connection to the pitot tube.




Highlights

- Measures air speed, air pressure, airflow
- Displays ambient temperature
- Zero adjustment function
- MIN, MAX, AVR, REC and HOLD functions
- Backlit LCD
- Dual display on the LCD
- Suitable for high flow rates
- Internal memory for 99 measurement values per parameter
- USB cable included
- Downloadable PC-compatible software
- Real-time measurement
- Pitot tube measurement
- Differential pressure and standard measurement
- 2 connecting hoses (each 85 cm / 33.46 in)
- Adjustable measuring units (adjustable)
- ISO calibration available - see accessories for details

Specification

Air pressure
Accuracy ± 0.3% of reading at 25°C / 77°F
Repeatability ± 0.2% (± 0.5% of reading)
Linearity / hysteresis ± 0.29% of reading
Pressure range 5000 Pa
Maximum pressure 10 psi
Response time Typically 0.5 seconds
Measuring range 0.7252 psi
50.00 mbar
20.07 inH2O
509.8 mmH2O
5000 Pa
Resolution 0.0001 psi
0.01 mbar
0.01 inH2O
0.1 mmH2O
1 Pa
Selectable units Mbar, psi, inH2O, mmH2O, or Pa
Air speed
Measuring range 1 ... 80 m / s
200 ... 15733 ft / min
3.6 ... 288 km / h
2.24 ... 178.66 MPH
2 ... 154.6 knots
Resolution 0.01 m / s
1 ft / min
0.1 km / h
0.01 MPH
0.1 knots
Accuracy At m / s: ± 2.5% of measured value
At ft / min, Km / h, MPH and Node: Depending on the air speed and the size of the air duct
Flow rate
Measuring range 0 ... 99999 m³ / min
0 ... 99999 ft³ / min
Resolution 0.001 ... 100 m³ / min
0.0001 ... 100 ft³ / min
Temperature
Measuring range 0 ... 50°C / 32 ... 122°F
Resolution 0.1°C / 0.18°F
Accuracy ± 1°C / ± 1.8°F
General
Diameter of pitot tube 8 mm / 0.3 in
Length of measuring hoses Each 85 cm / 33.46 in
Total length of the tube 335 mm / 13.18 in
Low battery indicator Yes
Power supply 9V block battery
Operating conditions 0 ... 50°C / 32 ... 122°F / <90% RH non-condensing
Storage conditions -10 ... 60°C / 14 ... 140°F / <90% RH non-condensing
Internal memory 99 measured values ​​per parameter
Interface USB
Display LCD
Housing material ABS plastic
Dimensions Device: 206 x 95 x 45 mm /  8.11 x 3.7 x 1.7 in
Pitot tube: 335 mm / 13.18 in - Ø 8 mm / 0.31 in
Weight (incl. pitot tube, battery and measuring hoses) 600 g / 1.3 lbs

Delivery Scope

1 x Multifunction Manometer PCE-HVAC 2
1 x Pitot tube (angled)
1 x USB cable
1 x Carrying case
1 x Software
2 x Connecting hose (85 cm each)
1 x 9 V block battery
1 x Instruction manual
