Order no.: PCE-VE 1014N-F

NDT Test Instruments PCE-VE 1014N-F


£ 2,667.00
£ 3,200.40
PCE-VE 1014N-F
price ex. (VAT / delivery)
No
4.5 mm
1.5 m
800 x 480 pixels
2-way
Image, Video, Audio
Yes (SD card)
Yes (USB)
Delivery time: 1-2 working days

Description

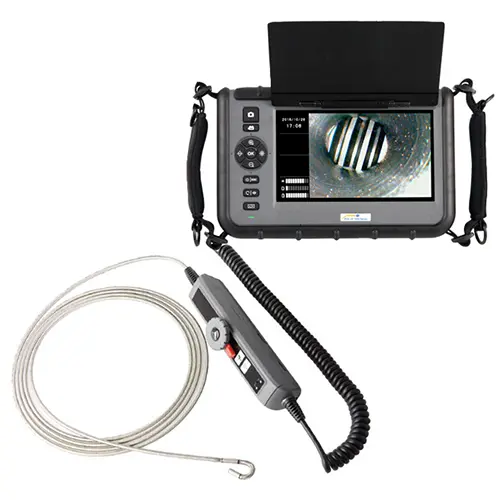

NDT Test Instruments PCE-VE 1014N-F / 2-Way head / Image and video recordings / Large 7" LCD display for detailed viewing / Recording on SD card / Images rotatable 360° (90° steps) / Bright LEDs on the camera head / Camera head diam.: 4.5 mm / 0.18 in

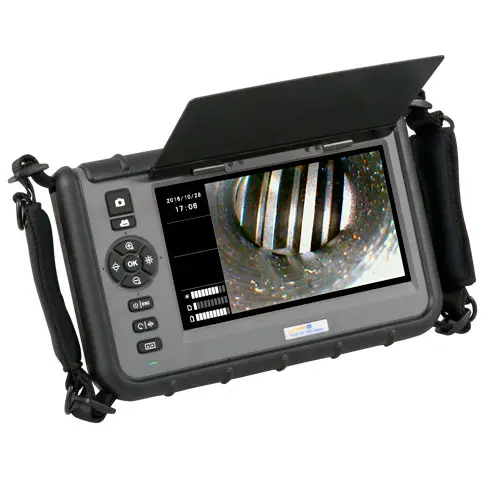

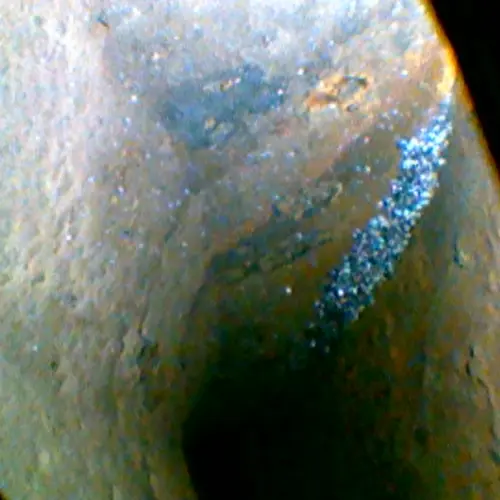

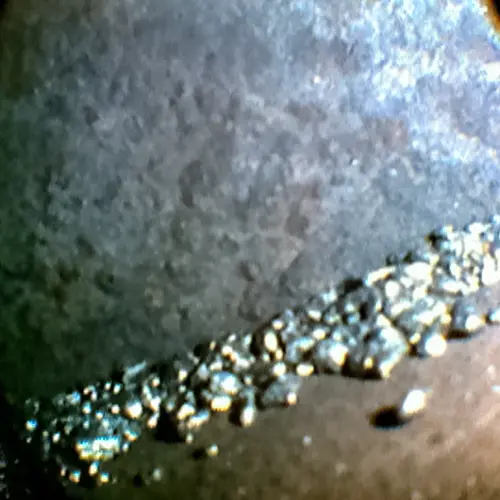

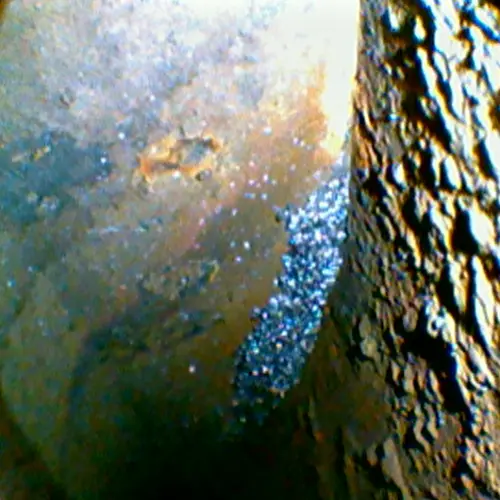

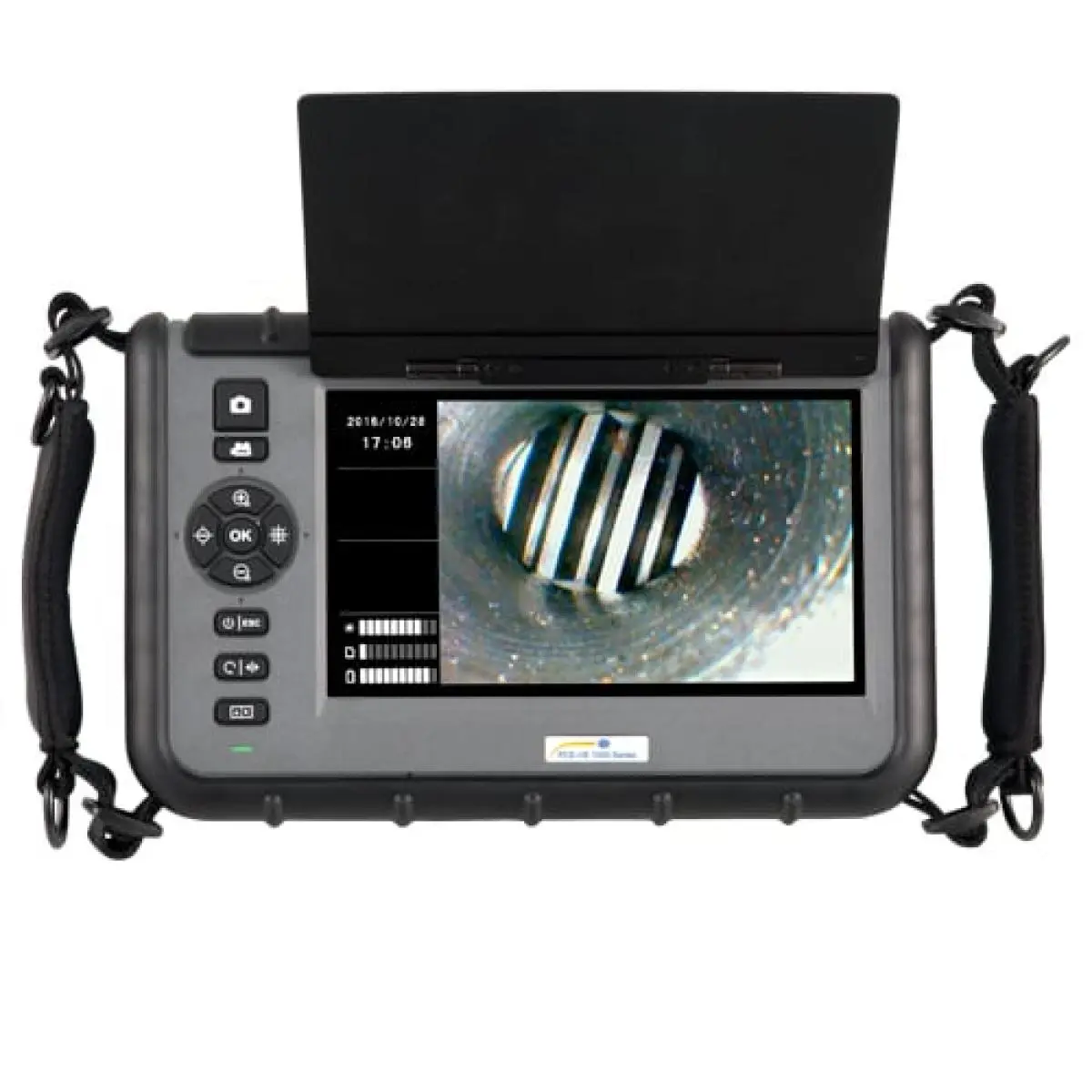

The NDT test instrument is a versatile inspection instrument. Various videoscope cables with different characteristics can be connected to the videoscope. A special advantage of the videoscope is the large display, which offers the user the best possible overview of the area to be viewed due to its dimensions and resolution. The videoscope allows the recording of images and videos, and the videos are additionally stored with an audio recording. The clear resolution becomes evident when you view the images which can be saved to the videoscope's SD card by a keystroke. When the SD card is read from the computer, the recorded images and videos are clearly displayed. Due to the fact that the recordings are stored on an external mass storage device, it is possible to select which SD card is inserted into the videoscope. The maximum capacity, however, should be 32 GB. An 8 GB memory card allows you to store more than 60000 images or more than 530 minutes of video material.

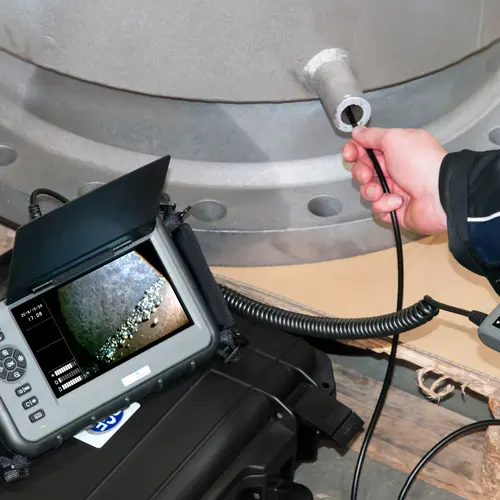

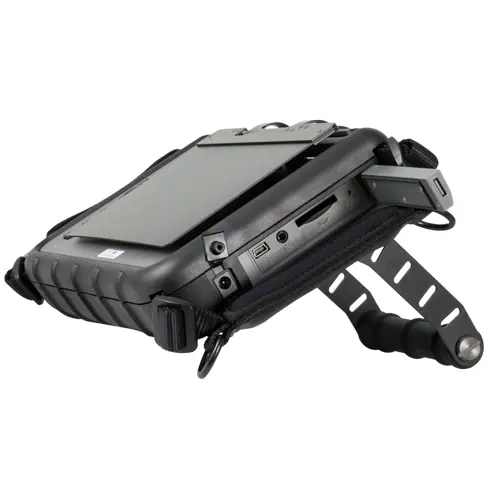

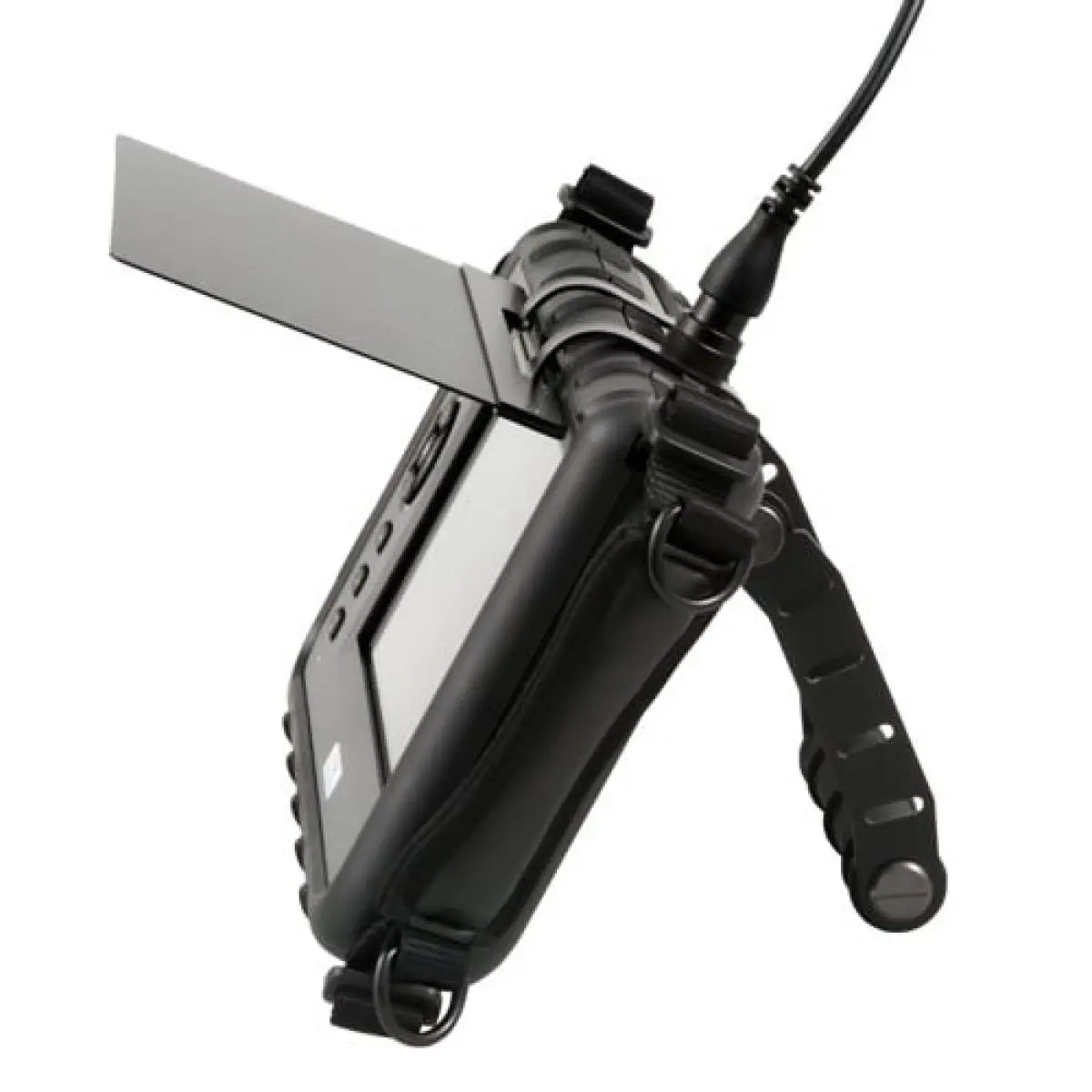

Especially in places that are difficult to access, the two-way optics is a great advantage of the NDT test instrument. However, if the control of the camera head is not sufficient and images on the display can not be shown satisfactorily, there is still the possibility to rotate the images on the display of the handset at a 90° angle. In addition to the image rotation, various other functions can also be set on the handset itself. For example, the videoscope allows a digital zoom as well as the setting of the LED brightness of the camera head. The videoscope has a thread at the back which allows the user to position the main unit on a tripod to carry out permanent recordings. The automatic switch-off function can be activated or deactivated in the menu by the videoscope. In addition, when the automatic switch-off is activated, different time intervals between 5 and 30 minutes can be selected. In addition to the tripod, the main unit can also be comfortably held by the padded shoulder straps.

Highlights

- 1.5 m / 4.9 ft videoscope cable with 2 way camera-head
- Camera head diameter: 4.5 mm / 0.18 in
- Storage of pictures and videos
- 8 GB memory card incl.
- LED lighting
- Robust carrying case incl.

Specification

Display

7" LCD (800 x 480)

Image resolution

640 x 480 JPEG

Video recording

640 x 480 MPEG (with sound recording)

Drop test

1 m / 3.3 ft

Power supply

Li-Ion rechargeable battery

Interface

USB

Image and video storage

on SD card (maximum 32 GB)

AV output

NTSC / PAL

Audio input

built-in microphone

Brightness adjustment

10-step adjustable on the main unit

Runtime per battery charge

5 hours

Battery charging time

3 hours

Charging temperature

10 ... 40°C / 50 ... 104°F

Operating temperature

0 ... 60°C / 32 ... 140°F

Storage temperature

0 ... 60°C / 32 ... 140°F

Protection class

IP57

Dimensions

240 x 154 x 47 mm / 9.4 x 6 x 1.9 n

Weight

1.3 kg / 2.9 lb



Cable length

1.5 m / 4.92 ft

2-way borescope cable 90°

Functions on the control unit of the cable

Lighting improvements
360° rotation in 90° increments
Change of lighting for mirror use
Camera head locking
Keylock

Lighting

5 white LEDs on camera head

Camera head length

ca. 13 mm / 0.5 in

Camera head material

stainless steel

Camera head diameter

4.5 mm / 0.18 in

Resolution

VGA (640 x 480)

Depth of field

10 ... 60 mm / 0.4 ... 2.4 in

Operating and storage temperature

-20 ... 60°C / -4 ... 140°F

Protecton class

IP67

Video output

NTSC

Viewing angle

135°

Control unit dimensions

228 x 35 x 53 mm / 9 x 1.4 x 2.1 in

Weight

ca. 400 g / < 1 lb

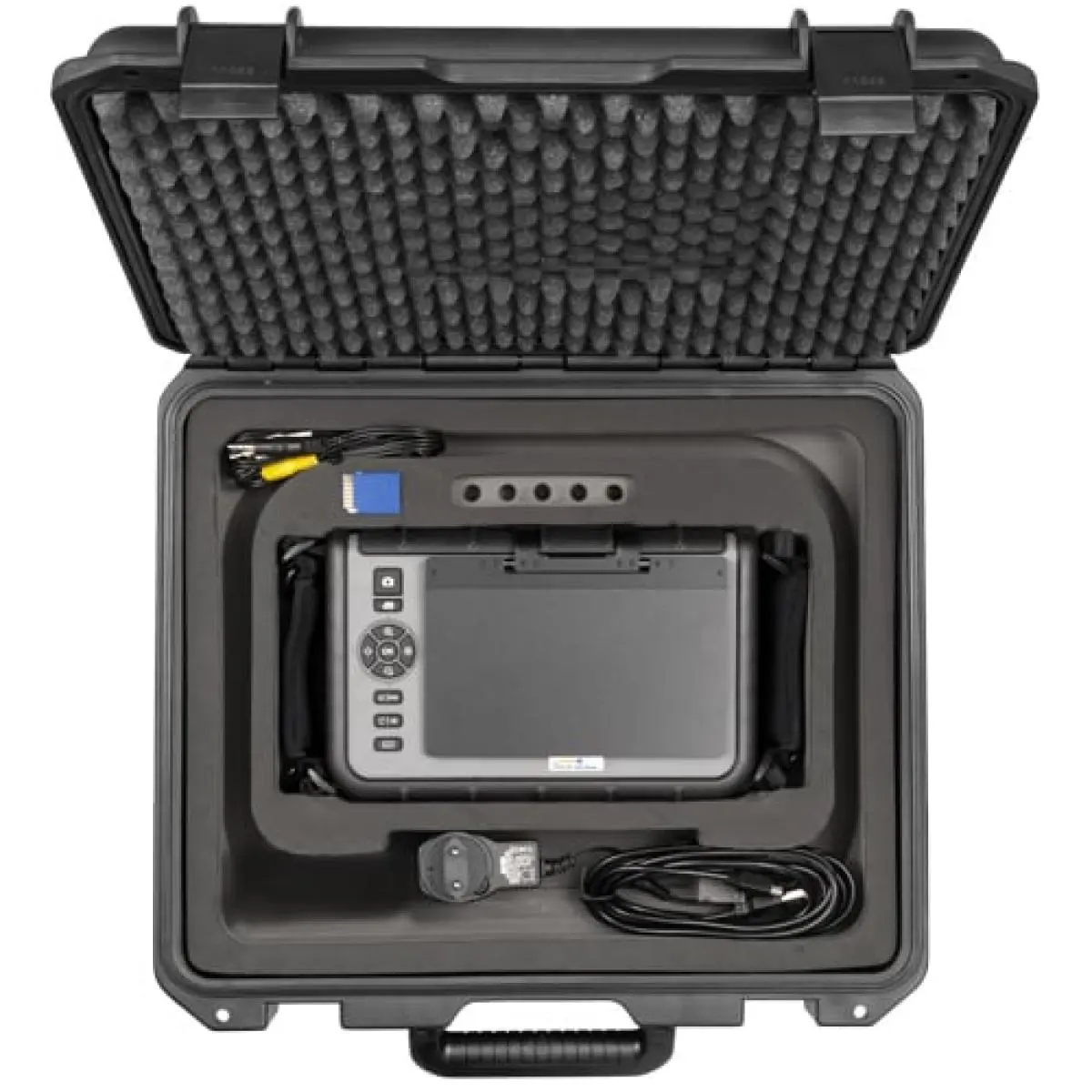

Delivery Scope

1 x NDT Test Instrument PCE-VE 1014N-F
1 x SD memory card (8 GB)
1 x Cleaning kit for camera head
1 x USB cable
1 x Power supply for monitor
1 x Video cable
1 x Robust plastic case


Please note: The
videoscope are not suitable for medical purposes!
