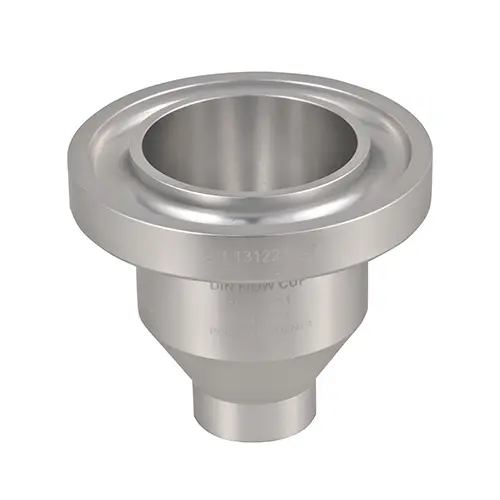

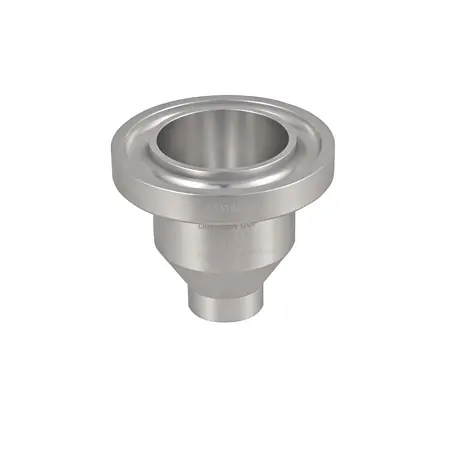

Paint Viscosity Tester PCE-127/4

Order no.: PCE-127/4
GTIN (EAN):
£ 193.00
£ 231.60
price ex. (VAT / delivery)
PCE-127/4
Delivery time: 1-2 working days
Handheld

Description

Paint Viscosity Tester for measuring viscosity / German standard DIN 53211 /

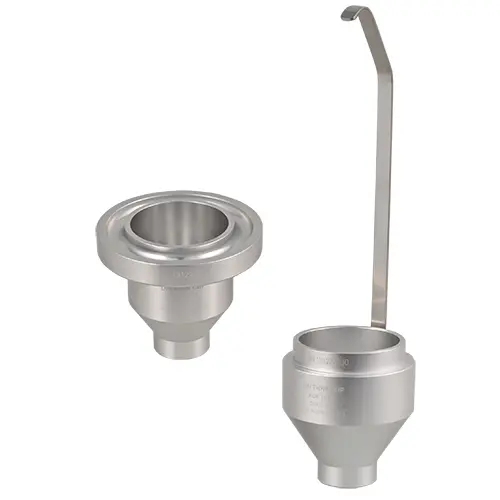

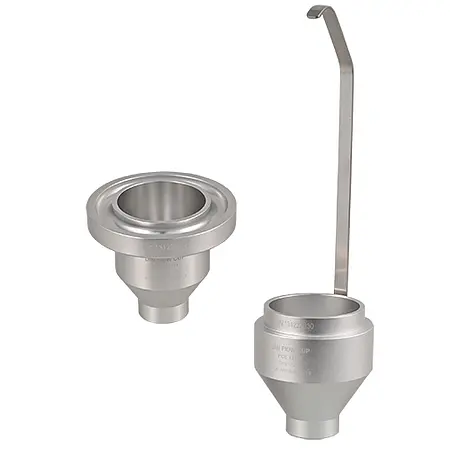

Cup made of anodized aluminum / Also available as immersion cup

Paint viscosity testers are viscosity meters to determine the viscosity of liquids. The flow cups are often used in industry and research laboratories. Due to the form of the measuring method, however, the determination is only carried out on low-viscosity liquids, since the liquid cannot run off through the nozzles if the viscosities are too high. Liquids with Newtonian behavior therefore give the most accurate results in the flow cup. The viscosity can be determined on the basis of the flow volume and the measured time that the liquid needs to run through the nozzle from the flow cup. The start time begins when the liquid emerges at the lower edge of the nozzle. It is stopped as soon as the liquid no longer flows evenly or the liquid breaks off. In addition, there are immersion cups that are suitable for quick measurements on site; these are only immersed in the material to be measured. As soon as you lift out the cup and the liquid comes out of the nozzle, you can start timing. After completion of the measurement, it is imperative that the flow cup is cleaned, as dried-on residues can falsify the next measurement result. It should also be ensured that no pointed or sharp tools are used for cleaning. Scratches and scrapes in the flow cup also affect the result.

Highlights

- Material anodized aluminum
- Factory calibration certificate included
- With overflow channel
- Meets international standards
- Stand available as optional accessory

Specification

Technical specifications
Capacity100 ml
Diameter nozzle4 mm ( ± 0.02 mm)
StandardDIN 53211
Flow time25 ... 150
Dynamic viscosity (mPA * s)96.2 ... 680
Materialcup: anodised aluminium
nozzle: stainless steel
Dimensions 127/4
Ø interior 50 mm
Ø exterior 85 mm
height 70 mm
Weightapprox. 200 g

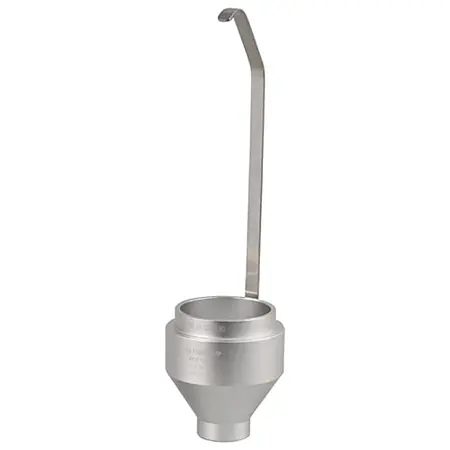

Dimensions 127/4P (immersion cup)  Ø interior 50 mm
Ø exterior 65 mm
height 78 mm
handle height 170 mm
Weightapprox. 215 g

Delivery Scope

1 x PCE-127/4 Paint Viscosity Tester

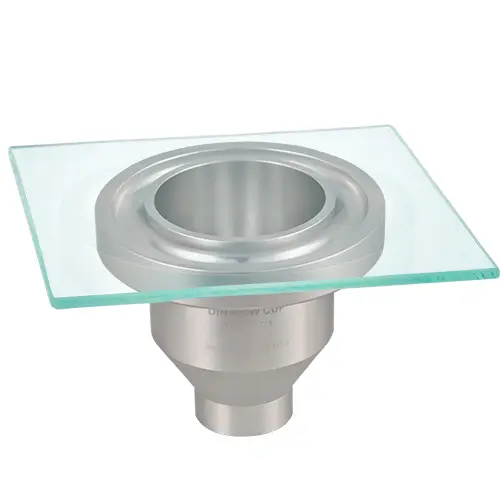

1 x Glass plate
1 x Factory certificate
1 x Instruction manual

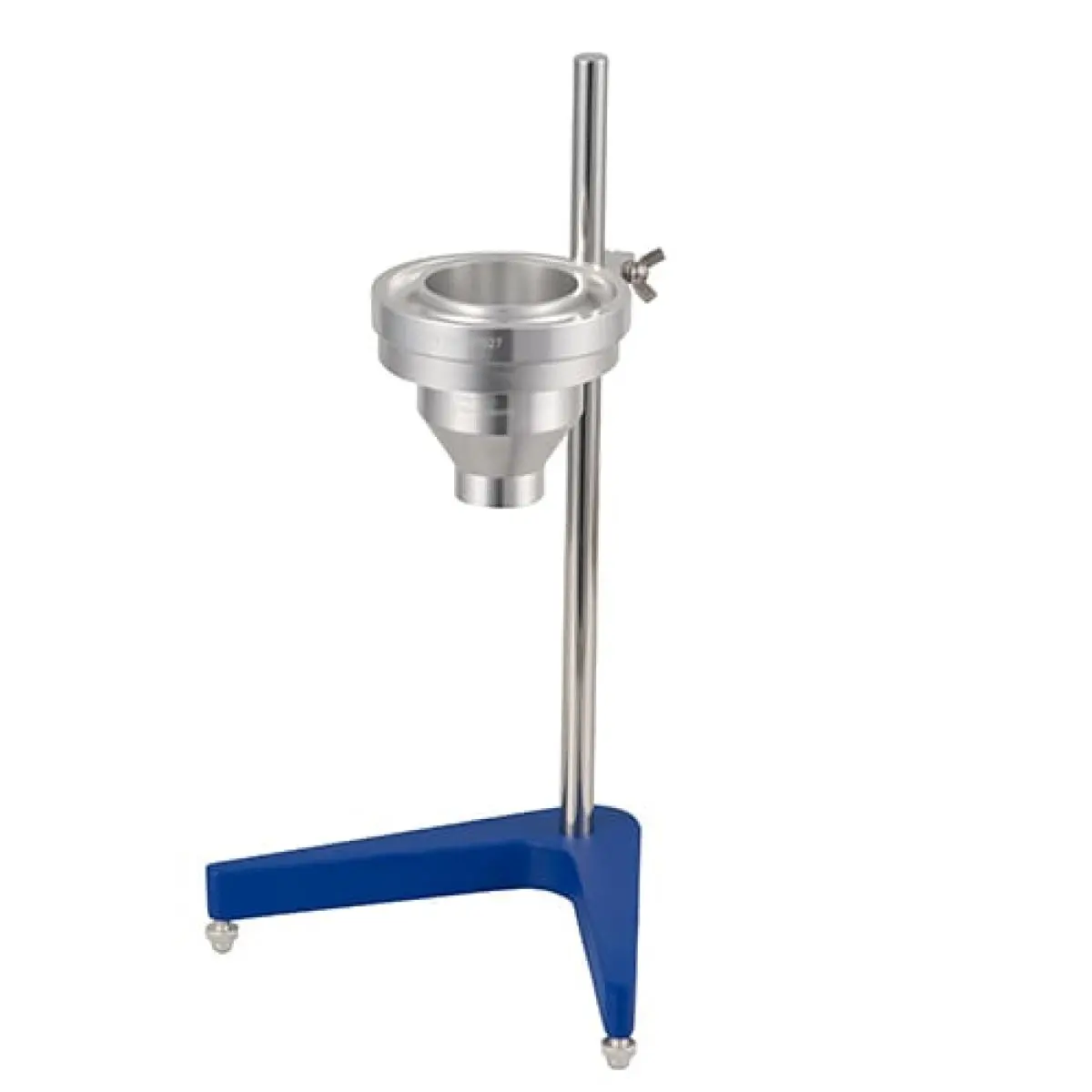

N.B. Test stand not included. It can be ordered as an optional accessory (Order ID: BDG 130)
