Photometer PCE-TUM 100

Order no.: PCE-TUM 100
GTIN (EAN): 4250348733078
£ 890.00
£ 1,068.00
price ex. (VAT / delivery)
:
4250348733078
PCE-TUM 100
Delivery time: 1-2 working days

Description

Photometer, colour display, measuring range up to 500 NTU,  scattered light measuring method 90°, mains operation, USB and printer interface

The precision of the photometer ensures accurate measurements in all relevant applications. With five factory-saved calibration points, the photometer offers a ready-to-use solution for different environments. In addition, the photometer  offers the option of customised opacity calibration. With up to five calibration points, the photometer can be flexibly adapted to specific requirements and measurement conditions.

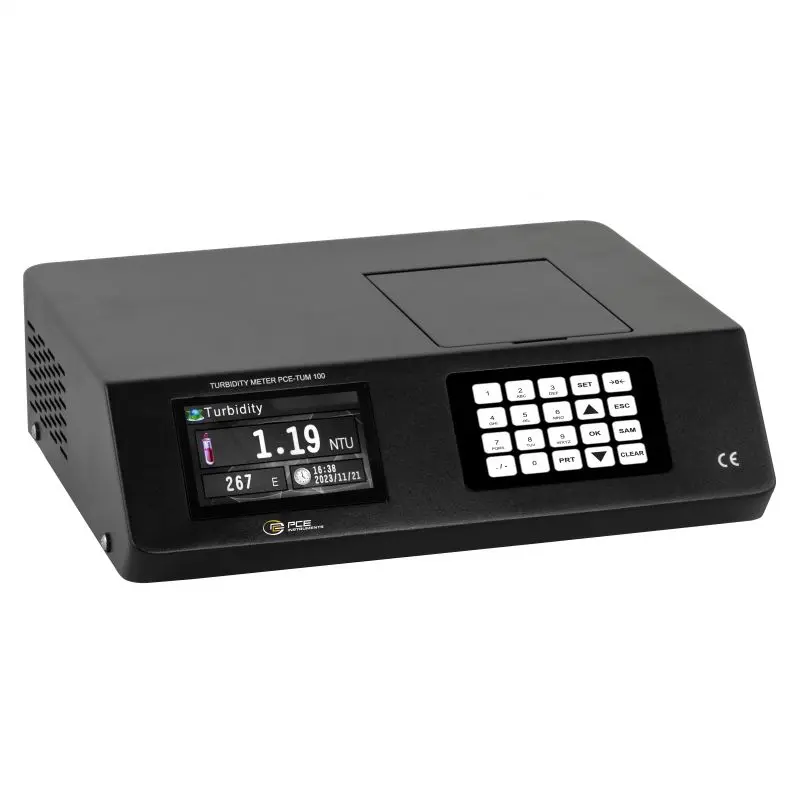

The photometerr's colour display presents the measurement results in a clear and easy-to-understand manner. This user-friendly interface simplifies operation considerably and also enables new users to utilise the photometer quickly and efficiently. The internal memory allows measurement data to be saved for later analysis or reporting.

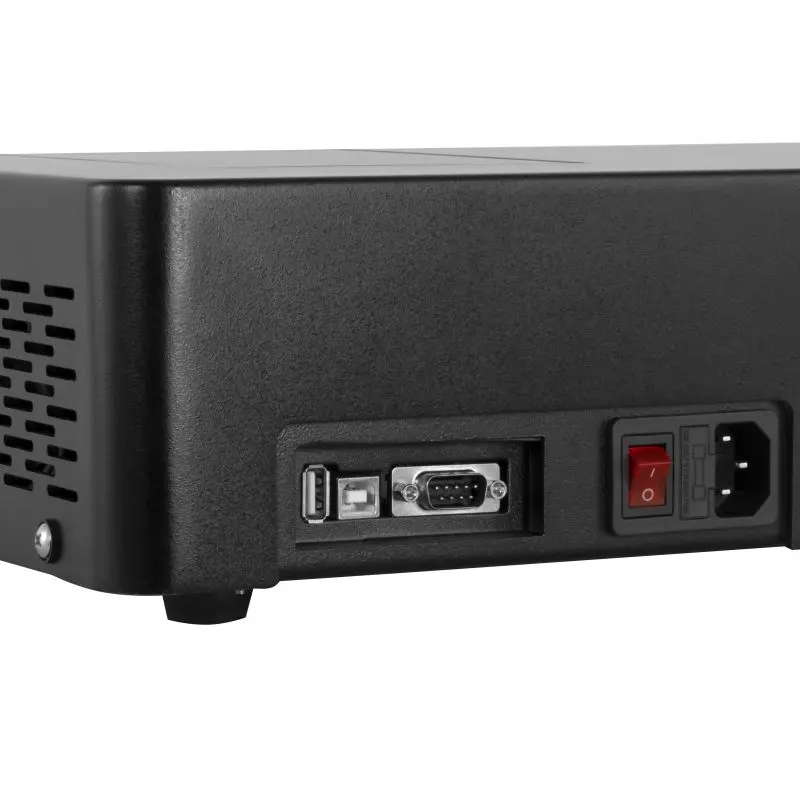

For seamless data management, the photometer is equipped with a USB interface for external data carriers. This makes it easy to save measurement results from the photometer to a USB stick. In addition, the RS232 printer interface on the photometer offers the option of printing measurement logs directly to ensure quick documentation of the results.

Overall, the photometer impresses with its precise measurements, simple operation and wide range of data storage and transfer options. It is the ideal solution for anyone who places the highest demands on turbidity measurements.

Highlights

- Precise measurement
- 5 stored calibration points
- Individual 5-point turbidity calibration possible
- Colour display
- Simple operation
- Internal memory
- USB-A interface for data carriers
- RS232 printer interface

Specification

Turbidity
Measurement range0 NTU ... +500 NTU
Resolution0.01
Accuracy±5 % FS

General technical data
Display typeLED
Display size4.2 inches
InterfaceRS232, USB A
Light sourceLED @ 850 nm
Number of calibration points5
Measurement method90 °
Menu languageEnglish
Protection class (device)IP20
Power supply110-220V, 50-60Hz
Plug typeCold plug
Weight3.68 kg
Dimensions (L x W x H)37 cm x 31 cm x 11.5 cm mm
Other dimensionsCuvette
Ø x height
25 x 65 mm
Operating conditions16 ... 35 °C , 45 ... 80 % RH
Storage conditions16 ... 35 °C , 45 ... 80 % r.H
Instruction languagesEnglish

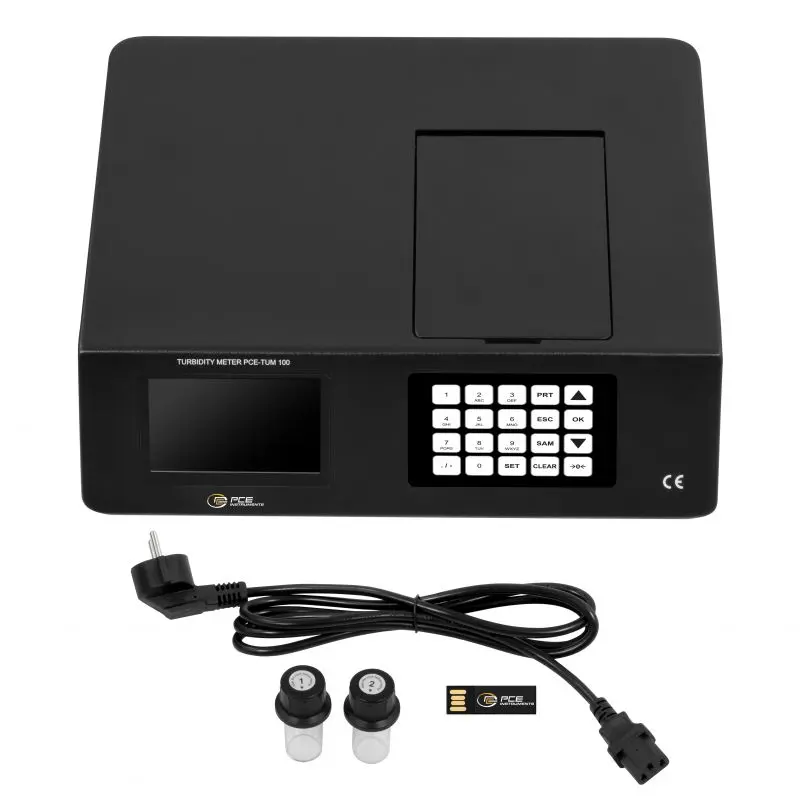

Delivery Scope

1 x Photometer PCE-TUM 100

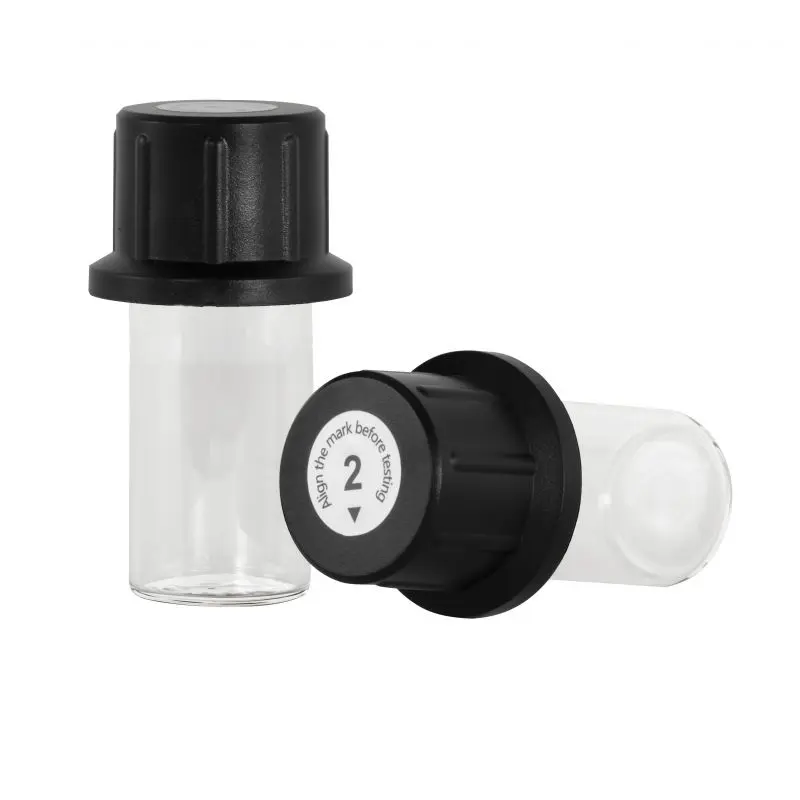

2 x cuvette
1 x power cable
1 x USB stick
1 x operating manual
