Photovoltaic Meter PCE-IT100

Order no.: PCE-IT100

GTIN (EAN): 4250348706720

Accessory

Calibration Certificate for Insulation Tester PCE-IT series

£ 117.00

Description

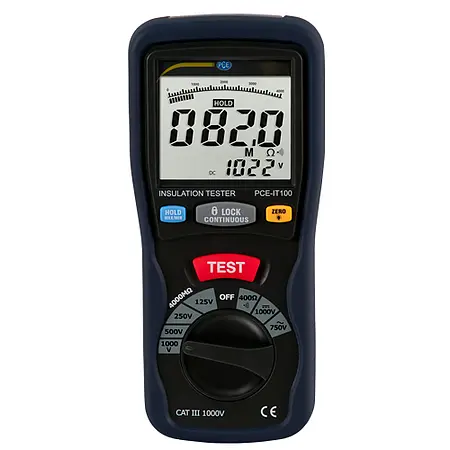

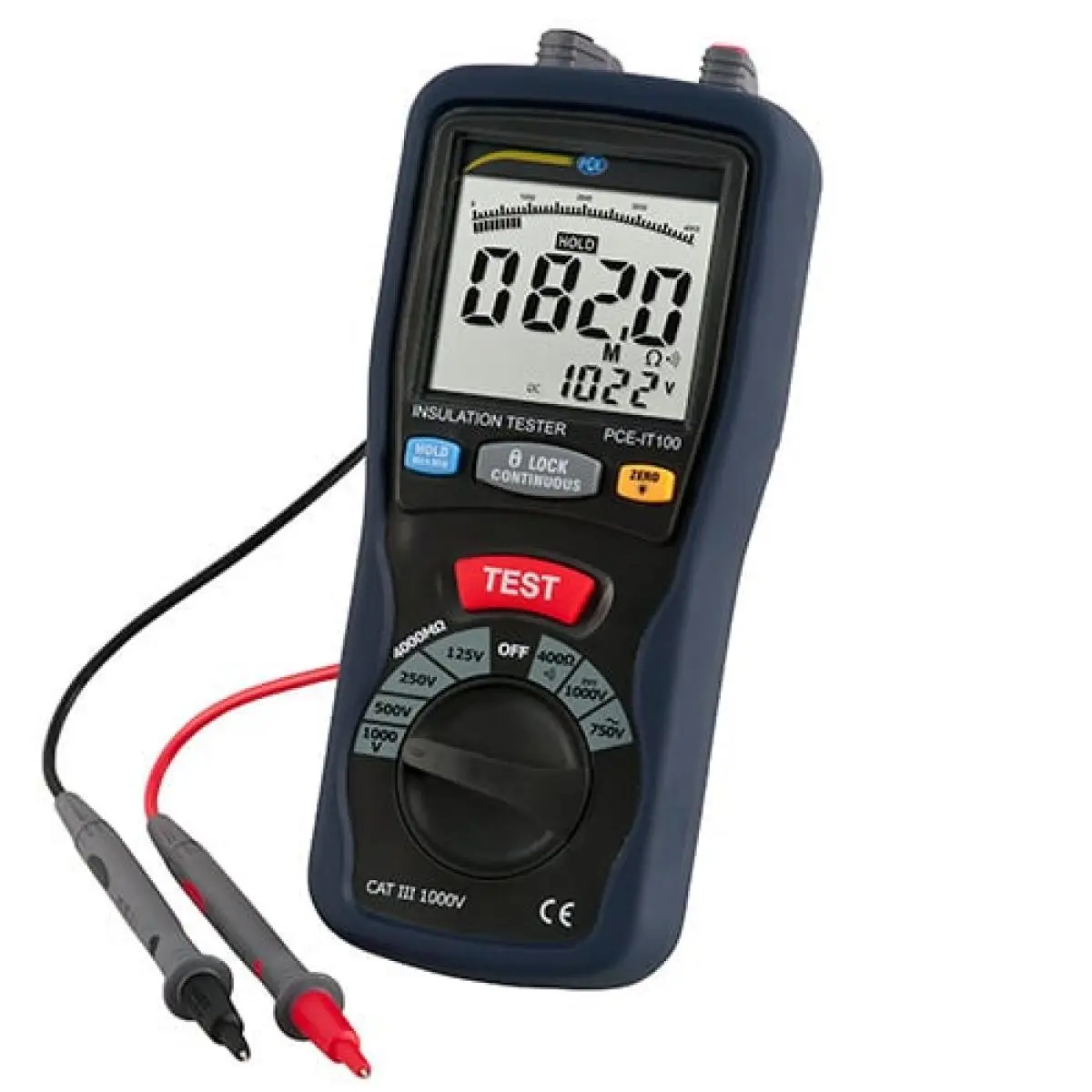

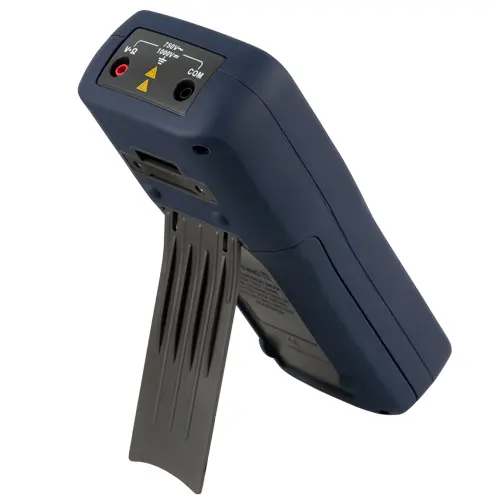

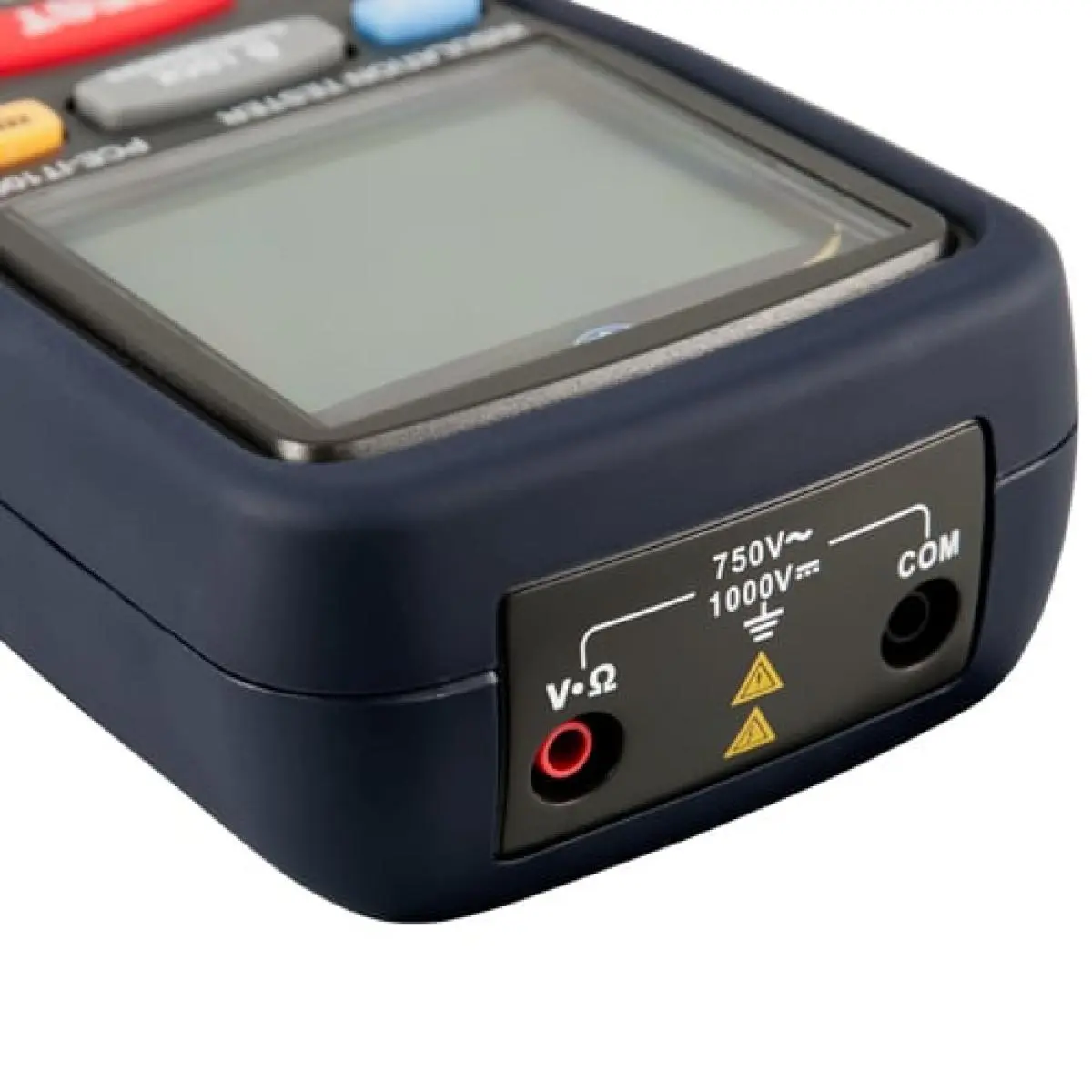

Photovoltaic Meter PCE-IT100
For insulation resistance up to 4000 MΩ / CAT III 1000V / Easy handling Single or continuous measurement / Max / Min-value function

The Photovoltaic Meter PCE-IT100 detects with auxiliary voltages of 125V, 250V, 500V and 1000V insulation resistors up to max. 4000 MΩ. Furthermore, the measurement of low-resistance resistors up to 400 Ω and a measurement function for alternating and also DC voltages is offered by this Photovoltaic Meter. A continuity tester with a beep is also part of the equipment of the Photovoltaic Meter. In addition to a data-hold function for holding the current measured value, the max. Or min. Value, in the Photovoltaic Meter, can also be recorded during voltage and low-ohm measurement.

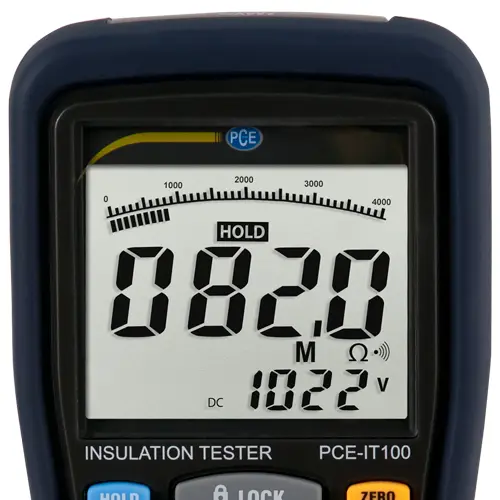

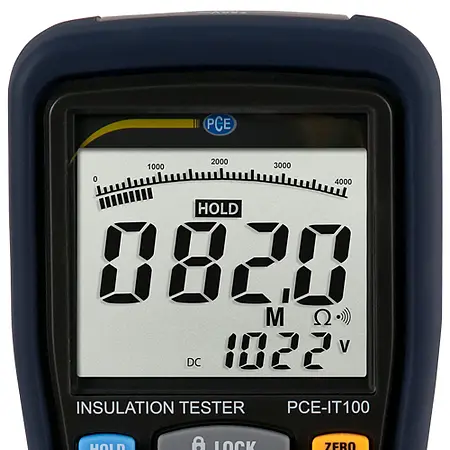

Thanks to the large numbers and the lighting, the display of the Photovoltaic Meter is easy to read even under difficult lighting conditions. The large buttons and the rotary knob for selecting the measuring functions allow easy operation of the PCE-IT 100 Photovoltaic Meter. The Photovoltaic Meter comes with a set of test leads with test probes, a test lead with crocodile clip and 6 batteries.

Observed limits for insulation measurement
- For new plants (dry rooms): 1000 ohms x volts of operating voltage (eg at 230 volts> 230 kOhms)
- For new installations (wet rooms, outdoors): 500 ohms x volts of operating voltage
- Earthed devices: 1000 ohms x volts of operating voltage
- Protected devices: 2 MOhm
- Power tools: 2 MOhm
- Protective extra-low voltage: 250 kOhm
- Electrical measuring devices: 5 MOhm
- Common test voltage values are 100 volts for low voltage and telecommunication systems, 500 volts for building installation and home appliances, 1000 volts for low voltage motors and transformers

Highlights

- Large measuring range
- 4 different test voltages up to 1 kV
- Auto power-off function
- Safety: EN 61010-1, CAT III 1000V
- Dual display with backlight
- Carrying case included
- Single measurement and continuous measurement
- An ISO calibration certificate is available as an option

Specification

Measuring range
AC voltage (40 ... 400 Hz)	750V
Resolution	1V
Accuracy	± 0.8% ± 3 dgt

DC voltage	1000V
Resolution	1V
Accuracy	± 1.2% ± 10 dgt

Resistance	40 Ω / 400 Ω
Resolution	0.01 Ω / 0.1 Ω
Accuracy	± 1.2% ± 3 dgt

Insulation resistance	4 MΩ / 40 MΩ / 400 MΩ / 4000 MΩ
Resolution	0.001 MΩ / 0.01 MΩ / 0.1 MΩ / 1 MΩ

Insulation resistance
125V	± (2% + 10 dgt) / ± (2% + 10 dgt) / ± (4% + 5 dgt) / ± (5% + 5 dgt)

250V	± (2% + 10 dgt) / ± (2% + 10 dgt) / ± (3% + 5 dgt) / ± (4% + 5 dgt)

500V	± (2% + 10 dgt) / ± (2% + 10 dgt) / ± (4% + 5 dgt) / ± (4% + 5 dgt)

1000V	± (3% + 10 dgt) / ± (2% + 10 dgt) / ± (2% + 5 dgt) / ± (4% + 5 dgt)

Continuity test	Beep: ≤ 35 Ω, test current ≤ 200-mA
Equipment supply	6 x 1.5V AA battery
Environmental conditions	0 ... 40°C / 32 ... 104°F, <80% RH (operation) -10 ... 60°C / 14 ... 140°F, <70% RH (bearing)
Dimensions	200 x 92 x 50 mm / 7.9 x 3.6 x 2 in
Weight	700 g / 1.5 lbs (with battery)
Standardizations	IEC10101, CAT III 1000V

Delivery Scope

1 x Photovoltaic Meter PCE-IT100

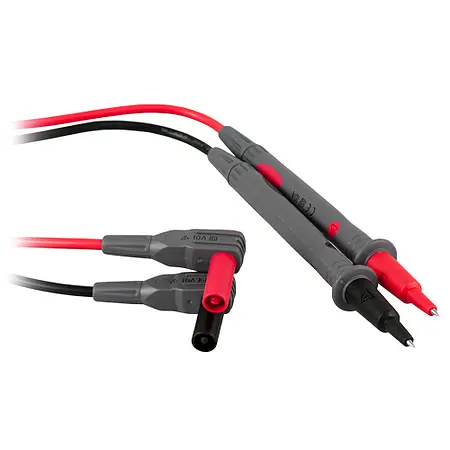

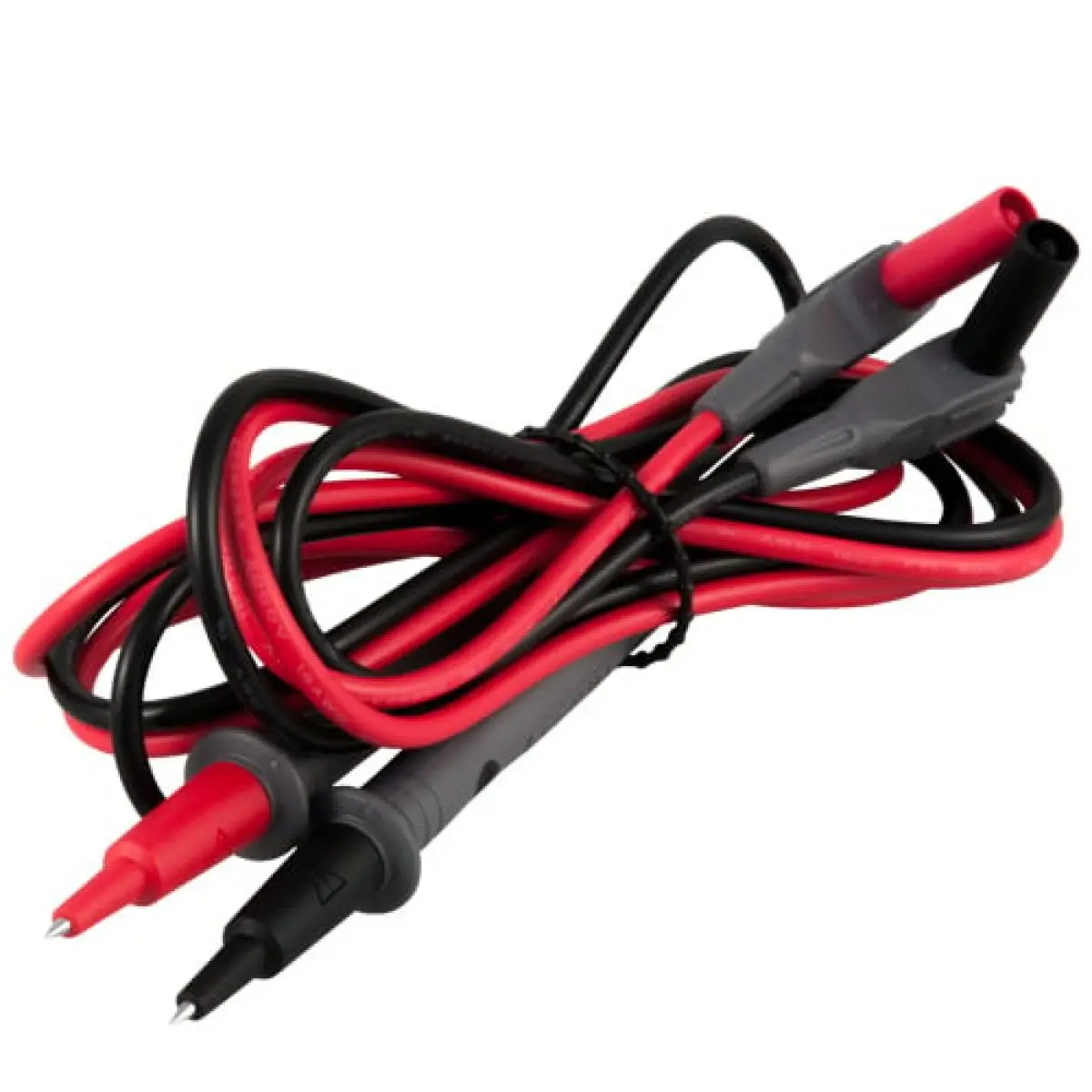

1 x Set of test leads

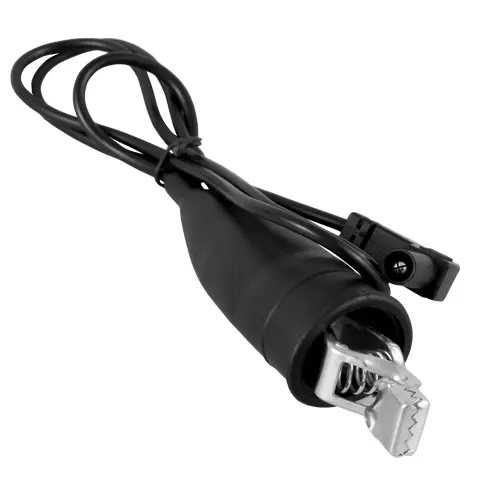

1 x Crocodile clip to 1 m / 3.3 ft cable
6 x 1.5V AA battery

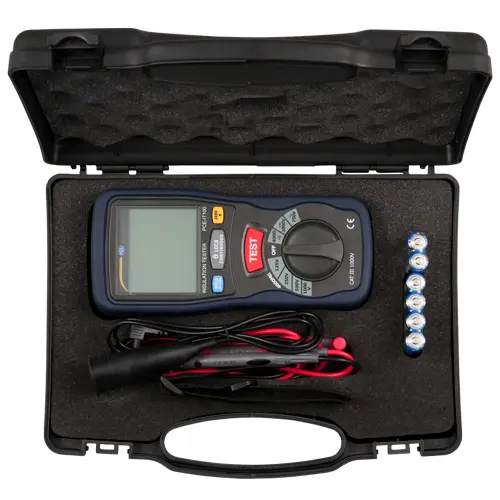

1 x Carrying strap
1 x User manual
1 x Carrying case
